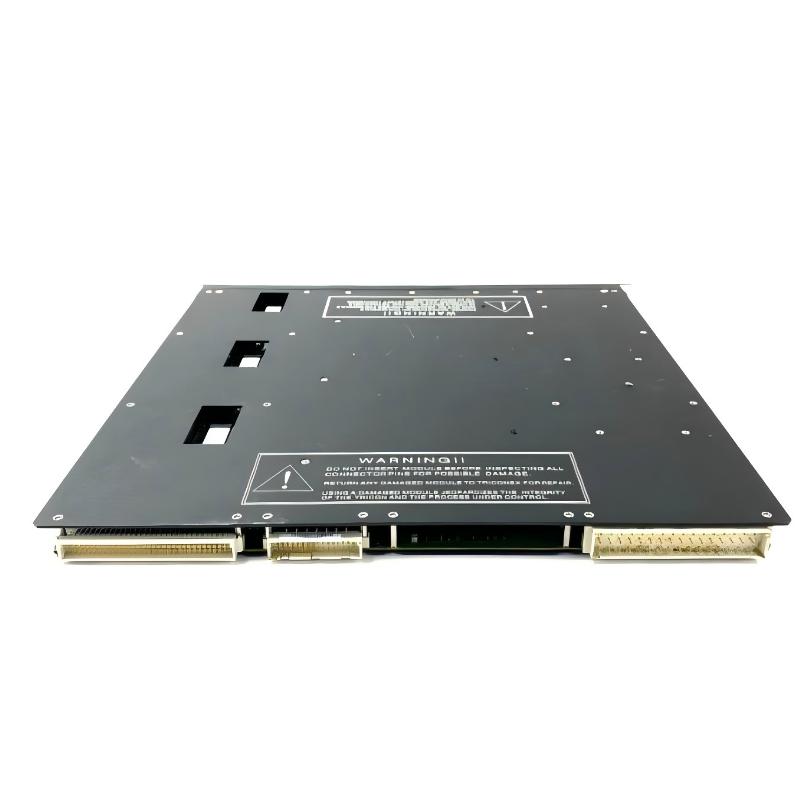

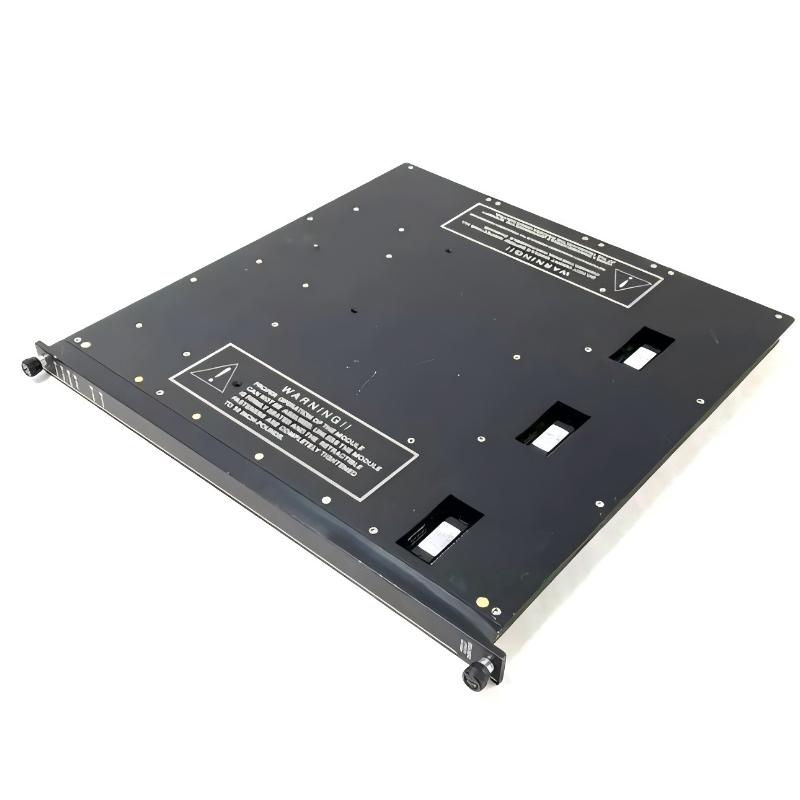

Name: Invensys Triconex 3805E/H Analog Output Module
Brand: Invensys Triconex
SKU: 202
Availability: InStock
Rating: 5.0 (1 reviews)

Product Overview

The Triconex 3805E/H Analog Output Module ensures precise, reliable control for critical industrial applications. Engineered for redundancy and safety, it provides seamless integration with Triconex systems, giving operators confidence in high-stakes environments. Whether controlling actuators, valves, or other analog devices, this module delivers stability, accuracy, and peace of mind.

Technical Specifications

Parameter	Specification
Model	Triconex 3805E/H
Channels	8 Analog Outputs
Output Type	4–20 mA, 0–10 V
Resolution	16-bit DAC
Accuracy	±0.1% of full scale
Response Time	<10 ms
Redundancy	TMR compatible
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Dimensions	490 x 490 x 68 mm
Weight	2.27 kg
Power Consumption	6 W typical

Recommended Related Models

Triconex 3721 Analog Input Module
Triconex 3741 Analog Output Module
Triconex 3710 Safety Processor Module

Popular Related Models

Triconex 3805E High-Density Analog Output Module
Triconex 3742 Analog Output Redundant Module
Triconex 3712 Digital Output Module

Applications

The Invensys Triconex 3805E/H Analog Output Module is designed to deliver precise analog signals to actuators, valves, and other field devices within Triconex safety and automation systems.
It is widely deployed in industries such as oil & gas, chemical, power generation, and petrochemical facilities. The module ensures accurate control and monitoring, supporting safe and reliable operation in mission-critical automation environments.

Advantages

High-Precision Output: Provides accurate analog signals for precise field device control.
Industrial-Grade Reliability: Built to withstand vibration, temperature extremes, and electromagnetic interference.
Seamless Integration: Fully compatible with Triconex controllers and standard modules for flexible deployment.
Redundant System Support: Works reliably in redundant configurations to maintain continuous operation.
Maintenance Friendly: Modular design allows straightforward installation, inspection, and replacement.

Technical FAQs

What is the primary function of the 3805E/H Analog Output Module?
To provide accurate analog output signals to field devices in Triconex systems.
Is it compatible with all Triconex controllers and I/O modules?
Yes, designed for standard Triconex safety and automation systems.
Can it operate in harsh industrial environments?
Yes, engineered to tolerate vibration, EMI, and temperature variations.
Does it support redundant system configurations?
Yes, fully compatible with Triconex redundant architectures.
Are diagnostics included?
Yes, LED indicators provide feedback on module operation and output health.
Is installation straightforward?
Yes, modular design simplifies placement into racks or cabinets.
Which industries commonly use this module?
Oil & gas, chemical, power generation, and petrochemical facilities.
Does it provide precise control for field devices?
Yes, engineered for high-accuracy analog output.
Does it include protection mechanisms?
Yes, safeguards prevent overcurrent and electrical faults.
Does it require special configuration software?
Standard Triconex engineering and monitoring tools are used for setup and diagnostics.
