Brand:Siemens Item No.:6AG1193-6BP00-7DA0 Product Origin:Germany Product Dimensions:15 × 117 × 35 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

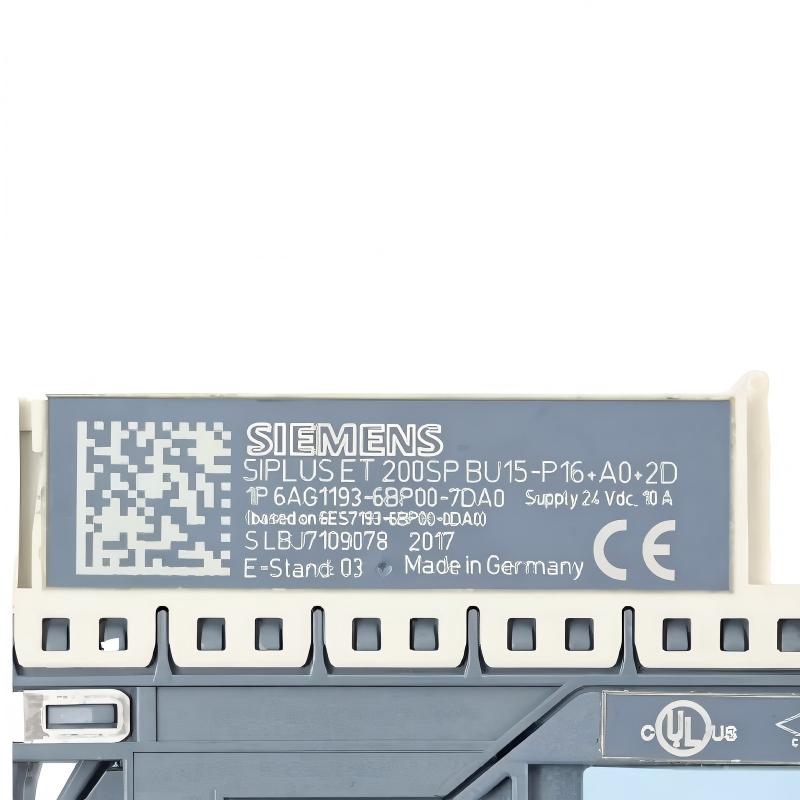

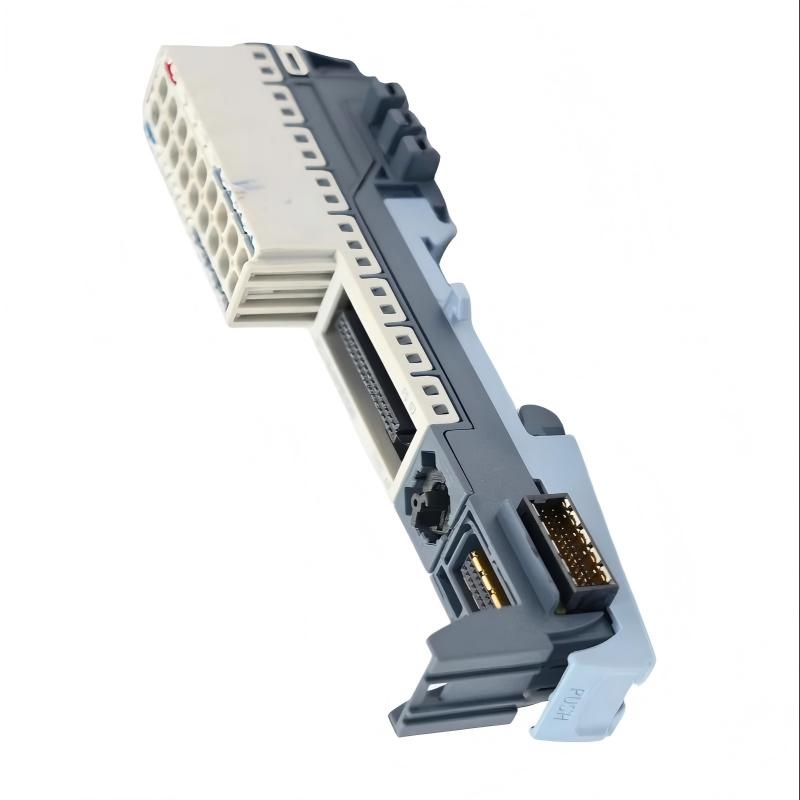

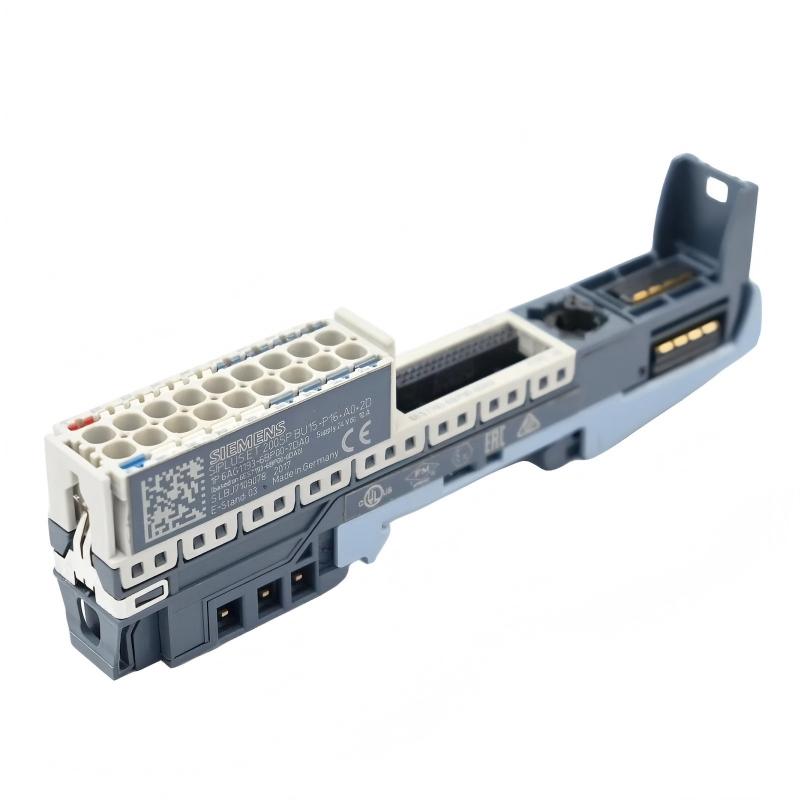

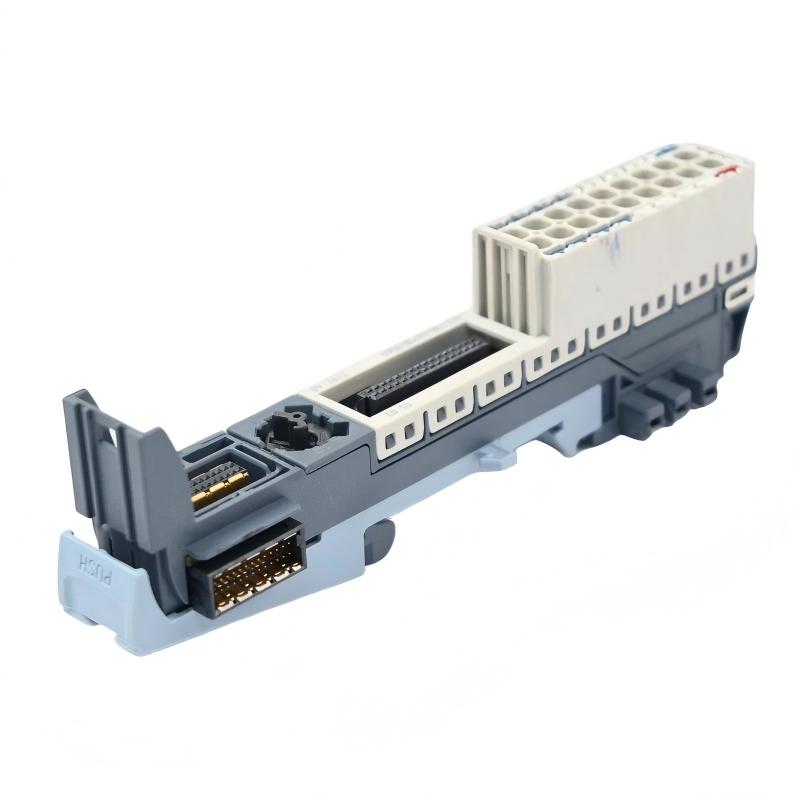

The Siemens 6AG1193-6BP00-7DA0 Basic Unit is a compact component designed for modular industrial automation installations. It provides the structural foundation needed to integrate compatible automation modules into a complete system.
The unit measures 15 × 117 × 35 mm and weighs only 0.04 kg (0.09 lb). Its narrow profile is particularly useful for control cabinets and machine enclosures where installation density is an important consideration.
For maintenance, replacement, or system expansion, the complete Siemens order number should be checked carefully. Components with similar physical dimensions may have different interfaces or system functions, so compatibility should be confirmed before installation.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1193-6BP00-7DA0
Product Type
Basic Unit
Product Family
Siemens Modular Automation
Dimensions
15 × 117 × 35 mm
Weight
0.04 kg (0.09 lb)
Installation
Modular Automation System
Application
Industrial Automation
Design
Compact Modular Component
Dimensions: 15 × 117 × 35 mm Weight: 0.04 kg (0.09 lb)
The compact 15 mm width can help optimize cabinet space in modular automation installations. Adequate room should still be provided for connected modules, wiring, ventilation, and maintenance access.
Recommended Related Models
Model
Product Type
Typical Application
6AG1193-6BP00-7BA1
Basic Unit
Modular Automation
6AG1193-6BP00-7BD0
Basic Unit
Modular Automation
6AG1193-6BP00-7BU0
Basic Unit
Modular Automation
6AG1193-6BP00-7DA0
Basic Unit
Modular Automation
6AG1193-6BP00-0AA0
Basic Unit
Modular System
When selecting a replacement or related component, compare the complete order number and the requirements of the existing modular system.
Popular Related Models
Model
Product Type
Application
6AG1193-6BP00-7DA0
Basic Unit
Modular Automation
6AG1193-6BP00-7BU0
Basic Unit
Modular Automation
6AG1193-6BP00-7BD0
Basic Unit
Modular Automation
6AG1193-6BP00-7BA1
Basic Unit
Modular Automation
Siemens ET 200SP Basic Units
Basic Unit
Distributed I/O
The Siemens 6AG1193-6BP00-7DA0 Basic Unit is a lightweight, space-efficient component for compatible modular automation systems. With dimensions of 15 × 117 × 35 mm and a weight of 0.04 kg (0.09 lb), it is well suited to compact industrial control-panel layouts.
Applications
The Siemens 6AG1193-6BP00-7DA0 is a compact Basic Unit intended for use in modular industrial automation systems. Its narrow 15 mm profile makes it suitable for applications where control-panel space is limited and automation components need to be arranged efficiently.
Typical applications include:
Distributed I/O systems
Factory automation
Machine control systems
Industrial control cabinets
Production and assembly equipment
Process automation
Modular automation installations
Control-system expansion projects
Maintenance and replacement applications
The Basic Unit is used as part of a compatible modular automation architecture. The associated modules and complete system configuration should be verified before installation.
Advantages
Space-saving design
With a width of only 15 mm, the 6AG1193-6BP00-7DA0 is suitable for dense control-panel layouts and installations with limited available space.
Very low weight
The unit weighs just 0.04 kg (0.09 lb), minimizing the additional mechanical load within a modular automation assembly.
Modular system integration
The Basic Unit provides a foundation for integrating compatible automation modules into an organized modular system.
Efficient cabinet utilization
Its compact dimensions allow automation hardware to be arranged efficiently while leaving more room for wiring and other control components.
Useful for replacement projects
The component can be considered for maintenance and replacement applications when the exact Siemens order number and system compatibility have been confirmed.
Technical FAQs
1. What is the Siemens 6AG1193-6BP00-7DA0?
It is a Siemens Basic Unit designed for integration into a compatible modular industrial automation system.
2. What is the purpose of a Basic Unit?
A Basic Unit provides the mechanical and system foundation required to integrate compatible modules within a modular automation architecture.
3. Is the 6AG1193-6BP00-7DA0 a PLC CPU?
No. It is a Basic Unit and is not a standalone PLC CPU or programmable controller.
4. Where is this type of Basic Unit typically used?
It can be used in suitable modular automation installations, including distributed I/O, machine automation, and industrial control systems.
5. Why is module compatibility important?
Automation modules can have specific mechanical, electrical, and system requirements. The Basic Unit must therefore be matched with the appropriate modules.
6. Can this Basic Unit be used for system expansion?
It can be used in expansion projects when the additional components are compatible with the Basic Unit and the existing automation architecture.
7. What should be checked before ordering a replacement?
Verify the complete Siemens order number, module configuration, mounting requirements, electrical interfaces, and system compatibility.
8. Can another Basic Unit with similar dimensions be used as a substitute?
Not automatically. Similar dimensions do not necessarily mean that two Basic Units have the same system function or compatibility.
9. What can cause problems after installation?
Incorrect module selection, improper mounting, wiring errors, incompatible components, or incorrect system configuration can cause system-level faults.
10. What should be verified during commissioning?
Check the physical assembly, module connections, wiring, system configuration, and operation of the connected automation modules before normal production operation.
