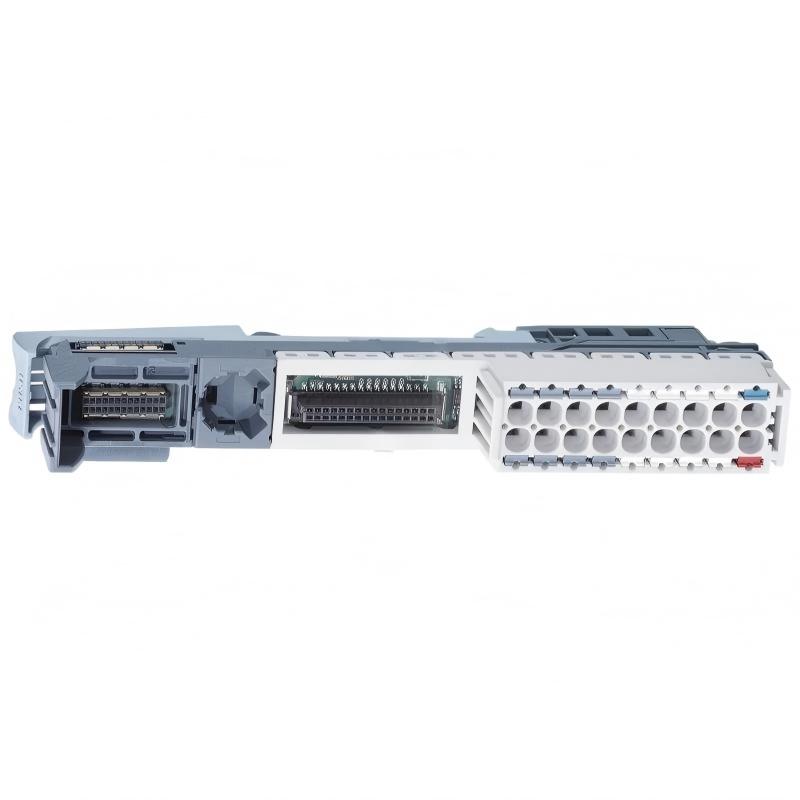

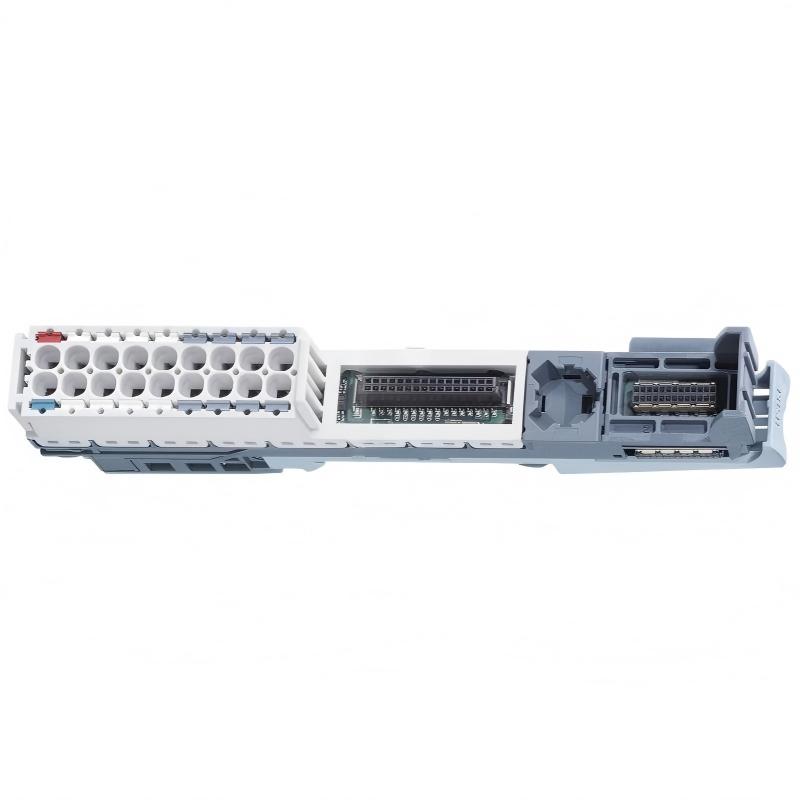

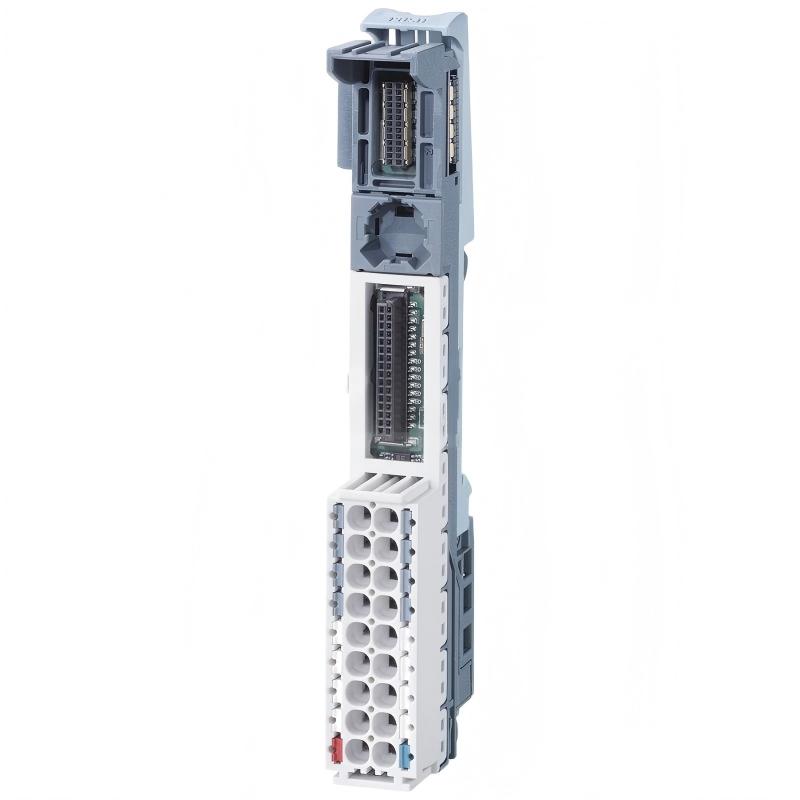

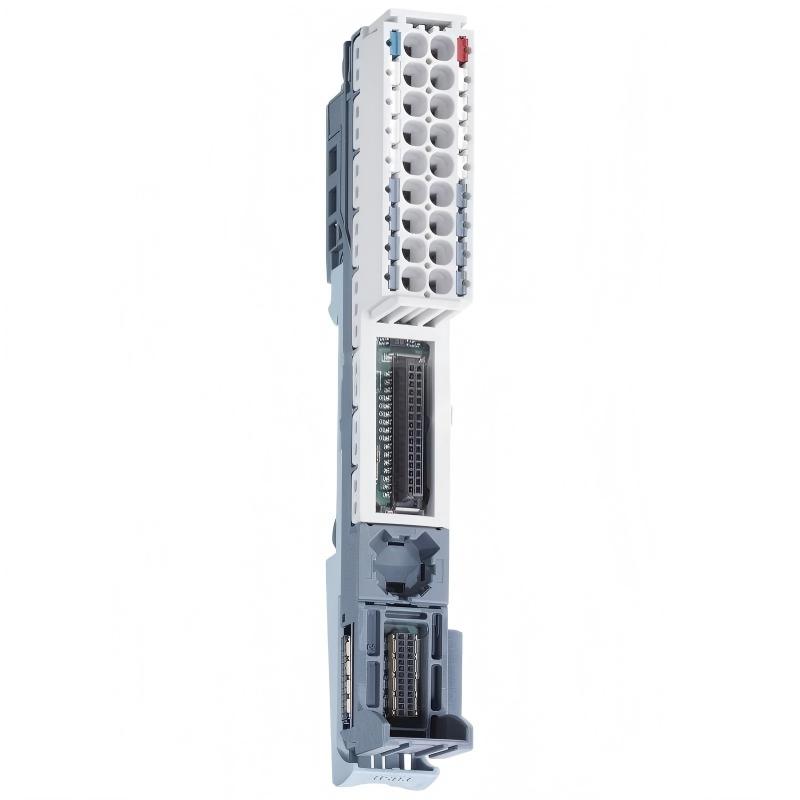

Siemens 6AG1193-6BP00-7DA1 Basic Unit

Applications

The Siemens 6AG1193-6BP00-7DA1 is a compact Basic Unit intended for modular industrial automation installations. Its narrow 15 mm profile makes it suitable for control cabinets and machine enclosures where installation space needs to be used efficiently.

Typical applications include:

• Distributed I/O systems
• Factory automation
• Machine control
• Industrial control cabinets
• Production and assembly machinery
• Process automation
• Modular automation systems
• Control-system expansion
• Automation equipment replacement projects

The Basic Unit should be installed as part of a compatible Siemens modular system, with the associated modules and system configuration verified before commissioning.

Advantages

Compact 15 mm profile
The narrow width helps reduce the installation space required for modular automation hardware and supports high-density cabinet designs.

Lightweight construction
With a weight of only 0.04 kg (0.09 lb), the unit adds minimal weight to the overall automation assembly.

Modular integration
The Basic Unit provides a suitable foundation for integrating compatible modules within a structured automation architecture.

Efficient cabinet utilization
Its compact form factor allows engineers to make better use of limited control-panel space.

Practical for maintenance and replacement
The 6AG1193-6BP00-7DA1 can be considered for replacement or expansion work when the complete order number and system compatibility have been confirmed.

Technical FAQs

1. What is the Siemens 6AG1193-6BP00-7DA1?
It is a Siemens Basic Unit designed for use within a compatible modular industrial automation system.

2. What does a Basic Unit do?
A Basic Unit provides the physical and system foundation for integrating compatible modules into a modular automation configuration.

3. Is the 6AG1193-6BP00-7DA1 a PLC CPU?
No. It is a Basic Unit and is not a standalone PLC CPU or programmable controller.

4. What applications are suitable for this component?
It is intended for compatible modular automation applications, including distributed I/O, machine control, factory automation, and industrial control systems.

5. Why does module compatibility matter?
Different automation modules can use specific mechanical and electrical interfaces. The Basic Unit must therefore be matched with compatible components.

6. Can it be used in an automation expansion project?
It can be used where the Basic Unit and the additional modules are supported by the same modular automation architecture.

7. What should be checked before ordering this unit?
Verify the complete Siemens order number, existing module configuration, mounting arrangement, system requirements, and compatibility with the intended application.

8. Can another Basic Unit with the same dimensions replace it?
Not necessarily. Matching dimensions alone do not establish functional or system compatibility.

9. What are common causes of problems after installation?
Incorrect module selection, improper mounting, wiring errors, incompatible components, and incorrect system configuration can cause system faults.

10. What should be checked during commissioning?
Verify the physical assembly, module connections, wiring, system configuration, and operation of the connected automation components before normal production.
