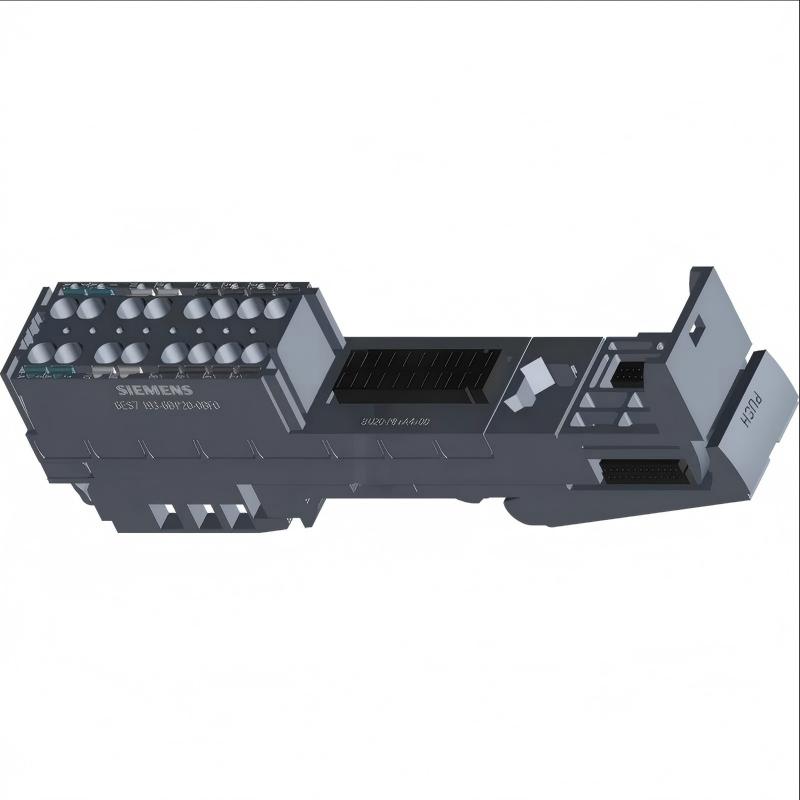

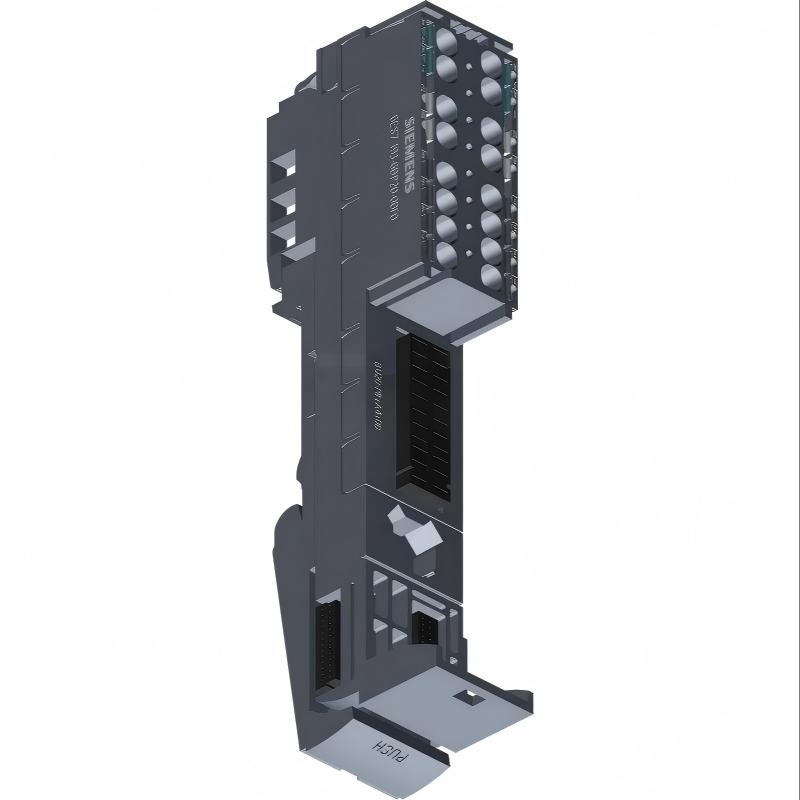

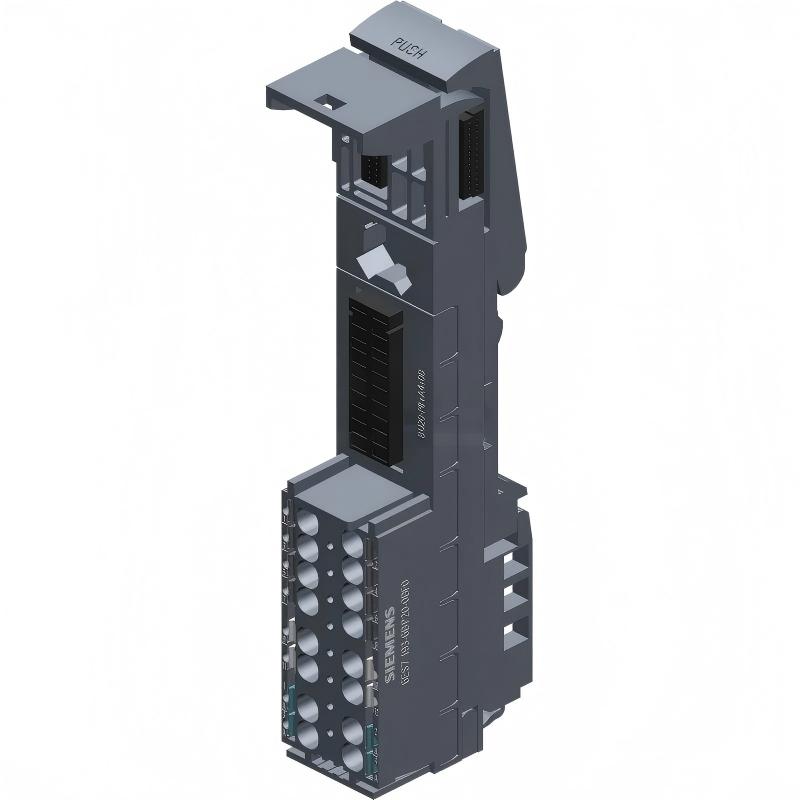

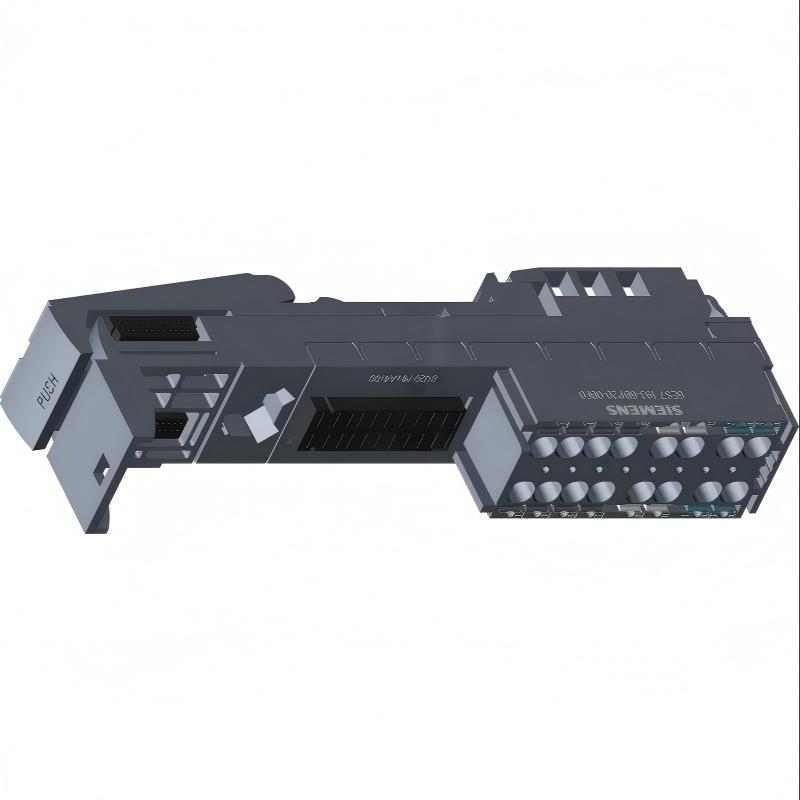

Siemens 6AG1193-6BP20-2BF0 Basic Unit

Applications

The Siemens 6AG1193-6BP20-2BF0 is a compact Basic Unit designed for modular industrial automation installations. Its 20 mm width and lightweight construction make it suitable for control cabinets and machine enclosures where efficient use of installation space is important.

Typical applications include:

• Distributed I/O systems
• Factory automation
• Machine control equipment
• Industrial control cabinets
• Production and assembly machinery
• Process automation
• Modular automation systems
• Control-system expansion projects
• Maintenance and replacement applications

The Basic Unit is intended to work as part of a compatible Siemens modular automation configuration. The complete module arrangement and system compatibility should be verified before installation.

Advantages

Compact 20 mm profile
The narrow design helps conserve control-panel space and supports dense modular automation layouts.

Lightweight construction
The unit weighs only 0.048 kg (0.11 lb), adding very little weight to the overall automation assembly.

Modular integration
The Basic Unit provides a practical foundation for integrating compatible automation modules within a structured system.

Efficient cabinet utilization
Its compact dimensions are useful for machine builders and system integrators working with restricted installation space.

Suitable for replacement projects
The 6AG1193-6BP20-2BF0 can be considered for maintenance or replacement applications when its complete order number and system compatibility are confirmed.

Technical FAQs

1. What is the Siemens 6AG1193-6BP20-2BF0?
It is a Siemens Basic Unit intended for use within a compatible modular industrial automation system.

2. What is the function of a Basic Unit?
A Basic Unit provides the physical foundation for integrating compatible modules into a modular automation configuration.

3. Is this product a PLC CPU?
No. The 6AG1193-6BP20-2BF0 is a Basic Unit, not a standalone PLC CPU or programmable controller.

4. What applications are suitable for this Basic Unit?
It is suitable for compatible modular automation installations such as distributed I/O, machine automation, factory automation, and industrial control systems.

5. Why should module compatibility be verified?
Modular automation components can have specific mechanical, electrical, and system-level requirements. Correct compatibility is essential for reliable operation.

6. Can it be used in an existing automation system?
It can be used when the Basic Unit is compatible with the existing system architecture and the modules intended for installation.

7. What should be checked before procurement?
Verify the complete Siemens order number, module arrangement, mounting requirements, electrical interfaces, and system compatibility.

8. Can another 20 mm Basic Unit be used as a replacement?
Not necessarily. Identical or similar dimensions do not guarantee the same function or system compatibility.

9. What can cause faults after installation?
Incorrect module selection, improper mounting, wiring problems, incompatible components, or incorrect system configuration can result in system-level faults.

10. What should be checked during commissioning?
Verify the mechanical assembly, module connections, wiring, configuration, and operation of the complete automation system before production use.
