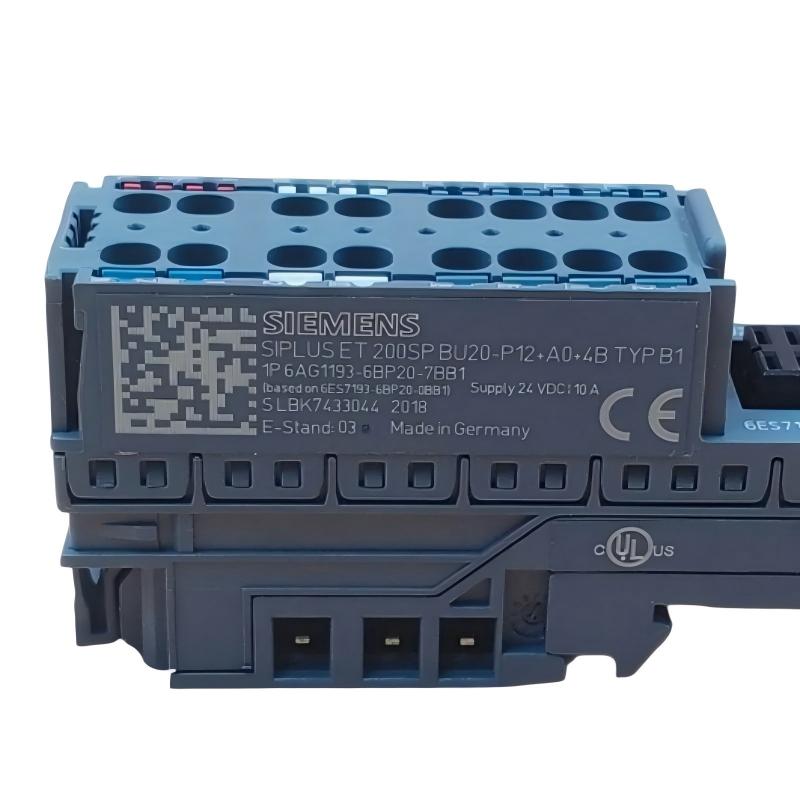

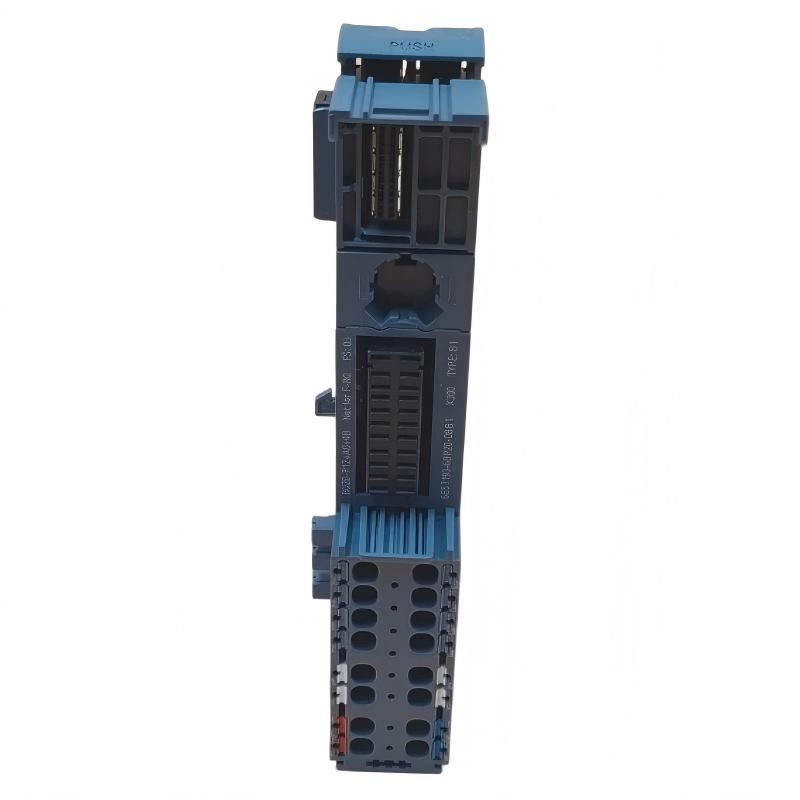

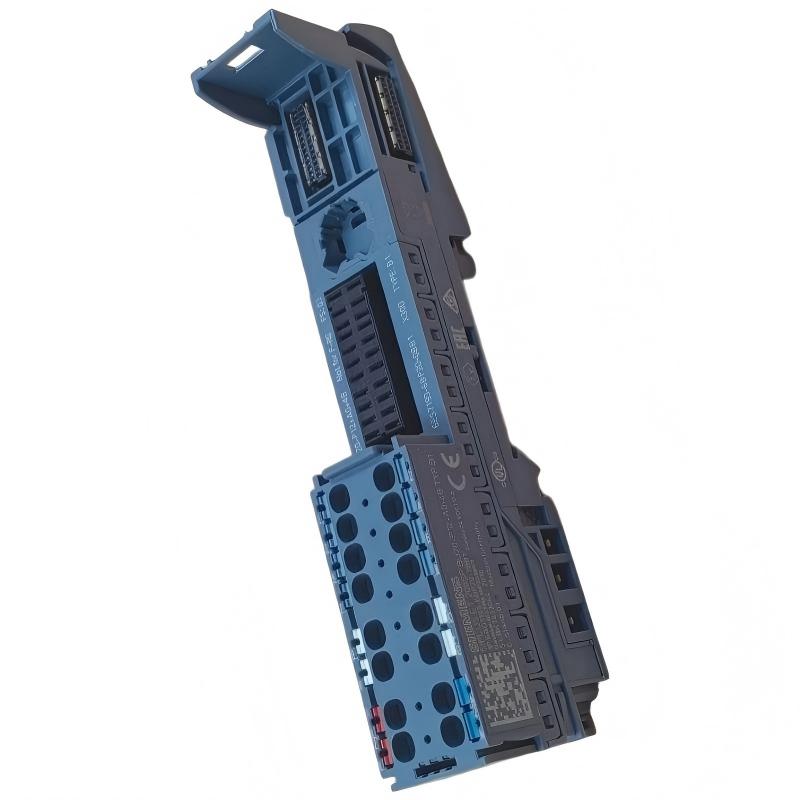

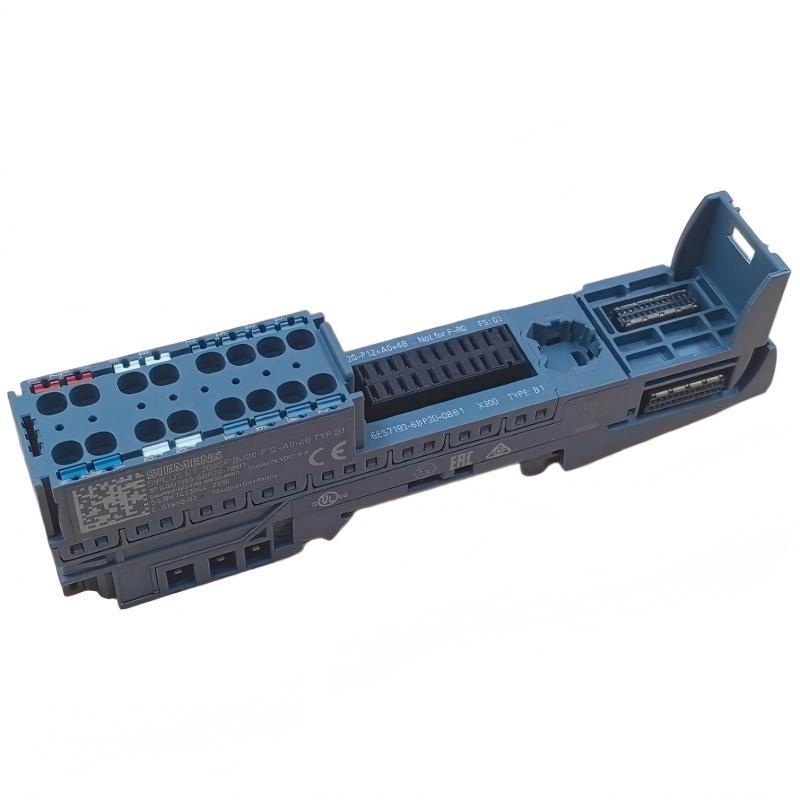

Siemens 6AG1193-6BP20-7BB1 Basic Unit

Applications

The Siemens 6AG1193-6BP20-7BB1 is a compact Basic Unit intended for modular industrial automation installations. With a 20 mm width and lightweight construction, it is suitable for control cabinets and machine enclosures where efficient use of installation space is important.

Typical applications include:

• Distributed I/O installations
• Factory automation systems
• Machine control equipment
• Industrial control cabinets
• Production and assembly machinery
• Process automation
• Modular control systems
• Automation system expansion
• Maintenance and replacement projects

The Basic Unit is intended to operate as part of a compatible Siemens modular automation configuration. The complete system architecture and associated modules should be verified before installation.

Advantages

Compact 20 mm profile
The 20 mm width supports space-efficient installation in control cabinets and machine panels.

Lightweight construction
The unit weighs only 0.048 kg (0.11 lb), adding minimal weight to the overall modular assembly.

Modular integration
The Basic Unit provides a practical foundation for integrating compatible automation modules into a structured system.

Efficient cabinet utilization
Its compact footprint is useful for high-density automation installations where panel space is limited.

Suitable for replacement and expansion
The 6AG1193-6BP20-7BB1 can be considered for maintenance or expansion projects when the complete order number and system compatibility have been confirmed.

Technical FAQs

1. What is the Siemens 6AG1193-6BP20-7BB1?
It is a Siemens Basic Unit designed for integration into a compatible modular industrial automation system.

2. What is the purpose of a Basic Unit?
A Basic Unit provides the physical foundation required to integrate compatible modules into a modular automation configuration.

3. Is the 6AG1193-6BP20-7BB1 a PLC CPU?
No. It is a Basic Unit rather than a standalone PLC CPU or programmable controller.

4. What applications are suitable for this component?
It is intended for compatible modular automation applications such as distributed I/O, machine control, factory automation, and industrial control.

5. Why is module compatibility important?
Modular automation components can have specific mechanical, electrical, and system-level requirements. The Basic Unit must therefore be matched with compatible components.

6. Can this Basic Unit be used for system expansion?
It can be used in an expansion project when the additional modules and existing automation architecture support the selected Basic Unit.

7. What should be checked before ordering?
Verify the complete Siemens order number, module configuration, mounting requirements, electrical interfaces, and system compatibility.

8. Can another Basic Unit with similar dimensions replace it?
Not automatically. Similar dimensions do not guarantee identical functionality or compatibility.

9. What can cause problems after installation?
Incorrect module selection, improper mounting, wiring errors, incompatible components, or incorrect system configuration can cause system-level faults.

10. What should be verified during commissioning?
Check the physical assembly, module arrangement, wiring, system configuration, and operation of the connected automation components before production use.
