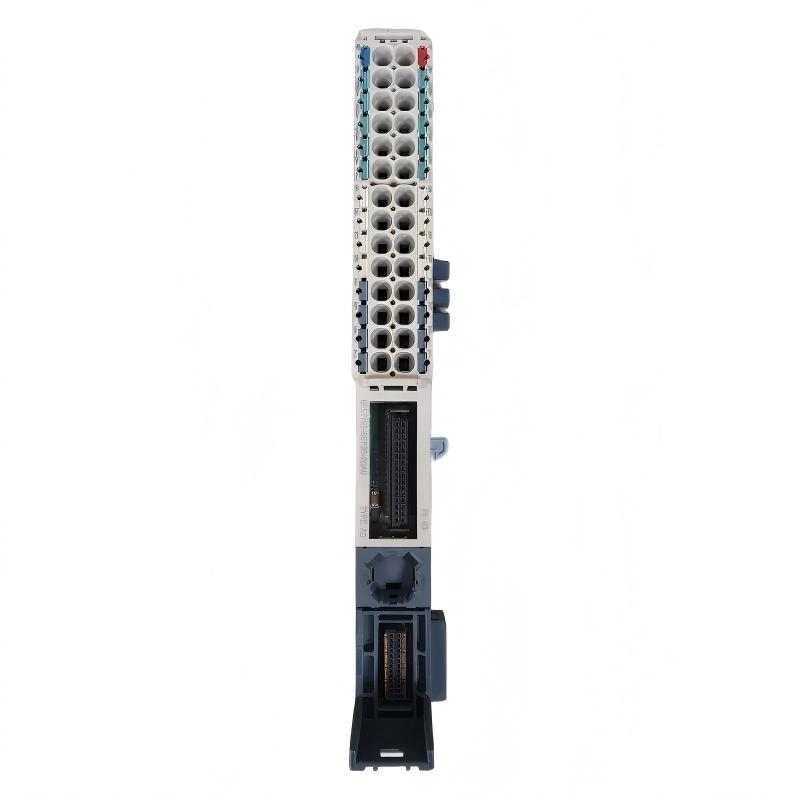

Siemens 6AG1193-6BP20-7DA0 Basic Unit

Applications

The Siemens 6AG1193-6BP20-7DA0 Basic Unit can be used in distributed automation systems where ET 200SP components are arranged in a modular station configuration.

Typical applications include:

• Factory automation and production machinery
• Distributed PLC and remote I/O systems
• Process monitoring and machine control
• Packaging and material handling equipment
• Conveyor and logistics automation
• Assembly and inspection machines
• Compact control cabinets
• Modular industrial control panels
• Manufacturing equipment requiring space-efficient I/O architecture

Its compact construction makes it practical for installations where multiple modules must be arranged within a limited cabinet width.

Advantages

The 6AG1193-6BP20-7DA0 offers several advantages for industrial automation installations:

Compact installation footprint
Its 15 × 141 × 35 mm dimensions help engineers optimize cabinet and control-panel space.

Lightweight construction
At only 0.05 kg (0.11 lb), the unit adds very little mechanical load to the overall ET 200SP station.

Modular system architecture
The Basic Unit supports the modular design philosophy of the SIMATIC ET 200SP platform, making it suitable for distributed automation layouts.

Efficient cabinet utilization
The compact format allows multiple system components to be organized efficiently in narrow control-panel installations.

Suitable for industrial environments
The component is intended for use as part of an industrial automation system where dependable mechanical integration and organized module installation are required.

Convenient system maintenance
A modular station structure can simplify component replacement and maintenance compared with large, centralized I/O arrangements.

Technical FAQs

1. What is the Siemens 6AG1193-6BP20-7DA0?
It is a Siemens SIMATIC ET 200SP Basic Unit used as a base component within a modular distributed I/O station.

2. What automation platform does the 6AG1193-6BP20-7DA0 belong to?
The unit belongs to the Siemens SIMATIC ET 200SP family of modular distributed I/O components.

3. What is the primary purpose of a Basic Unit in an ET 200SP station?
The Basic Unit provides the physical and system interface required for integrating compatible ET 200SP modules into a distributed I/O configuration.

4. Can the 6AG1193-6BP20-7DA0 be used in machine automation?
Yes. Its compact modular design makes it suitable for machine automation applications involving distributed I/O and control architectures.

5. Is the 6AG1193-6BP20-7DA0 suitable for compact control cabinets?
Yes. Its narrow 15 mm dimension is particularly useful where cabinet width is limited.

6. Does the Basic Unit itself replace an ET 200SP I/O module?
No. The Basic Unit is a station component rather than a conventional signal-processing I/O module. The complete station requires the appropriate compatible components.

7. What should be checked before replacing a 6AG1193-6BP20-7DA0?
Engineers should verify the complete Siemens order number, ET 200SP station configuration, mechanical compatibility, wiring arrangement, and the requirements of the connected modules.

8. Why is modularity important in distributed I/O systems?
Modularity allows the automation system to be configured according to the required number and type of I/O points while helping simplify expansion, troubleshooting, and maintenance.

9. Can the 6AG1193-6BP20-7DA0 be integrated into an existing ET 200SP system?
It can be considered for compatible ET 200SP configurations, but the complete station architecture should always be checked against the exact component specifications before installation.

10. What is important when commissioning an ET 200SP station containing this Basic Unit?
The station configuration, module arrangement, electrical connections, controller communication, and diagnostic status should be checked systematically before the equipment is placed into normal operation.
