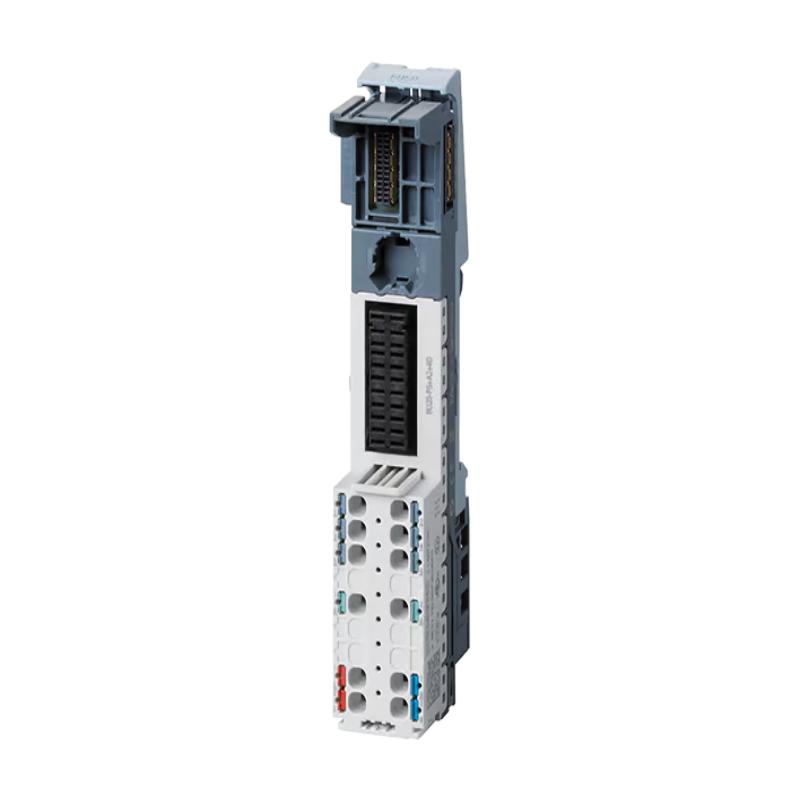

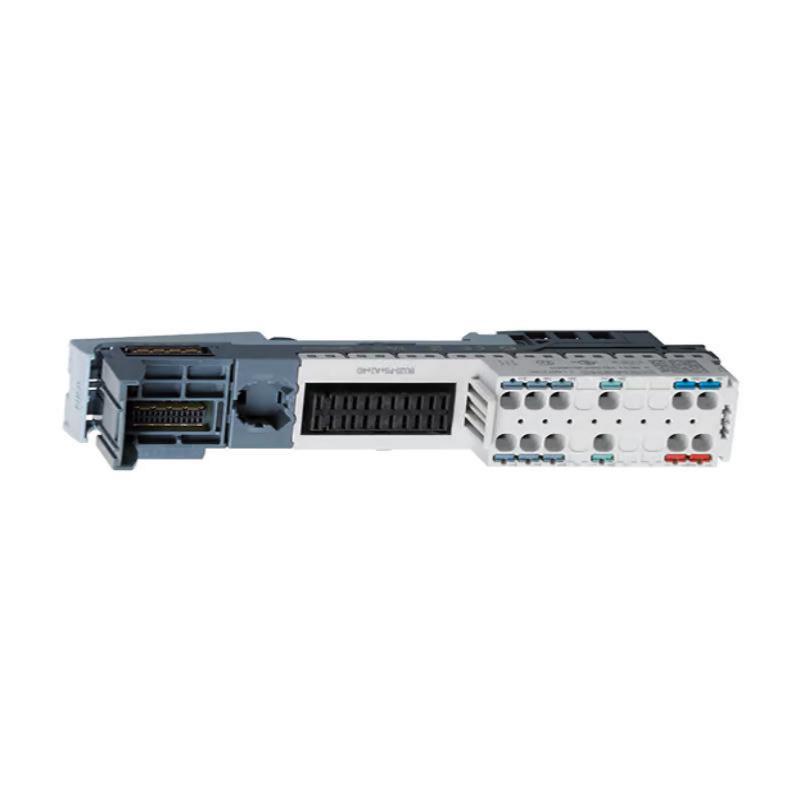

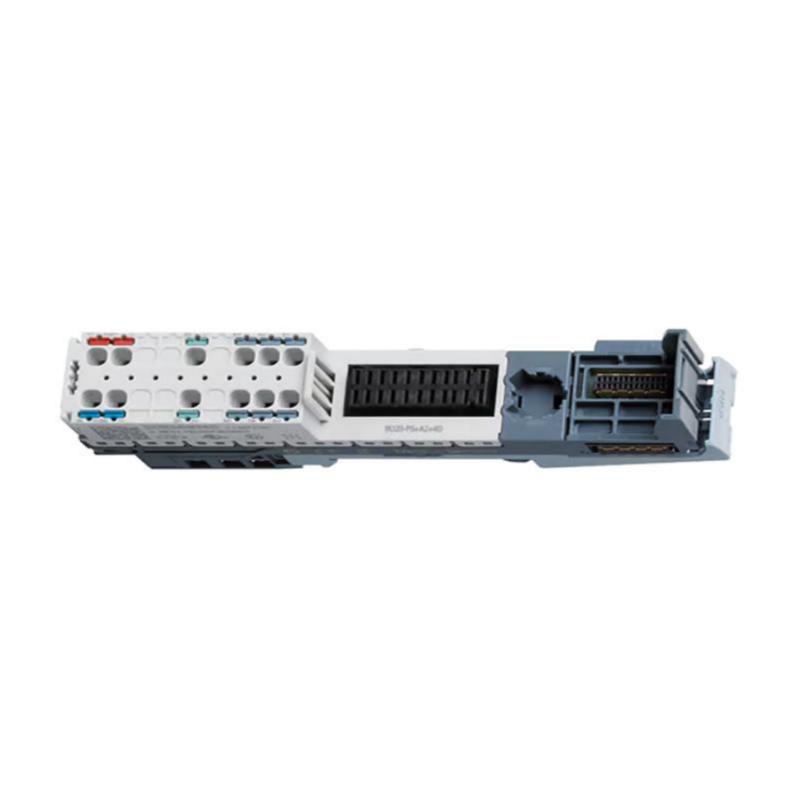

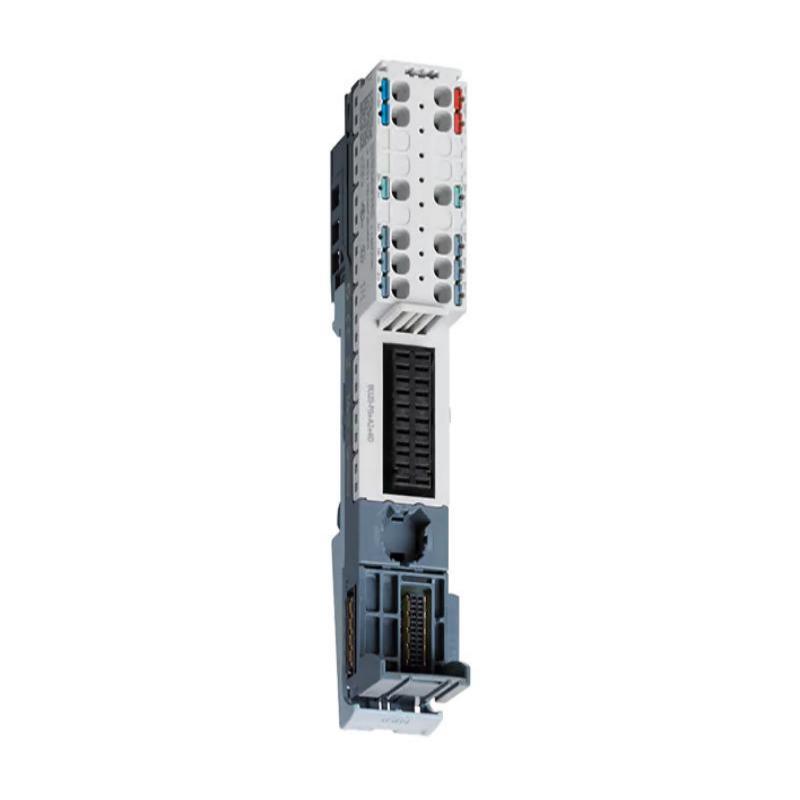

Siemens 6AG1193-6BP20-7DC0 Basic Unit

Applications

The Siemens 6AG1193-6BP20-7DC0 Basic Unit is intended for modular automation architectures where ET 200SP components are installed as part of a distributed I/O station.

Typical applications include:

• Machine automation and control
• Factory production lines
• Distributed PLC and I/O systems
• Packaging machinery
• Conveyor and material-handling systems
• Assembly equipment
• Process monitoring installations
• Industrial control cabinets
• Automated manufacturing equipment
• Retrofit and replacement projects

Its compact form factor is particularly useful when multiple automation components need to be installed within a limited cabinet footprint.

Advantages

Compact 20 mm width
The 20 mm width helps conserve valuable DIN-rail and control-panel space in dense automation installations.

Lightweight construction
With a weight of only 0.047 kg (0.10 lb), the Basic Unit is easy to handle during assembly, replacement, and maintenance.

Modular ET 200SP architecture
The component supports the modular design approach of the SIMATIC ET 200SP platform, allowing automation stations to be configured according to application requirements.

Efficient cabinet organization
Its compact dimensions allow engineers to arrange distributed I/O components in a structured and space-efficient manner.

Suitable for distributed automation
The Basic Unit can be used as part of an ET 200SP station located close to machines, sensors, actuators, or other field-level equipment.

Practical for maintenance and replacement
The modular system concept helps simplify maintenance work by allowing individual system components to be serviced or replaced without redesigning the complete automation architecture.

Technical FAQs

1. What is the Siemens 6AG1193-6BP20-7DC0?
It is a Siemens SIMATIC ET 200SP Basic Unit designed for use within a modular distributed I/O station.

2. Which Siemens automation family does this Basic Unit belong to?
The 6AG1193-6BP20-7DC0 belongs to the SIMATIC ET 200SP family.

3. What is the function of a Basic Unit in an ET 200SP configuration?
The Basic Unit provides the required base interface for integrating compatible ET 200SP modules into the modular station architecture.

4. Is the 6AG1193-6BP20-7DC0 an I/O signal module?
No. It is a Basic Unit rather than a conventional digital or analog signal module.

5. Where is the 6AG1193-6BP20-7DC0 commonly installed?
It is commonly used within distributed I/O stations installed in industrial control cabinets or near automated machinery.

6. Can this Basic Unit be used for machine automation?
Yes. Its modular architecture makes it suitable for a wide range of machine-control and distributed-I/O applications.

7. What should be verified when replacing this Basic Unit?
The complete order number, existing ET 200SP configuration, mechanical arrangement, electrical connections, and compatibility with the associated modules should be verified.

8. Why is a modular Basic Unit useful in an automation system?
It provides a structured foundation for assembling distributed I/O stations and can make system expansion, maintenance, and component replacement more manageable.

9. Is the 6AG1193-6BP20-7DC0 suitable for space-limited installations?
Yes. Its compact 20 × 117 × 35 mm dimensions are useful for applications where cabinet space is limited.

10. What should be checked during commissioning?
The complete ET 200SP station configuration, module arrangement, electrical wiring, controller communication, and diagnostic status should be checked before normal operation.
