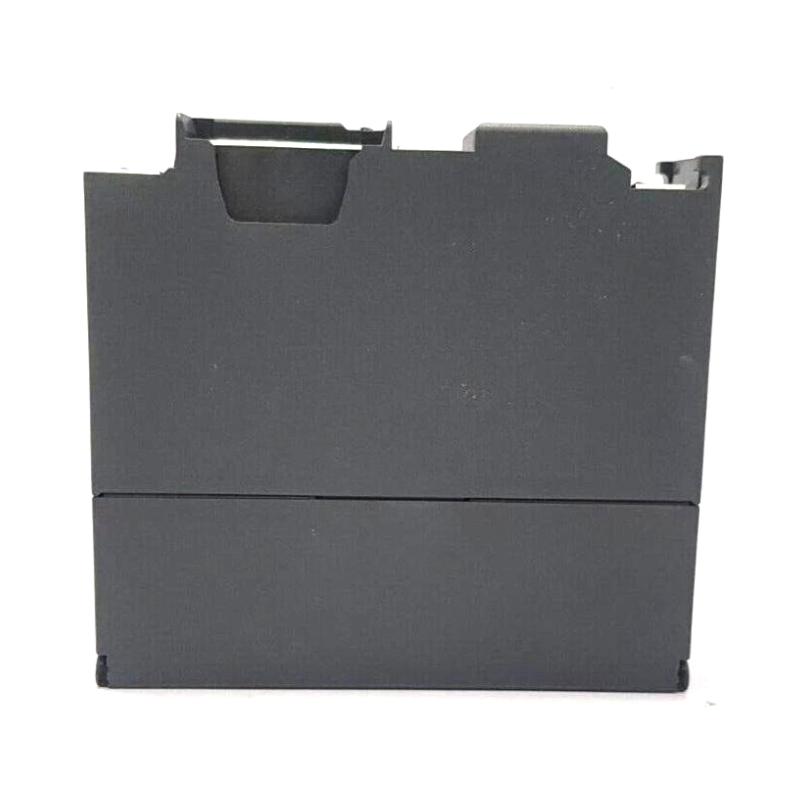

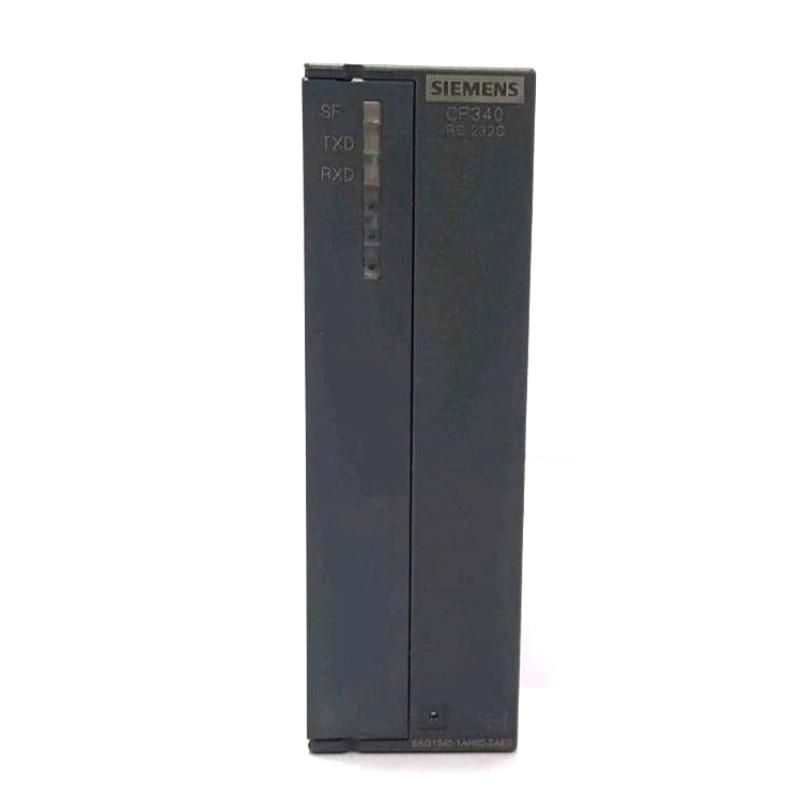

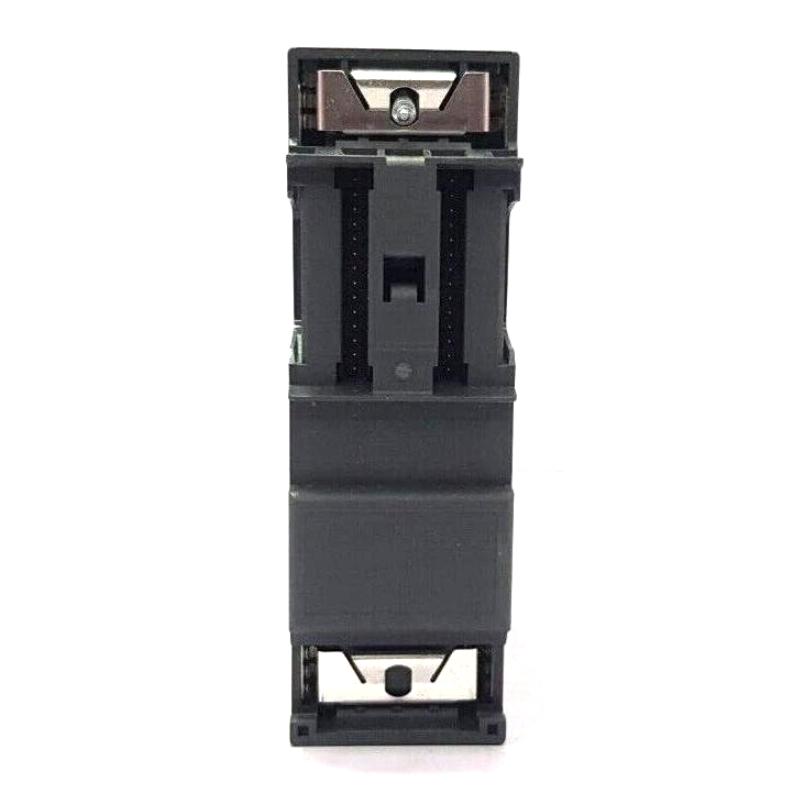

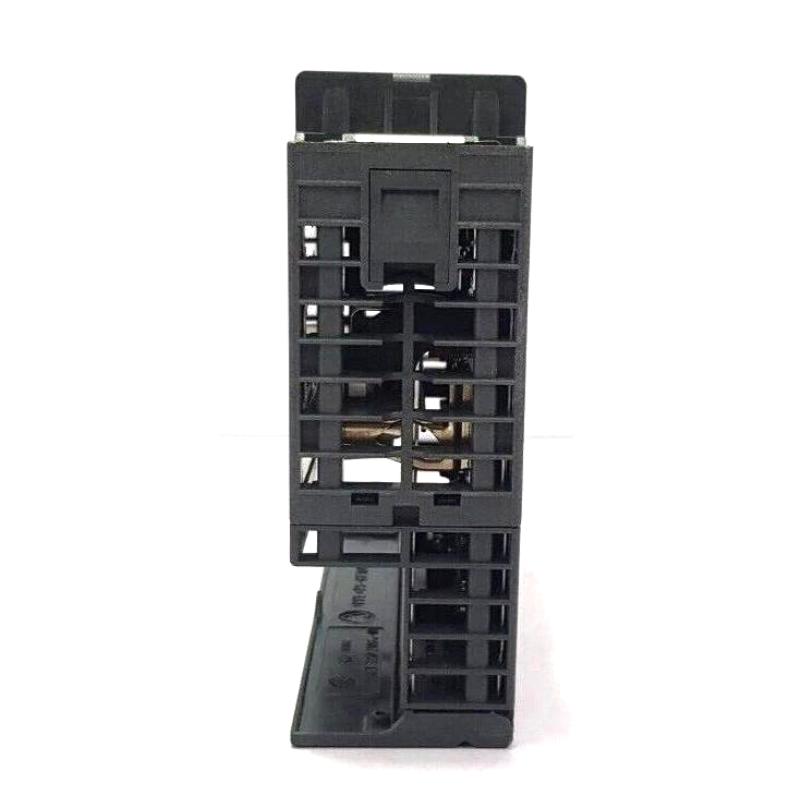

Siemens 6AG1340-1AH02-2AE0 Communication Module

Applications

The Siemens 6AG1340-1AH02-2AE0 can be used in industrial automation environments where reliable communication between automation components is required.

Typical applications include:

• PLC-based control systems
• Factory automation
• Production and assembly lines
• Machine automation
• Industrial networking architectures
• Process monitoring and control
• Material handling systems
• Packaging machinery
• Distributed automation systems
• Control cabinet installations

The module's compact form factor makes it suitable for applications where communication functionality must be integrated without unnecessarily increasing cabinet space.

Advantages

Compact industrial design
The 40 × 125 × 120 mm form factor allows the module to be incorporated into relatively dense automation cabinet layouts.

Reliable communication integration
A dedicated communication module can provide an organized interface between compatible automation components and the wider control architecture.

Suitable for modular automation systems
The module can be incorporated into structured control-system designs where communication functions are separated from processing and I/O functions.

Efficient cabinet utilization
Its compact dimensions help engineers maintain an organized panel layout while accommodating other PLC and automation components.

Low installation weight
At 0.362 kg (0.80 lb), the module is relatively lightweight and easy to handle during installation and replacement.

Practical for maintenance projects
The complete Siemens order number provides a precise identification reference when replacing an existing communication component.

Technical FAQs

1. What is the Siemens 6AG1340-1AH02-2AE0?
It is a Siemens Communication Module intended for integration into industrial automation systems.

2. What is the purpose of a communication module?
A communication module provides an interface for exchanging data between compatible automation equipment and other devices within a control architecture.

3. Can the 6AG1340-1AH02-2AE0 be used in PLC systems?
It is designed as an industrial automation communication component and can be considered for compatible Siemens control-system configurations.

4. Is this module an analog or digital I/O module?
No. Its primary product classification is Communication Module rather than an analog or digital signal I/O module.

5. Why are communication modules important in automation systems?
They allow controllers, field devices, remote stations, and other automation equipment to exchange operating data, commands, status information, and diagnostics.

6. What should be verified before installing this communication module?
The complete order number, system architecture, communication requirements, compatible hardware, wiring, configuration, and installation conditions should be checked.

7. Can a communication module be used in an existing automation system?
It may be used where the existing system supports the module and its communication requirements. Compatibility should be confirmed before installation.

8. What can cause communication problems after installation?
Incorrect wiring, incompatible configuration, addressing errors, communication parameter mismatches, damaged cables, or problems elsewhere in the network can result in communication failures.

9. What should be checked when troubleshooting communication faults?
Check the module status, wiring, connectors, network configuration, device addressing, communication parameters, and diagnostic information systematically.

10. Why should the exact model number be confirmed when replacing the module?
Siemens communication modules can have similar-looking hardware with different functions or interfaces. Confirming 6AG1340-1AH02-2AE0 helps ensure the replacement matches the original system requirements.
