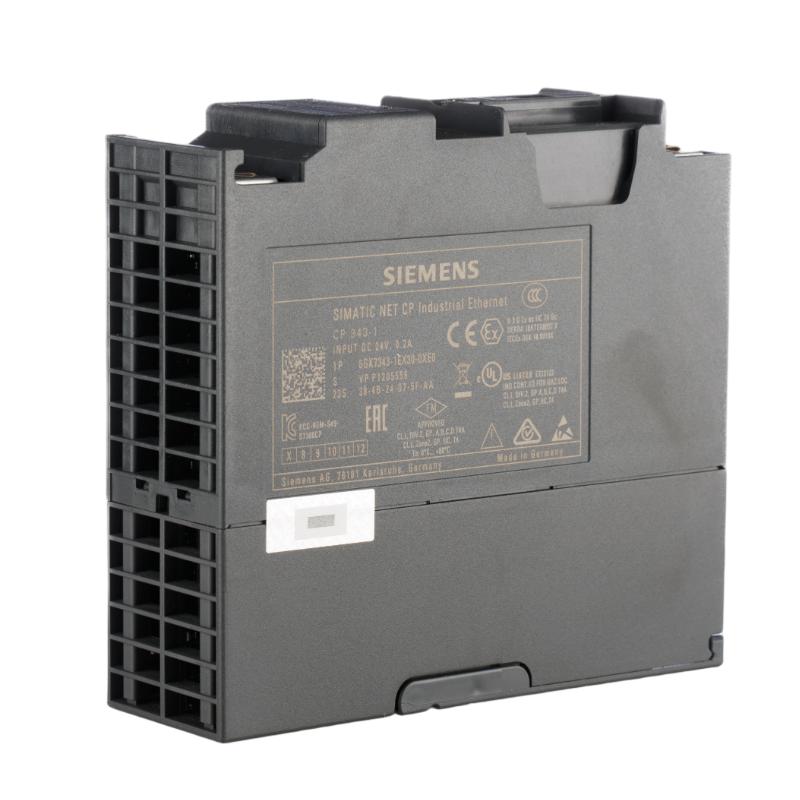

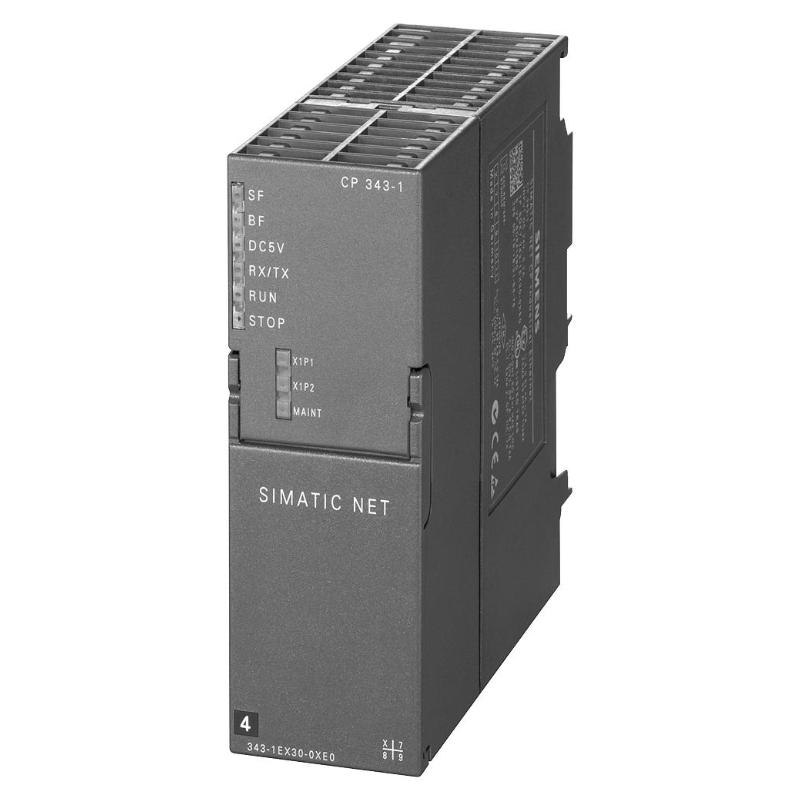

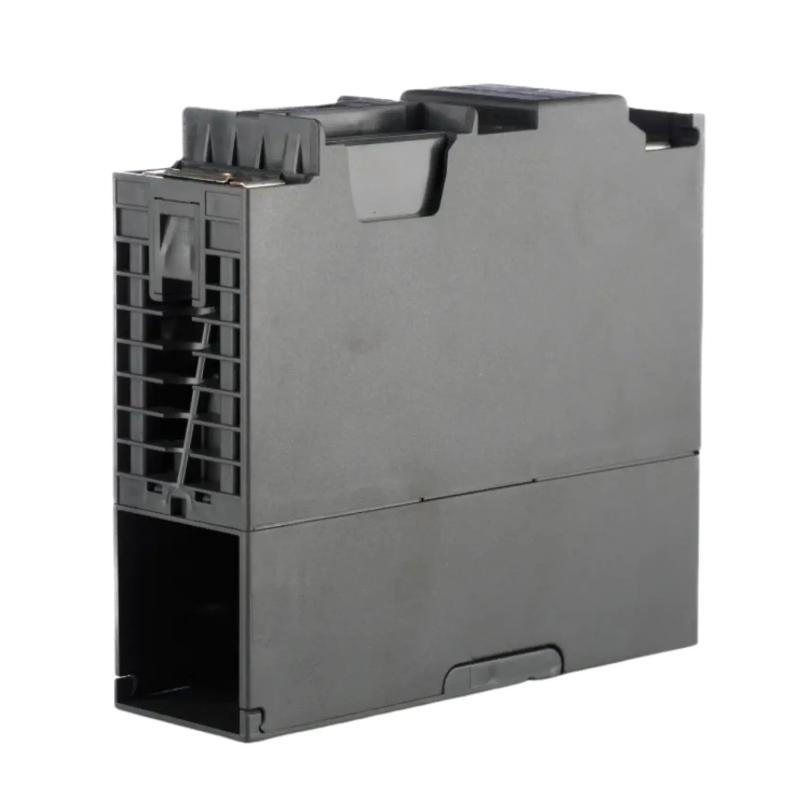

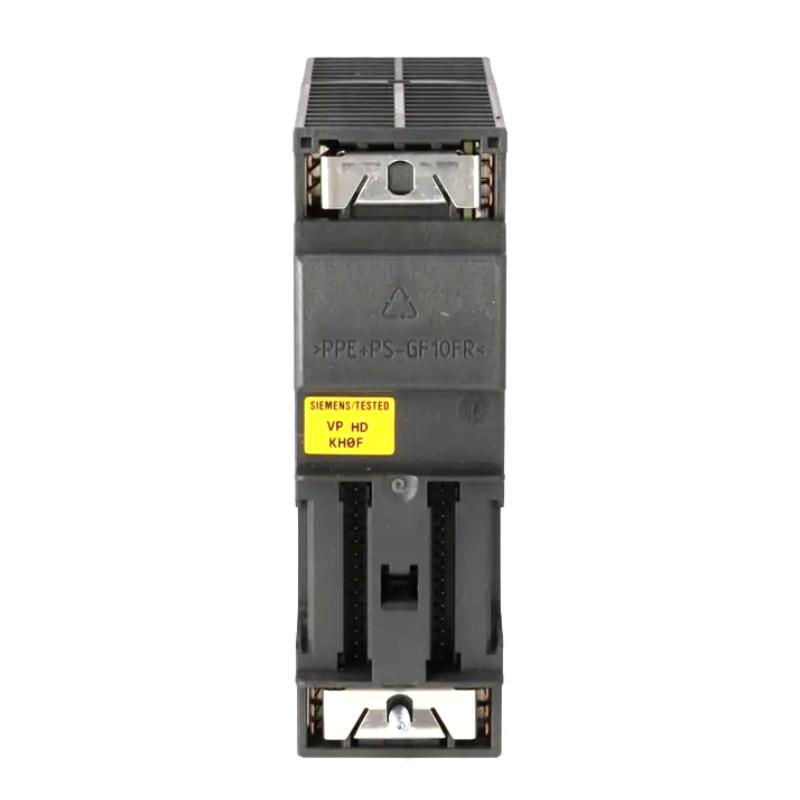

Siemens 6AG1343-1EX30-7XE0 Communication Processor

Applications

The Siemens 6AG1343-1EX30-7XE0 Communication Processor is designed for automation systems where communication performance and system connectivity are essential.

Typical applications include:

• PLC-based industrial control systems
• Factory automation networks
• Machine automation equipment
• Production line communication
• Process automation systems
• Distributed control solutions
• Industrial equipment networking
• Packaging and assembly machinery
• Remote automation stations
• Control cabinet integration

The processor supports automation architectures where communication tasks need to be managed as a dedicated system function, helping improve the organization of complex industrial applications.

Advantages

Dedicated communication management
The 6AG1343-1EX30-7XE0 provides specialized communication processing capabilities, allowing automation systems to handle data exchange more efficiently.

Compact installation design
Its 40 × 125 × 120 mm dimensions allow convenient installation in industrial control cabinets with limited available space.

Reliable industrial connectivity
The processor is designed for integration into compatible Siemens automation environments where stable communication between system components is required.

Modular automation compatibility
The component can be integrated alongside PLC controllers, I/O modules, power supply units, and other automation equipment.

Lightweight construction
With a weight of 0.287 kg (0.63 lb), the processor is easy to install and handle during maintenance operations.

Suitable for modernization projects
The specific Siemens order number makes product identification easier for system upgrades, repairs, and replacement applications.

Technical FAQs

1. What is the Siemens 6AG1343-1EX30-7XE0?
It is a Siemens Communication Processor designed for industrial automation communication applications.

2. What is the main function of a communication processor?
A communication processor handles communication-related operations and enables data exchange between compatible automation devices.

3. How does a communication processor improve automation system design?
It allows communication functions to be managed separately from primary control operations, creating a more structured automation architecture.

4. Can the 6AG1343-1EX30-7XE0 be integrated with PLC systems?
Yes. It can be used in compatible Siemens PLC and industrial automation configurations requiring communication processing.

5. What types of data can communication processors handle?
Depending on the system configuration, communication processors can support the exchange of control information, operating data, diagnostic information, and device status data.

6. What should be verified before installation?
Confirm the complete order number, compatible Siemens system components, communication requirements, configuration settings, wiring, and operating environment.

7. What causes communication processor communication failures?
Common causes include incorrect configuration, wiring problems, incompatible devices, addressing errors, communication parameter mismatches, or network issues.

8. How should communication faults be diagnosed?
Check module diagnostics, system status information, communication parameters, device connections, wiring, and network conditions.

9. Can this communication processor be used in existing systems?
It can be used when the existing Siemens automation architecture supports this exact model and its required communication functions.

10. Why should the complete Siemens part number be confirmed?
Different Siemens communication processors may have similar appearances but different technical characteristics. Confirming 6AG1343-1EX30-7XE0 ensures correct application matching.
