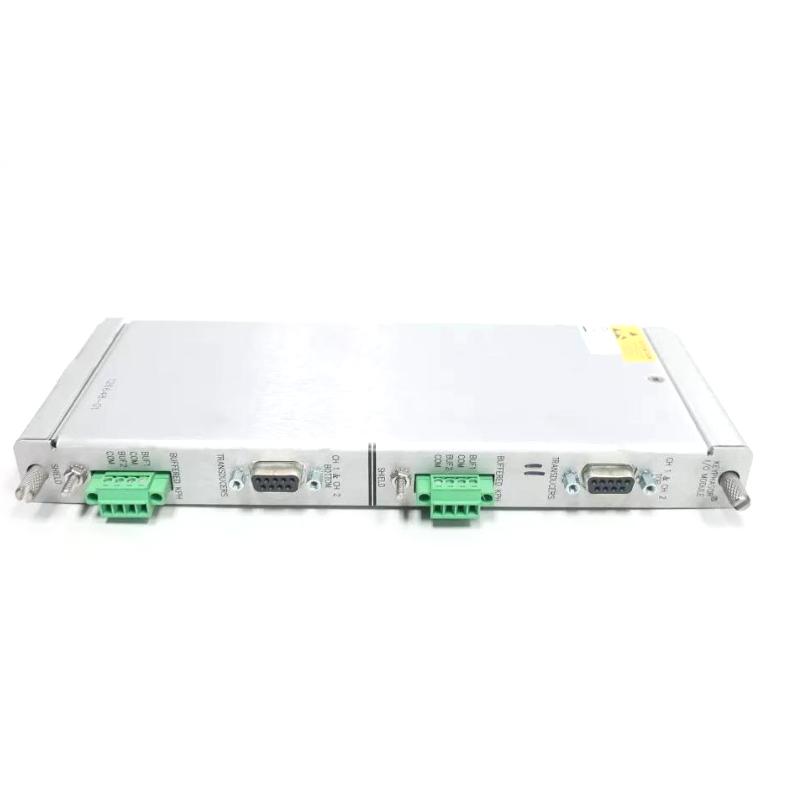

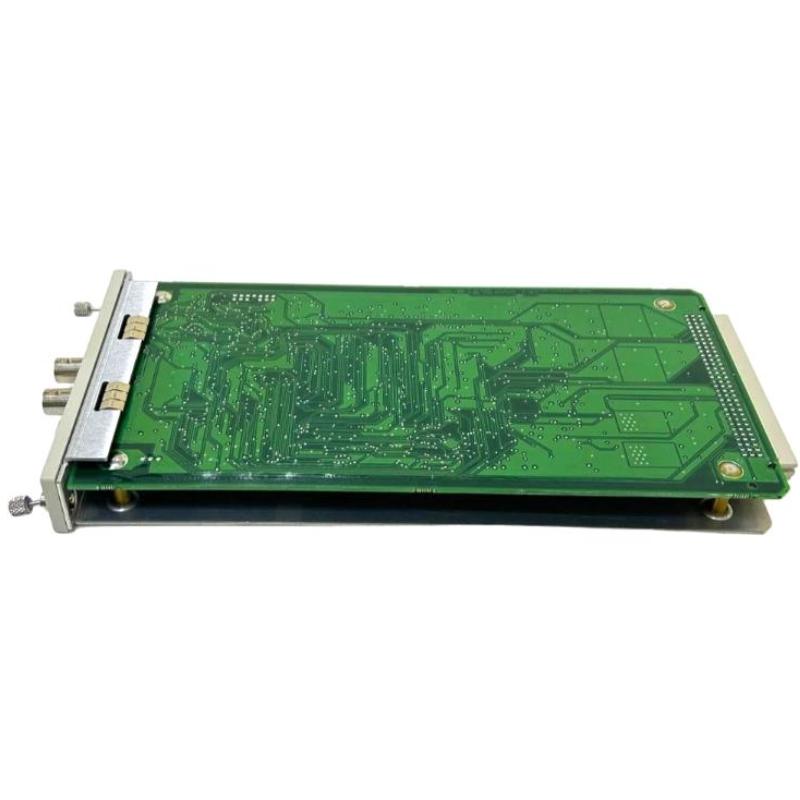

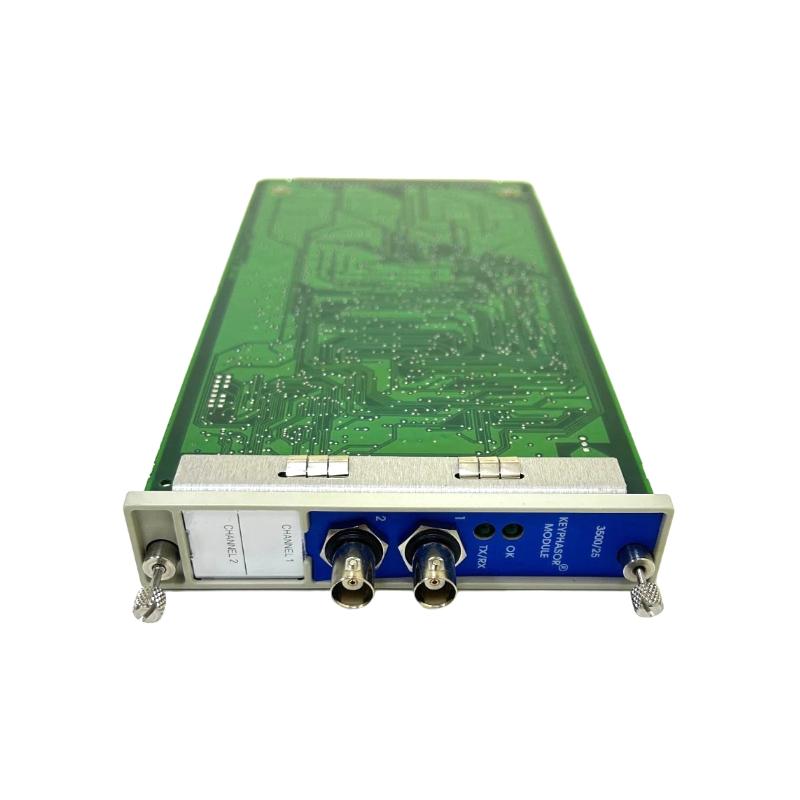

Bently Nevada 3500/25 126648-02+149369-01 I/O Module + Enhanced Key Phase Module

Applications

The Bently Nevada 3500/25 I/O Module paired with the Enhanced Key Phase Module is engineered for precision machinery monitoring and protection. Key applications include:

• Turbine, generator, and compressor vibration monitoring

• Rotating machinery protection in power generation and industrial plants

• Keyphasor signal acquisition for speed and position detection

• Integration with 3500 Series monitoring systems for critical machinery

• Real-time condition monitoring in high-speed rotating equipment

Advantages

This module combination provides advanced monitoring and system reliability:

• Enhanced Key Phase functionality for accurate rotor position and speed measurements

• High-resolution signal processing for vibration and shaft movement analysis

• Compact, lightweight design allows flexible panel installation

• Robust industrial-grade construction for 24/7 operation

• Seamless integration with Bently Nevada 3500 Series systems

Technical FAQs

1. What is the purpose of the Enhanced Key Phase Module?
   It provides precise rotor position and speed signals for machinery monitoring.

2. Which machines typically use this module?
   Turbines, generators, compressors, and other rotating equipment.

3. Can it be integrated with existing 3500/25 systems?
   Yes, it is fully compatible with Bently Nevada 3500/25 systems.

4. Is it suitable for continuous operation?
   Yes, designed for 24/7 industrial performance.

5. Does it improve vibration measurement accuracy?
   Yes, enhanced Key Phase processing ensures precise measurements.

6. Is it easy to install in control panels?
   Yes, its compact size allows straightforward integration.

7. Does it support multiple I/O channels?
   Yes, it provides robust I/O capabilities for sensors and signals.

8. Can it handle high-speed machinery?
   Absolutely, it is designed for high-speed and high-resolution applications.

9. Is maintenance frequent?
   Minimal maintenance is required once installed.

10. Why choose Bently Nevada original modules?
    To ensure system integrity, accurate monitoring, and long-term reliability.
