Brand:Siemens Item No.:6ES7211-1HE40-0XB0 Product Origin:Germany Product Dimensions:90 x 100 x 75 mm Product Weight:0.38 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

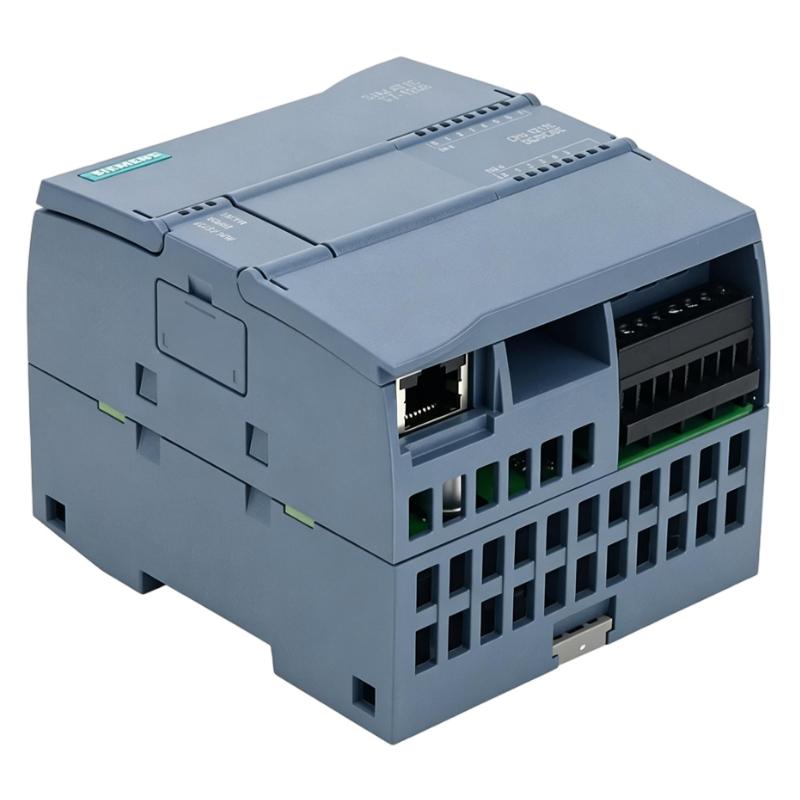

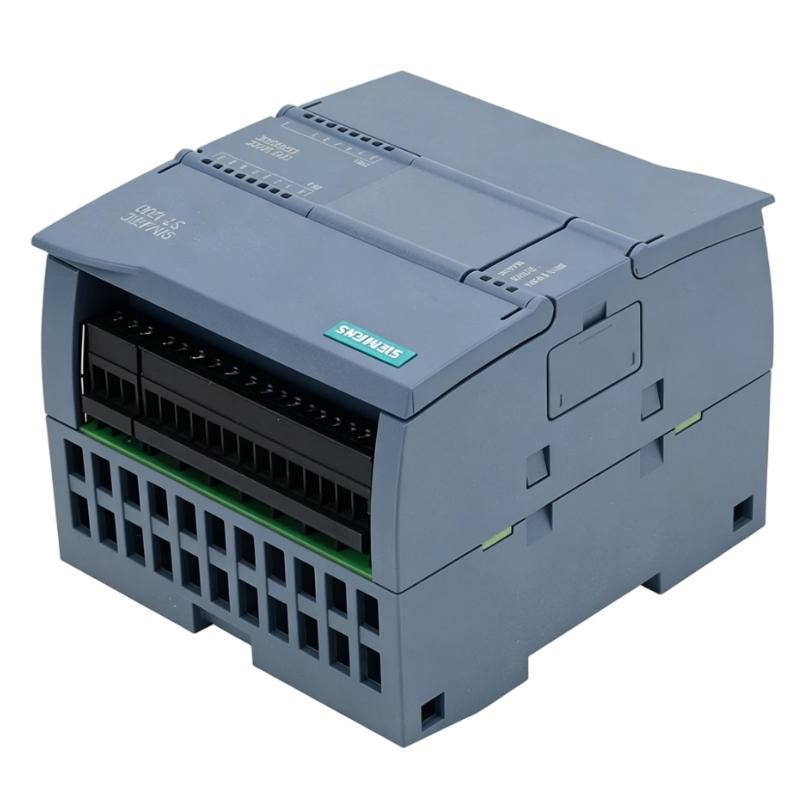

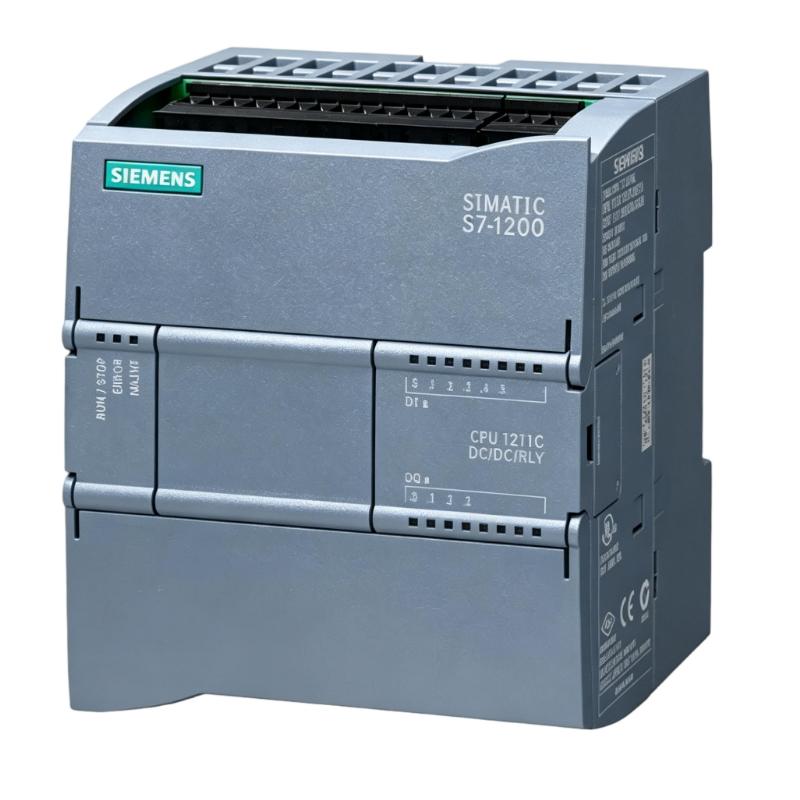

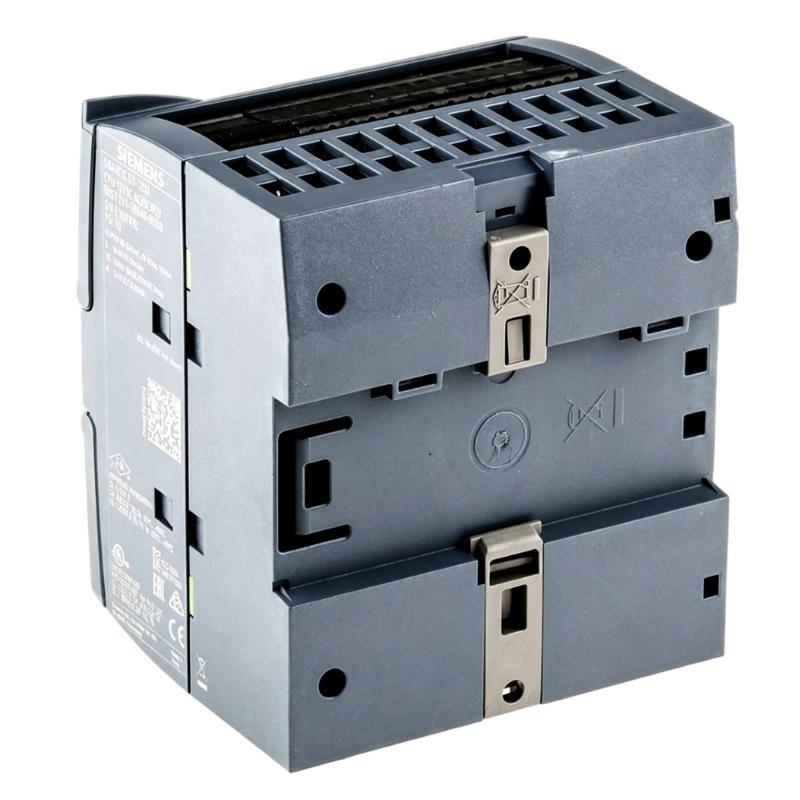

The Siemens 6ES7211-1HE40-0XB0 Compact CPU is a space-efficient programmable controller designed for applications built around the SIMATIC S7-1200 platform. It provides the central processing function required to execute machine logic and coordinate compatible automation components within a compact control architecture.
Modern machine builders increasingly need to balance automation performance with cabinet size, component availability, and maintenance efficiency. A compact CPU can help address these requirements by providing the core PLC function without the physical footprint associated with larger controller systems.
The 6ES7211-1HE40-0XB0 is suited to applications in which the PLC needs to manage sequences, interlocks, monitoring, and communication with the rest of the machine. When combined with suitable expansion and communication components, it can form the control core of a structured industrial automation system.
Its specified dimensions are 90 × 100 × 75 mm, while the supplied weight is 0.38 kg (0.84 lb). This compact physical profile makes it a practical option for densely arranged control cabinets and machine-mounted electrical enclosures.
For OEMs, panel builders, automation integrators, and maintenance departments, the 6ES7211-1HE40-0XB0 offers a useful combination of compact construction and established Siemens PLC technology. For replacement projects, matching the complete article number and verifying the existing system configuration are essential to ensure a smooth transition.
Technical Specifications
Specification
Details
Product
Siemens 6ES7211-1HE40-0XB0
Product Type
Compact CPU
PLC Family
SIMATIC S7-1200
Controller Function
Programmable logic control
Application
Industrial and machine automation
Engineering Platform
Siemens TIA Portal
Dimensions (W × H × D)
90 × 100 × 75 mm
Weight
0.38 kg (0.84 lb)
System Architecture
Compact PLC
Typical Applications
OEM machinery, machine control, production equipment
The controller's 90 × 100 × 75 mm dimensions allow it to fit efficiently into compact electrical installations. At 0.38 kg (0.84 lb), it is also convenient to handle during installation, replacement, and routine maintenance.
Recommended Related Models
For projects requiring a compact S7-1200 control architecture, the following Siemens products may be evaluated alongside the 6ES7211-1HE40-0XB0:
Model
Product Type
Typical Role
Siemens 6ES7211-1HE40-0XB0
Compact CPU
Central PLC control
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Compact machine automation
Siemens 6ES7211-1BE40-0XB0
Compact CPU
Compact PLC applications
Siemens 6ES7212-1HE40-0XB0
Compact CPU
Expanded machine control
Siemens 6ES7221 series
Digital Signal Module
Digital I/O expansion
Popular Related Models
For system replacement, spare-parts inventory, or new automation projects, these related Siemens models can also be considered:
Model
Product Type
Application
Siemens 6ES7211-1HE40-0XB0
Compact CPU
Compact industrial control
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Machine automation
Siemens 6ES7211-1BE40-0XB0
Compact CPU
S7-1200 control systems
Siemens 6ES7212-1HE40-0XB0
Compact CPU
Expanded compact automation
Siemens 6ES7214-1HG40-0XB0
Compact CPU
Machine and process control
Applications
The Siemens 6ES7211-1HE40-0XB0 Compact CPU is designed for machine-level automation where dependable PLC control, efficient cabinet utilization, and straightforward system integration are important. As a compact SIMATIC S7-1200 controller, it can serve as the central processing unit for a wide range of industrial control applications.
The CPU is suitable for OEM machinery, production equipment, conveyor and handling systems, packaging machines, assembly equipment, and compact process-control applications. It can coordinate control logic, sequencing, monitoring, and communication with compatible automation components.
For system integrators, the 6ES7211-1HE40-0XB0 is particularly attractive when a compact PLC architecture is preferred without moving to a larger controller platform. Its small housing also helps panel designers maintain a clean and space-efficient control cabinet layout.
Advantages
Compact control platform
The 6ES7211-1HE40-0XB0 combines PLC control functionality in a compact housing, helping reduce cabinet footprint in machine automation projects.
Efficient machine control
It provides a practical controller platform for executing application logic, sequencing operations, machine interlocks, and monitoring tasks.
Scalable S7-1200 architecture
Compatible expansion components can be incorporated when the application requires additional signal processing or communication functionality.
Engineering consistency
Using the established S7-1200 ecosystem gives integrators a structured approach to hardware configuration, programming, diagnostics, and commissioning.
Well suited to OEM applications
The compact form factor is advantageous for machine manufacturers that need repeatable controller designs across different equipment configurations.
Easy to integrate into compact panels
At only 90 × 100 × 75 mm, the CPU is suitable for applications where electrical cabinet space is limited and efficient component arrangement is a priority.
Technical FAQs
1. What is the Siemens 6ES7211-1HE40-0XB0?
The 6ES7211-1HE40-0XB0 is a Compact CPU for the Siemens SIMATIC S7-1200 automation platform. It functions as the programmable control element of a compatible PLC system.
2. What types of machines can use this CPU?
The CPU can be used in compact industrial machinery, packaging systems, material-handling equipment, assembly machines, production equipment, and other applications requiring programmable sequence and logic control.
3. Can the 6ES7211-1HE40-0XB0 be expanded with additional modules?
The S7-1200 platform supports compatible expansion modules and communication components. The specific expansion arrangement should be determined from the CPU's supported hardware configuration.
4. Is this CPU suitable for closed-loop control applications?
It can participate in automation applications involving control loops when the required compatible hardware and software functions are available. The specific control strategy should be evaluated against the application's performance requirements.
5. What programming environment is used for the S7-1200?
Siemens TIA Portal is used for S7-1200 hardware configuration, PLC programming, diagnostics, and commissioning. The applicable software version should correspond to the controller and firmware.
6. What should be considered when selecting a replacement CPU?
The complete article number should be matched first. Engineers should then verify firmware compatibility, hardware configuration, I/O requirements, communication settings, program compatibility, and any retained data requirements.
7. Can a backup of an existing PLC project be restored to this CPU?
A compatible project can generally be downloaded to the replacement controller after confirming the hardware and firmware configuration. The project should be validated before returning the machine to production.
8. What can cause the CPU to report a diagnostic fault?
Hardware configuration errors, programming issues, communication failures, power problems, incompatible components, and faults elsewhere in the automation system can result in diagnostic conditions. The controller's diagnostic information should be reviewed systematically.
9. Can this CPU communicate with drives and other industrial devices?
The S7-1200 platform can communicate with compatible automation devices using supported interfaces and communication components. The required protocol, network configuration, and device compatibility must be checked for each application.
10. What should be verified during commissioning?
The hardware configuration, PLC program, I/O addressing, field wiring, communication parameters, diagnostic status, machine interlocks, and sequence operation should be checked before normal production operation begins.
