Brand:Siemens Item No.:6ES7901-3DB30-0XA0 Product Origin:Germany Product Dimensions:Cable Length: 5.6 meters Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

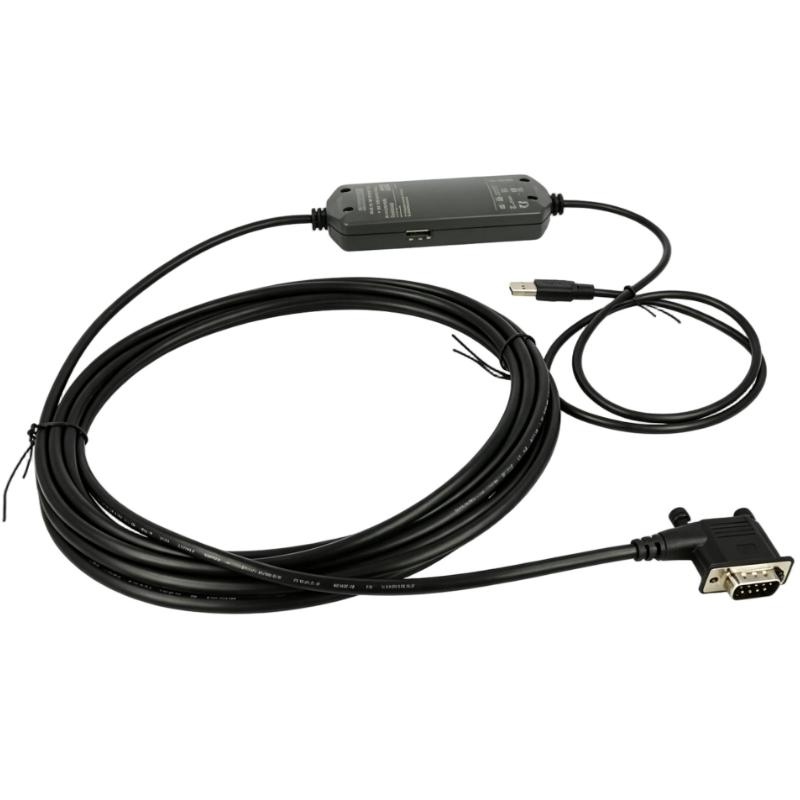

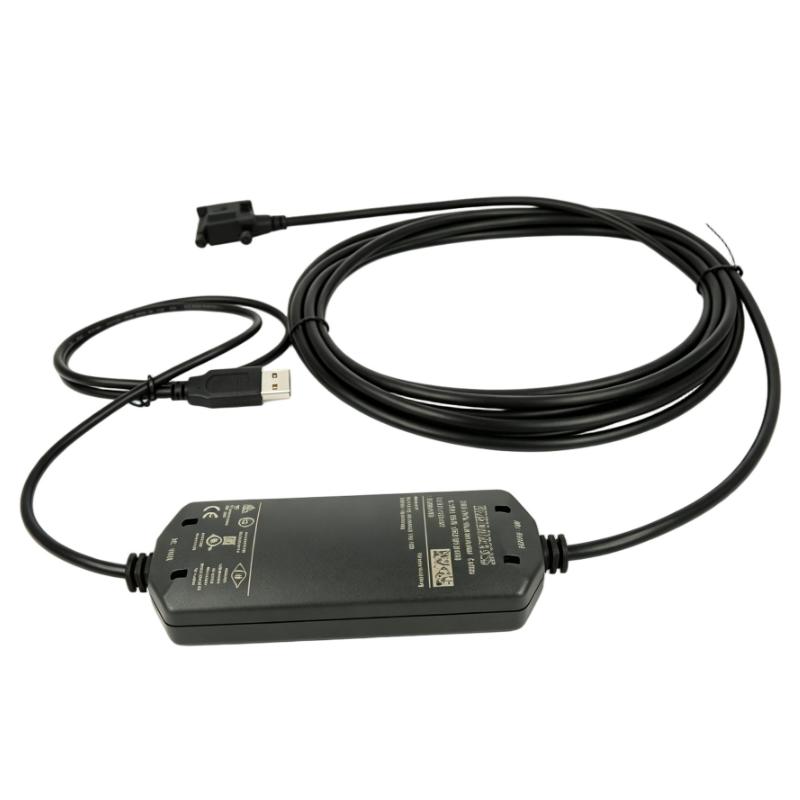

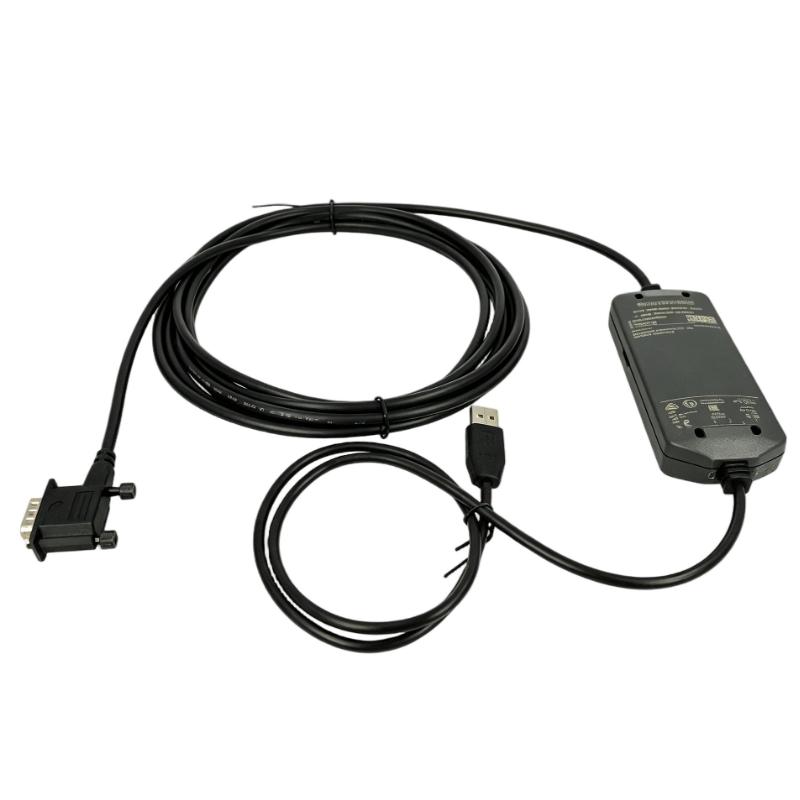

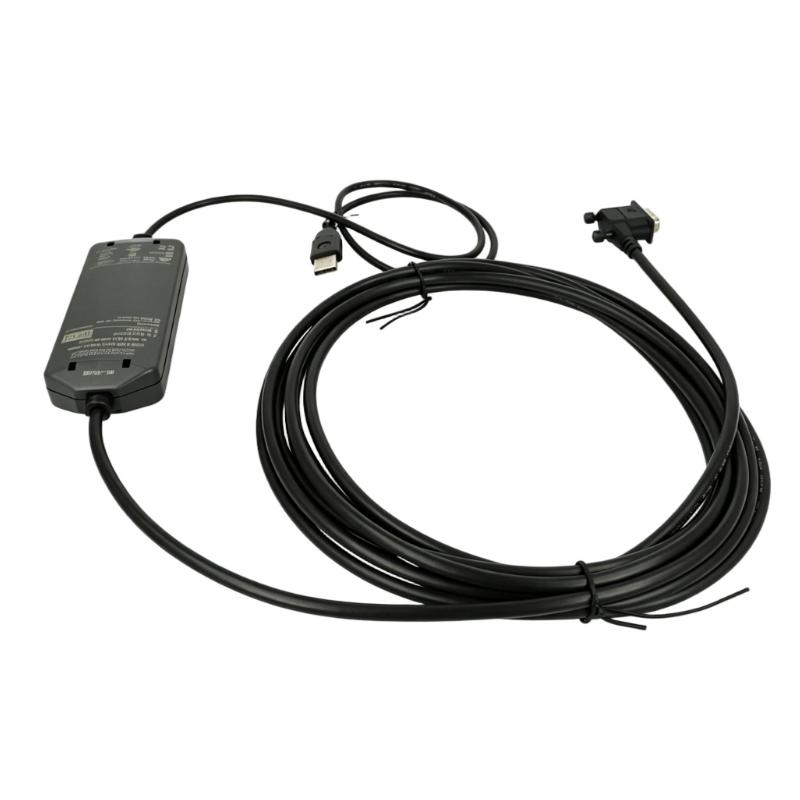

The Siemens 6ES7901-3DB30-0XA0 USB/PPI Cable is a dedicated communication accessory for connecting compatible Siemens PLC equipment with a computer through USB-based connectivity. It is particularly useful for engineering and service work involving SIMATIC S7-200 controllers and PPI communication.
Programming cables are often small components within an automation system, but their role becomes critical during commissioning or troubleshooting. Without a suitable PC-to-PLC interface, technicians may be unable to access the controller program, monitor system behavior, modify parameters, or investigate diagnostic conditions efficiently.
The 6ES7901-3DB30-0XA0 addresses this practical requirement by combining USB connectivity with PPI communication support. Its 5.6-meter cable length provides additional working distance, which can be useful when a PLC is installed inside a machine cabinet or in an area where direct access with a laptop is inconvenient.
For maintenance teams, OEM engineers, and automation service providers supporting legacy Siemens equipment, the cable can be a valuable addition to the service toolkit. It is especially useful during machine commissioning, program backup, PLC troubleshooting, and controller maintenance.
The cable has a specified weight of 0.30 kg (0.66 lb). When selecting a replacement, the exact article number and communication requirements should be checked carefully to ensure compatibility with the target PLC and engineering setup.
The 5.6-meter cable length gives engineers useful flexibility when connecting a computer to a PLC installed inside a machine or control cabinet. At 0.30 kg (0.66 lb), the cable remains practical to transport and store as part of an industrial maintenance toolkit.
Recommended Related Models
For S7-200 programming, commissioning, and service work, the following Siemens products may be relevant to a complete engineering setup:
Model
Product Type
Typical Role
Siemens 6ES7901-3DB30-0XA0
USB/PPI Cable
PC-to-PLC communication
Siemens 6ES7211 series
Compact CPU
PLC control
Siemens 6ES7212 series
Compact CPU
Machine automation
Siemens 6ES7221 series
Digital Signal Module
Digital I/O expansion
Siemens 6ES7231 series
Analog Signal Module
Analog signal processing
Popular Related Models
The following Siemens components can also be considered when planning PLC programming, maintenance, and automation-system upgrades:
Model
Product Type
Application
Siemens 6ES7901-3DB30-0XA0
USB/PPI Cable
S7-200 programming and diagnostics
Siemens 6ES7901-0BF00-0AA0
PC/PPI Cable
PLC programming communication
Siemens 6ES7901-3CB30-0XA0
PC/PPI Cable
SIMATIC PLC communication
Siemens 6ES7211-1AE40-0XB0
Compact CPU
S7-1200 machine control
Siemens 6ES7212-1AE40-0XB0
Compact CPU
Compact industrial automation
Applications
The Siemens 6ES7901-3DB30-0XA0 USB/PPI Cable is designed for connecting compatible Siemens SIMATIC S7-200 controllers to a computer through a USB interface. It provides a practical programming and communication connection for engineers who need to configure, monitor, diagnose, or maintain supported PLC systems.
With a cable length of 5.6 meters, the 6ES7901-3DB30-0XA0 offers useful flexibility when the programming computer cannot be positioned directly beside the PLC cabinet. This makes it suitable for machine commissioning, workshop testing, field service, troubleshooting, and maintenance operations.
The cable is particularly valuable for technicians working with established S7-200 installations where a reliable PC-to-PLC connection is required. For maintenance departments and automation service providers, keeping a suitable programming cable available can significantly reduce downtime during commissioning and fault diagnosis.
Advantages
Convenient USB connectivity
The cable provides a practical USB connection between a compatible engineering computer and a Siemens PLC communication interface.
Designed for PPI communication
Its USB/PPI configuration is intended for supported Siemens S7-200 applications using the PPI communication architecture.
Extended 5.6-meter reach
The generous cable length provides greater freedom when positioning a laptop or engineering workstation around machinery and control cabinets.
Useful for commissioning and service
The cable can support common maintenance activities such as PLC programming, parameter adjustment, monitoring, and troubleshooting.
Reduces dependence on legacy computer interfaces
USB connectivity is convenient for modern computers that may not provide older serial communication ports directly.
Practical spare-part choice
For facilities operating S7-200 equipment, maintaining a dedicated programming cable can make service work faster and simplify emergency troubleshooting.
Technical FAQs
1. What is the Siemens 6ES7901-3DB30-0XA0 used for?
The 6ES7901-3DB30-0XA0 is a USB/PPI programming and communication cable designed for compatible Siemens SIMATIC PLC applications, particularly S7-200 systems.
2. What does PPI mean in this cable's application?
PPI refers to Point-to-Point Interface, the communication architecture used by Siemens S7-200 controllers for programming and communication tasks.
3. Can the cable be used to program an S7-200 PLC?
Yes, when used with a compatible S7-200 controller and appropriate Siemens programming environment, the cable can provide the PC-to-PLC connection required for programming and maintenance.
4. What computer interface does the cable use?
The cable provides a USB connection on the computer side, allowing compatible engineering computers to communicate with supported PLC equipment without requiring a native legacy serial port.
5. Can the cable be used for PLC diagnostics?
Yes. When the connected PLC and engineering software support the required functions, the cable can be used for monitoring and diagnostic activities during commissioning and troubleshooting.
6. Does cable length affect PPI communication?
Communication performance depends on the complete interface configuration, communication parameters, electrical environment, and installation conditions. The specified cable length should be used within the limits of the supported system architecture.
7. What should be checked if the PLC is not detected by the computer?
Check the USB connection, installed communication driver, selected PC interface, PLC communication settings, cable connections, and programming software configuration. If necessary, test the cable with a known compatible system.
8. Can the cable be used with any Siemens PLC?
No. The 6ES7901-3DB30-0XA0 is intended for compatible Siemens communication architectures and should not be assumed to work with every Siemens PLC family. The controller's communication interface must be verified before use.
9. Is the cable suitable for field maintenance?
Yes. Its 5.6-meter length can be useful for technicians working around installed machinery, especially when the engineering computer needs to remain outside the immediate control-panel area.
10. What are common reasons for replacing a USB/PPI cable?
Typical reasons include physical cable damage, connector wear, intermittent communication, failed USB communication, or the need to replace a lost or unreliable programming cable.
