Brand:Siemens Item No.:6ES7901-3CB30-0XA0 Product Origin:Germany Product Dimensions:Cable Length: Optional Product Weight:0.41 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

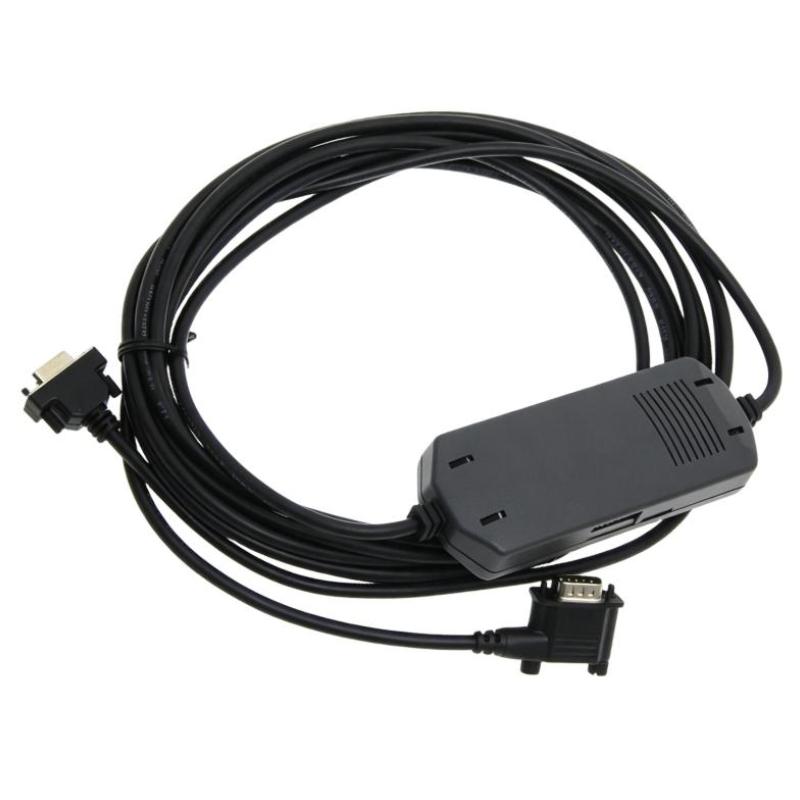

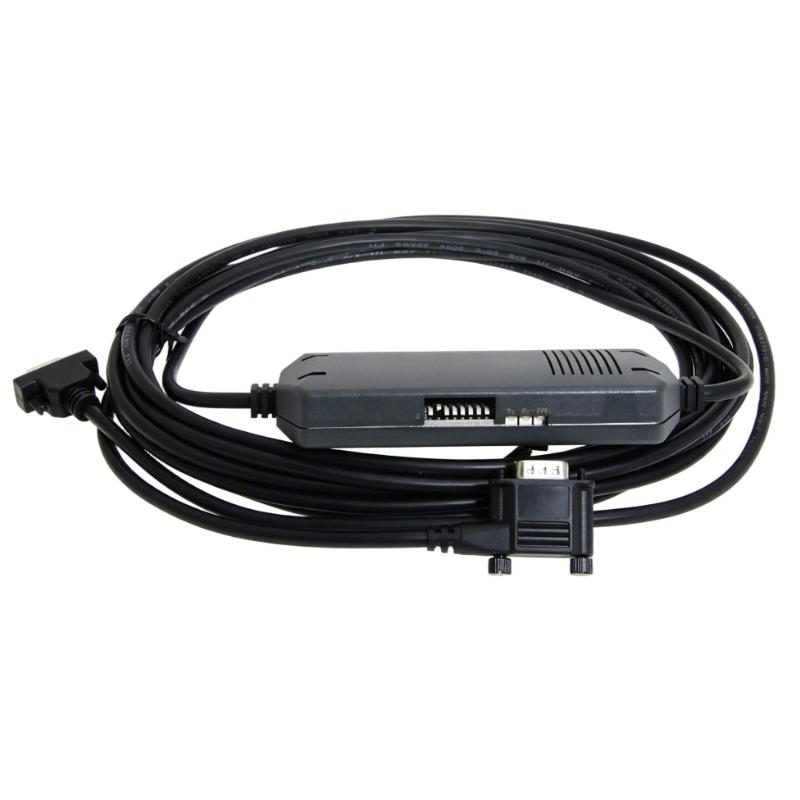

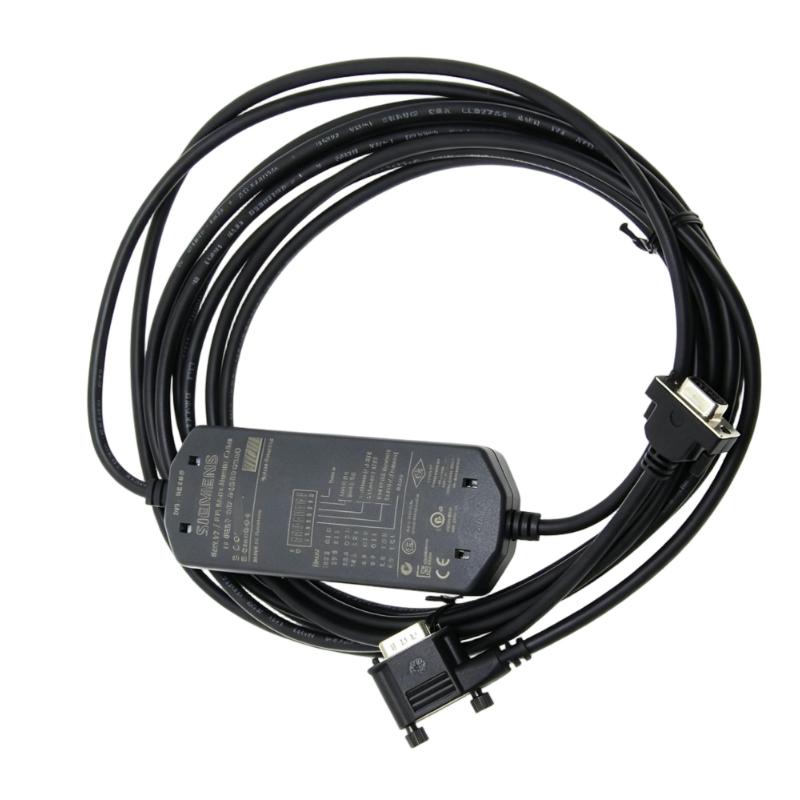

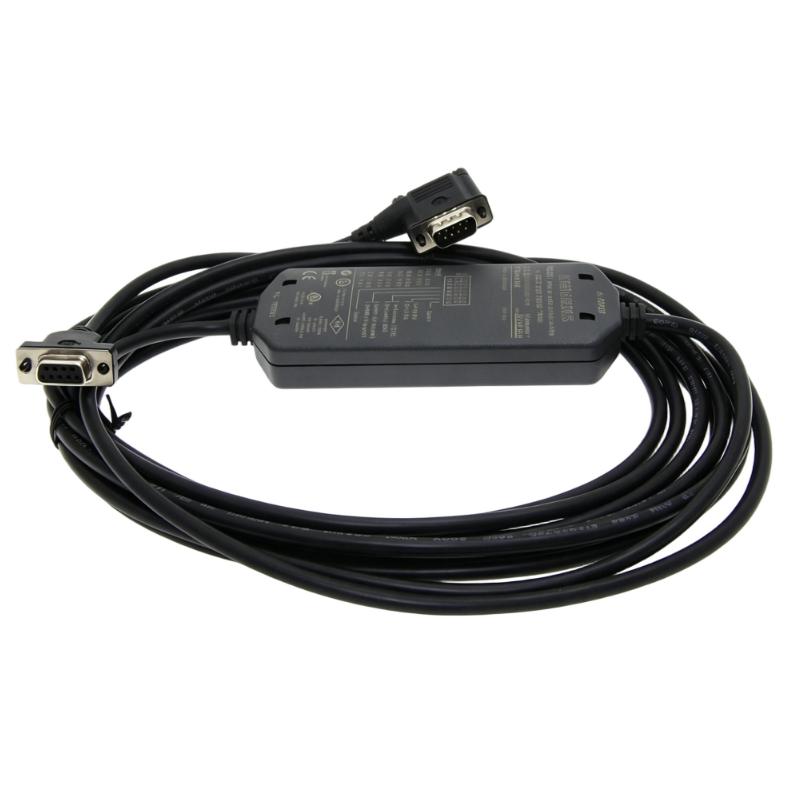

The Siemens 6ES7901-3CB30-0XA0 USB/PPI Cable is a dedicated communication accessory for connecting a computer with a compatible Siemens PLC through the PPI interface. It is intended for engineering and service tasks where reliable PC-to-PLC communication is required.
In an automation environment, the cable can be used throughout several stages of the PLC lifecycle. During programming, it provides the communication path needed to transfer application programs. During commissioning, engineers can use the connection to verify controller operation and diagnose communication or application issues. For maintenance work, it provides convenient access to an installed PLC from a USB-equipped computer.
The USB interface is especially useful for modern computers that no longer provide traditional serial ports. This makes the 6ES7901-3CB30-0XA0 a practical accessory for maintaining compatible Siemens PLC installations while using current engineering equipment.
The optional cable length provides greater flexibility when the programming computer and PLC are separated by different distances. For control cabinet work, service operations, or commissioning areas, selecting an appropriate cable length can make PLC access more convenient.
Recommended Related Models
The following Siemens PLC models are suitable related products to consider for automation projects involving compact PLC control and engineering communication:
Model
Product Type
Siemens 6ES7211-1AE40-0XB0
Compact CPU
Siemens 6ES7211-1BE40-0XB0
Compact CPU
Siemens 6ES7211-1HE40-0XB0
Compact CPU
Siemens 6ES7212-1AE40-0XB0
Compact CPU
Siemens 6ES7212-1BE40-0XB0
Compact CPU
Popular Related Models
Model
Product Type
Siemens 6ES7212-1HE40-0XB0
Compact CPU
Siemens 6ES7221-1BF32-0XB0
Digital Input Module
Siemens 6ES7222-1BF32-0XB0
Digital Output Module
Siemens 6ES7231-4HD32-0XB0
Analog Input Module
Siemens 6ES7232-4HB32-0XB0
Analog Output Module
Applications
The Siemens 6ES7901-3CB30-0XA0 USB/PPI Cable is designed for connecting a PC to compatible Siemens PLC systems through the PPI communication interface. It is primarily used for PLC programming, commissioning, online monitoring, diagnostics, and maintenance.
This cable is a practical solution for engineers working with Siemens S7-200 automation systems, especially when the programming computer is equipped with a USB interface. It provides a convenient communication path for transferring PLC programs and accessing controller data during service operations.
Typical applications include:
PLC program upload and download
S7-200 PLC programming
Online monitoring and diagnostics
PLC commissioning and startup
Industrial automation maintenance
Controller parameter configuration
Troubleshooting existing PLC installations
PC-to-PLC PPI communication
Advantages
The 6ES7901-3CB30-0XA0 offers a straightforward connection between a USB-equipped computer and a compatible PPI-based Siemens PLC. It is particularly useful when servicing established automation systems with modern engineering computers.
Key advantages include:
USB-based PC connection for convenient computer integration
PPI communication for compatible Siemens PLC applications
Suitable for programming and commissioning
Supports online monitoring and diagnostic work
Useful for maintenance of existing automation systems
Optional cable length for different installation requirements
Practical for field service and engineering applications
Compact communication solution for PC-to-PLC access
Technical FAQs
1. What is the Siemens 6ES7901-3CB30-0XA0 used for?
The 6ES7901-3CB30-0XA0 is a USB/PPI communication cable used to connect a compatible Siemens PLC with a computer for programming, monitoring, commissioning, and diagnostics.
2. Which communication protocol does this cable use?
The cable is designed for PPI communication, which is associated with compatible Siemens S7-200 PLC systems.
3. Can the cable be used to download a PLC program?
Yes. With a compatible PLC and correctly configured programming environment, the cable can be used for transferring programs between the computer and PLC.
4. Can this cable be used for online monitoring?
Yes. It can provide the communication connection required for supported online monitoring and diagnostic functions.
5. What is the computer-side interface?
The computer-side connection uses USB, making the cable suitable for computers equipped with USB ports.
6. Is driver or interface configuration required?
The computer and programming software must correctly recognize and configure the USB/PPI communication interface before establishing communication with the PLC.
7. What should be checked if communication cannot be established?
Check the USB connection, communication interface selection, PLC communication parameters, PPI settings, PLC address, and the selected programming interface in the engineering software.
8. Can the 6ES7901-3CB30-0XA0 be used during PLC commissioning?
Yes. It can be used during commissioning to download the control program, establish communication, monitor PLC operation, and perform initial diagnostics.
9. Is this cable suitable for PLC maintenance?
Yes. It is useful for maintenance technicians who need PC access to compatible Siemens PLC systems for troubleshooting, program verification, and operational checks.
10. Is the cable available in different lengths?
The cable length is optional, allowing the appropriate cable configuration to be selected according to the distance and layout of the particular automation installation.
