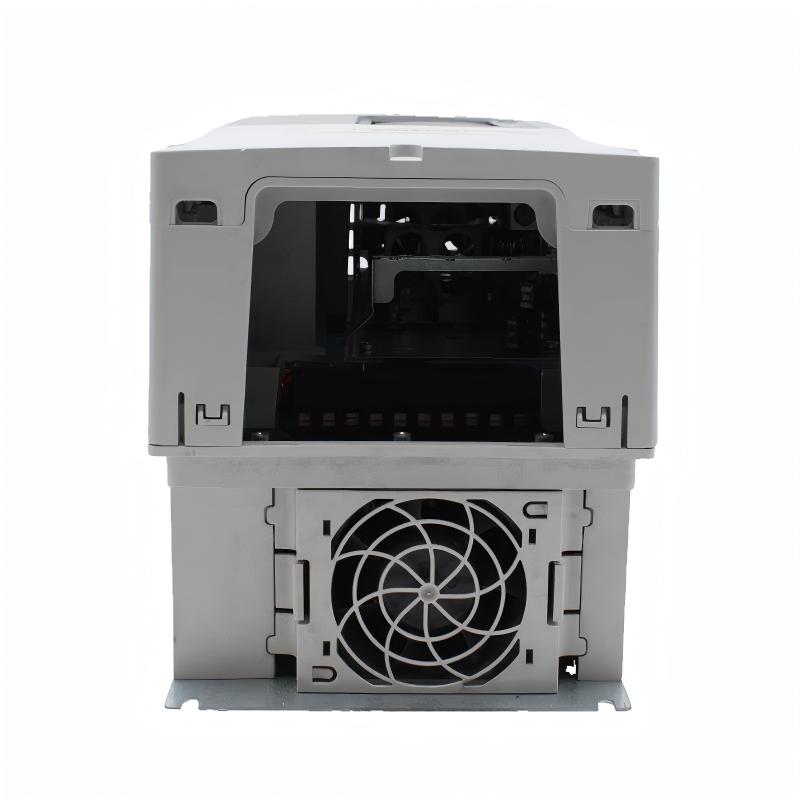

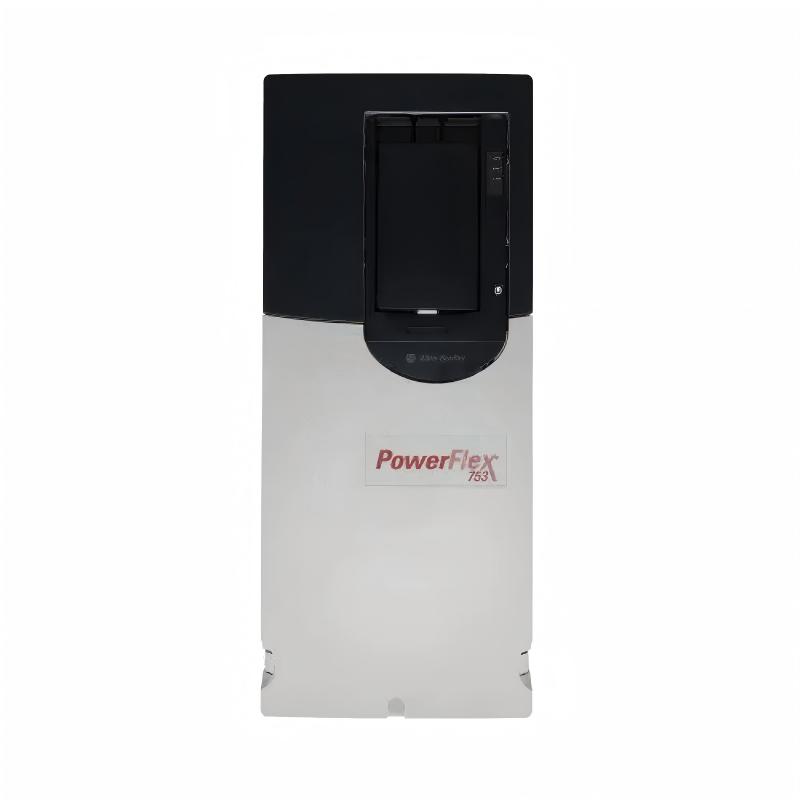

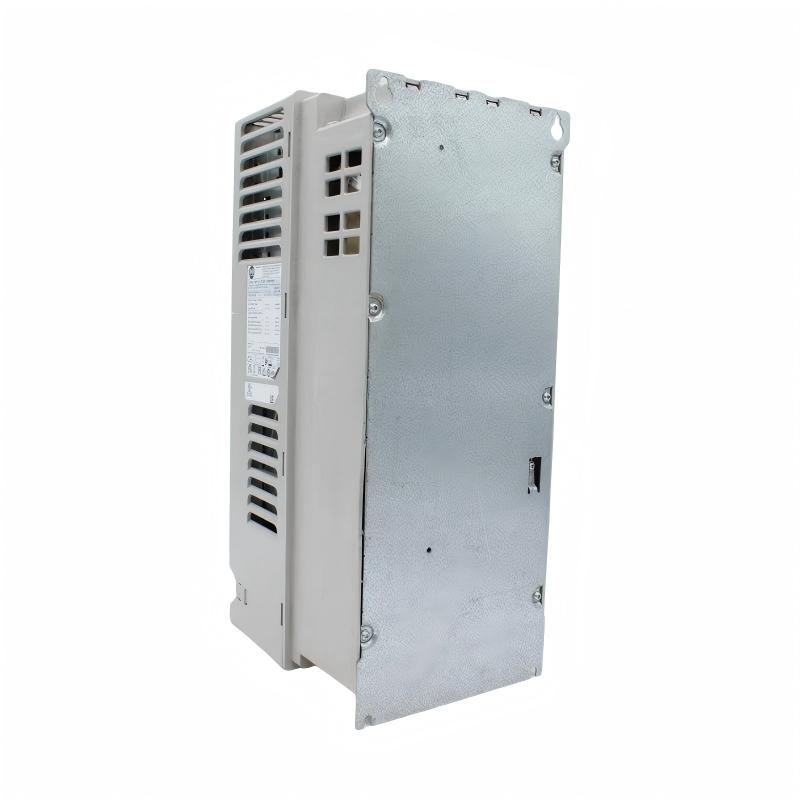

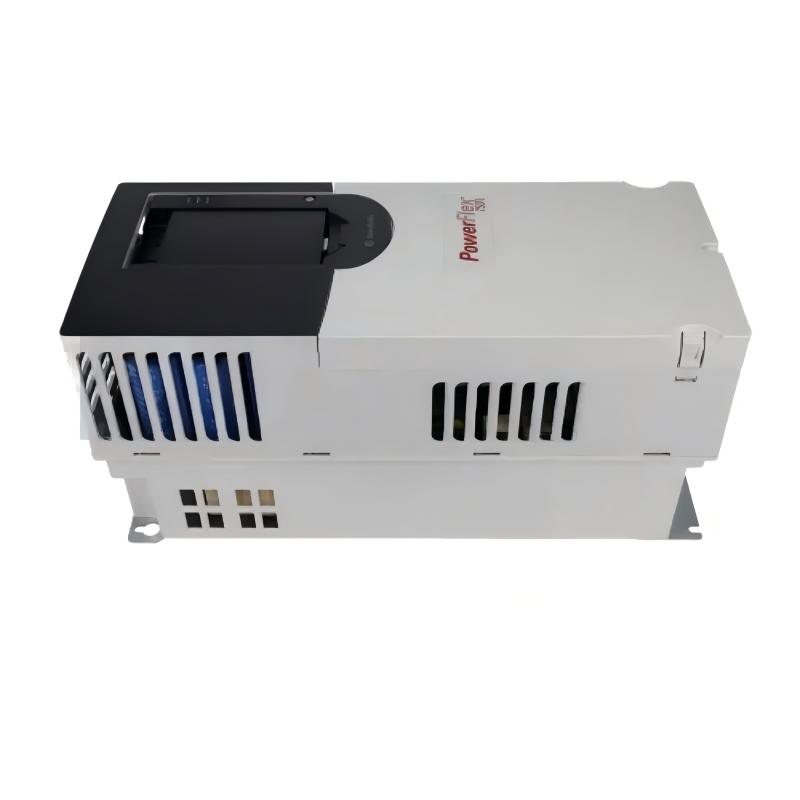

Allen Bradley 20F11NE052AA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11NE052AA0NNNNN PowerFlex 753 AC Drive is a variable frequency drive designed for industrial motor control applications where adjustable speed, controlled acceleration, and reliable process operation are required.

As part of the PowerFlex 753 family, this AC drive is suited to machine and process applications that benefit from flexible motor control and integration with industrial automation systems. It can be applied to pumps, fans, conveyors, compressors, material-handling equipment, and other variable-speed machinery.

Typical applications include:

• Conveyor and material-handling systems
• Industrial pumps
• Fans and ventilation equipment
• Compressors
• Machine tools
• Packaging machinery
• Process automation equipment
• General-purpose industrial motor control
• OEM machine-building applications

Advantages

The 20F11NE052AA0NNNNN provides a practical combination of variable-speed motor control and integration flexibility for industrial automation systems. Its PowerFlex 753 platform is designed for applications where motor performance, operational control, and system integration are important.

Key advantages include:

• Flexible AC motor control for industrial machinery
• PowerFlex 753 platform for demanding automation applications
• Adjustable motor speed for improved process control
• Controlled acceleration and deceleration
• Suitable for a wide range of industrial loads
• Supports automation system integration
• Useful for machine and process applications
• Compact enclosure footprint for its drive class
• Practical solution for new installations and drive replacement projects

Technical FAQs

1. What is the Allen Bradley 20F11NE052AA0NNNNN used for?
It is a PowerFlex 753 AC drive used to control the speed, torque, acceleration, and deceleration of compatible industrial motors.

2. What is the main benefit of using an AC drive?
An AC drive allows the motor operating speed to be adjusted according to process requirements rather than operating continuously at a fixed speed.

3. What types of equipment can use the PowerFlex 753 drive?
Typical applications include conveyors, pumps, fans, compressors, material-handling systems, and various industrial machines.

4. Can the drive be integrated into an industrial automation system?
Yes. The PowerFlex 753 platform is designed for integration with industrial control architectures, allowing drive operation and status information to be incorporated into a broader automation system.

5. Can the drive control motor acceleration and deceleration?
Yes. Configurable acceleration and deceleration profiles can be used to control how the motor reaches or leaves its commanded operating speed.

6. What should be checked before installing the 20F11NE052AA0NNNNN?
The motor rating, incoming power requirements, drive rating, application load characteristics, wiring, protection devices, grounding, enclosure requirements, and control architecture should all be verified.

7. How can an engineer troubleshoot an AC drive that will not start the motor?
Check the incoming power, drive status, active faults, enable conditions, start command, reference signal, motor connections, programmed parameters, and safety/interlock conditions.

8. What can cause an AC drive to trip during operation?
Possible causes include excessive load, acceleration that is too aggressive, motor or cable problems, incorrect parameters, overvoltage, undervoltage, overheating, or other application-specific conditions.

9. Is parameter configuration important when replacing an existing drive?
Yes. Motor nameplate information, command sources, speed references, acceleration and deceleration settings, protection parameters, and application-specific settings should be reviewed before commissioning.

10. Can the PowerFlex 753 be used for both new installations and replacement projects?
Yes. It can be considered for new industrial motor-control systems as well as modernization or replacement projects where the application requirements and electrical ratings are compatible.
