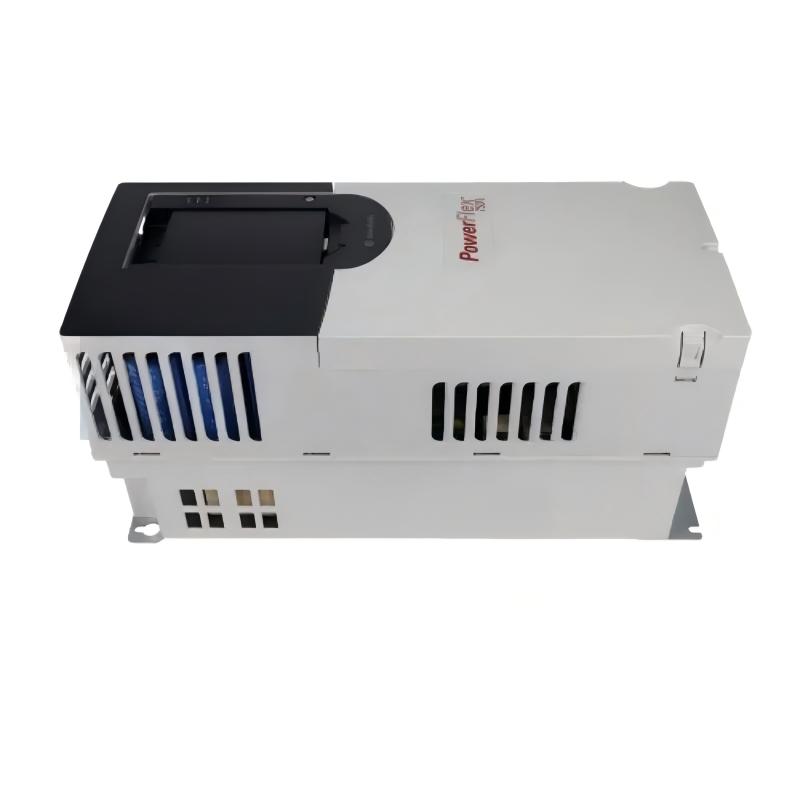

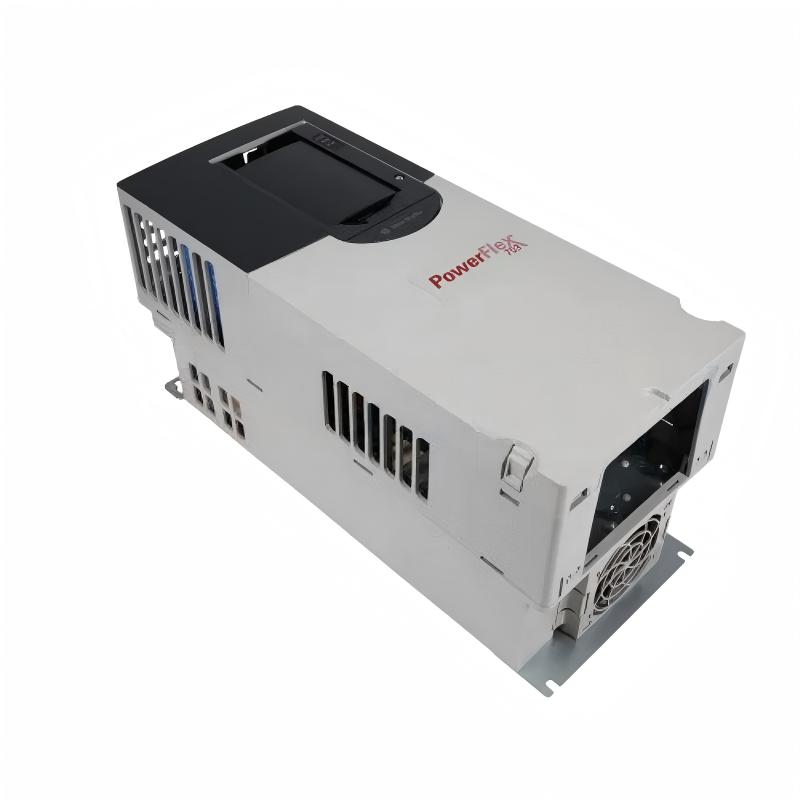

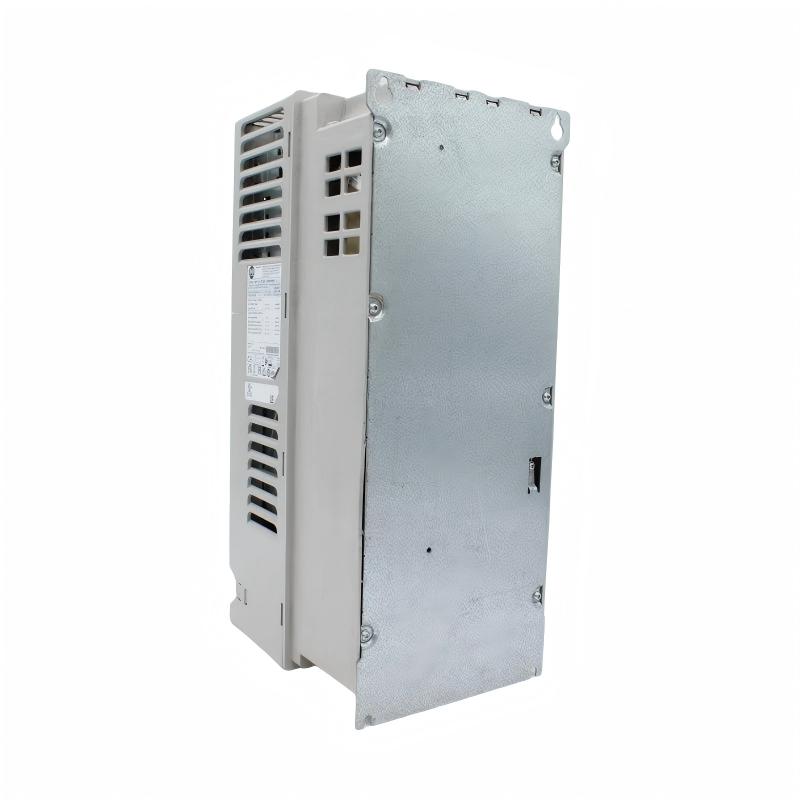

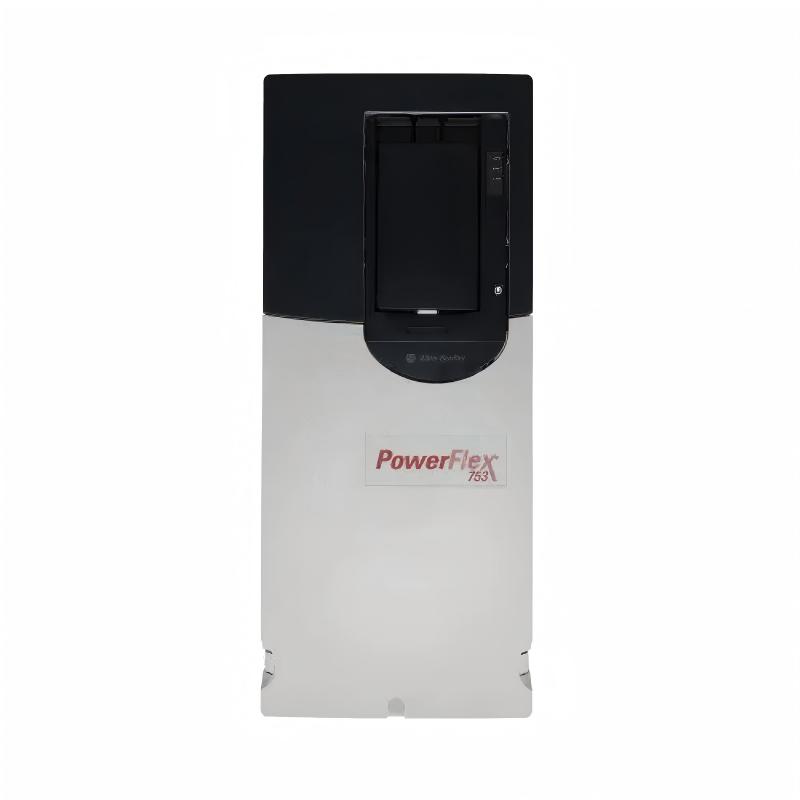

Allen Bradley 20F11NE1P7JA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11NE1P7JA0NNNNN PowerFlex 753 AC Drive is an industrial variable frequency drive designed for adjustable-speed control of AC motors. It is intended for automation systems where accurate motor control, controlled acceleration and deceleration, and flexible integration are important.

The drive can be used in machine-building and process applications with continuously variable motor loads. Typical equipment includes conveyors, pumps, fans, compressors, material-handling systems, and other motor-driven machinery.

Common applications include:

• Conveyor and material-handling systems
• Industrial pumps and fluid-handling equipment
• Fans and ventilation machinery
• Compressors
• Packaging and production machinery
• Machine tools
• Process automation equipment
• OEM machinery
• Industrial motor replacement projects
• Control cabinet modernization

Advantages

The 20F11NE1P7JA0NNNNN combines adjustable-speed motor control with the flexible architecture of the PowerFlex 753 platform. Its compact enclosure dimensions can be advantageous when designing or upgrading industrial control cabinets.

Key advantages include:

• Variable-speed AC motor control for industrial machinery
• PowerFlex 753 platform for flexible drive applications
• Controlled acceleration and deceleration
• Suitable for continuous-duty industrial equipment
• Compact 454 × 190 × 212 mm form factor
• Flexible integration with industrial automation systems
• Useful for OEM machine applications
• Suitable for modernization and replacement projects
• Practical configuration options for different motor-control requirements

Technical FAQs

1. What is the Allen Bradley 20F11NE1P7JA0NNNNN used for?
It is a PowerFlex 753 AC drive designed to provide adjustable-speed control for compatible industrial AC motors.

2. What type of equipment can use this PowerFlex 753 drive?
It can be applied to equipment such as conveyors, pumps, fans, compressors, material-handling systems, production machinery, and other motor-driven industrial equipment.

3. Why use an AC drive instead of fixed-speed motor operation?
An AC drive allows motor speed to be adjusted according to the process, providing greater control over machine operation and allowing the motor to operate at the speed required by the application.

4. Can the drive control motor acceleration and deceleration?
Yes. The drive can be configured with appropriate acceleration and deceleration parameters to control how the motor changes speed.

5. What information is required when configuring the drive for a motor?
Motor nameplate information and application requirements should be reviewed, including motor voltage, current, frequency, speed, and other parameters required by the selected control method.

6. What should be checked before installing the drive?
Verify the electrical supply, motor compatibility, drive rating, wiring, grounding, protective devices, cabinet ventilation, control connections, and application-specific requirements.

7. Why might the drive show an overcurrent condition?
An overcurrent condition can result from excessive mechanical loading, incorrect motor parameters, motor or cable faults, insufficient acceleration time, or other application-related conditions.

8. What should be checked if the motor does not respond to a start command?
Check the drive status, active faults, enable conditions, start command source, speed reference, motor wiring, programmed parameters, and external safety or interlock signals.

9. How should an overheating problem be investigated?
Check the ambient temperature, cabinet ventilation, cooling airflow, installation clearances, drive loading, and heat accumulation inside the enclosure.

10. Can this PowerFlex 753 drive be used in a modernization project?
Yes. It can be considered for industrial drive modernization when its electrical characteristics, motor requirements, control architecture, and mechanical installation requirements are compatible with the existing system.
