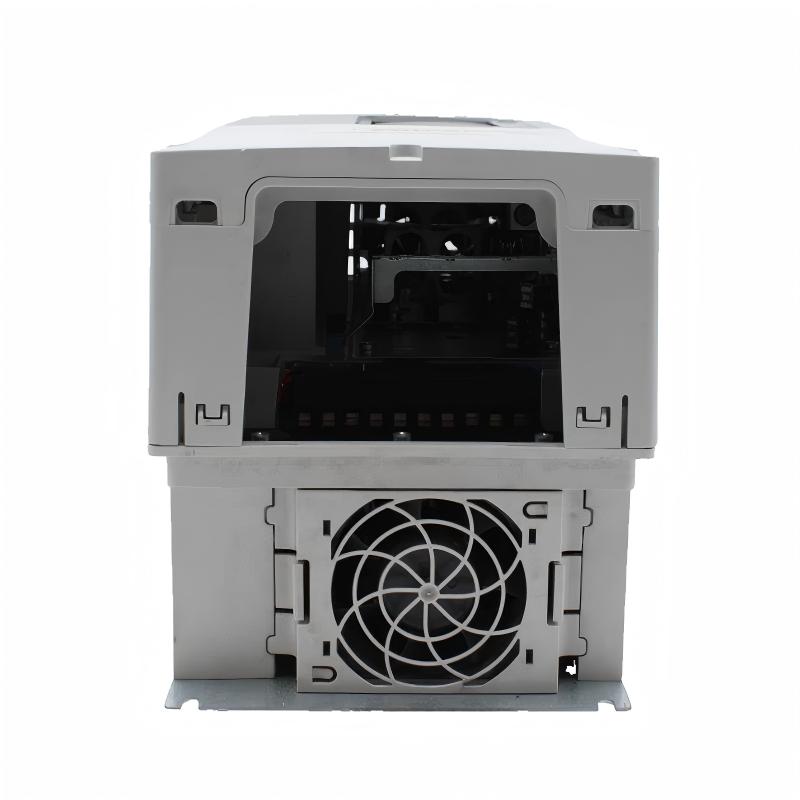

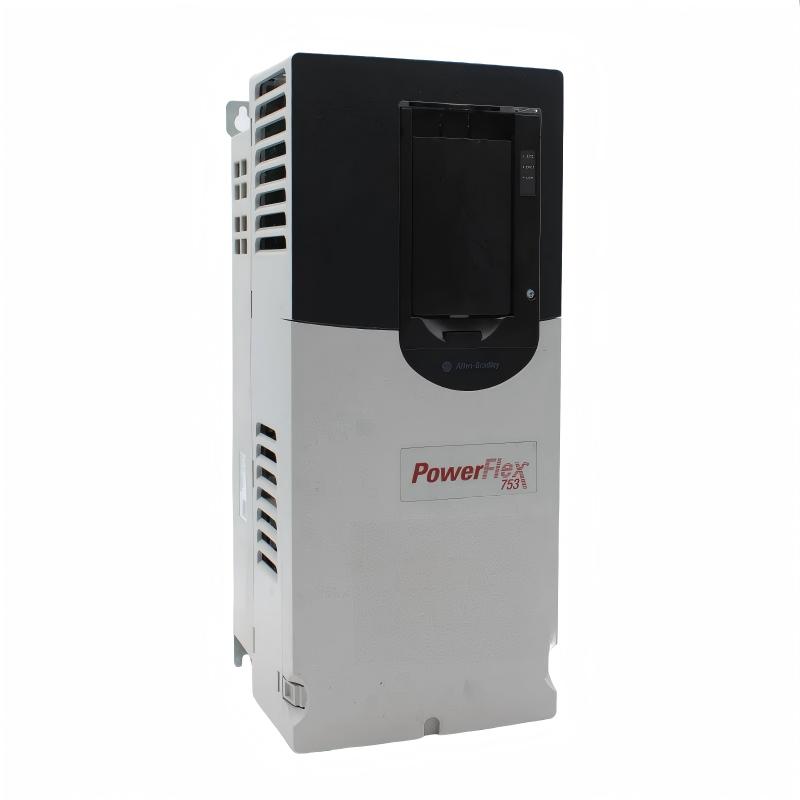

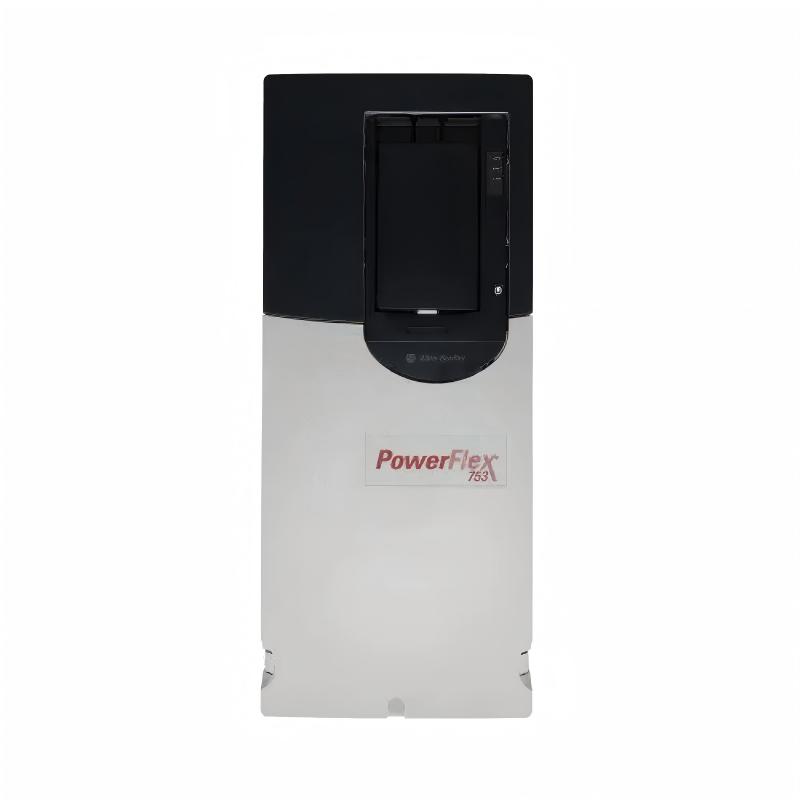

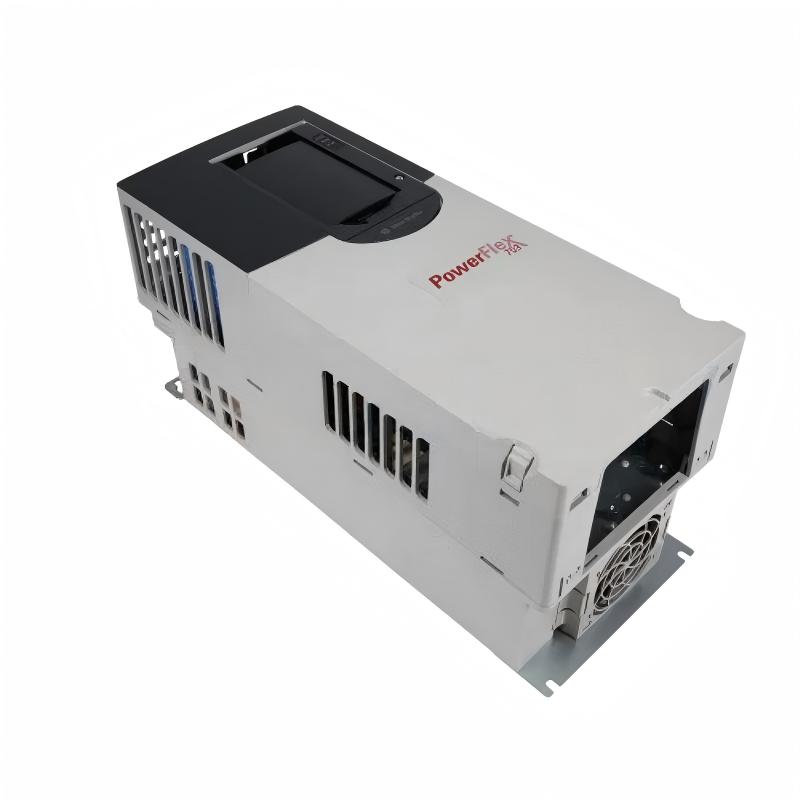

Allen Bradley 20F11NE3P9AA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11NE3P9AA0NNNNN PowerFlex 753 AC Drive is an industrial variable frequency drive designed for adjustable-speed control of AC motors. It is intended for automation equipment that requires controlled motor operation, configurable speed control, and reliable integration within industrial control systems.

The drive can be applied to a wide range of motor-driven equipment, including conveyors, pumps, fans, compressors, material-handling machinery, and production systems. Its PowerFlex 753 platform makes it suitable for both machine-level applications and broader industrial automation projects.

Typical applications include:

• Conveyor and material-handling systems
• Industrial pumping equipment
• Fans and ventilation systems
• Compressors
• Packaging machinery
• Production lines
• Machine tools
• Process automation equipment
• OEM machinery
• Industrial drive replacement projects

Advantages

The 20F11NE3P9AA0NNNNN provides adjustable-speed AC motor control within the PowerFlex 753 platform. Its compact dimensions can help simplify integration into appropriately sized industrial control cabinets.

Key advantages include:

• Adjustable-speed motor control for industrial equipment
• PowerFlex 753 architecture for flexible application configuration
• Controlled acceleration and deceleration
• Suitable for diverse motor-driven loads
• Compact mechanical profile
• Flexible integration with industrial automation systems
• Suitable for machine-building applications
• Useful for modernization and replacement projects
• Practical solution for process and production equipment

Technical FAQs

1. What is the Allen Bradley 20F11NE3P9AA0NNNNN used for?
The 20F11NE3P9AA0NNNNN is a PowerFlex 753 AC drive designed to control the speed and operation of compatible industrial AC motors.

2. What types of equipment can this drive control?
It can be applied to conveyors, pumps, fans, compressors, material-handling equipment, packaging machinery, production systems, and other suitable motor-driven equipment.

3. What is the purpose of adjustable-speed control?
Adjustable-speed control allows motor operation to be matched to process requirements instead of continuously running the motor at a fixed speed.

4. Can the drive control acceleration and deceleration?
Yes. Suitable acceleration and deceleration parameters can be configured to provide controlled changes in motor speed.

5. What motor information should be entered during commissioning?
The motor nameplate information required by the selected control method should be reviewed, including applicable voltage, current, frequency, and speed information.

6. What should be verified before energizing the drive?
Check the incoming power, drive rating, motor compatibility, motor wiring, grounding, protective devices, control wiring, cabinet ventilation, and application-specific requirements.

7. What could cause an overcurrent fault?
Potential causes include excessive mechanical load, incorrect motor parameters, motor or cable faults, aggressive acceleration settings, or unsuitable application configuration.

8. What should be checked when the motor does not start?
Check the drive status, active faults, enable signal, start command, speed reference, motor wiring, programmed parameters, and external safety or interlock conditions.

9. How should a drive overheating condition be investigated?
Inspect cabinet ventilation, ambient temperature, cooling airflow, installation clearance, drive loading, and heat accumulation around the drive.

10. Can the 20F11NE3P9AA0NNNNN be used in a drive modernization project?
Yes. It can be considered for modernization or replacement applications when its electrical characteristics, motor requirements, control configuration, and mechanical installation requirements match the existing system.
