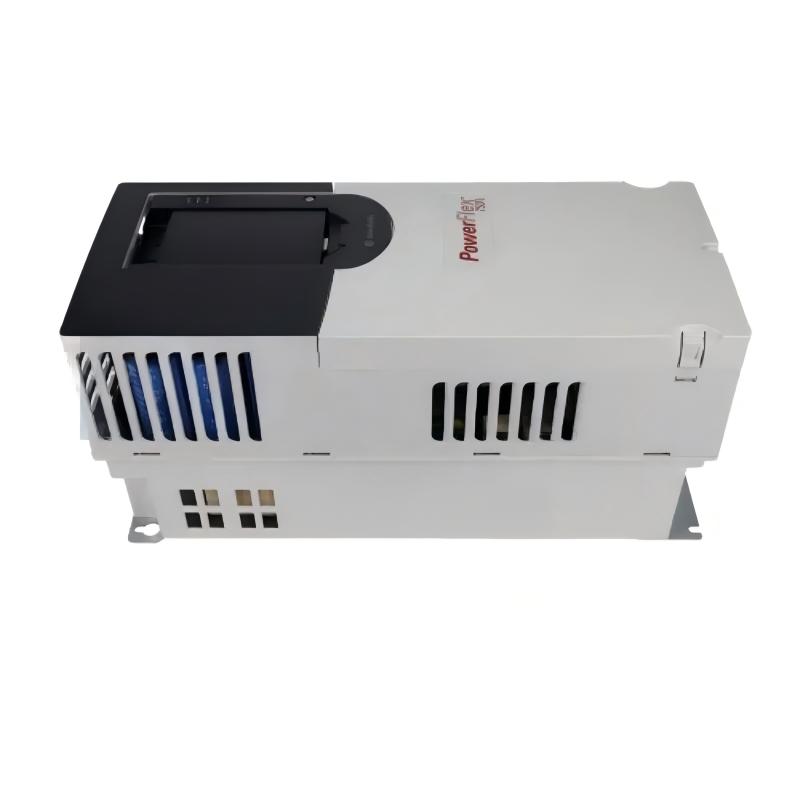

Allen Bradley 20F11NE6P1AA0NNNNN PowerFlex 753 AC Drive

Applications

The Allen Bradley 20F11NE6P1AA0NNNNN PowerFlex 753 AC Drive is designed for adjustable-speed control of AC motors in industrial automation and machine applications. It can be integrated into motor control systems where accurate speed regulation, controlled acceleration, and reliable operation are required.

Typical applications include:

• Conveyor and material-handling systems
• Pumps and pumping stations
• Industrial fans and ventilation systems
• Compressors
• Packaging equipment
• Production machinery
• Process equipment
• Material processing systems
• OEM machine automation
• Industrial motor control panels

The drive is particularly useful in applications where motor speed needs to be adjusted according to production requirements rather than operating continuously at a fixed speed.

Advantages

The 20F11NE6P1AA0NNNNN is part of the Allen Bradley PowerFlex 753 family, providing a flexible platform for industrial AC motor control. Its compact physical dimensions make it practical for appropriately designed control cabinets and machinery.

Key advantages include:

• Adjustable-speed AC motor control
• PowerFlex 753 platform for industrial automation
• Controlled motor acceleration and deceleration
• Flexible configuration for different machine applications
• Suitable for continuous-duty industrial equipment
• Compact 454 × 190 × 212 mm mechanical size
• Suitable for OEM and system-integrator projects
• Useful for drive replacement and modernization
• Supports structured commissioning and maintenance procedures
• 11.8 kg construction for practical handling during installation

Technical FAQs

1. What is the Allen Bradley 20F11NE6P1AA0NNNNN?
It is an Allen Bradley PowerFlex 753 AC Drive designed for adjustable-speed control of compatible industrial AC motors.

2. What is the primary purpose of the PowerFlex 753 drive?
Its primary purpose is to regulate AC motor operation by controlling motor speed and providing controlled starting, stopping, acceleration, and deceleration.

3. Where can the 20F11NE6P1AA0NNNNN be used?
It can be used in industrial machinery, conveyors, pumps, fans, compressors, packaging equipment, material-handling systems, and process applications.

4. What should be checked before commissioning the drive?
Verify the incoming power, motor wiring, grounding, motor nameplate information, control connections, command source, speed reference, and programmed drive parameters.

5. Why is motor nameplate information important during configuration?
Motor voltage, current, frequency, speed, and other nameplate data are used to configure the drive correctly for the connected motor and application.

6. What can cause unstable motor operation?
Incorrect motor parameters, unsuitable acceleration or deceleration settings, unstable reference signals, wiring problems, excessive mechanical loading, or inappropriate control configuration can contribute to unstable operation.

7. What should be checked when the motor does not run?
Check for active drive faults, enable conditions, start commands, speed references, motor connections, control wiring, safety interlocks, and configuration parameters.

8. How should an overcurrent condition be investigated?
Inspect the mechanical load, motor and cable condition, acceleration settings, motor parameters, and drive status. A sudden increase in load can also cause excessive motor current.

9. What installation conditions are important for the drive?
The cabinet should provide suitable ventilation, adequate mounting space, proper grounding, appropriate electrical protection, and sufficient access for wiring and maintenance.

10. Can this drive be considered for an existing PowerFlex installation?
Yes, but replacement suitability should be evaluated by comparing the drive's electrical rating, motor requirements, control configuration, enclosure installation, and application requirements with the existing system.
