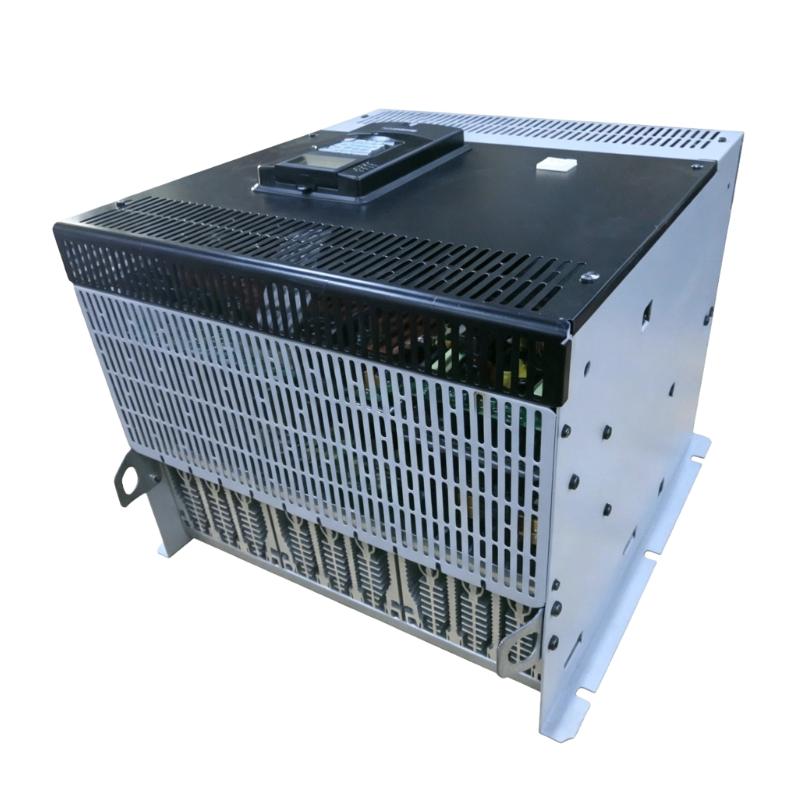

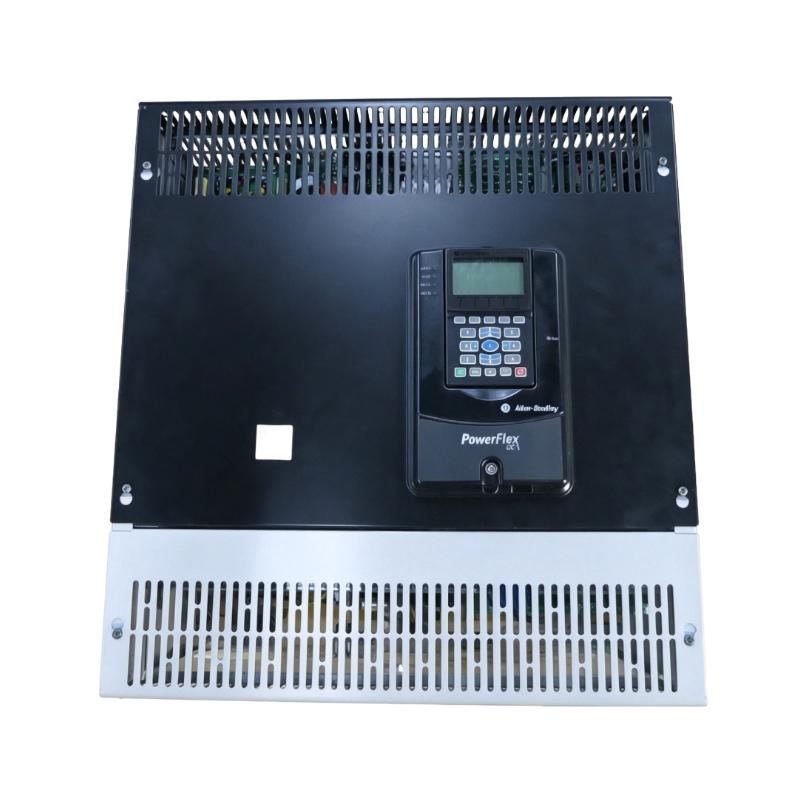

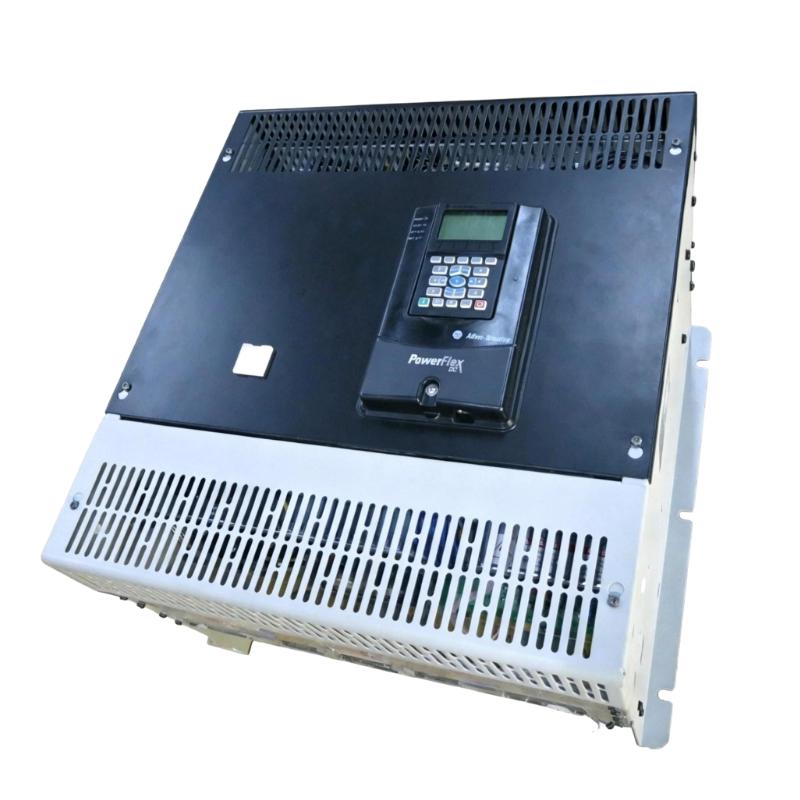

Allen Bradley 20P41AD667RA0NNN PowerFlex DC Drives

Applications

The Allen Bradley 20P41AD667RA0NNN PowerFlex DC Drive is designed for industrial DC motor control applications where adjustable speed, controlled acceleration, deceleration, and reliable process operation are required. It can be integrated into automated machinery and production systems that use DC motors for continuous or variable-speed operation.

Typical applications include:

• Conveyor and material-handling systems
• Web handling and tension-control equipment
• Winding and unwinding machines
• Printing machinery
• Industrial processing lines
• Packaging equipment
• Machine tools
• Production machinery
• Heavy-duty industrial equipment
• DC motor replacement and modernization projects

Advantages

The 20P41AD667RA0NNN is part of the Allen Bradley PowerFlex DC Drives family and provides a dedicated platform for industrial DC motor applications. Its larger physical configuration is suitable for installations where higher-capacity drive equipment and cabinet space are available.

Key advantages include:

• Dedicated DC motor speed control
• Suitable for industrial automation systems
• Controlled acceleration and deceleration
• Suitable for demanding production environments
• Flexible integration into DC motor control systems
• Suitable for machine-building and system-integration projects
• Practical for modernization of existing DC motor systems
• Robust physical configuration for industrial installation
• Suitable for applications requiring continuous motor control
• 65 kg total weight for a substantial industrial drive assembly

Technical FAQs

1. What is the Allen Bradley 20P41AD667RA0NNN?
The 20P41AD667RA0NNN is an Allen Bradley PowerFlex DC Drive designed for adjustable-speed control of compatible industrial DC motors.

2. What is the primary function of a PowerFlex DC Drive?
Its primary function is to regulate the electrical power supplied to a DC motor so that motor speed and operating characteristics can be controlled according to the application.

3. What applications are suitable for this drive?
It can be used in conveyors, winding and unwinding systems, printing equipment, material handling, processing machinery, and other industrial applications using DC motors.

4. What should be verified before commissioning?
Verify the motor ratings, drive configuration, incoming power, motor and field connections, grounding, control wiring, command signals, feedback configuration where applicable, and operating parameters.

5. Why is accurate motor data important?
Correct motor data helps the drive establish appropriate control parameters and allows the control system to operate the connected motor within its intended operating range.

6. What can cause unstable DC motor speed?
Possible causes include an incorrect speed reference, incorrect drive parameters, motor feedback problems, unsuitable control settings, wiring faults, or mechanical load changes.

7. What should be checked if the drive does not start the motor?
Check active faults, enable conditions, start commands, speed reference signals, motor connections, field circuit conditions, interlocks, and programmed parameters.

8. What can cause a DC drive overcurrent condition?
Potential causes include excessive mechanical load, motor or cable problems, incorrect configuration, aggressive acceleration settings, or sudden changes in machine loading.

9. What should be checked if the drive temperature becomes excessive?
Check cabinet ventilation, ambient temperature, cooling airflow, installation clearances, loading conditions, and contamination around cooling components.

10. Can this PowerFlex DC Drive be used in modernization projects?
It can be considered for DC drive modernization when the existing motor, electrical system, control architecture, feedback requirements, cabinet dimensions, and application requirements are compatible.
