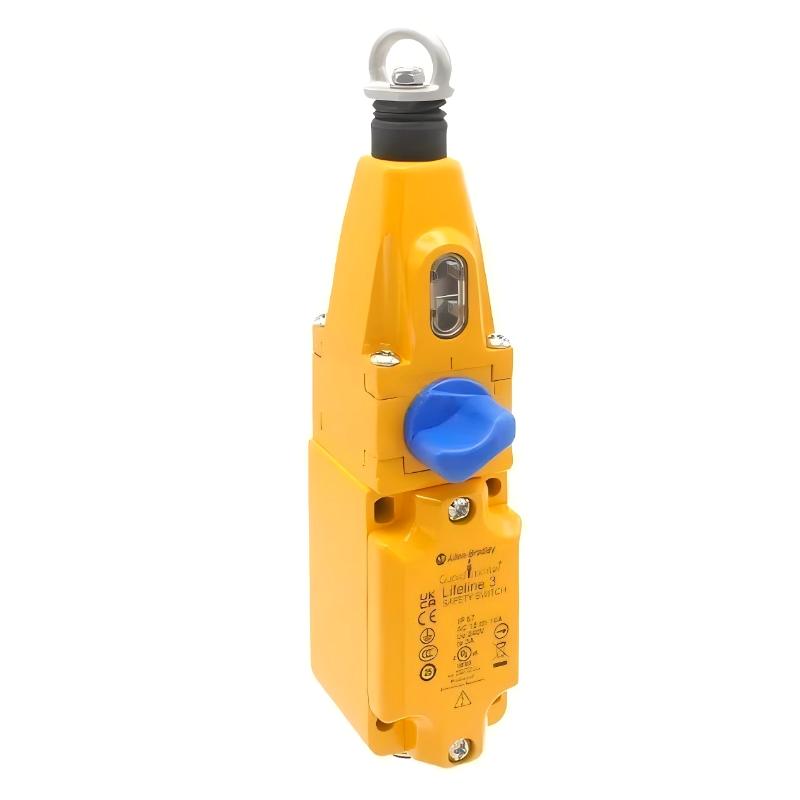

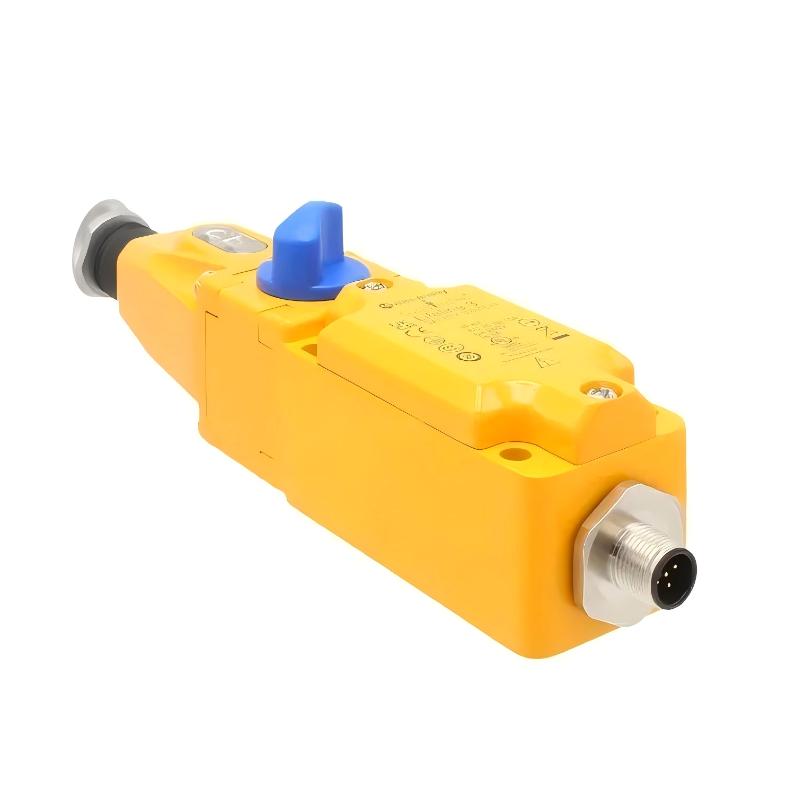

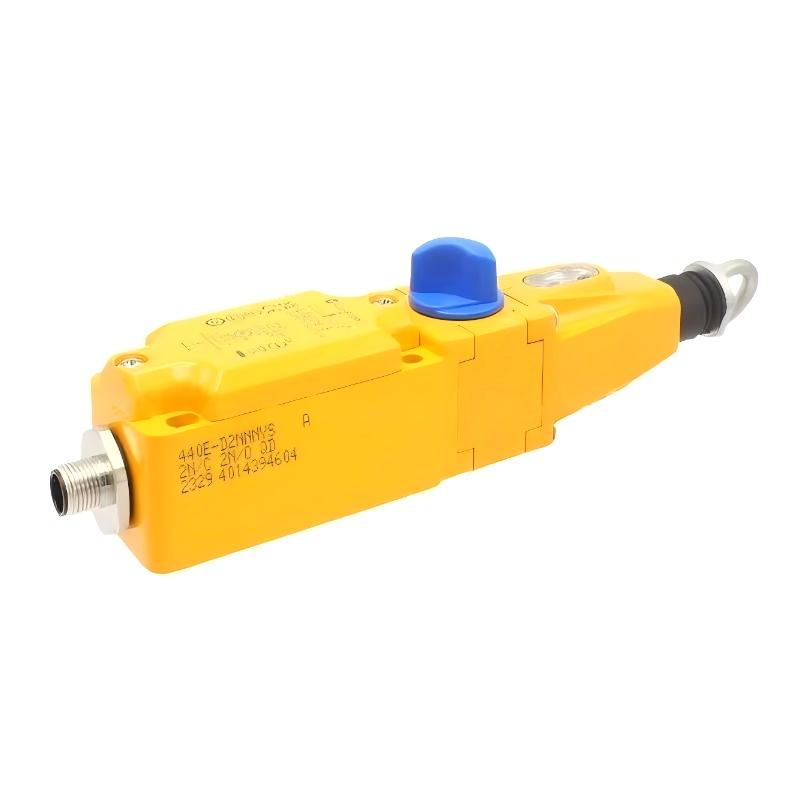

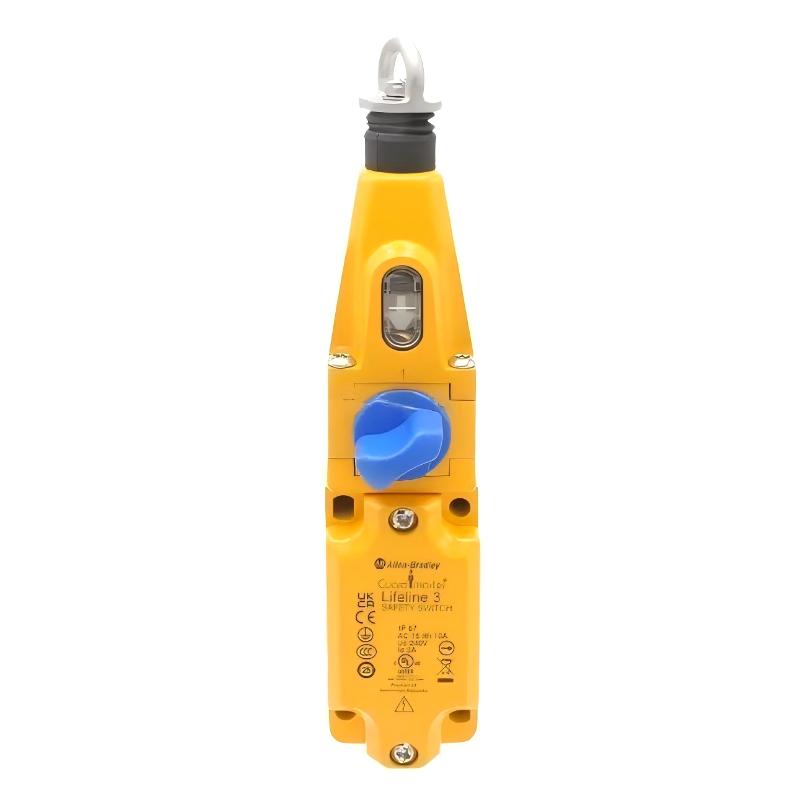

Allen Bradley 440E-D2NNNYS Cable-Pull Switch

Applications

The Allen Bradley 440E-D2NNNYS Cable-Pull Switch is a safety device designed for emergency stop protection along machinery, conveyor lines, and other industrial equipment where operators may need to stop a machine from multiple positions.

Unlike a conventional emergency-stop push button that provides protection at a specific location, a cable-pull switch can be installed along the hazardous area so that pulling the connected safety cable initiates the emergency-stop function.

Typical applications include:

• Conveyor systems
• Material-handling equipment
• Production lines
• Packaging machinery
• Assembly equipment
• Processing machinery
• Long conveyor sections
• Industrial machinery with extended hazard zones
• Machine safety systems
• Emergency-stop circuits

Advantages

The 440E-D2NNNYS provides a practical method for implementing emergency-stop protection across extended areas of industrial machinery. Its cable-operated design allows the emergency-stop function to be activated from different positions along the installed cable.

Key advantages include:

• Cable-operated emergency-stop functionality
• Suitable for extended conveyor and machinery areas
• Provides emergency-stop access along a machine
• Suitable for industrial machine safety systems
• Compact 204 × 40 × 56 mm mechanical dimensions
• Suitable for conveyor and material-handling applications
• Can be integrated into safety control circuits
• Supports localized emergency-stop activation
• Robust design for industrial environments
• 0.92 kg weight for practical installation and maintenance

Technical FAQs

1. What is the Allen Bradley 440E-D2NNNYS?
The 440E-D2NNNYS is an Allen Bradley cable-pull switch used for emergency-stop applications on industrial machinery and conveyor systems.

2. How does a cable-pull switch operate?
A safety cable is connected to the switch and routed along the protected area. Pulling the cable actuates the switch mechanism and changes its safety contacts.

3. Where are cable-pull switches commonly installed?
They are commonly installed along conveyors, production lines, material-handling equipment, and machinery where operators need emergency-stop access over an extended area.

4. What is the difference between a cable-pull switch and a push-button emergency stop?
A push-button emergency stop is normally operated at a fixed location, while a cable-pull switch allows emergency-stop activation along the length of a connected safety cable.

5. What should be checked before installation?
Verify the mounting location, cable routing, cable tension, switch alignment, mechanical travel, electrical connections, and applicable machine safety requirements.

6. Why is correct cable tension important?
The cable must be installed and tensioned according to the switch and machine safety design. Incorrect tension can affect switch operation and emergency-stop performance.

7. What should be checked after installation?
The complete emergency-stop function should be tested from the required operating positions. The machine should respond correctly when the cable is pulled.

8. Can the switch be connected to a safety relay or safety controller?
Cable-pull switches can be incorporated into appropriately designed machine safety circuits, including systems using safety relays or safety controllers. The complete circuit must be designed and validated according to the applicable safety requirements.

9. What should be done if the switch does not reset correctly?
Inspect the cable tension, mechanical alignment, switch mechanism, mounting, wiring, and associated safety circuit. Do not return the machine to service until the safety function has been verified.

10. Is periodic testing recommended?
Yes. Cable-pull emergency-stop devices should be inspected and function-tested according to the machine manufacturer's safety procedures and the applicable maintenance schedule.
