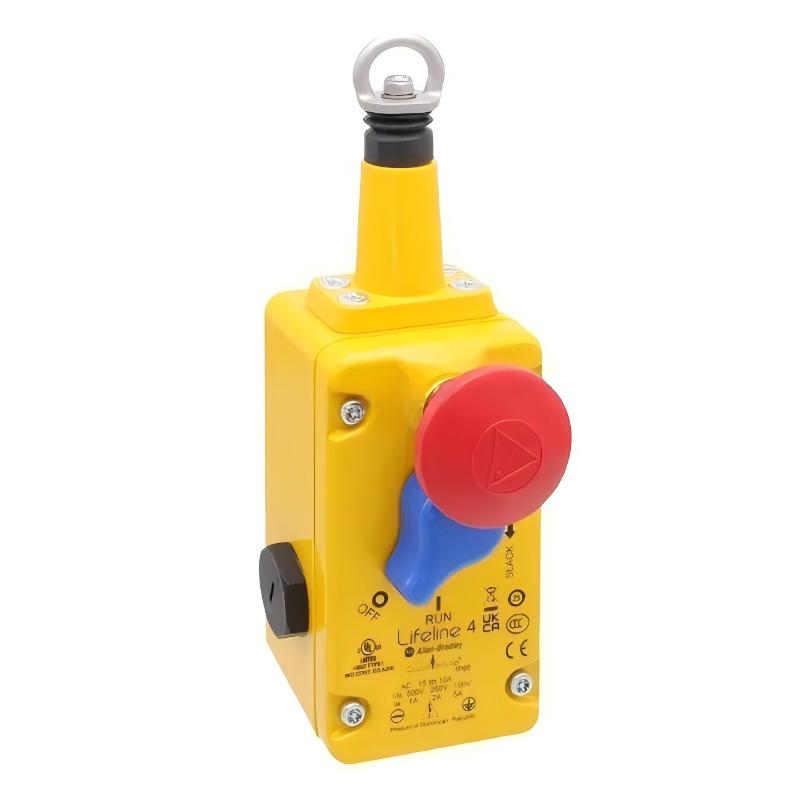

Allen-Bradley 440E-L2NNNYS Cable-Pull Switch

Applications

The Allen-Bradley 440E-L2NNNYS Cable-Pull Switch is designed for emergency-stop and machine-safety applications where operators need to stop machinery from different positions along an extended hazardous area. Cable-pull switches are especially useful on conveyors and production equipment where a single emergency-stop push button cannot provide convenient access across the entire machine.

Typical applications include:

• Conveyor systems
• Material-handling equipment
• Production and assembly lines
• Packaging machinery
• Processing equipment
• Manufacturing machinery
• Long conveyor sections
• Automated production systems
• Machine safety circuits
• Industrial emergency-stop systems

The switch can be installed along a suitable safety cable so that pulling the cable activates the emergency-stop function.

Advantages

The 440E-L2NNNYS provides a practical solution for extending emergency-stop access along industrial machinery. Its cable-operated design allows an operator to initiate a stop from multiple positions along the protected section.

Key advantages include:

• Cable-pull emergency-stop operation
• Suitable for extended machinery and conveyor areas
• Provides accessible emergency-stop activation
• Suitable for industrial machine-safety applications
• Compact 196 × 48 × 85 mm dimensions
• Suitable for conveyor and material-handling systems
• Can be incorporated into appropriately designed safety circuits
• Supports distributed emergency-stop protection
• Practical for machine installation and maintenance
• 0.8 kg weight for convenient handling

Technical FAQs

1. What is the Allen-Bradley 440E-L2NNNYS?
The 440E-L2NNNYS is an Allen-Bradley cable-pull switch designed for emergency-stop and machine-safety applications.

2. How does a cable-pull switch work?
A safety cable is connected to the switch and installed along the protected machine area. Pulling the cable actuates the switch mechanism and changes its safety contacts.

3. Where is the 440E-L2NNNYS typically used?
It is suitable for conveyors, material-handling equipment, production lines, packaging machinery, and other industrial equipment requiring extended emergency-stop access.

4. Why use a cable-pull switch instead of a standard emergency-stop push button?
A push button provides emergency-stop access at one specific location, while a cable-pull switch can provide emergency-stop activation along the length of a protected area.

5. What should be considered when installing the switch?
The mounting position, cable routing, cable tension, alignment, mechanical operating range, electrical connections, and complete machine-safety design should be considered.

6. Why is cable tension important?
Correct cable tension is necessary for reliable switch operation. Incorrect tension or improper cable installation can affect the emergency-stop function.

7. How should the switch be tested after installation?
Pull the safety cable at the required operating positions and verify that the machine enters the intended safe-stop condition. The reset operation should also be checked.

8. Can the 440E-L2NNNYS be integrated with a safety relay?
A cable-pull switch can be incorporated into an appropriately designed safety circuit that may include a safety relay or safety controller. The complete safety system must be designed and validated according to the applicable requirements.

9. What should be checked if the switch does not operate correctly?
Inspect cable tension, cable routing, mounting alignment, mechanical movement, switch condition, wiring, and the associated safety circuit before returning the machine to operation.

10. How often should a cable-pull switch be inspected?
Inspection and functional testing should follow the machine manufacturer's maintenance procedures and applicable machine-safety requirements. Regular testing helps identify mechanical or electrical problems before they affect the safety function.
