Ingersoll Rand 47604754001 24900458 Maintenance Service Configuration
Ingersoll Rand 47604754001 24900458 Maintenance Service Configuration
0.0
Points
Brand:Ingersoll Rand Item No.:47604754001 24900458 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

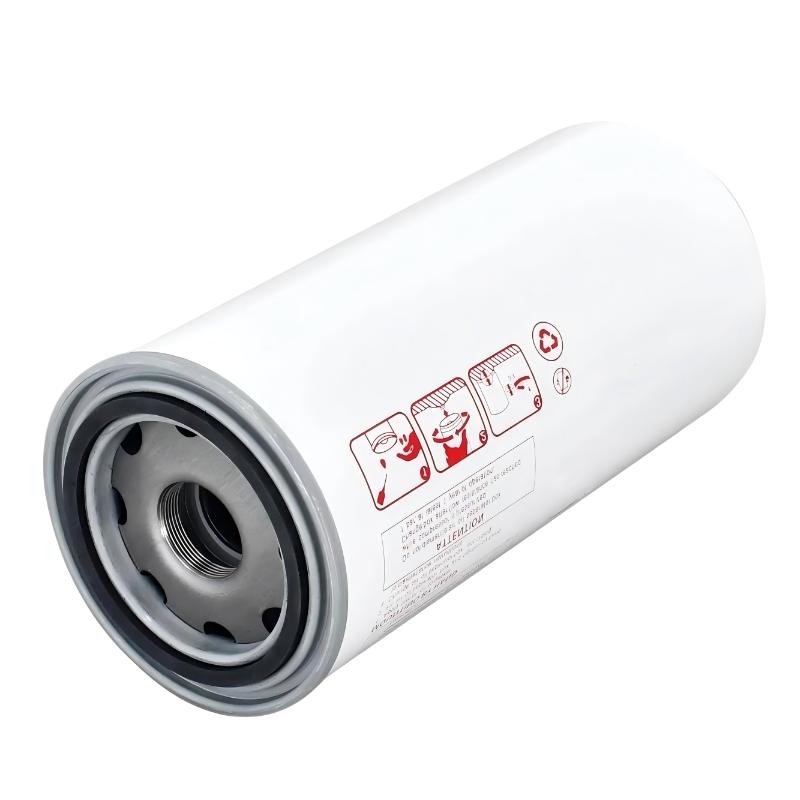

The Ingersoll Rand 47604754001 24900458 Maintenance Service Configuration provides a consolidated reference for scheduled servicing of applicable RS200-250N/NE contact-cooled rotary screw compressors. The complete model reference incorporates the standard long-interval maintenance service identified by 47604754001 together with the 24900458 coolant filter element specification.
Coolant filtration plays an important role in maintaining the cleanliness of the compressor's circulating fluid. Contamination within the coolant circuit can affect lubrication and heat-transfer performance, making regular inspection and timely filter replacement an important part of preventive maintenance.
By using the full 47604754001 24900458 reference, maintenance teams can more clearly identify the intended service configuration when planning routine compressor maintenance or managing spare-parts inventory. Compatibility should always be confirmed against the installed compressor's model, serial number, and current parts documentation before installation.
Technical Specifications
Specification
Details
Complete Model Reference
47604754001 24900458
Product Type
Maintenance Service Configuration
Primary Maintenance Reference
47604754001
Coolant Filter Reference
24900458
Filter Type
Coolant Filter Element
Maintenance Interval
1 Year / 6,000-8,000 Hours
Applicable Compressor Family
Ingersoll Rand RS200-250N/NE
Filtration Function
Compressor coolant-circuit filtration
Service Type
Scheduled preventive maintenance
Duty Classification
Standard maintenance configuration
Installation
Compressor coolant-system installation
Approx. Filter Dimensions
118 mm outside diameter × 364 mm height
Thread Reference
1 3/4-12
Complete Configuration Dimensions
Not separately specified
Complete Configuration Weight
Not separately specified
Compatibility
Verify compressor model, serial number, and current parts documentation
• The complete 47604754001 24900458 model reference is intended for structured preventive maintenance on applicable Ingersoll Rand RS200-250N/NE compressor configurations.
• It combines the standard 1-year / 6,000-8,000-hour maintenance service reference with the specified coolant filter element reference as one complete service configuration.
• Well suited to manufacturing plants, process facilities, fabrication operations, utilities, and other industrial compressed-air systems where dependable compressor cooling and filtration are essential.
• The 24900458 filter element supports filtration within the compressor coolant circuit, helping control particulate contamination in the circulating coolant system.
• Provides maintenance personnel with a consolidated reference for planned servicing, replacement scheduling, and spare-parts inventory management.
Key Strengths at a Glance
• Complete Model Reference: 47604754001 24900458.
• Service Interval: Standard 1-year / 6,000-8,000-hour maintenance configuration.
• Coolant Filtration: Incorporates the 24900458 coolant filter element reference.
• System Protection: Supports cleaner coolant circulation and helps limit contaminant loading within the lubrication and cooling circuit.
• Maintenance Planning: Suitable for scheduled replacement during established compressor service intervals.
• Industrial Application: Designed around applicable RS200-250N/NE service requirements, subject to model and serial-number verification.
Technical FAQs
1. What does the complete 47604754001 24900458 model reference represent?
It represents one complete Ingersoll Rand maintenance service configuration incorporating the 47604754001 scheduled maintenance reference and the specified 24900458 coolant filter element.
2. Which compressor family is associated with 47604754001?
The 47604754001 service reference is used for applicable RS200-250N/NE compressor configurations, with final compatibility determined by the machine serial number and current parts documentation.
3. What is the function of 24900458?
24900458 is a coolant filter element used to help remove contaminants from the compressor coolant circuit and maintain suitable fluid cleanliness.
4. Why is coolant filtration important in a rotary screw compressor?
Effective coolant filtration helps control particulate contamination in the circulating fluid, supporting reliable lubrication, heat transfer, and protection of internal compressor components.
5. What maintenance interval applies to the complete configuration?
The primary service reference corresponds to a standard 1-year / 6,000-8,000-hour maintenance interval, subject to the specific compressor maintenance schedule and operating conditions.
6. What should be checked before installing 24900458?
The technician should inspect the filter connection, sealing surface, filter housing, surrounding piping, and coolant condition before installing the replacement element.
7. Can 24900458 be substituted with another coolant filter of similar appearance?
Substitution should not be based solely on physical appearance because thread specifications, sealing characteristics, filtration performance, and application requirements must match the compressor system.
8. What operating conditions can influence coolant filter service life?
Coolant condition, ambient contamination, operating temperature, compressor loading, maintenance practices, and the overall cleanliness of the fluid circuit can influence filter loading and service requirements.
9. Should the coolant circuit be inspected when replacing the filter?
Yes, routine replacement provides an opportunity to check for abnormal contamination, leakage, damaged seals, or other conditions that could indicate an issue elsewhere in the coolant system.
10. What information should be verified if the installed filter has a different part number?
The compressor model, serial number, current parts revision, and any applicable supersession information should be checked before replacing the installed filter with 24900458.
