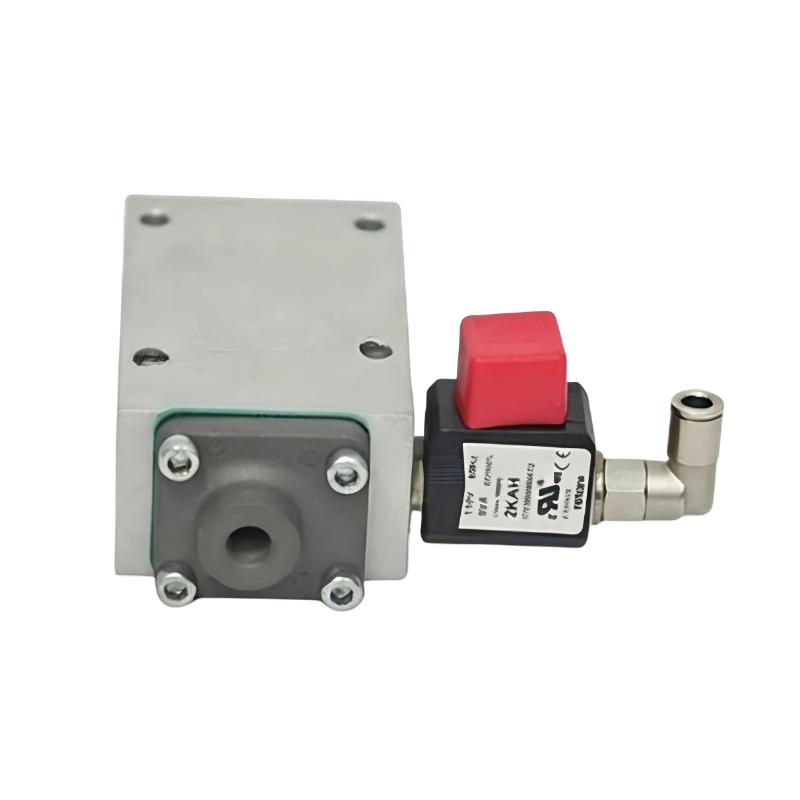

Ingersoll Rand 47579352001 23969298 8,000-Hour Water-Cooled Service and Condensate Drain Configuration
Ingersoll Rand 47579352001 23969298 8,000-Hour Water-Cooled Service and Condensate Drain Configuration
0.0
Points
Brand:Ingersoll Rand Item No.: 47579352001 23969298 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.11 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ingersoll Rand 47579352001 23969298 8,000-Hour Water-Cooled Service and Condensate Drain Configuration combines a scheduled maintenance package with a specified condensate drain solenoid valve for compatible Sierra oil-free compressor systems. The primary service reference, 47579352001, is associated with the 8,000-hour water-cooled maintenance program, while 23969298 provides controlled condensate discharge within the applicable drain circuit.
Condensate management is an important part of compressor maintenance because accumulated moisture can interfere with drainage performance and contribute to unwanted conditions within downstream air-management equipment. A correctly functioning automatic drain valve allows condensate to be discharged at the designated drain point according to the system's operating sequence.
This configuration is intended for professional preventive maintenance and service planning. Before installation, maintenance personnel should verify the compressor model, serial number, water-cooled configuration, drain arrangement, valve electrical characteristics, and current Ingersoll Rand parts documentation.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Complete Configuration
47579352001 23969298
Primary Maintenance Reference
47579352001
Maintenance Package
8,000-hour water-cooled maintenance package
Associated Component
23969298
Component Type
Condensate drain solenoid valve
Associated Replacement Reference
47677733001, subject to equipment and parts-document verification
Compressor Platform
Sierra 37–75 kW oil-free compressor systems
Cooling Configuration
Water-cooled
Service Interval
8,000 hours
Primary Function
Scheduled maintenance and automatic condensate drainage
Installation
Compressor condensate drain circuit
Electrical Configuration
Verify coil voltage and electrical specification against the installed system
Dimensions
Not separately specified for the complete configuration; verify current parts documentation
Weight
Not separately specified for the complete configuration; verify current parts documentation
Compatibility
Verify compressor model, serial number, drain arrangement, and current parts documentation
Recommended Companion Models
Model
Product Name
L50
Ingersoll Rand Sierra L50 37 kW Oil-Free Rotary Screw Compressor
L60
Ingersoll Rand Sierra L60 45 kW Oil-Free Rotary Screw Compressor
L75
Ingersoll Rand Sierra L75 55 kW Oil-Free Rotary Screw Compressor
L100
Ingersoll Rand Sierra L100 75 kW Oil-Free Rotary Screw Compressor
Frequently Selected Alternatives
Model / Part Number
Product Name
47579611001
Sierra 37–75 8,000-Hour Air-Cooled Maintenance Package
47579185001
Sierra 37–75 4,000-Hour Maintenance Package
47578983001
Sierra 37–75 2,000-Hour Maintenance Package
47677733001
Condensate Drain Solenoid Valve Reference for Applicable Systems
Where It Excels in Industrial Use
• Designed for scheduled 8,000-hour maintenance on compatible Ingersoll Rand Sierra 37–75 kW oil-free compressor systems with water-cooled configurations.
• Combines the 47579352001 water-cooled maintenance package with the specified 23969298 condensate drain solenoid valve as one complete service configuration.
• Supports compressor installations where reliable automatic condensate discharge is important for maintaining proper moisture management within the compressed-air system.
• Well suited to production facilities, process-air systems, utilities, and industrial plants operating oil-free compressors under continuous or demanding service conditions.
• Helps maintenance teams coordinate major scheduled service with inspection or replacement of the automatic condensate-drain component.
Key Strengths at a Glance
• Water-cooled service focus: 47579352001 provides the scheduled 8,000-hour maintenance reference for applicable Sierra 37–75 kW water-cooled systems.
• Automatic condensate control: 23969298 is identified as a condensate drain solenoid valve used to control automatic condensate discharge.
• Moisture-management support: A properly functioning drain valve helps remove accumulated condensate from the designated drain circuit.
• Integrated service planning: Treating the two references as one complete configuration simplifies preparation for scheduled compressor maintenance.
• Industrial operating suitability: The configuration is intended for demanding compressed-air installations where dependable condensate drainage contributes to system reliability.
Technical FAQs
1. What is the 47579352001 23969298 configuration used for?
It combines the 47579352001 8,000-hour water-cooled maintenance package with the specified 23969298 condensate drain solenoid valve as one complete service configuration for compatible Sierra compressor systems.
2. What maintenance interval is associated with 47579352001?
47579352001 is associated with an 8,000-hour scheduled maintenance interval for applicable Sierra 37–75 kW water-cooled compressor configurations.
3. What is the function of 23969298?
23969298 is a condensate drain solenoid valve used to control the discharge of accumulated condensate from the applicable compressor drainage circuit.
4. Why is automatic condensate drainage important?
Automatic condensate drainage helps remove accumulated moisture from designated drain points without requiring continuous manual intervention, supporting reliable operation of the associated air-management system.
5. Is 23969298 a mechanical check valve?
No. 23969298 is identified as a solenoid-operated condensate drain valve and should not be treated as a conventional passive check valve.
6. What should be inspected before installing 23969298?
The technician should verify the valve part number, electrical configuration, connection arrangement, drain piping, sealing surfaces, wiring, and surrounding components before installation.
7. What symptoms can indicate a condensate drain solenoid problem?
Persistent condensate accumulation, failure to discharge, continuous leakage, abnormal valve operation, or electrical faults in the drain circuit can indicate that the solenoid valve requires inspection.
8. Can 23969298 be replaced solely according to its physical dimensions?
No. Replacement selection should also account for electrical characteristics, connection arrangement, pressure conditions, drain-system design, and the compressor's applicable parts documentation.
9. Is 23969298 associated with a replacement part number?
Current parts references identify 23969298 as a condensate drain solenoid valve and also associate it with replacement reference 47677733001 in some catalogs. The compressor serial number and current parts documentation should be checked before substitution.
10. What should be verified after installing the drain valve?
The technician should confirm correct electrical connections, secure the drain piping, verify that the valve opens and closes correctly, check for leakage, and confirm proper condensate discharge during the applicable operating or test cycle.
