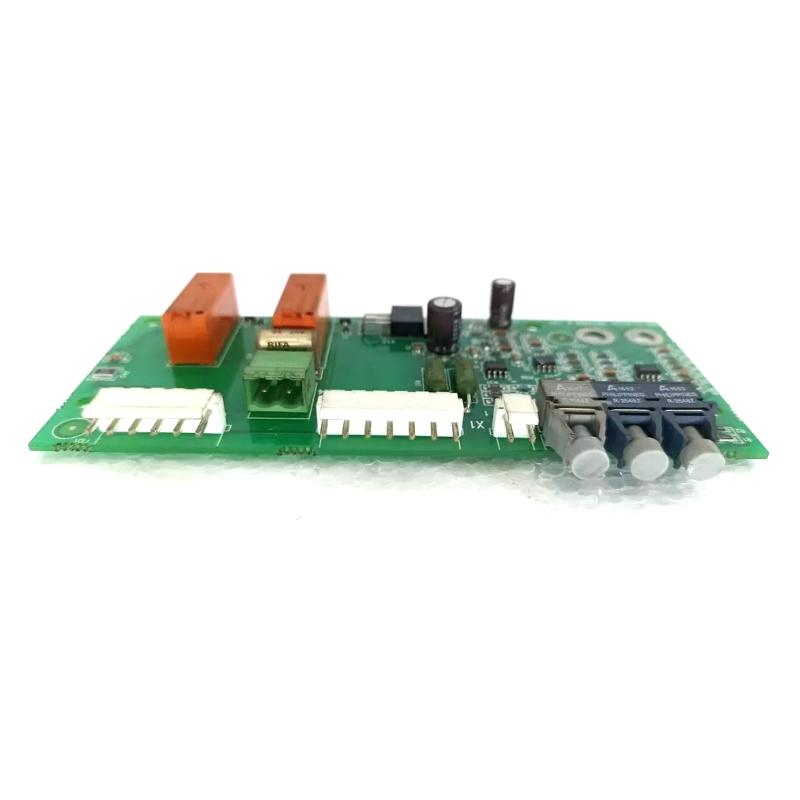

The ABB ACHM-01C Communication Module is a critical component designed to enhance communication capabilities in ABB’s variable frequency drives (VFDs). This module offers flexible communication options such as Modbus RTU, Modbus TCP/IP, EtherNet/IP, PROFIBUS DP, and DeviceNet, ensuring seamless integration and real-time data transfer in industrial automation systems. With a plug-in installation feature, the ACHM-01C provides a hassle-free setup, optimizing system performance in applications that require reliable, high-performance communication networks.

Technical Specifications

Model: ACHM-01C
Type: Communication Module
Supported Protocols: Modbus RTU, Modbus TCP/IP, EtherNet/IP, PROFIBUS DP, DeviceNet
Interface: RS485, Ethernet
Power Supply: Powered via the connected ABB drive system
Dimensions (L x W x H): 4.7 x 2.3 x 0.9 inches (120 x 58 x 23 mm)
Weight: 0.25 kg (0.55 lbs)
Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
Humidity Range: 5% to 95%, non-condensing
Mounting Type: Plug-in for ABB drives
Certifications: CE, UL, RoHS Compliant
LED Indicators: Status, Communication, Error

Recommended Related Models

ABB ACS580 VFD Series: Easy-to-use variable frequency drive for industrial applications with advanced communication features.
ABB ACH580 HVAC Drive: Energy-efficient drive for HVAC applications with multiple communication protocol options.
ABB 07BT65-1E3 Communication Module: An alternative for systems requiring advanced communication capabilities in industrial automation.
ABB 07AC91-0030 Communication Card: A flexible solution to extend communication interfaces for ABB drives.

Popular ABB Models

ABB ACS880 Drives: High-performance drives with comprehensive communication protocol support.
ABB ACH550 Drive: Excellent choice for HVAC systems, with support for multiple industrial communication protocols.
ABB 07KT98-0054 Bus Communication Module: Ensures global communication flexibility for ABB systems.
ABB 07AC91-0030 Communication Card: Enables further connectivity options for ABB's automation products.

Applications

The ABB ACHM-01C Communication Module is designed to provide reliable, real-time communication for ABB drive systems across multiple industries. Common applications include:

Industrial Automation: Connects drives to control systems, enhancing overall automation and real-time process monitoring.
HVAC Systems: Ideal for controlling and monitoring HVAC systems by providing seamless communication between the drive and control systems.
Water Treatment Plants: Ensures efficient communication for pump and valve control, improving water management and quality control.
Energy Management: Provides communication for energy meters and drives, enabling better control of energy consumption.
Material Handling: Optimizes communication between motors, drives, and controllers for smooth operation in high-throughput material handling systems.

Advantages

Broad Protocol Compatibility: Supports a wide range of communication protocols, offering flexibility in diverse applications.
Ease of Integration: Plug-in design ensures easy and fast installation, simplifying system setup.
Reliable Data Transfer: Real-time data exchange improves system monitoring, predictive maintenance, and troubleshooting.
Compact Form Factor: Small size makes it ideal for installations in tight spaces, saving valuable control panel real estate.
Industrial Durability: Built to operate efficiently in harsh industrial environments with extended temperature and humidity tolerances.
Cost-Efficient: Optimizes communication without the need for additional communication modules, reducing overall system cost.

Technical FAQs

What communication protocols are supported by the ACHM-01C?
- It supports Modbus RTU, Modbus TCP/IP, EtherNet/IP, PROFIBUS DP, and DeviceNet.
What is the power requirement for the ACHM-01C?
- The module is powered by the ABB drive system it is installed with, so no external power supply is required.
Can the ACHM-01C be used in low-temperature environments?
- The module operates efficiently in temperatures ranging from -10°C to 50°C (14°F to 122°F).
How is the ACHM-01C installed?
- The module uses a plug-in installation method, making it easy to integrate with compatible ABB drives.
What certifications does the ACHM-01C have?
- The ACHM-01C is CE, UL, and RoHS compliant, ensuring it meets international safety and environmental standards.
What is the weight of the ACHM-01C module?
- The module weighs 0.25 kg (0.55 lbs), making it lightweight and easy to handle.
Can the ACHM-01C be used in environments with high humidity?
- Yes, the module can operate in environments with humidity ranging from 5% to 95% non-condensing.
What types of ABB drives are compatible with the ACHM-01C?
- The module is designed for use with various ABB drives, including the ACS580, ACS880, and ACH550 series.
Does the ACHM-01C have diagnostic indicators?
- Yes, it features LED indicators that display status, communication, and error conditions.
What should I do if the ACHM-01C isn’t communicating correctly?
- Check the LED indicators for error codes and ensure all network cables are correctly connected. You can also consult the user manual for troubleshooting steps.
