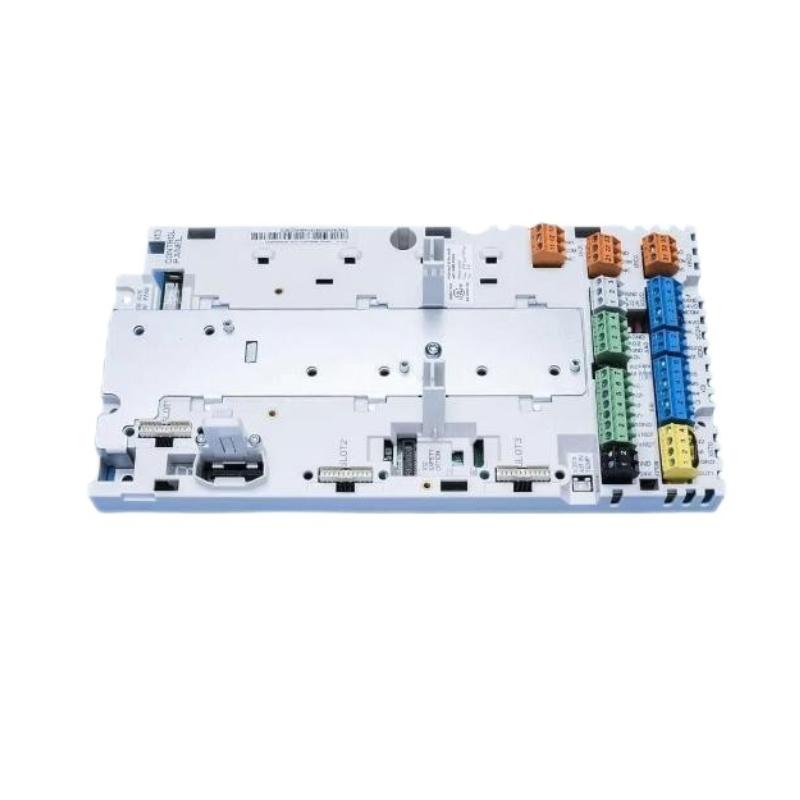

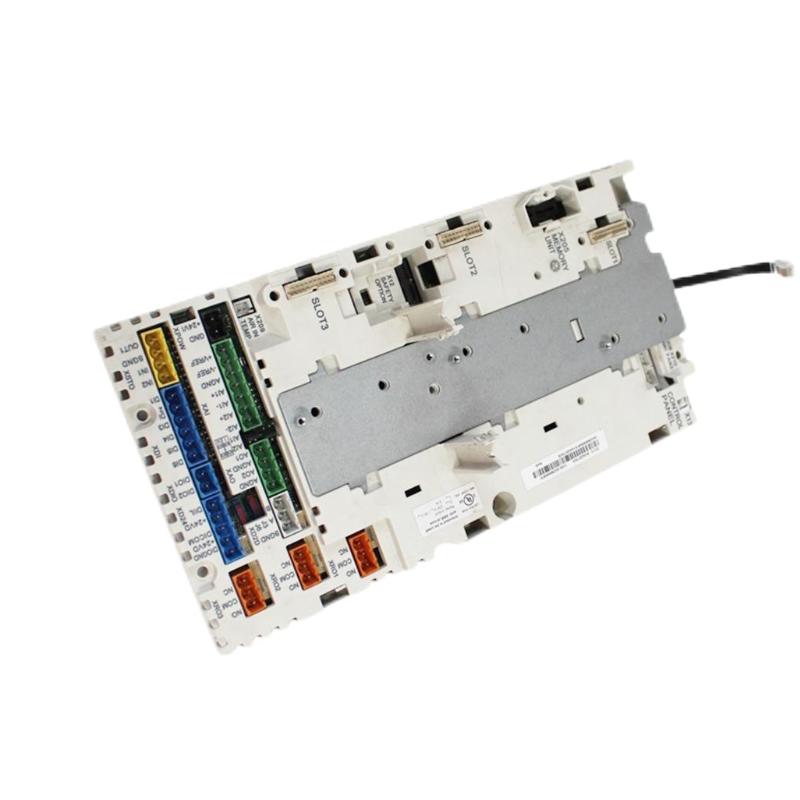

ZCU-12L 3AXD50000794058 3 ZCU-12L 3AXD50000794058 1 ZCU-12L 3AXD50000794058 4 ZCU-12L 3AXD50000794058 2

The ABB ZCU-12L Communication Module is a versatile and high-performance component designed to enable seamless communication between ABB’s variable frequency drives (VFDs) and higher-level control systems. Whether used in industrial automation, machine control, or process management, the ZCU-12L enhances the performance of your ABB drive system by supporting multiple communication protocols such as Profibus DP, Modbus RTU, and Ethernet/IP. The module’s flexible design ensures smooth data exchange, real-time monitoring, and optimal system integration in various industrial environments, making it a powerful tool for modern automation systems.

Technical Specifications

Model: ZCU-12L
Type: Communication Module
Supported Protocols: Profibus DP, Modbus RTU, Ethernet/IP
Interface: RS485 (Modbus), Profibus DP, Ethernet (Ethernet/IP)
Power Supply: Powered by the connected ABB drive
Dimensions (L x W x H): 4.5 x 2.2 x 1.1 inches (115 x 56 x 28 mm)
Weight: 0.28 kg (0.62 lbs)
Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
Humidity Range: 5% to 95%, non-condensing
Mounting Type: Plug-in module for ABB drives
Certifications: CE, UL, RoHS Compliant
LED Indicators: Status, Communication, Fault/Error indicators

Recommended Related Models

ABB ACS580 VFD Series: A flexible, easy-to-use variable frequency drive perfect for industrial control applications.
ABB ACH580 HVAC Drive: A drive designed for HVAC systems with integrated communication options for enhanced control and efficiency.
ABB 07BT66-1E3 Communication Module: Offers expanded communication options for ABB's drive systems, supporting multiple industrial communication protocols.
ABB 07AC91-0030 Communication Card: Compatible with ABB’s drives to extend communication capabilities within industrial automation systems.

Popular ABB Models

ABB ACS880 Drives: High-performance, flexible variable frequency drives with integrated communication protocols such as EtherNet/IP and Profibus.
ABB ACH550 Drive: Ideal for HVAC systems and integrates seamlessly with the ZCU-12L for easy communication with control systems.
ABB 07KT98-0045 Communication Module: An alternative for connecting ABB drives to control networks with additional protocol options.
ABB 07AC91-0030 Communication Card: Facilitates advanced communication capabilities for ABB’s industrial automation systems.

Applications

The ABB ZCU-12L Communication Module serves as a reliable communication bridge for various applications in industries that require advanced control systems, including:

Industrial Automation: Facilitates seamless communication between drives and centralized control systems for enhanced productivity and operational efficiency.
HVAC Systems: Enables precise control of HVAC systems by integrating drives and controllers for optimized performance.
Water Treatment Plants: Provides communication between drive systems controlling pumps, motors, and valves to ensure smooth water treatment processes.
Energy Management: Helps in energy-efficient operation by connecting energy meters and drive systems, enabling better control and optimization of energy consumption.
Material Handling: Streamlines communication between drives, motors, and centralized control systems in material handling and conveyor systems.

Advantages

Multi-Protocol Support: The ZCU-12L supports Profibus DP, Modbus RTU, and Ethernet/IP, offering versatility for various industrial networks.
Simplified Integration: Designed for plug-in installation, making it quick and easy to integrate with ABB’s drive systems, minimizing setup time.
Enhanced System Monitoring: Real-time data exchange between drives and control systems provides better visibility, predictive maintenance, and improved fault detection.
Compact and Robust Design: Small footprint and industrial-grade durability ensure reliable operation in harsh environments, even in confined spaces.
Cost-Effective Solution: Reduces the need for additional communication modules, providing a cost-efficient way to enhance communication within industrial automation systems.
Wide Compatibility: The ZCU-12L is compatible with a variety of ABB drives, providing broad applicability across different systems and installations.

Technical FAQs

What communication protocols does the ZCU-12L support?
- The ZCU-12L supports Profibus DP, Modbus RTU, and Ethernet/IP protocols.
What is the power supply requirement for the ZCU-12L module?
- The module is powered directly by the connected ABB drive system, so no external power supply is required.
What is the temperature range in which the ZCU-12L can operate?
- The ZCU-12L operates within a temperature range of -10°C to 50°C (14°F to 122°F).
How is the ZCU-12L installed?
- The module is designed for plug-in installation, making it easy to integrate with ABB drives without requiring additional hardware.
Is the ZCU-12L compliant with industry standards?
- Yes, it is CE, UL, and RoHS compliant, ensuring it meets international safety and environmental standards.
What is the weight of the ZCU-12L Communication Module?
- The module weighs approximately 0.28 kg (0.62 lbs).
Can the ZCU-12L be used in high-humidity environments?
- Yes, the module is designed to operate in environments with 5% to 95% humidity (non-condensing).
What is the role of the LED indicators on the ZCU-12L?
- The LED indicators show status, communication, and fault/error conditions to help with easy monitoring and troubleshooting.
Is the ZCU-12L compatible with all ABB drive systems?
- The ZCU-12L is designed to be compatible with a wide range of ABB drive systems, including the ACS580, ACS880, and ACH550 series.
How can I troubleshoot if the ZCU-12L is not communicating correctly?
- First, check the LED status indicators to diagnose potential issues. Also, ensure that all network connections are secure and consult the user manual for troubleshooting guidance.
