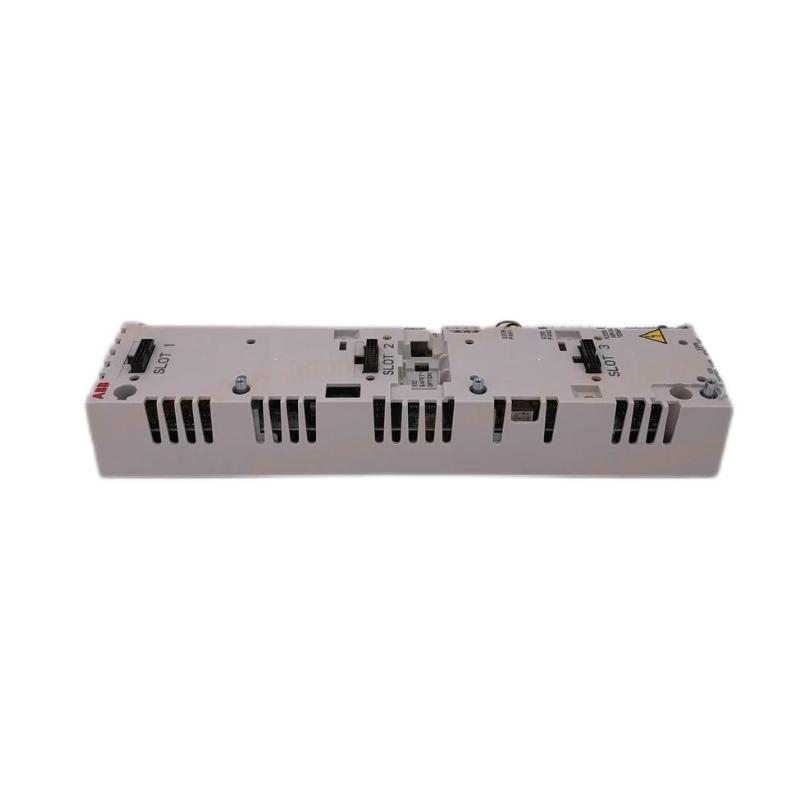

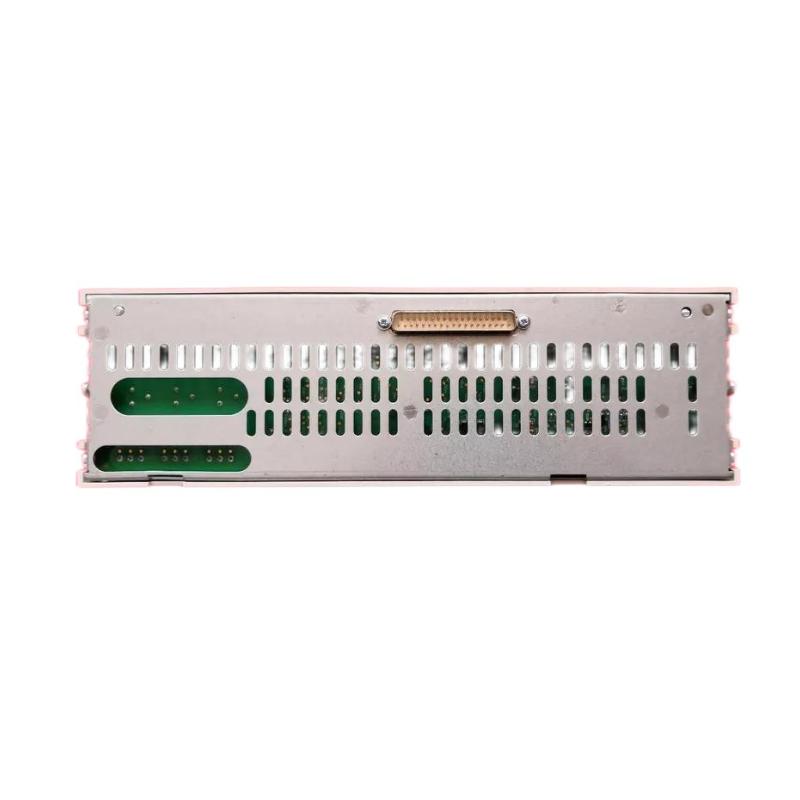

ZCU-14 3AXD5000005164 (1) ZCU-14 3AXD5000005164 (3) ZCU-14 3AXD5000005164 (2) ZCU-14 3AXD5000005164 (4)

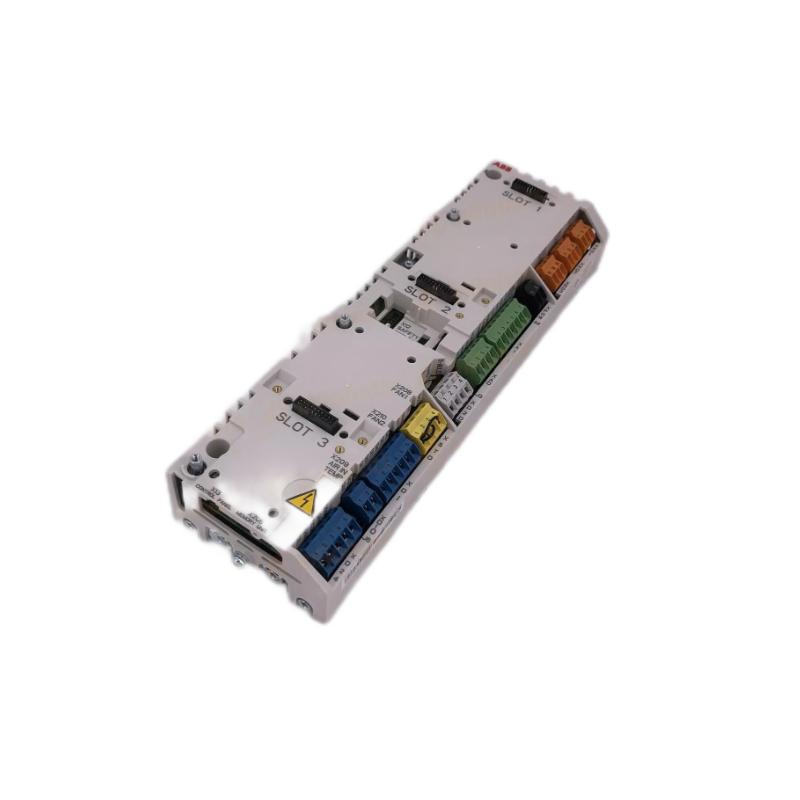

The ABB ZCU-14 Communication Module is designed to provide seamless integration between ABB’s variable frequency drives (VFDs) and industrial control systems. Offering flexible communication options, including Profibus DP, Modbus RTU, and Ethernet/IP, the ZCU-14 enhances system connectivity, real-time data exchange, and operational efficiency. Whether used in manufacturing, machine control, or process automation, this communication module enables ABB drives to easily communicate with PLCs, SCADA systems, and other industrial automation components, ensuring smooth control and monitoring of complex systems.

Technical Specifications

Model: ZCU-14
Type: Communication Module
Supported Protocols: Profibus DP, Modbus RTU, Ethernet/IP
Interface: RS485 (Modbus), Profibus DP, Ethernet (Ethernet/IP)
Power Supply: Powered by the connected ABB drive system
Dimensions (L x W x H): 4.6 x 2.5 x 1.0 inches (117 x 64 x 26 mm)
Weight: 0.30 kg (0.66 lbs)
Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
Humidity Range: 5% to 95%, non-condensing
Mounting Type: Plug-in for ABB drives
Certifications: CE, UL, RoHS Compliant
LED Indicators: Status, Communication, Fault/Error indicators

Recommended Related Models

ABB ACS580 VFD Series: Versatile variable frequency drives with built-in communication options, including support for the ZCU-14 module.
ABB ACH580 HVAC Drive: HVAC-focused drive series with extensive communication protocols for controlling large-scale heating, ventilation, and air conditioning systems.
ABB 07BT66-1E3 Communication Module: An alternative communication module for advanced industrial networks and control systems.
ABB 07AC91-0030 Communication Card: Offers additional communication protocols and extends the flexibility of ABB drive systems.

Popular ABB Models

ABB ACS880 Drives: High-performance drives with broad communication protocol support and advanced features for complex automation systems.
ABB ACH550 Drive: Perfect for HVAC and process applications, integrated with the ZCU-14 for full communication with control systems.
ABB 07KT98-0045 Communication Module: A widely used communication card for enhancing connectivity and integration within ABB’s drive and automation systems.
ABB 07AC91-0030 Communication Card: Adds connectivity options for ABB drive systems to integrate into diverse industrial networks.

Applications

The ABB ZCU-14 Communication Module plays a key role in various industries by facilitating advanced communication between ABB drives and control systems. It is ideal for:

Industrial Automation: Ensures seamless communication between drives and control systems for real-time performance tracking and optimization in manufacturing plants.
HVAC Systems: Integrates with HVAC drives for smooth communication with central controllers, ensuring energy efficiency and optimized system performance.
Water and Wastewater Treatment: Facilitates communication between pumps, motors, and central control systems for effective water management and treatment processes.
Material Handling Systems: Provides real-time control and monitoring of conveyor systems, motors, and other material handling components in factories and distribution centers.
Energy Management: Connects energy meters, variable speed drives, and central control systems to help optimize energy consumption and reduce operational costs.

Advantages

Wide Communication Support: With Profibus DP, Modbus RTU, and Ethernet/IP compatibility, the ZCU-14 enables integration into various industrial automation networks.
Easy Plug-In Installation: The module is designed for easy plug-in installation into ABB drives, reducing setup time and simplifying the integration process.
Real-Time Data Exchange: The ZCU-14 enables high-speed data communication, allowing for better monitoring, control, and predictive maintenance of systems.
Compact Design: Its small size makes it ideal for installations in tight spaces, ensuring that it fits easily into control cabinets without taking up excessive room.
Reliable Performance in Harsh Environments: Built to withstand tough industrial conditions, the ZCU-14 operates efficiently in environments with temperature and humidity fluctuations.
Cost-Effective Communication Solution: With multiple communication protocols in a single module, the ZCU-14 eliminates the need for additional, separate communication devices, helping to lower overall system costs.

Technical FAQs

What communication protocols are supported by the ZCU-14?
- The ZCU-14 supports Profibus DP, Modbus RTU, and Ethernet/IP protocols.
How is the ZCU-14 powered?
- The module is powered directly by the connected ABB drive system, so no external power supply is required.
What is the operating temperature range of the ZCU-14?
- The ZCU-14 operates within a temperature range of -10°C to 50°C (14°F to 122°F).
How is the ZCU-14 installed?
- The module features a plug-in installation design, making it quick and easy to install without additional hardware.
Is the ZCU-14 compliant with industry standards?
- Yes, the module is CE, UL, and RoHS compliant, ensuring it meets international safety and environmental standards.
What is the weight of the ZCU-14 Communication Module?
- The module weighs 0.30 kg (0.66 lbs), making it lightweight and easy to handle.
Can the ZCU-14 be used in environments with high humidity?
- Yes, the module can function in environments with 5% to 95% humidity, non-condensing.
What does the LED indicator on the ZCU-14 show?
- The LED indicators display the status, communication, and fault/error conditions to aid in easy monitoring and troubleshooting.
Which ABB drive systems are compatible with the ZCU-14?
- The ZCU-14 is compatible with a variety of ABB drive systems, including the ACS580, ACS880, and ACH550 series.
How can I troubleshoot communication issues with the ZCU-14?
- Check the LED status indicators for error codes and ensure that all network connections are securely plugged in. You can also consult the user manual for further troubleshooting steps.
