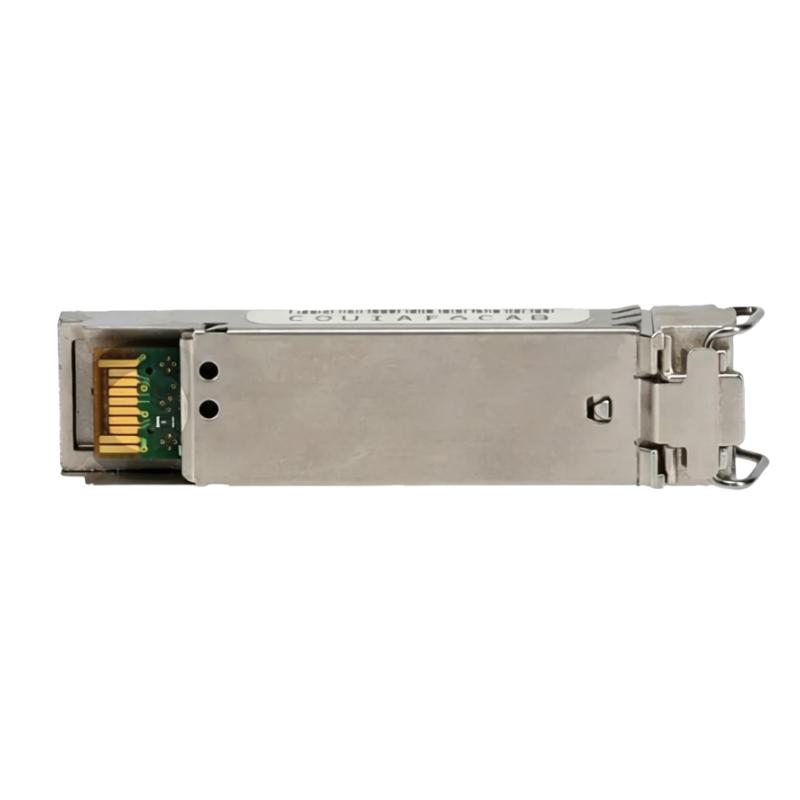

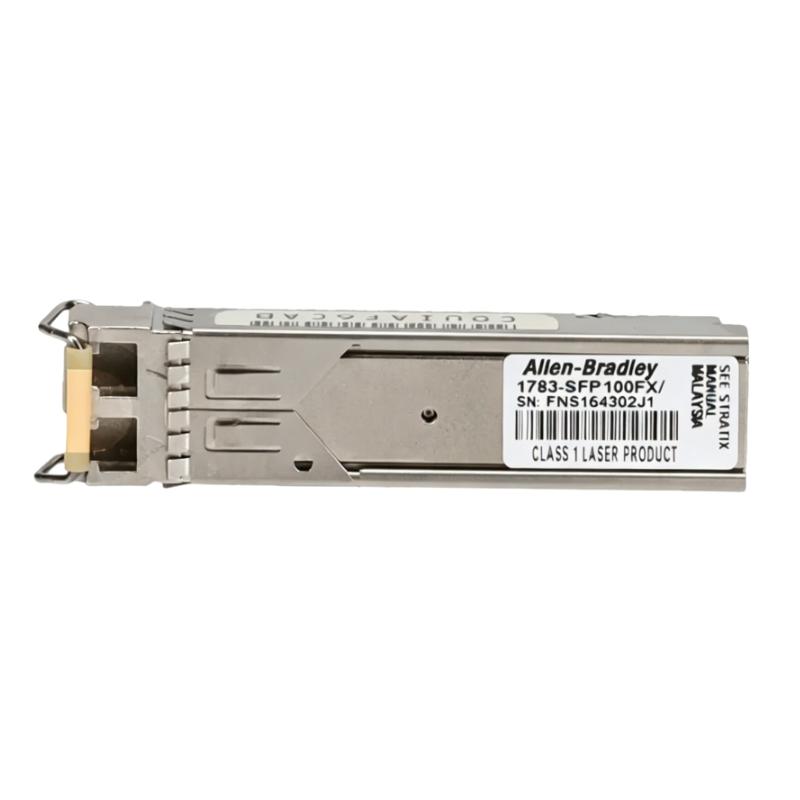

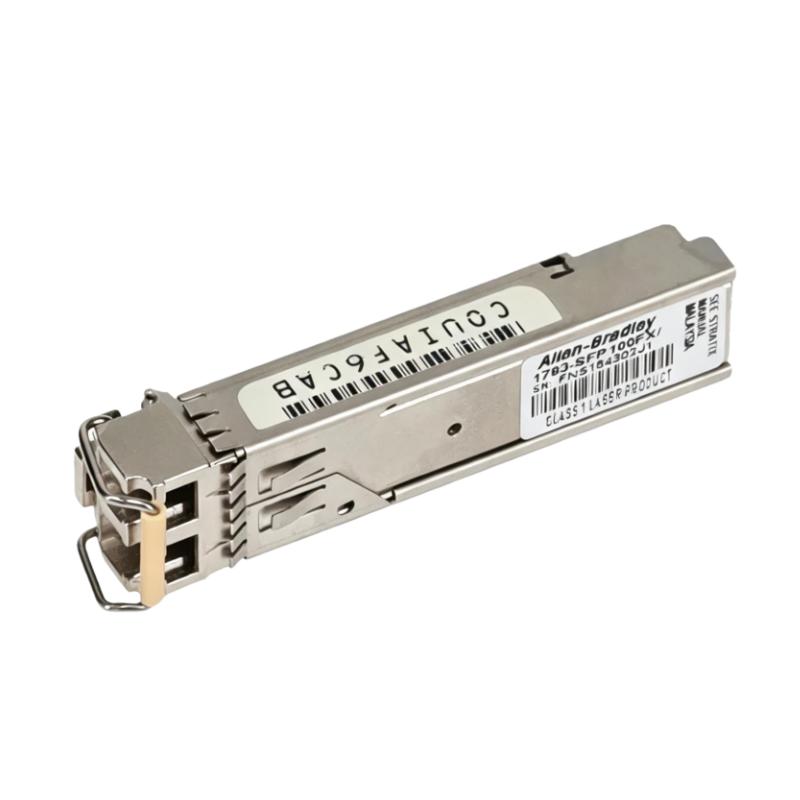

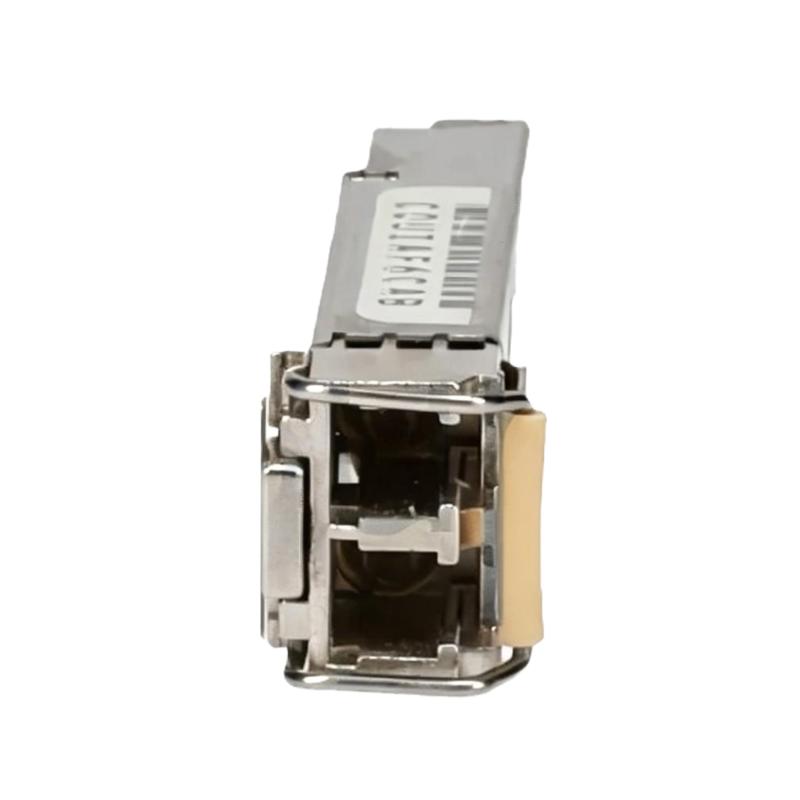

Allen Bradley 1783-SFP100FX Stratix SFP Fiber-Optic Transceivers

Applications

The Allen Bradley 1783-SFP100FX is a compact SFP fiber-optic transceiver designed for use with compatible Stratix managed Ethernet switches and industrial network equipment. It provides a fiber-optic interface for Ethernet communication where copper cabling is unsuitable because of distance, electrical noise, or installation conditions.

The transceiver is well suited to industrial control networks connecting PLC systems, remote I/O, HMIs, drives, distributed control equipment, and supervisory systems. By using fiber instead of copper, the 1783-SFP100FX can help create communication links between network cabinets or production areas while reducing susceptibility to electromagnetic interference.

Typical applications include:

• Industrial Ethernet backbone connections
• PLC and remote I/O network expansion
• Control cabinet-to-cabinet communication
• Factory-floor network segmentation
• Long-distance Ethernet connections
• Electrically noisy industrial environments
• Stratix switch fiber-port expansion
• Plant-wide automation and control networks

Advantages

Compact SFP Form Factor

The 1783-SFP100FX uses a compact SFP design, making it practical for network equipment where installation space is limited. Its small size also allows fiber interfaces to be added without requiring a separate external converter.

Fiber-Based Industrial Communication

Fiber-optic communication provides electrical isolation between network points and avoids many of the grounding and electromagnetic interference concerns associated with copper Ethernet cabling.

Flexible Network Architecture

When installed in a compatible Stratix switch, the transceiver can be used to extend network connectivity between different control areas, cabinets, or network segments.

Suitable for Industrial Ethernet Systems

The module is designed for integration into industrial Ethernet architectures where dependable communications are required between automation and networking equipment.

Easy Network Expansion

An SFP-based architecture allows compatible network equipment to be configured with different optical interfaces according to the requirements of the installation.

Technical FAQs

1. What is the Allen Bradley 1783-SFP100FX used for?

The 1783-SFP100FX is a fiber-optic SFP transceiver used to provide an optical Ethernet communication interface on compatible Allen Bradley Stratix networking equipment.

2. What type of network equipment can use the 1783-SFP100FX?

It is intended for compatible Stratix Ethernet switches and other Allen Bradley networking equipment that supports the appropriate SFP interface and transceiver specifications.

3. Why use the 1783-SFP100FX instead of a copper Ethernet connection?

Fiber can be advantageous where electrical isolation, reduced electromagnetic interference, or longer communication distances are required. It is particularly useful in electrically noisy industrial environments.

4. Can the 1783-SFP100FX be installed while the network equipment is powered?

Whether an SFP can be inserted or removed while powered depends on the specific Stratix switch and its installation instructions. The applicable switch documentation should be followed before performing a live replacement.

5. What should be checked before installing this transceiver?

Verify SFP compatibility with the target Stratix device, confirm the required fiber type and optical interface, and ensure the fiber connectors and cabling are suitable for the intended network link.

6. What can cause a fiber link not to establish after installation?

Common causes include an incompatible transceiver, incorrect fiber connections, contaminated connectors, damaged fiber, incorrect optical configuration, or a problem with the receiving network port.

7. How can fiber connector problems be reduced during maintenance?

Keep protective caps installed when the optical ports are not connected, avoid touching the fiber end faces, and use appropriate fiber-cleaning procedures before making a connection.

8. Is the 1783-SFP100FX suitable for industrial control networks?

Yes. It is intended for use within compatible industrial Ethernet networking architectures and can support fiber-based connections between industrial network devices.

9. Can the transceiver be used to connect separate control cabinets?

Yes, when the selected Stratix equipment, fiber cable, and optical interfaces are compatible. Fiber connections can be particularly useful for cabinet-to-cabinet links where electrical isolation is beneficial.

10. What is the recommended approach when replacing a failed 1783-SFP100FX?

First identify the cause of the link failure and verify that the switch port and fiber cable are functioning correctly. If the transceiver itself is confirmed to be defective, replace it with a compatible unit and verify link status and network communication afterward.
