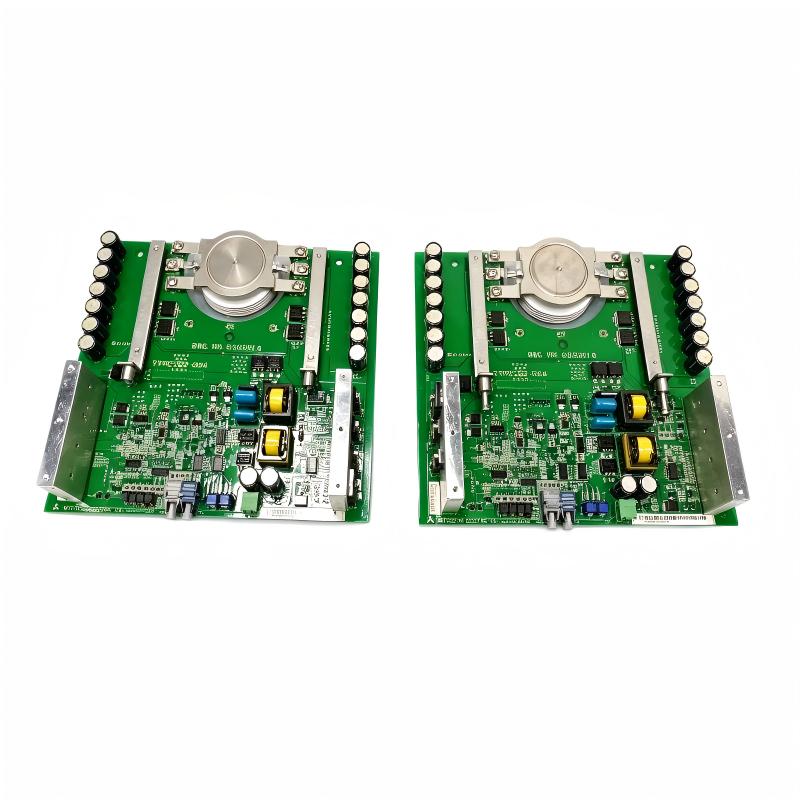

Allen Bradley 81004-286-52-R 400A SGCT Assembly

Applications

The Allen Bradley 81004-286-52-R is a 400A SGCT Assembly intended for high-power industrial drive and power-conversion applications. It is designed for use within equipment that requires controlled semiconductor switching for high-current electrical power.

The assembly is suited to industrial environments where medium-voltage or high-power drive systems handle substantial motor loads. It can be used as a replacement component during maintenance of compatible Allen Bradley power electronics equipment.

Typical applications include:

• Industrial AC drive systems
• High-power motor control
• Medium-voltage drive equipment
• Industrial power conversion
• Large motor applications
• Process-industry drive systems
• Heavy-duty manufacturing equipment
• Drive maintenance and component replacement

Advantages

400A Current Rating

The 81004-286-52-R is designed around a 400A SGCT semiconductor assembly, making it suitable for high-current power switching applications within compatible drive systems.

High-Power Switching Technology

An SGCT-based assembly provides controlled semiconductor switching for power-conversion circuits, supporting the demanding electrical requirements of industrial motor-drive equipment.

Compact Assembly Format

Despite its high-current application, the assembly measures only 220 × 130 × 22 mm, allowing it to be integrated into the designated power-electronics section of compatible equipment.

Maintenance-Friendly Replacement

The assembly can be used as a replacement component during drive servicing, helping maintenance teams restore compatible equipment without redesigning the complete power section.

Industrial Drive Application

Its design is intended for demanding industrial environments where motor control and power conversion require robust semiconductor components.

Technical FAQs

1. What is the Allen Bradley 81004-286-52-R?

The 81004-286-52-R is a 400A SGCT Assembly used as a semiconductor power-switching component in compatible industrial drive and power-conversion equipment.

2. What does SGCT mean?

SGCT stands for Symmetrical Gate-Commutated Thyristor. It is a power semiconductor technology used for controlled switching in high-power electronic systems.

3. What is the purpose of an SGCT assembly in an industrial drive?

The SGCT assembly performs controlled high-power switching within the drive's power-conversion circuit, allowing the drive to regulate electrical power supplied to the motor.

4. What applications can use a 400A SGCT assembly?

It can be used in compatible high-power motor drives, industrial power converters, and other heavy-duty power-electronics equipment requiring high-current semiconductor switching.

5. What should be checked before replacing the 81004-286-52-R?

Verify the exact drive model, semiconductor assembly part number, electrical rating, mounting arrangement, connections, and applicable replacement instructions before installation.

6. What can cause an SGCT assembly to fail?

Potential causes include excessive current, overheating, inadequate cooling, electrical transients, improper gate control, mechanical connection problems, or faults elsewhere in the drive power circuit.

7. How can overheating affect an SGCT assembly?

Excessive temperature can reduce semiconductor reliability and may eventually cause device failure. Correct cooling, thermal interfaces, airflow, and cabinet conditions are therefore important.

8. What should be inspected when troubleshooting an SGCT fault?

Maintenance personnel should inspect the semiconductor assembly, associated connections, cooling system, gate-control circuitry, DC bus conditions, and other power components according to the applicable drive service procedure.

9. Should an SGCT assembly be replaced without checking the rest of the drive?

No. A failed semiconductor may be a symptom of another power-stage or control problem. The surrounding circuit should be investigated before commissioning the replacement assembly.

10. What precautions are important when servicing the 81004-286-52-R?

High-power drive systems can retain hazardous electrical energy after shutdown. Appropriate lockout/tagout, discharge, verification, grounding, and manufacturer-approved service procedures should be followed before accessing the power section.
