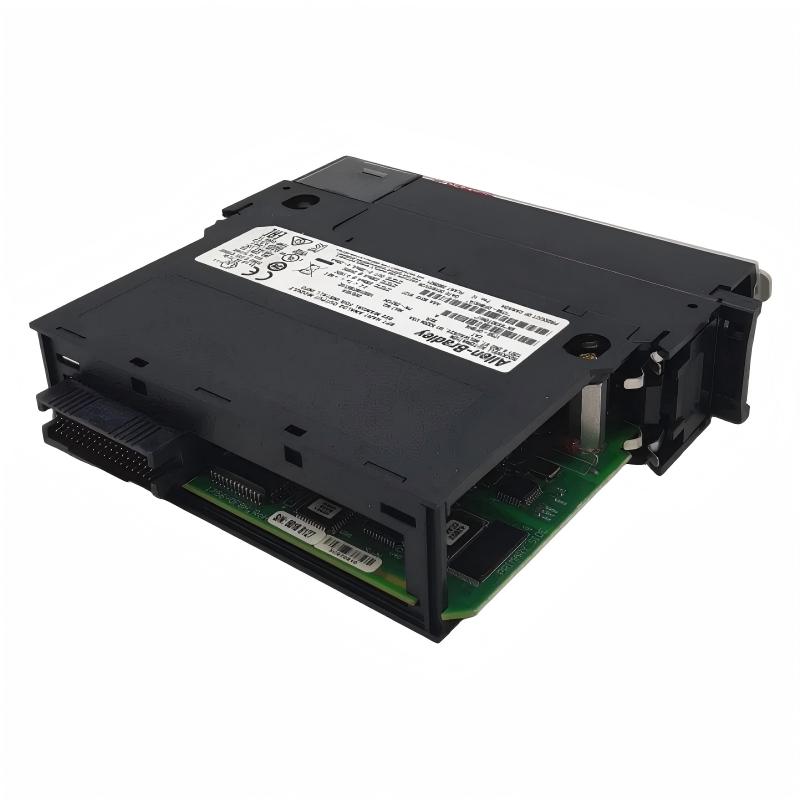

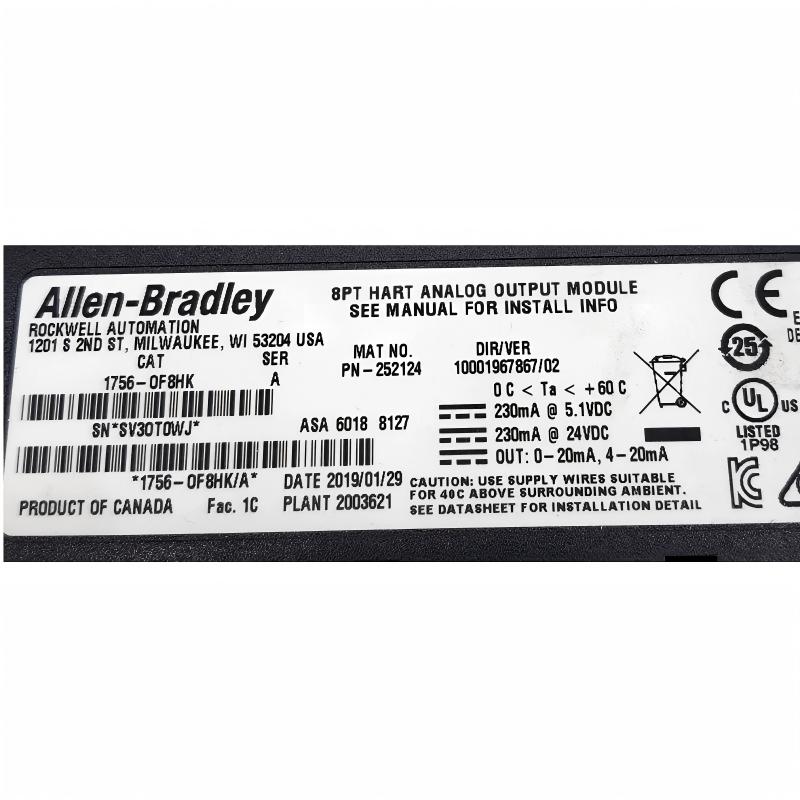

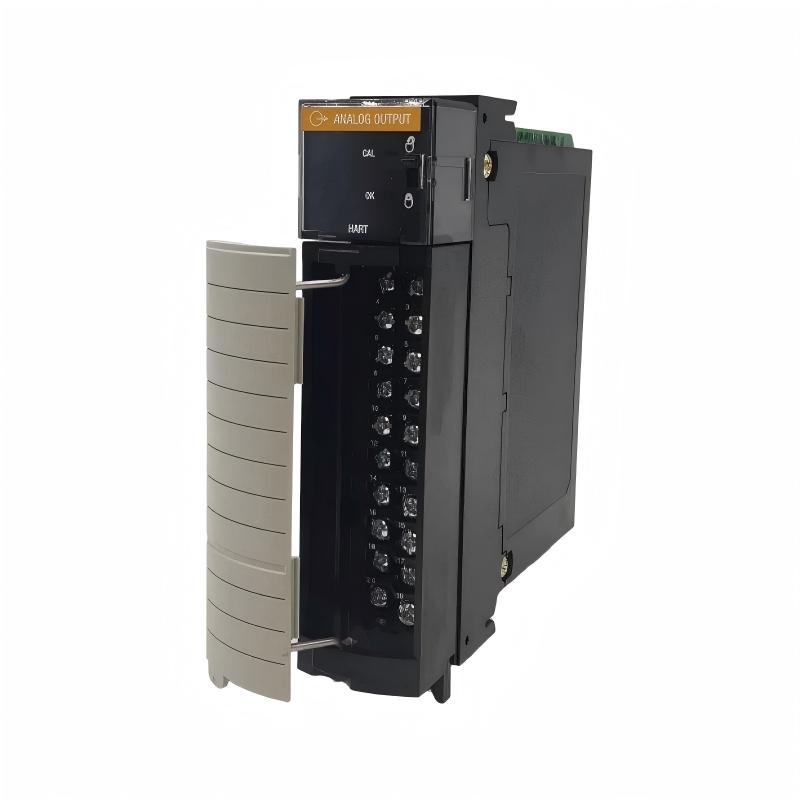

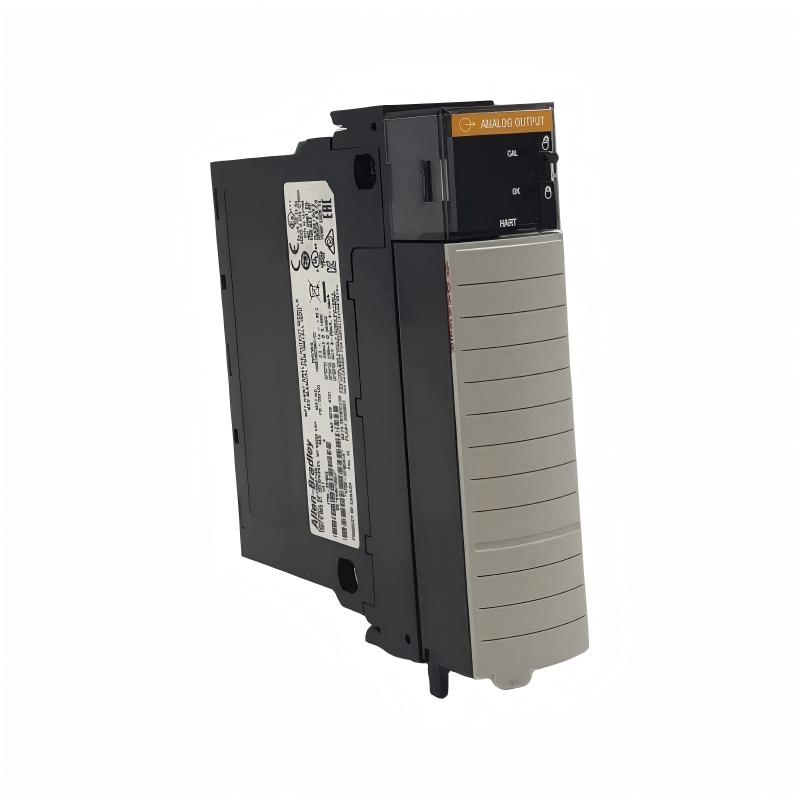

Allen Bradley 1756-OF8HK ControlLogix HART Analog Output Module

Applications

The Allen Bradley 1756-OF8HK ControlLogix HART Analog Output Module is designed for industrial control systems that require analog output signals together with HART-enabled field device communication. It provides a practical interface between a ControlLogix controller and analog field instruments used in process automation.

The module is well suited to applications where control commands must be transmitted to valves, actuators, positioners, and other analog-controlled devices while HART communication provides additional field-device information.

Typical applications include:

• Process control systems
• Chemical and petrochemical plants
• Oil and gas facilities
• Water and wastewater treatment
• Pharmaceutical manufacturing
• Food and beverage processing
• Flow, pressure, and level control
• Valve and actuator control
• HART-enabled instrument networks

Advantages

HART-Enabled Analog Output

The 1756-OF8HK combines analog output functionality with HART communication capabilities, allowing compatible field devices to exchange additional digital information through the analog instrumentation loop.

ControlLogix Integration

Designed for the ControlLogix platform, the module can be incorporated into centralized or distributed control architectures where analog field signals are managed by a Logix controller.

Process Instrumentation Support

The module is suitable for applications involving analog control signals to process instruments such as control valves, valve positioners, and other field devices.

Improved Instrument Visibility

HART communication can provide access to additional device information beyond the primary analog process signal, supporting commissioning, configuration, and maintenance activities.

Compact Chassis Installation

The module measures 144.57 × 22 × 105.42 mm and weighs 0.45 kg (0.99 lb), making it suitable for standard ControlLogix chassis installations.

Technical FAQs

1. What is the Allen Bradley 1756-OF8HK used for?

The 1756-OF8HK is a ControlLogix HART analog output module used to provide analog control signals and HART communication for compatible field devices.

2. What is the benefit of combining analog output with HART communication?

The analog signal provides the primary process-control value, while HART communication can provide additional digital information from compatible field devices for configuration, diagnostics, and maintenance.

3. What types of field devices can be controlled with an analog output module?

Depending on the configured signal and application, analog outputs can be used with control valves, valve positioners, actuators, and other compatible analog-controlled instrumentation.

4. Can the 1756-OF8HK be used in process-control systems?

Yes. Its HART-enabled analog output functionality makes it suitable for process applications where analog control and intelligent field instrumentation are required.

5. How does HART communication work with an analog control signal?

HART communication uses a digital communication signal superimposed on the analog current loop, allowing additional device information to be exchanged without replacing the primary analog measurement or control method.

6. What should be checked before wiring the module to a field device?

Verify the field device requirements, signal type, loop wiring, power arrangement, HART compatibility, channel configuration, grounding, and applicable ControlLogix installation requirements.

7. What can cause an analog output to remain at an unexpected value?

Possible causes include incorrect channel configuration, controller logic, wiring problems, field-device issues, configuration mismatches, or a fault affecting the output channel.

8. How can a HART communication problem be investigated?

Check the field wiring, loop power, device compatibility, channel configuration, and signal conditions. The field instrument should also be checked for correct HART configuration and operating status.

9. Can the module be used for control valves?

Yes. Compatible control valves and valve positioners can receive analog control signals from the module, while HART communication can provide additional information when supported by the field device and system configuration.

10. What is important when replacing a 1756-OF8HK?

Record the existing channel configuration, wiring, controller configuration, and field-device settings before replacement. After installation, verify each channel and confirm both analog control operation and HART communication where applicable.
