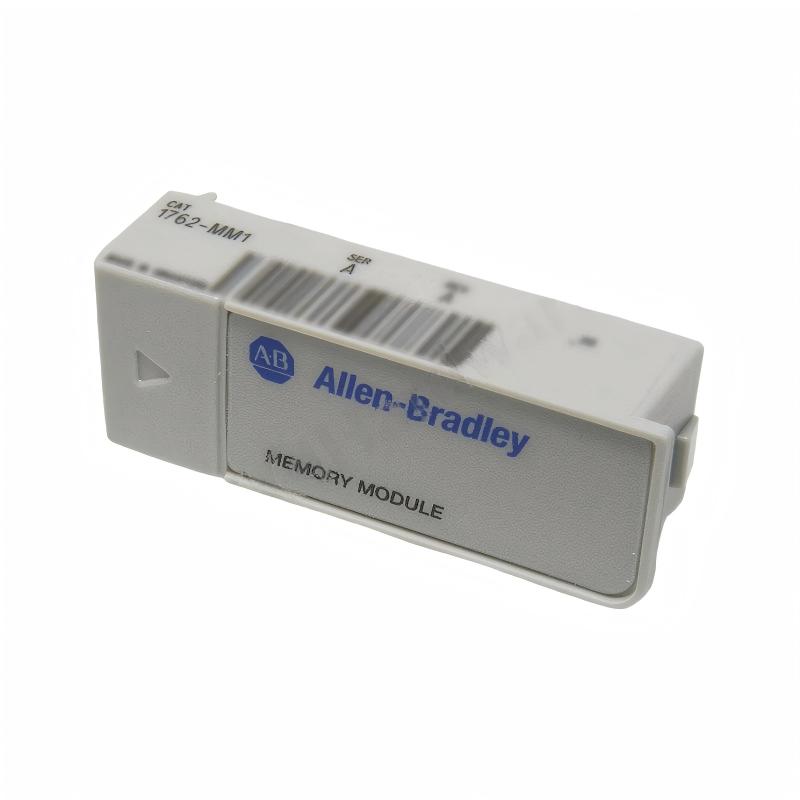

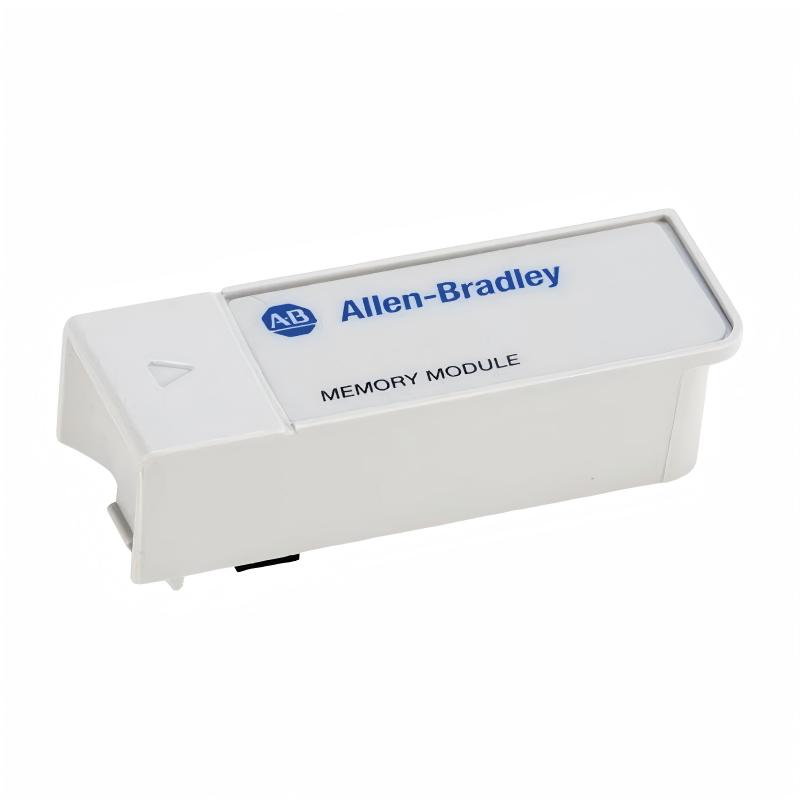

Allen Bradley 1762-MM1 MicroLogix 1200 Memory Module

Applications

The Allen Bradley 1762-MM1 MicroLogix 1200 Memory Module is designed for use with compatible MicroLogix 1200 programmable controllers. It provides removable memory functionality for controller applications, making it useful when application programs or controller configuration data need to be stored, transferred, or preserved.

The module is particularly practical for machine builders and maintenance teams working with MicroLogix 1200 systems. A removable memory device can simplify program handling during controller replacement, machine commissioning, or service work.

Typical applications include:

• MicroLogix 1200 PLC systems
• Machine automation
• Packaging equipment
• Conveyor control
• Material-handling systems
• Small production machines
• Controller program backup
• PLC maintenance and replacement

Advantages

Removable Controller Memory

The 1762-MM1 provides a removable memory option for compatible MicroLogix 1200 controllers, supporting convenient handling of controller application information.

MicroLogix 1200 Compatibility

Designed for the MicroLogix 1200 platform, the module can be used as part of controller programming, maintenance, and replacement procedures where supported by the system configuration.

Convenient Program Transfer

Removable memory can make it easier to transfer or restore application information during commissioning and servicing, reducing the need to rebuild controller programs manually.

Useful for Maintenance

Keeping an appropriate memory module available can simplify service activities when a MicroLogix controller needs to be replaced or an application needs to be restored.

Extremely Compact

Measuring only 25 × 25 × 25 mm and weighing 0.02 kg, the module takes up very little physical space and can be handled easily during PLC maintenance.

Technical FAQs

1. What is the Allen Bradley 1762-MM1 used for?

The 1762-MM1 is a memory module designed for compatible MicroLogix 1200 programmable controllers. It is used to provide removable memory functionality for controller applications.

2. Which PLC family is the 1762-MM1 associated with?

The module is associated with the Allen Bradley MicroLogix 1200 controller family.

3. Why would a MicroLogix 1200 system use a removable memory module?

Removable memory can provide a convenient method for storing or transferring controller application information during commissioning, maintenance, or controller replacement.

4. Can the 1762-MM1 be used with any MicroLogix controller?

No. Compatibility should be confirmed with the specific controller model and firmware/application requirements. The 1762-MM1 is intended for compatible MicroLogix 1200 systems.

5. When is a memory module useful during PLC replacement?

It can be useful when an existing controller needs to be replaced and the application information must be transferred or restored using a compatible removable memory device.

6. Can the memory module be used for application backup?

It can be part of a controller application backup and recovery procedure when the controller and application support the memory module's intended functions.

7. What should be checked before installing the 1762-MM1?

Verify controller compatibility, memory-module requirements, application revision, and the applicable MicroLogix installation and programming procedures.

8. What could cause the controller not to recognize the memory module?

Possible causes include incorrect installation, incompatible controller or firmware, a defective memory module, or an application/configuration issue.

9. Should the controller be powered down before removing the memory module?

The applicable MicroLogix 1200 installation and service instructions should always be followed. If the procedure requires the controller to be powered down, isolate power before removing or installing the module.

10. How can a memory-module problem be diagnosed?

Verify that the module is correctly installed and compatible with the controller, then check the controller status and applicable diagnostic information. If the controller continues to report a memory-related fault, the module and stored application should be evaluated separately.
