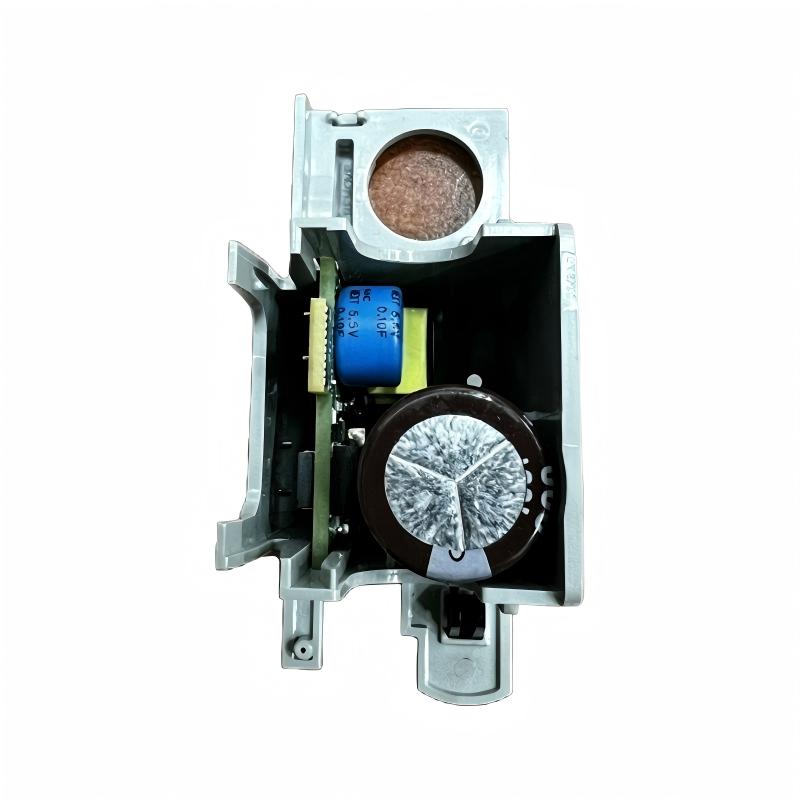

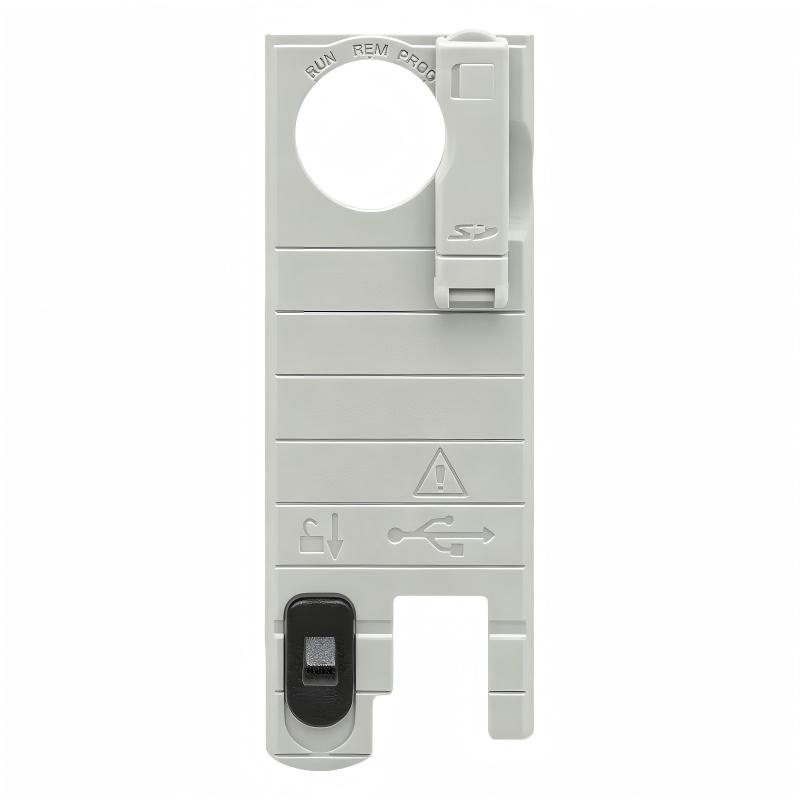

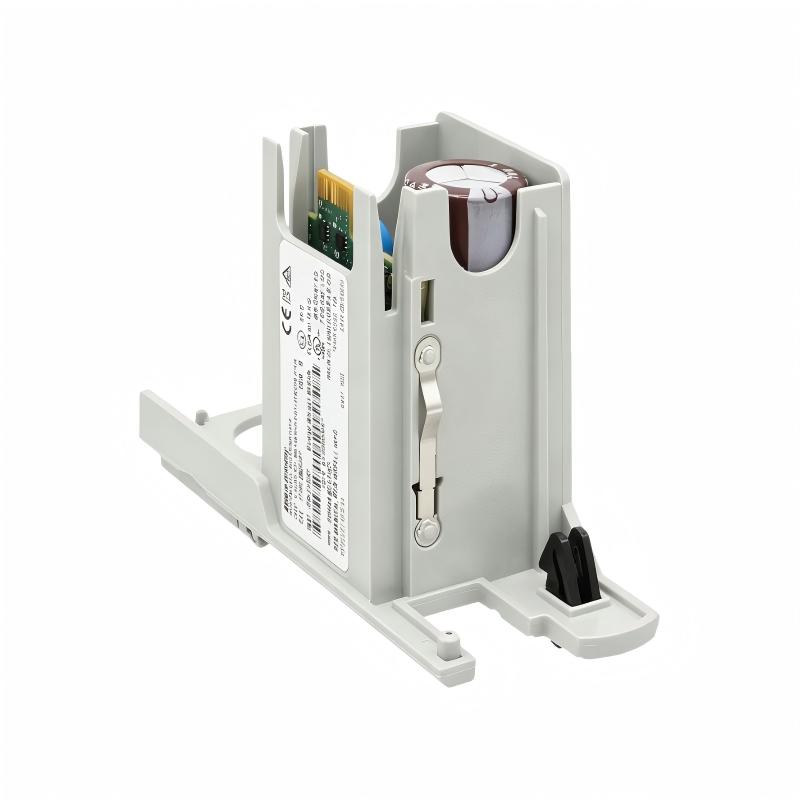

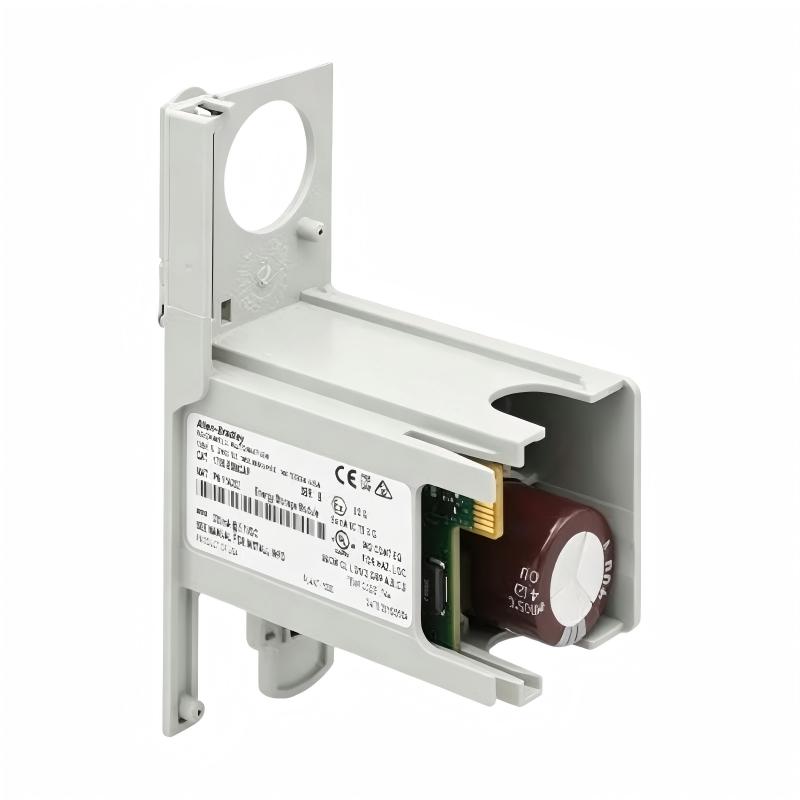

Allen Bradley 1756-ESMCAPK ControlLogix Energy Storage Module

Applications

The Allen Bradley 1756-ESMCAPK is a ControlLogix Energy Storage Module designed to support energy retention for compatible ControlLogix controller systems. It provides stored energy for maintaining controller memory and system operation during specific power-loss conditions, helping reduce the risk of unexpected data loss and unnecessary downtime.

The module is suited to industrial control environments where controller availability and predictable restart behavior are important. It can be used in manufacturing lines, process automation, material handling systems, packaging equipment, machine control, and other ControlLogix-based installations.

Typical applications include:

• ControlLogix controller energy storage
• Industrial machine control systems
• Manufacturing and production lines
• Process automation equipment
• Material handling and conveyor systems
• Packaging and assembly machinery
• Systems requiring controlled power-loss response
• Existing ControlLogix installations requiring compatible energy-storage hardware

Advantages

Dedicated ControlLogix Compatibility
The 1756-ESMCAPK is designed specifically for compatible Allen Bradley ControlLogix architectures, making it suitable for installations where controller-specific energy storage is required.

Compact Form Factor
With dimensions of 100 × 25 × 80 mm, the module occupies limited cabinet space and can be integrated into compact control-system layouts.

Supports Power-Loss Management
Stored energy helps the associated control system handle defined power interruption conditions more predictably, supporting improved system availability and controlled recovery.

Practical for Industrial Automation
The module is well suited to PLC-based industrial environments where unexpected controller shutdowns can interrupt production or require additional recovery procedures.

Straightforward System Integration
Its dedicated module design simplifies integration into compatible ControlLogix systems compared with using external, application-specific energy-storage equipment.

Technical FAQs

1. What is the primary function of the Allen Bradley 1756-ESMCAPK?
The 1756-ESMCAPK is an Energy Storage Module used with compatible ControlLogix systems to provide stored energy for controller power-loss management.

2. Which Allen Bradley product family is the 1756-ESMCAPK associated with?
It is associated with the Allen Bradley ControlLogix product family and is intended for use within compatible ControlLogix controller architectures.

3. Why is an energy storage module used in a ControlLogix system?
Energy storage can help a compatible controller manage short-term power-loss conditions and preserve the intended system state during a controlled shutdown or restart sequence.

4. Can the 1756-ESMCAPK be used as a general-purpose backup power supply?
No. It should not be treated as a standalone UPS or general-purpose power supply. Its function is specifically related to the energy-storage requirements of compatible ControlLogix equipment.

5. What should be checked before installing a 1756-ESMCAPK?
Verify controller compatibility, system configuration, installation requirements, module condition, and the applicable ControlLogix hardware documentation before installation.

6. How can an energy storage module affect system availability?
By supporting the controller's designed response to power interruptions, an energy storage module can reduce the impact of certain unexpected power-loss events and help simplify system recovery.

7. Is the 1756-ESMCAPK suitable for industrial automation applications?
Yes. It is intended for ControlLogix-based industrial automation systems where reliable controller power-loss management is important.

8. What should be inspected if the module does not perform as expected?
Check the module installation, controller compatibility, system connections, environmental conditions, and controller diagnostics. If the system reports an energy-storage-related fault, follow the applicable Allen Bradley troubleshooting procedure.

9. Does replacing the energy storage module require system planning?
Yes. Replacement should be performed according to the applicable ControlLogix maintenance procedure. The controller's operating state and the consequences of removing the existing energy-storage component should be considered before service.

10. What is important when commissioning a replacement 1756-ESMCAPK?
Confirm that the correct module is installed, inspect the physical installation, verify controller diagnostics, and check that the ControlLogix system operates normally after replacement.
