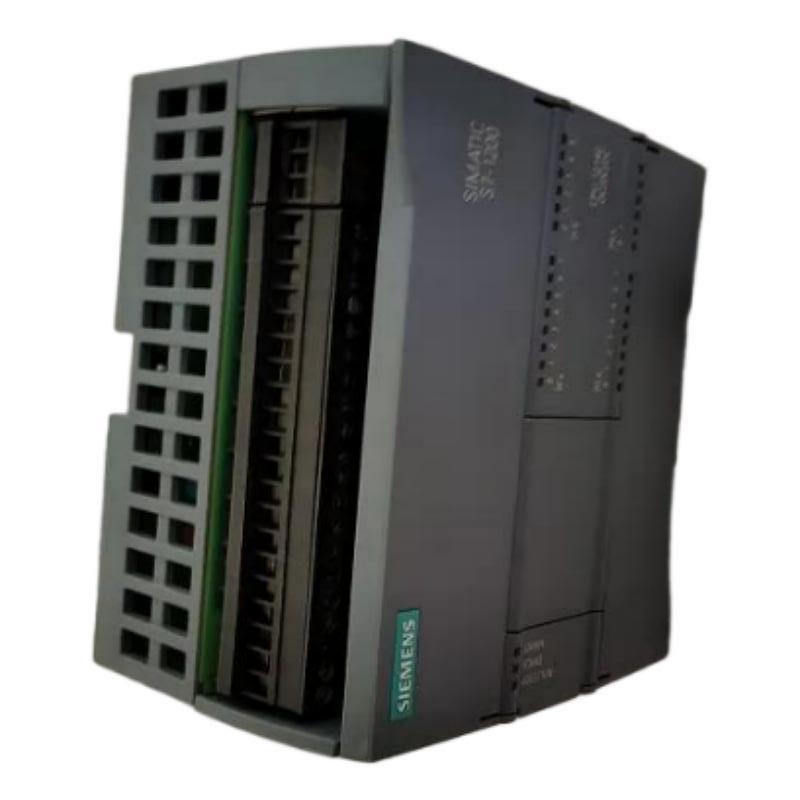

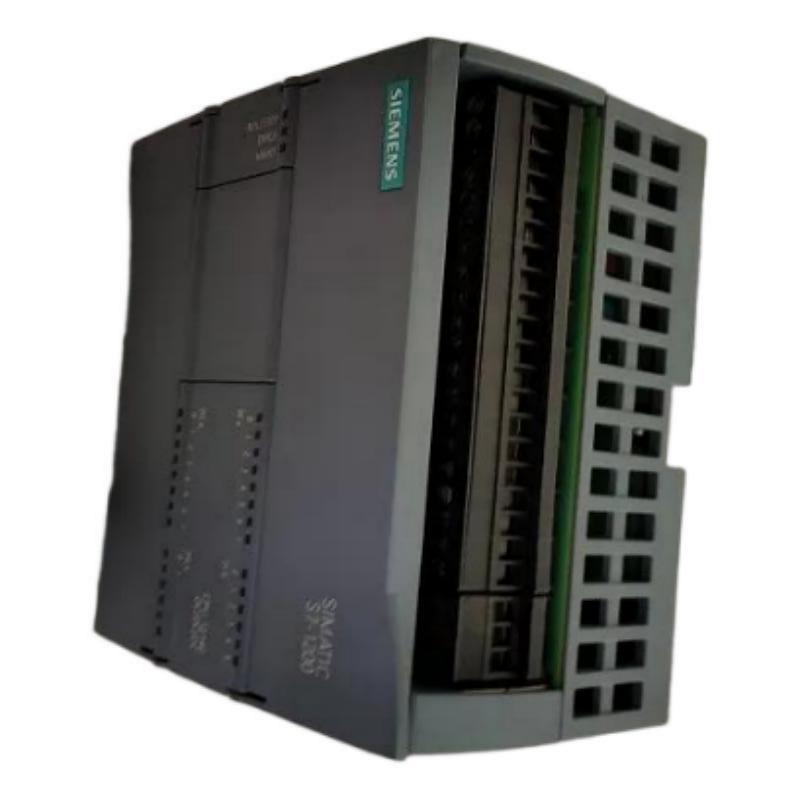

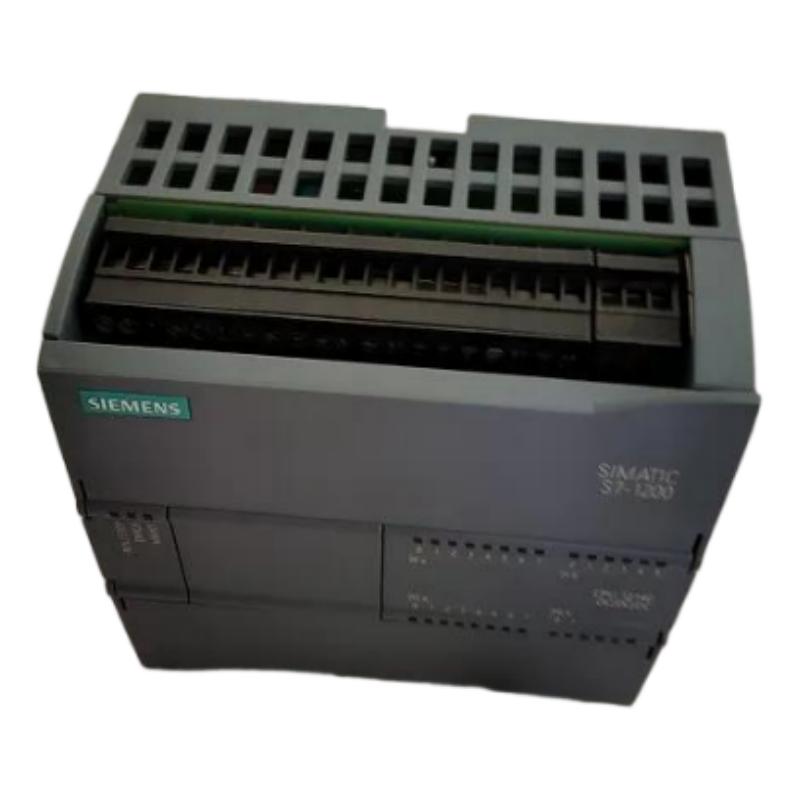

Siemens 6AG1215-1AG40-4XB0 Central Processing Unit

Applications

The Siemens 6AG1215-1AG40-4XB0 Central Processing Unit is designed for industrial PLC applications requiring reliable control processing, modular expansion, and stable communication with automation equipment. As a SIPLUS S7-1200 CPU, it can function as the central controller for machines, production systems, and compact industrial processes.

Typical applications include:

• Machine and equipment automation
• Manufacturing and assembly lines
• Packaging and processing machinery
• Conveyor and material handling systems
• Pump and motor control
• Industrial process automation
• Distributed I/O applications
• OEM machine control
• Industrial control cabinets

The CPU is particularly suitable for applications that require a compact S7-1200 control architecture with enhanced suitability for demanding industrial environments.

Advantages

Centralized PLC Processing
The 6AG1215-1AG40-4XB0 provides the central processing function for a compatible S7-1200 automation system, executing application logic and coordinating connected devices.

SIPLUS Industrial Design
The SIPLUS platform is intended for demanding industrial applications, making this CPU suitable for control systems exposed to more challenging operating conditions.

Modular Expansion
The S7-1200 architecture supports compatible signal and communication modules, allowing engineers to configure the control system according to individual application requirements.

Compact Cabinet Integration
With dimensions of 130 × 100 × 75 mm, the CPU can be incorporated into machine control panels and industrial cabinets where installation space is limited.

Flexible Automation Platform
The CPU can provide a central control platform for machine sequences, process monitoring, I/O processing, and communication with other automation components.

Technical FAQs

1. What is the Siemens 6AG1215-1AG40-4XB0?
The 6AG1215-1AG40-4XB0 is a SIPLUS S7-1200 Central Processing Unit used for PLC-based industrial automation and machine control.

2. What is the primary function of this CPU?
It executes the user PLC program, processes input information, controls outputs, and coordinates connected automation components.

3. What applications are suitable for this CPU?
The CPU can be used for machine automation, manufacturing equipment, packaging systems, material handling, process control, and other industrial automation applications.

4. Can additional modules be connected to the CPU?
Yes. The S7-1200 platform uses a modular architecture that supports compatible signal and communication expansion modules.

5. Which engineering environment is used to configure the CPU?
S7-1200 CPUs are generally engineered using Siemens software based on the TIA Portal platform. The required version depends on the specific CPU and firmware.

6. What should be checked before replacing this CPU?
Verify the existing hardware configuration, CPU compatibility, firmware requirements, application program, communication settings, and connected modules.

7. How does the CPU process signals from the field?
It receives process information through compatible I/O and communication interfaces, evaluates the data according to the PLC program, and generates the required control commands.

8. What should be checked when a diagnostic fault occurs?
Inspect the power supply, wiring, module installation, diagnostic indicators, hardware configuration, firmware compatibility, and connected equipment. The CPU's diagnostic information should be reviewed during troubleshooting.

9. Can this CPU be used with distributed I/O?
Yes. When combined with appropriate communication and I/O components, the CPU can be incorporated into distributed automation architectures.

10. What is important during commissioning?
Confirm the hardware configuration, install the correct application program, verify communication with connected devices, review diagnostic information, and conduct functional testing before placing the system into service.
