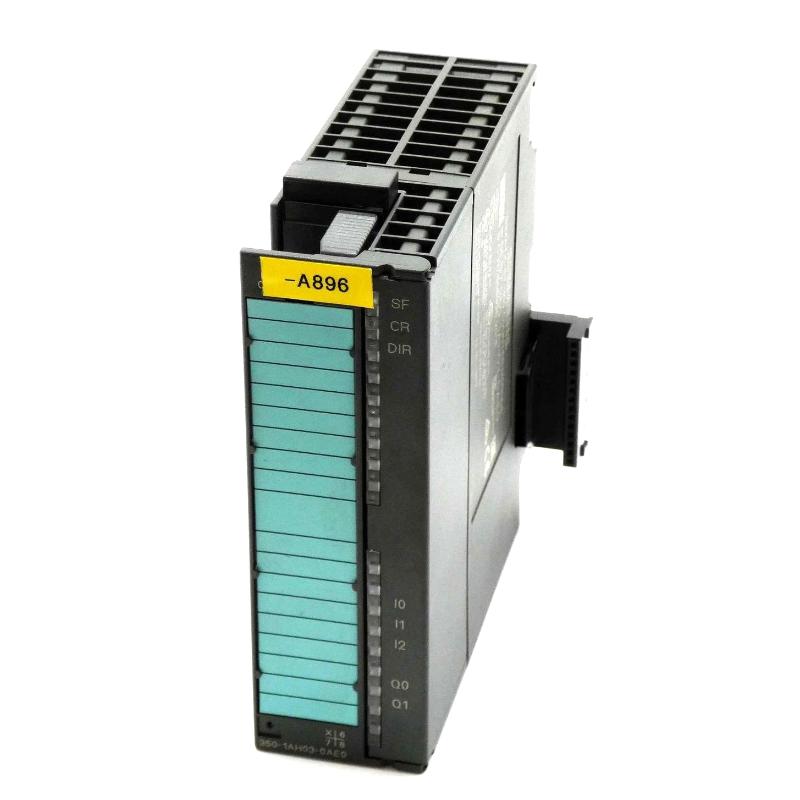

Siemens 6AG1350-1AH03-2AE0 Counter Module

Applications

The Siemens 6AG1350-1AH03-2AE0 Counter Module is designed for industrial automation systems that require reliable high-speed counting and precise monitoring of repetitive machine processes. As a SIPLUS automation module, it can be used where pulse signals from sensors, encoders, and other field devices need to be counted and processed by the control system.

Typical applications include:

• High-speed pulse counting
• Rotary encoder signal processing
• Position and speed monitoring
• Production and packaging machinery
• Conveyor and material handling systems
• Machine cycle monitoring
• Length and quantity measurement
• Industrial process monitoring
• Automated dosing and batching equipment

The module is particularly useful in applications where accurate pulse acquisition is important for synchronizing machine operations and monitoring production processes.

Advantages

Accurate Counting Function
The 6AG1350-1AH03-2AE0 is designed for applications where pulse signals must be captured and counted reliably as part of an industrial control sequence.

Suitable for Dynamic Processes
Counter functionality can be used for monitoring rapidly changing machine signals, helping the controller respond to production events and movement-related information.

SIPLUS Industrial Design
The SIPLUS configuration is intended for demanding industrial applications where environmental conditions may require equipment designed for enhanced operating conditions.

Compact Installation
With dimensions of 40 × 125 × 120 mm, the module can be integrated into space-conscious industrial control cabinets.

Broad Automation Applications
Counting functions can support machine cycles, product quantities, encoder feedback, material movement, and other repetitive industrial processes.

Technical FAQs

1. What is the Siemens 6AG1350-1AH03-2AE0?
The 6AG1350-1AH03-2AE0 is a SIPLUS Counter Module designed for industrial automation systems that require pulse counting and event monitoring.

2. What is the main function of a counter module?
A counter module receives pulse signals from compatible field devices and counts or processes these signals for use by the automation control system.

3. What field devices can provide signals to a counter module?
Depending on the configured application and supported signal characteristics, sources can include proximity sensors, pulse generators, encoders, and other devices that produce discrete repetitive signals.

4. What applications commonly require counter functions?
Typical applications include product counting, conveyor monitoring, rotational measurement, machine cycle detection, position-related monitoring, and length measurement.

5. Why use a dedicated counter module?
A dedicated counter module is designed specifically for counting and pulse-processing tasks, providing a more suitable interface for applications where conventional PLC scanning may not be sufficient.

6. What should be checked before installing the module?
Verify controller compatibility, module configuration, signal type, wiring requirements, electrical characteristics, and the applicable Siemens installation documentation.

7. What can cause incorrect counting?
Possible causes include incorrect wiring, unsuitable signal characteristics, electrical interference, incorrect configuration, sensor problems, or improper parameter settings.

8. How should a counting fault be diagnosed?
Check the incoming signal first, then inspect wiring, sensor operation, module diagnostics, configuration parameters, and the relationship between the expected and actual pulse counts.

9. Can the module be used for encoder-related applications?
Counter modules can be used for suitable encoder and pulse-processing applications when the encoder signal characteristics and required counting functions are supported by the module configuration.

10. What should be verified during commissioning?
Verify signal wiring, input characteristics, module configuration, counting parameters, sensor operation, diagnostic status, and the relationship between actual machine movement and the recorded count.
