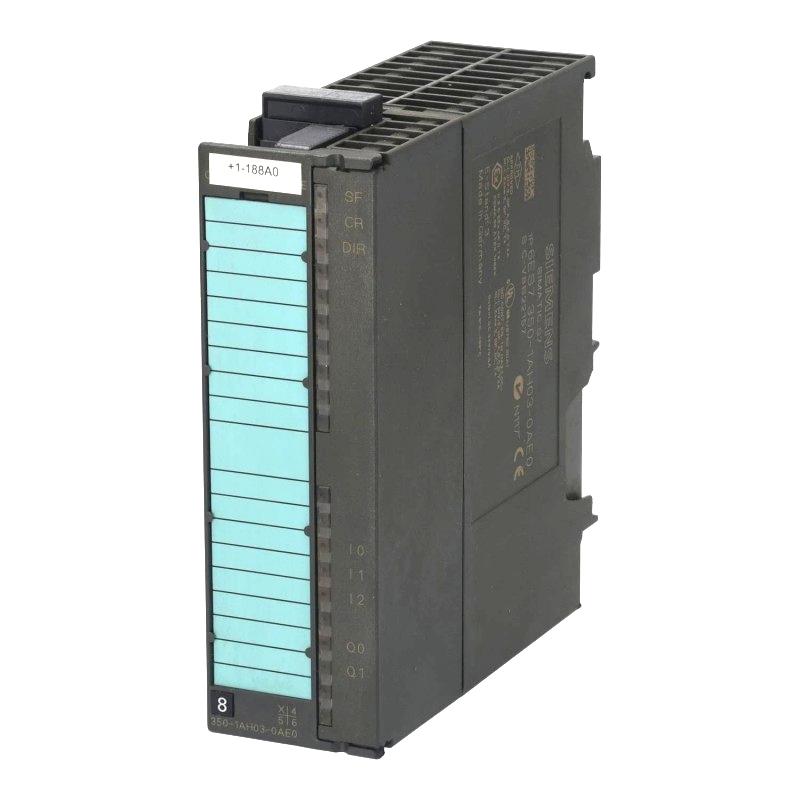

Siemens 6AG1350-1AH03-2AY0 Counter Module

Applications

The Siemens 6AG1350-1AH03-2AY0 Counter Module is designed for industrial automation systems that need dedicated pulse counting and event acquisition. It can be used to capture repetitive signals from sensors, pulse generators, and compatible field devices, providing counting information for machine control, monitoring, and production processes.

Typical applications include:

• High-speed pulse counting
• Product and quantity counting
• Machine cycle monitoring
• Rotary and movement detection
• Conveyor system monitoring
• Production and packaging equipment
• Encoder-related applications
• Length and speed measurement
• Automated material handling
• Industrial process monitoring

The module is well suited to automation applications where accurate counting information is required as part of the PLC control sequence.

Advantages

Dedicated Counting Function
The 6AG1350-1AH03-2AY0 provides a dedicated interface for pulse-counting applications, allowing repetitive field signals to be processed as part of the automation system.

Reliable Signal Acquisition
It can be integrated into systems where pulse information from sensors and other field devices is needed for production monitoring, machine sequencing, or movement-related control.

SIPLUS Industrial Design
As a SIPLUS component, the module is intended for industrial applications where environmental conditions may be more demanding than those of standard automation installations.

Compact Form Factor
Measuring 40 × 125 × 120 mm, the module can be installed efficiently in industrial control cabinets and machine panels.

Flexible Automation Applications
Counter functionality can support applications ranging from simple product counting to machine-cycle monitoring and pulse-based process measurement.

Technical FAQs

1. What is the Siemens 6AG1350-1AH03-2AY0?
The 6AG1350-1AH03-2AY0 is a SIPLUS Counter Module designed for pulse counting and event acquisition in compatible Siemens industrial automation systems.

2. What is the primary purpose of a counter module?
A counter module receives repetitive electrical signals and processes them as count information that can be used by the PLC for monitoring or control.

3. What types of devices can provide counting signals?
Depending on the application and supported electrical characteristics, counting signals may come from proximity sensors, pulse generators, encoders, or other discrete pulse-producing devices.

4. What industrial applications use counter modules?
Common applications include product counting, conveyor monitoring, machine-cycle detection, rotational monitoring, length measurement, and other pulse-based processes.

5. Why use a dedicated counter module instead of standard digital inputs?
A dedicated counter module is designed specifically for pulse-processing tasks and can provide counting functionality better suited to repetitive or faster-changing signals than ordinary cyclic PLC input processing.

6. What should be checked before installing the 6AG1350-1AH03-2AY0?
Verify system compatibility, signal characteristics, wiring requirements, module configuration, controller compatibility, and the applicable installation requirements.

7. What can cause an incorrect count?
Incorrect wiring, unstable sensor signals, electrical interference, unsuitable signal characteristics, incorrect configuration, or a malfunctioning field device can all affect counting accuracy.

8. How can a counting problem be diagnosed?
Check the field sensor and incoming signal first, followed by wiring, module diagnostics, configuration parameters, and the actual count compared with the expected process value.

9. Can this module be used for encoder signals?
It may be used in suitable pulse or encoder-related applications when the signal characteristics and required counting function are supported by the module and system configuration.

10. What should be checked during commissioning?
Verify wiring, signal quality, module configuration, counting parameters, field-device operation, diagnostic status, and the relationship between actual machine movement and the recorded count.
