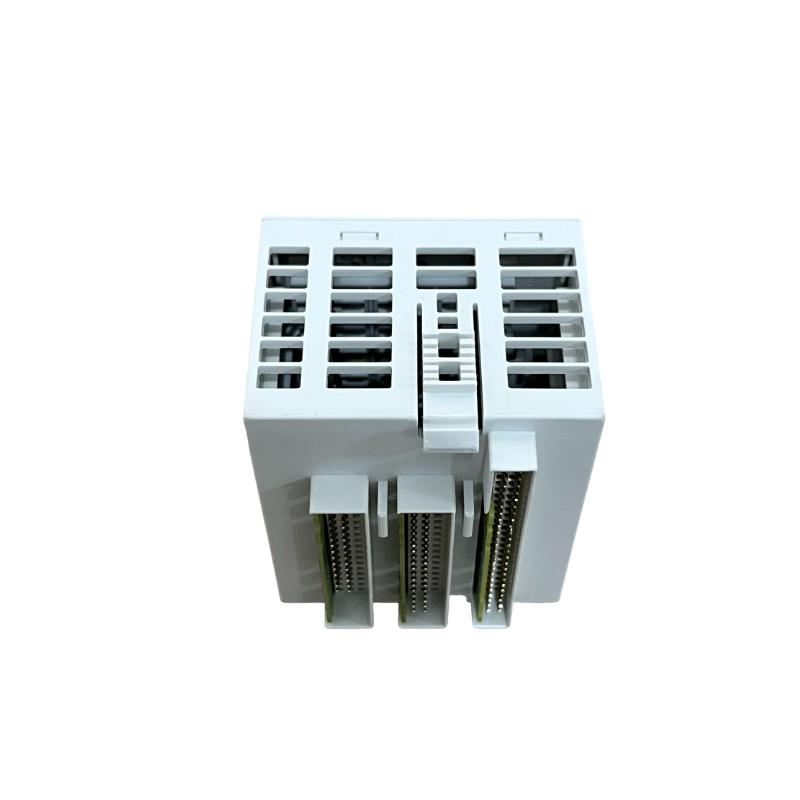

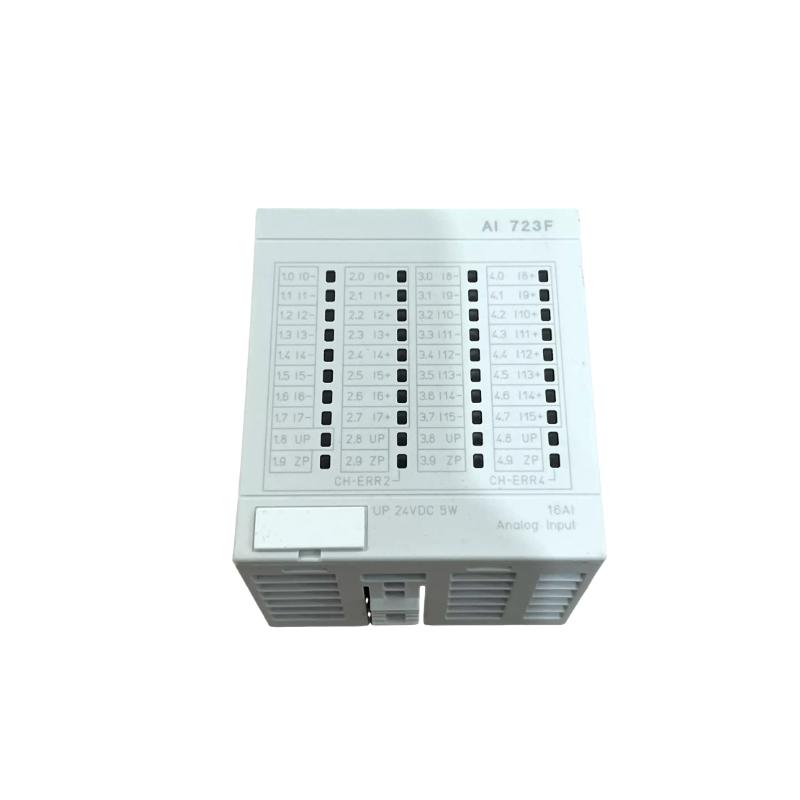

AI723F 3BDH000376R0005-3 AI723F 3BDH000376R0005-1 AI723F 3BDH000376R0005-2 AI723F 3BDH000376R0005-4

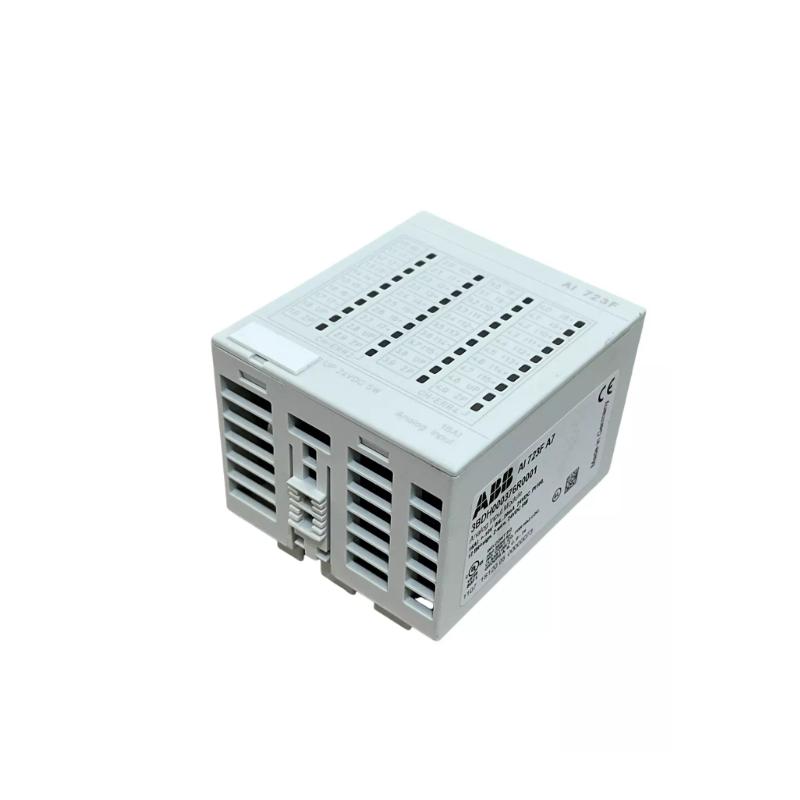

The ABB AI723F Analog Input Module is a high-performance solution designed to provide precise and reliable analog signal processing for various industrial control systems. Whether you are working with voltage, current, RTDs, or thermocouples, the AI723F ensures accurate data acquisition that is critical for real-time monitoring and control. This module is especially suited for use in ABB’s 800xA and AC 800M control systems, making it ideal for process automation, energy management, and manufacturing applications. With robust features and flexible input configurations, it offers exceptional value in enhancing operational efficiency and system performance.

Technical Specifications

Feature	Specification
Part Number	AI723F
Input Signal Type	Voltage, Current, Thermocouple, RTD
Number of Inputs	8 Inputs
Input Range	0-20 mA, 0-10 V, -10 to +10 V, RTD
Resolution	16-bit
Accuracy	±0.1% of Full Scale
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions (HxWxD)	3.5 x 7.8 x 2.5 inches
Weight	0.9 lbs (0.4 kg)
Mounting Style	DIN Rail Mount
Power Consumption	2 W
Certifications	UL, CE, CSA

Recommended Related Models

ABB DO723F – Digital Output Module for managing precise outputs based on analog inputs.
ABB AI721F – A more compact version of the analog input module, suitable for smaller systems.
ABB CI856 – A communication interface for linking analog systems to ABB’s network, ideal for centralized control.

Popular ABB Models

ABB AC 800M Controller – A powerful controller that integrates seamlessly with modules like AI723F to offer complete automation solutions.
ABB AI810 – An advanced analog input module offering high accuracy and versatility for larger and more complex systems.
ABB DI825 – A Digital Input module for binary signal applications, complementing the AI723F in hybrid systems.

Applications

The ABB AI723F Analog Input Module is suitable for a wide range of industrial applications, including:

Process Control: Ideal for industries such as oil & gas, chemical processing, and food production, where accurate analog signals drive critical control processes.
Energy Management: Used for monitoring and analyzing electrical parameters like voltage and current to optimize energy usage in industrial environments.
Manufacturing Automation: Works with sensors and machinery to process data for factory automation, robotics, and CNC machinery.
Environmental Monitoring: Collects data from temperature, humidity, and other environmental sensors for applications such as air quality control and climate monitoring.

Advantages

Exceptional Accuracy: With 16-bit resolution and ±0.1% full-scale accuracy, the AI723F provides precise readings essential for high-quality control and automation systems.
Versatile Input Types: Supports a wide range of signal types including voltage, current, thermocouples, and RTDs, making it suitable for diverse industrial needs.
Flexible Integration: Easily integrates with ABB’s AC 800M and 800xA systems, offering seamless scalability for large automation projects.
Compact and Efficient: Despite its high performance, the module features a space-saving design that fits easily into standard DIN rail installations.
Reliable in Harsh Environments: Rated for operation in temperatures from -20°C to +60°C, it performs well in extreme industrial conditions.

Technical FAQs

What types of input signals does the AI723F support?
The AI723F supports a variety of input signals, including voltage, current, RTD, and thermocouple, offering flexibility for different industrial applications.
How many analog inputs does the AI723F module have?
The AI723F has 8 analog inputs, ideal for applications requiring multiple signal connections.
What is the resolution and accuracy of the AI723F?
It features a 16-bit resolution and ±0.1% accuracy of full scale, ensuring high precision for critical applications.
Can I use the AI723F module with temperature sensors like RTDs or thermocouples?
Yes, the AI723F is fully compatible with RTDs and thermocouples, making it perfect for temperature monitoring applications.
What is the operating temperature range for the AI723F?
The AI723F operates within a temperature range of -20°C to +60°C, suitable for most industrial environments.
How is the AI723F mounted?
The module can be easily mounted on a standard DIN rail, allowing for quick and secure installation.
What certifications does the AI723F have?
The AI723F is certified with UL, CE, and CSA marks, ensuring compliance with international safety standards.
What power consumption does the AI723F module have?
The AI723F consumes only 2 W of power, making it an energy-efficient choice for your automation system.
Can the AI723F be used in hazardous locations?
While the AI723F is designed for general industrial use, consult ABB’s datasheets for more details regarding certifications for hazardous environments.
How can I troubleshoot if the AI723F module is not functioning correctly?
First, verify that all connections are secure, and ensure the module is receiving the correct input signal type. For further troubleshooting, consult the user manual or reach out to ABB support.
