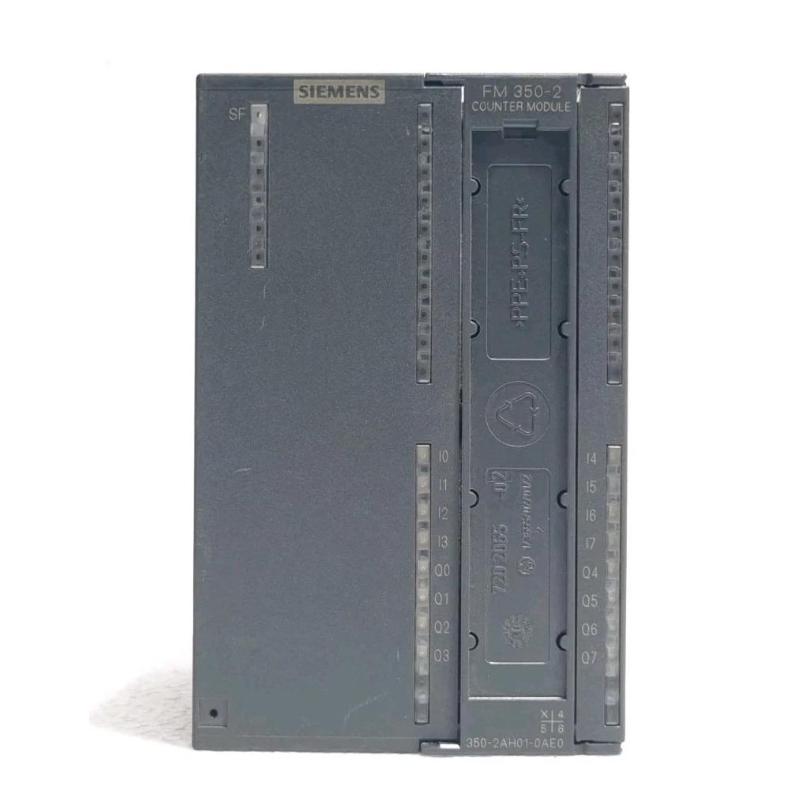

Siemens 6AG1350-2AH01-4AE0 Counter Module

Applications

The Siemens 6AG1350-2AH01-4AE0 Counter Module is designed for industrial automation applications that require reliable pulse acquisition, counting, and monitoring of repetitive machine events. It can be integrated into compatible Siemens control systems to process signals from sensors, pulse generators, and other field devices.

Typical applications include:

• High-speed pulse counting
• Product and quantity counting
• Machine cycle detection
• Conveyor and material handling systems
• Rotary speed monitoring
• Position and movement monitoring
• Packaging and production machinery
• Encoder-related applications
• Length measurement
• Industrial process monitoring

The module is suitable for automation systems where accurate count information is required for sequencing, production monitoring, or machine control.

Advantages

Dedicated Counting Capability
The 6AG1350-2AH01-4AE0 provides a dedicated solution for processing repetitive pulse signals, reducing the need to implement counting functions solely through standard PLC input processing.

Suitable for Dynamic Machine Processes
Counter functionality is useful for monitoring rapidly changing events such as product movement, machine cycles, rotating equipment, and production quantities.

Industrial Automation Integration
The module can be incorporated into compatible Siemens automation architectures and used as part of a larger PLC-based control system.

Compact Cabinet Installation
With dimensions of 80 × 125 × 120 mm, the module can be installed efficiently in industrial control cabinets and machine control panels.

Practical for Production Equipment
Dedicated counting functions can simplify the implementation of quantity tracking, movement detection, and repetitive-event monitoring in automated machinery.

Technical FAQs

1. What is the Siemens 6AG1350-2AH01-4AE0?
The 6AG1350-2AH01-4AE0 is a Counter Module designed for compatible Siemens industrial automation systems requiring dedicated pulse counting functions.

2. What is the primary function of the module?
The module receives suitable pulse signals and processes them as counting information for use by the automation control system.

3. What devices can provide signals to the counter module?
Depending on the application and supported signal characteristics, pulse sources can include proximity sensors, pulse generators, encoders, and other field devices producing repetitive electrical signals.

4. What applications commonly use counter modules?
Counter modules are commonly used for product counting, machine-cycle detection, conveyor monitoring, rotational measurement, length measurement, and other repetitive process functions.

5. Why use a dedicated counter module?
A dedicated counter module is designed specifically for pulse-processing tasks and can provide counting functions that are more suitable for repetitive or fast-changing signals than ordinary PLC scan-based input processing.

6. What should be checked before installing the module?
Verify the PLC system compatibility, signal characteristics, wiring requirements, module configuration, power requirements, and applicable installation instructions.

7. What can cause inaccurate counting?
Potential causes include unstable input signals, incorrect wiring, electrical interference, unsuitable sensor characteristics, incorrect parameter settings, or problems with the field device.

8. How should a counter-related fault be investigated?
Check the field signal and sensor operation first, then inspect wiring, module diagnostics, configuration parameters, and the difference between the expected and actual count.

9. Can the module be used with encoder-based applications?
It can be considered for suitable encoder or pulse-processing applications when the encoder signal characteristics and required counting functions are compatible with the module and system configuration.

10. What should be verified during commissioning?
Confirm the physical wiring, signal characteristics, module configuration, counting parameters, field-device operation, diagnostic status, and actual count response under normal machine operation.
