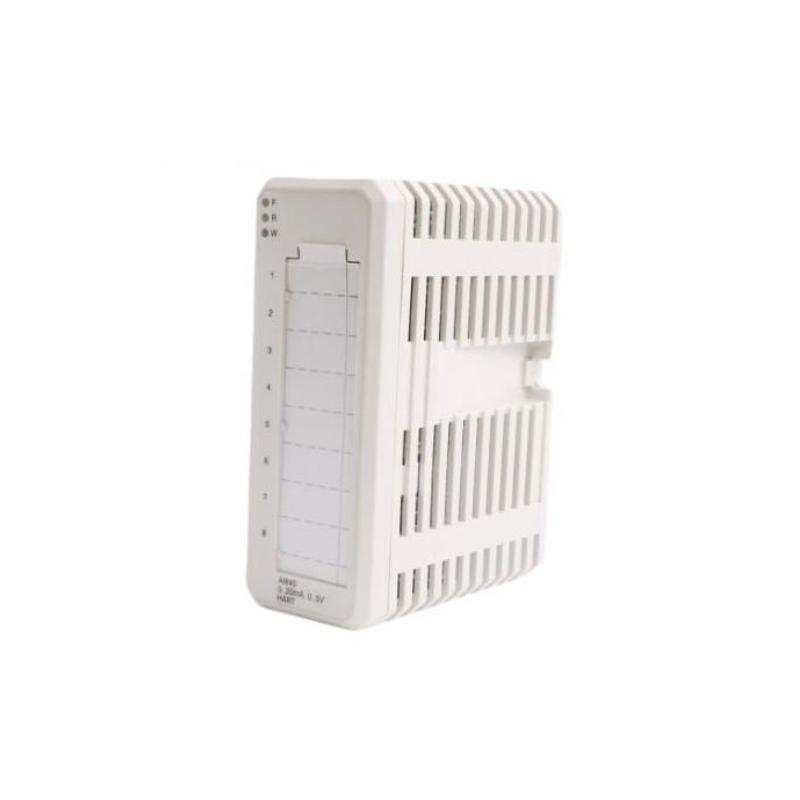

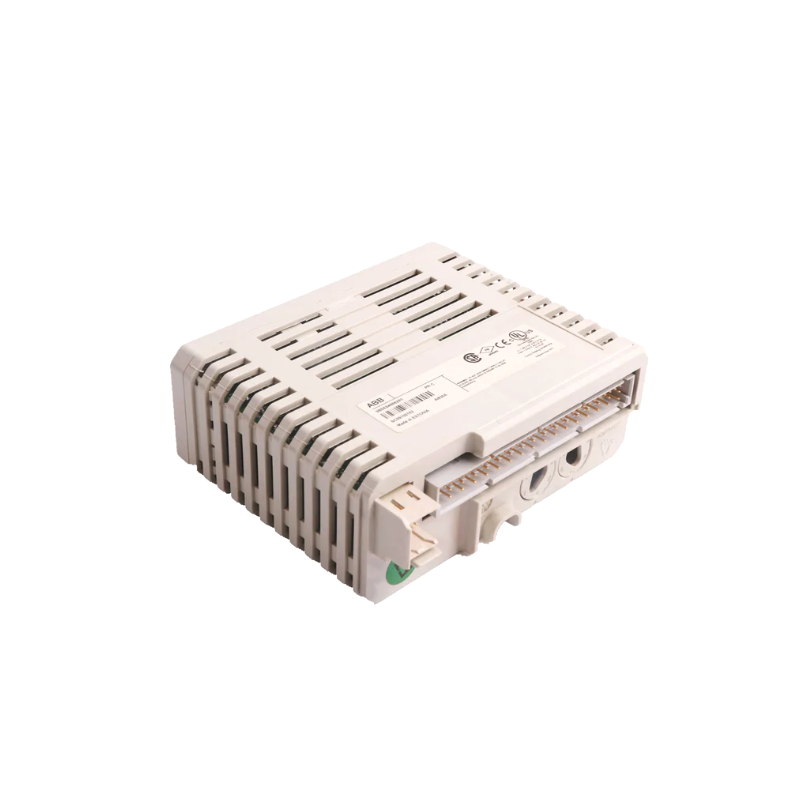

The ABB AI830A Analog Input Module is a highly efficient and reliable solution for handling a wide variety of analog signals in industrial control systems. This module is part of the ABB AC 800M and 800xA platforms, offering a versatile and high-performance interface for acquiring signals from temperature, pressure, flow, and other process measurement instruments. With exceptional accuracy, broad compatibility with input signal types, and seamless integration into ABB’s broader automation systems, the AI830A is an essential component for industries seeking reliable process control and real-time data analysis.

Technical Specifications

Feature	Specification
Part Number	AI830A
Input Signal Type	Voltage, Current, RTD, Thermocouple
Number of Inputs	8 Inputs
Input Range	0-20 mA, 0-10 V, -10 to +10 V, RTD
Resolution	16-bit
Accuracy	±0.1% of Full Scale
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions (HxWxD)	3.5 x 7.8 x 2.5 inches
Weight	0.9 lbs (0.4 kg)
Mounting Style	DIN Rail Mount
Power Consumption	2 W
Certifications	UL, CE, CSA

Recommended Related Models

ABB DO830A – Digital Output Module for output control based on analog data.
ABB AI810A – Another high-performance analog input module with similar features and capabilities.
ABB CI860 – Communication interface module, ideal for network connectivity between control systems and field devices.

Popular ABB Models

ABB AC 800M Controller – A high-performance control solution that integrates with modules like the AI830A for full automation.
ABB AI841A – A high-precision analog input module with extended input capabilities for demanding control systems.
ABB DI825 – A Digital Input module that pairs with analog modules like the AI830A to create a comprehensive automation solution.

Applications

The ABB AI830A Analog Input Module is perfect for a wide range of industrial and process control applications, including:

Process Automation: Ideal for industries such as petrochemical, pharmaceutical, and food & beverage, where accurate data acquisition is critical for process optimization.
Energy Monitoring: Suitable for energy management systems, where monitoring and controlling electrical parameters like voltage and current is essential for reducing energy consumption.
Manufacturing and Production: Used in automated systems to collect data from sensors, drive production processes, and monitor system health.
Environmental Systems: Ideal for gathering data from environmental sensors to monitor and control air quality, temperature, humidity, and more.

Advantages

Precision and Accuracy: Featuring a 16-bit resolution and ±0.1% accuracy, the AI830A guarantees highly precise data, ensuring smooth and accurate control over industrial processes.
Wide Input Compatibility: This module supports voltage, current, RTD, and thermocouple inputs, making it versatile for various measurement needs.
Seamless Integration: Fully compatible with ABB’s AC 800M and 800xA systems, the AI830A ensures smooth integration and easy scaling of automation systems.
Compact and Efficient: Designed for space-saving and efficiency, it can be easily mounted on a DIN rail, ideal for panel installations.
Robust Operation in Extreme Environments: With an operating temperature range from -20°C to +60°C, the AI830A operates reliably in demanding environments, ensuring consistent performance across a range of industrial conditions.

Technical FAQs

What types of input signals does the AI830A support?
The AI830A supports a variety of input signals, including voltage, current, RTD, and thermocouple, making it suitable for diverse industrial applications.
How many analog inputs does the AI830A have?
The module features 8 analog inputs, allowing for multiple signal connections in systems requiring several measurement points.
What is the resolution and accuracy of the AI830A module?
The AI830A offers a 16-bit resolution and ±0.1% full-scale accuracy, ensuring high precision for critical measurement tasks.
Is the AI830A compatible with temperature sensors like RTDs and thermocouples?
Yes, the AI830A can process signals from RTDs and thermocouples, making it ideal for temperature monitoring in process systems.
What is the operating temperature range of the AI830A?
The AI830A operates within a temperature range of -20°C to +60°C, making it well-suited for harsh industrial environments.
How is the AI830A mounted?
The module is designed for DIN rail mounting, offering a quick and secure installation process.
What certifications does the AI830A have?
The AI830A is certified with UL, CE, and CSA marks, ensuring compliance with international safety standards.
How much power does the AI830A consume?
The AI830A consumes just 2 W of power, ensuring energy-efficient operation for long-term use.
Can the AI830A module be used in hazardous environments?
For hazardous locations, it is recommended to review the specific certification and application guidelines from ABB to ensure compliance.
What should I do if the AI830A fails to communicate with the control system?
First, check all wiring connections and confirm the signal input types. Ensure that the control system is configured to recognize the module. If issues persist, consult the product manual or reach out to ABB technical support for assistance.
