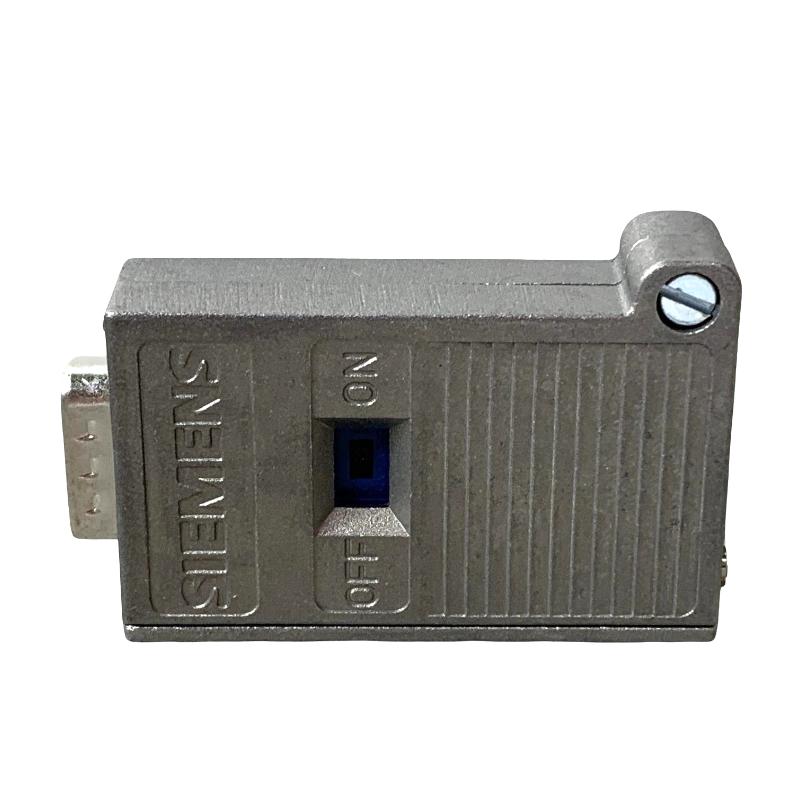

Siemens 6AG1500-0EA02-2AA0 PROFIBUS Connector

Applications

The Siemens 6AG1500-0EA02-2AA0 PROFIBUS Connector is designed for connecting compatible devices to PROFIBUS networks used in industrial automation systems. It provides a practical connection point between PROFIBUS network cabling and automation equipment, supporting structured and reliable fieldbus installations.

The connector can be used in PLC systems, distributed I/O architectures, machine automation, process-control installations, and production-line networks where PROFIBUS communication is part of the control architecture.

Typical applications include:

• PROFIBUS DP network connections
• Siemens PLC and automation systems
• Distributed I/O installations
• Industrial machinery
• Factory automation networks
• Process-control systems
• Control cabinet wiring
• PROFIBUS network maintenance and replacement

Its compact dimensions make it suitable for installations where connector space around PLCs, communication modules, and other PROFIBUS devices is limited.

Advantages

Reliable PROFIBUS Connection
The 6AG1500-0EA02-2AA0 provides a dedicated connector interface for compatible PROFIBUS network installations, helping establish a structured physical connection between the bus cable and automation equipment.

Suitable for Industrial Networks
The connector is intended for industrial automation environments where PROFIBUS is used to connect controllers, remote I/O, drives, and other field devices.

Compact Design
Measuring 15 × 57 × 39 mm, the connector occupies relatively little space and can be practical for densely arranged control cabinets and automation panels.

Simplified Network Installation
A dedicated PROFIBUS connector helps organize cable termination and device connections, making installation and maintenance more manageable.

Useful for Maintenance and Replacement
The connector can be considered when replacing a damaged or worn PROFIBUS connection without changing the rest of the network hardware.

Suitable for Distributed Automation
PROFIBUS networks are widely used for connecting distributed automation devices, and the connector provides an important physical interface within such network architectures.

Technical FAQs

1. What is the Siemens 6AG1500-0EA02-2AA0 used for?
The 6AG1500-0EA02-2AA0 is a PROFIBUS Connector used to connect compatible automation equipment to a PROFIBUS network.

2. What type of network does this connector support?
It is intended for PROFIBUS network applications, particularly industrial automation systems using PROFIBUS communication.

3. Where is a PROFIBUS connector normally installed?
It is installed at the PROFIBUS interface of compatible automation equipment, such as PLCs, communication modules, remote I/O stations, or other PROFIBUS devices.

4. Can the connector be used in PLC applications?
Yes. It can be used with compatible PLC-based automation systems where PROFIBUS is used as part of the control-system communication architecture.

5. What type of cable is normally associated with PROFIBUS connections?
PROFIBUS installations commonly use shielded twisted-pair bus cable designed for the relevant PROFIBUS physical layer and network requirements.

6. Why is correct cable termination important in a PROFIBUS network?
Correct termination helps maintain the electrical characteristics of the bus and supports reliable communication, particularly at the appropriate ends of a PROFIBUS segment.

7. What can cause communication problems after installing a PROFIBUS connector?
Common causes include incorrect wiring, poor cable termination, loose contacts, inadequate shielding, incorrect network configuration, or problems elsewhere on the PROFIBUS segment.

8. How should a PROFIBUS connection be checked during troubleshooting?
Inspect the connector installation, cable conductors, shielding, termination settings, physical connections, and network diagnostics. The connected device and PROFIBUS configuration should also be checked.

9. Is the 6AG1500-0EA02-2AA0 suitable for replacement applications?
It can be used as a replacement when the exact connector model and compatibility with the existing PROFIBUS device and cable installation have been confirmed.

10. What should be checked before installing the connector?
Verify the connector model, compatible device interface, PROFIBUS cable type, wiring arrangement, shielding, termination requirements, and installation conditions before commissioning the network.
