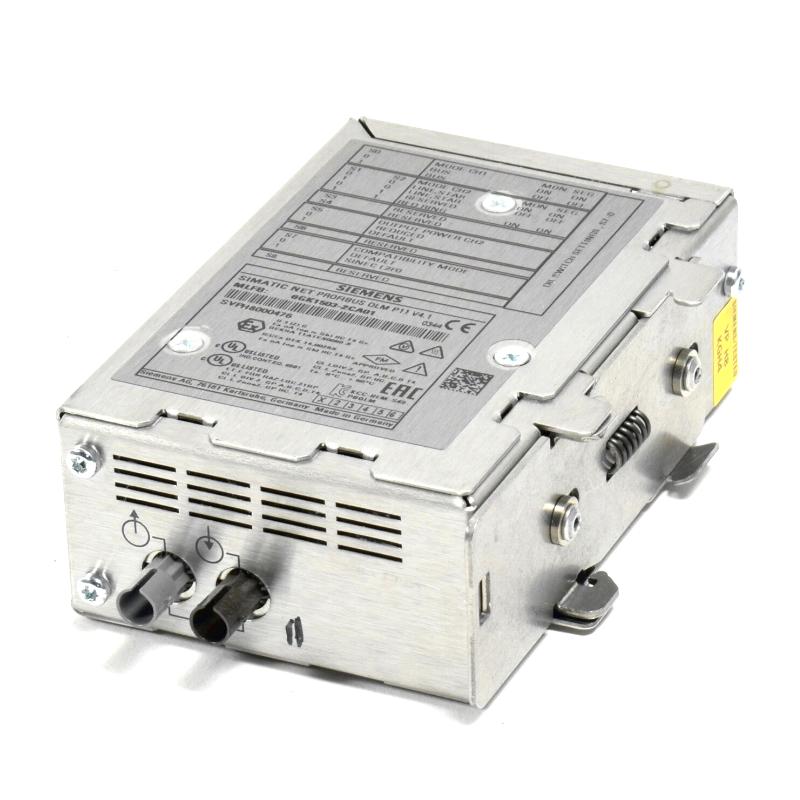

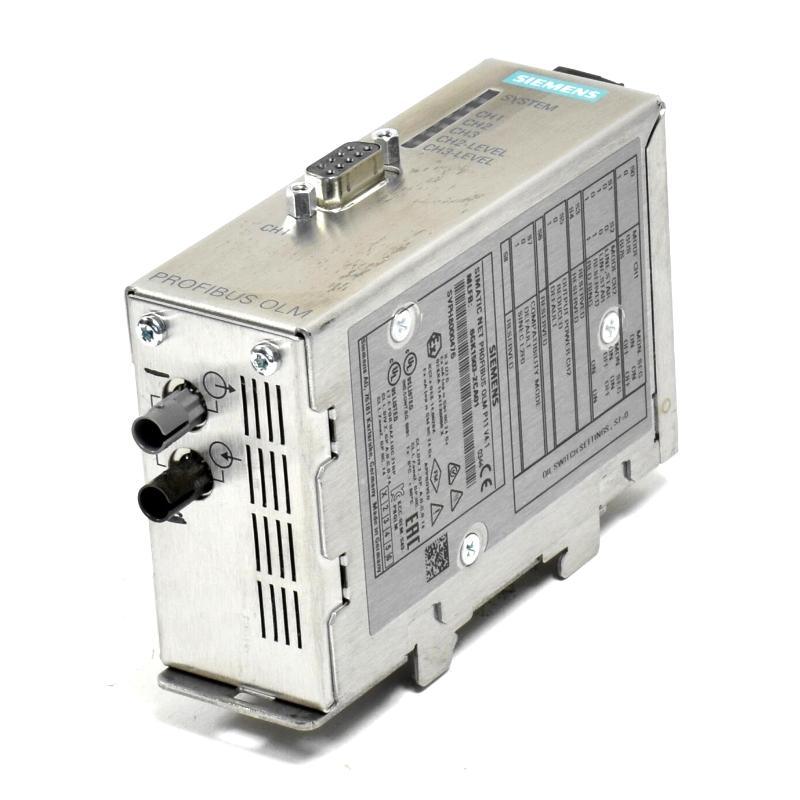

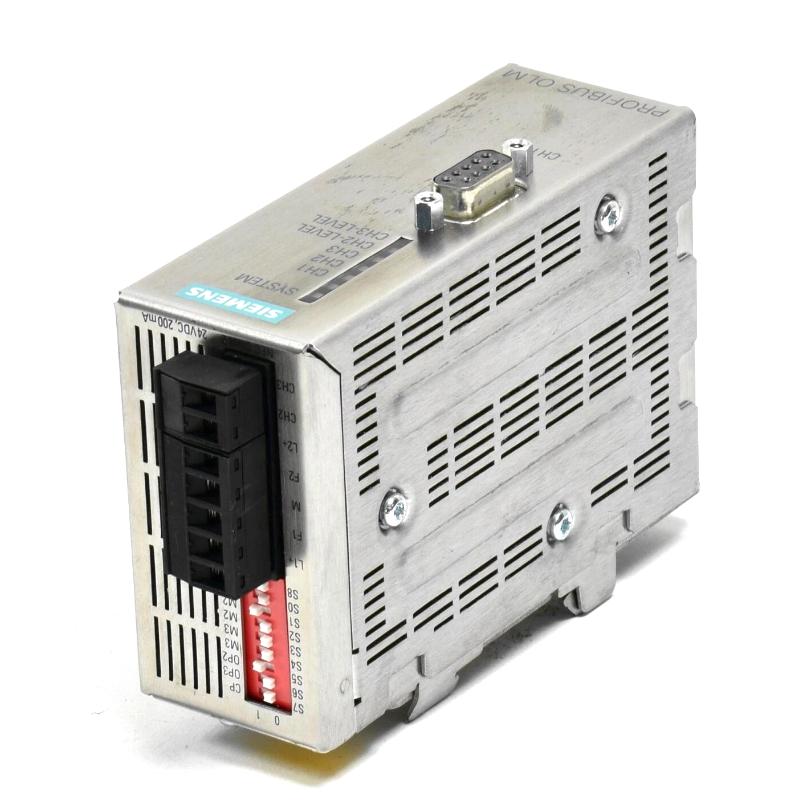

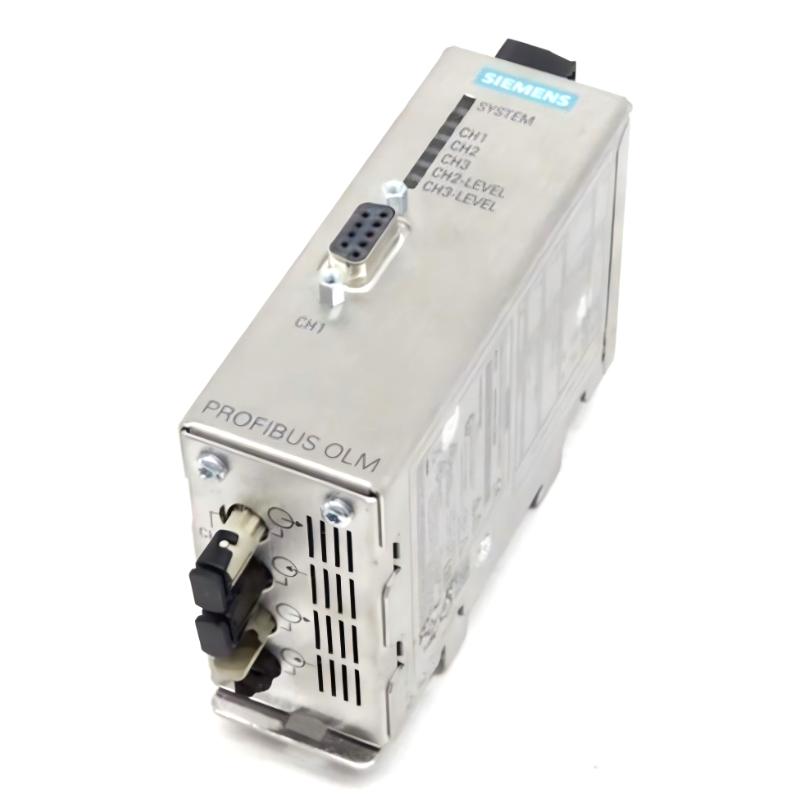

Siemens 6AG1503-2CA01-2AA0 Optical link Module

Applications

The Siemens 6AG1503-2CA01-2AA0 Optical Link Module is designed for industrial automation systems that require optical communication between compatible system components. By using an optical link, automation networks can establish communication paths that are less susceptible to certain electrical interference conditions than conventional copper connections.

The module can be considered for factory automation, distributed control systems, production lines, process automation, and installations where communication equipment must operate reliably in electrically demanding environments.

Typical applications include:

• Industrial automation networks
• Optical communication between automation stations
• Distributed control architectures
• Factory and production-line automation
• Process-control systems
• Electrically noisy industrial environments
• Long-distance automation communication
• Control cabinet communication systems

The module is particularly useful where optical communication is preferred for network isolation, signal integrity, or system architecture requirements.

Advantages

Optical Communication Interface
The 6AG1503-2CA01-2AA0 provides an optical link function for compatible industrial automation architectures, allowing communication through an optical transmission path.

Improved Resistance to Electrical Interference
Optical communication does not use electrical conductors for signal transmission across the optical section, making it useful in industrial environments with significant electromagnetic interference.

Suitable for Distributed Systems
The module can support automation architectures in which control stations or system sections are physically separated and require a dedicated communication link.

Industrial Automation Integration
It can be incorporated into appropriate Siemens automation installations alongside compatible controllers, interface modules, and communication components.

Compact Installation Format
With dimensions of 39.5 × 112 × 74.5 mm, the module can be installed in compact control cabinets and automation assemblies.

Useful for Network Expansion and Replacement
The module can be considered for extending an existing optical communication architecture or replacing an existing unit when the exact system compatibility has been confirmed.

Technical FAQs

1. What is the Siemens 6AG1503-2CA01-2AA0 used for?
The 6AG1503-2CA01-2AA0 is an Optical Link Module intended to provide an optical communication connection within compatible industrial automation systems.

2. Why is optical communication used in industrial automation?
Optical communication can provide strong immunity to electromagnetic interference and electrical isolation, making it useful in demanding industrial environments.

3. What applications are suitable for an optical link module?
Typical applications include distributed automation systems, production lines, process-control installations, and industrial networks where optical communication is required.

4. Can the module be used between separated automation stations?
It can be considered for applications where compatible automation stations require an optical communication path, subject to the specifications of the complete system architecture.

5. What should be checked before installing the module?
Verify the exact model number, compatible Siemens system, optical interface requirements, network architecture, mounting conditions, and configuration requirements before installation.

6. Does an optical link eliminate electromagnetic interference?
Optical transmission itself is highly resistant to electromagnetic interference because the signal is transmitted through light rather than an electrical conductor. However, the complete installation still requires appropriate grounding, shielding, and installation practices for associated equipment.

7. What can cause an optical communication fault?
Possible causes include incorrect optical connections, damaged optical components, unsuitable interfaces, configuration errors, power problems, or faults in the connected automation equipment.

8. How should an optical link fault be diagnosed?
Check the module's power and diagnostic status first. Then inspect the optical connections, connected devices, configuration parameters, and communication status throughout the network path.

9. Can the 6AG1503-2CA01-2AA0 be used as a replacement module?
It can be used for replacement when the exact part number and compatibility with the existing automation architecture have been verified.

10. What is the benefit of using an optical link instead of a conventional electrical connection?
An optical link can provide electrical isolation and high resistance to electromagnetic interference, which can be valuable when automation equipment operates in electrically noisy environments or across separated system sections.
