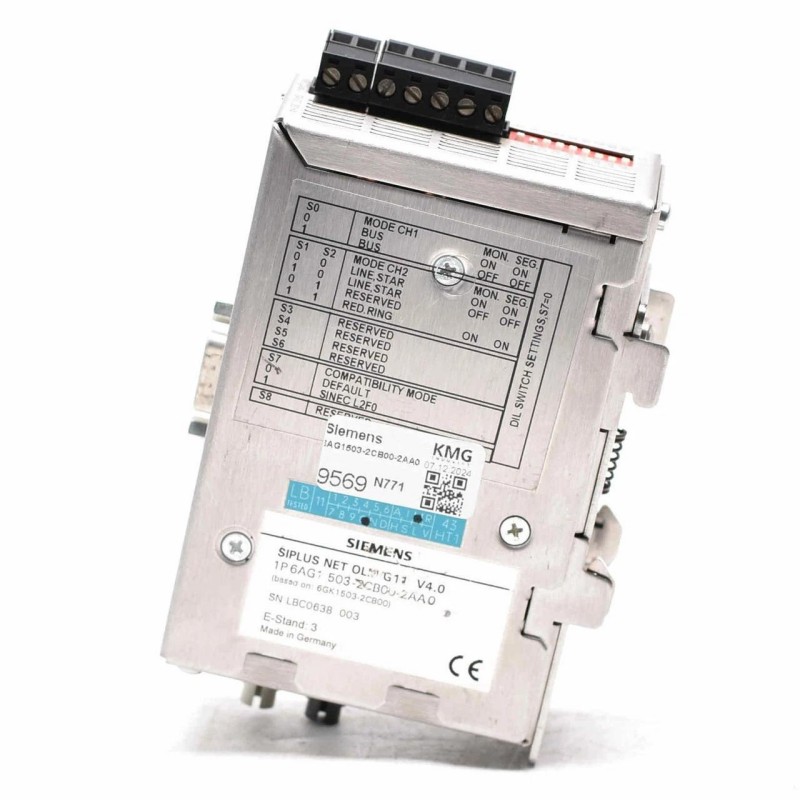

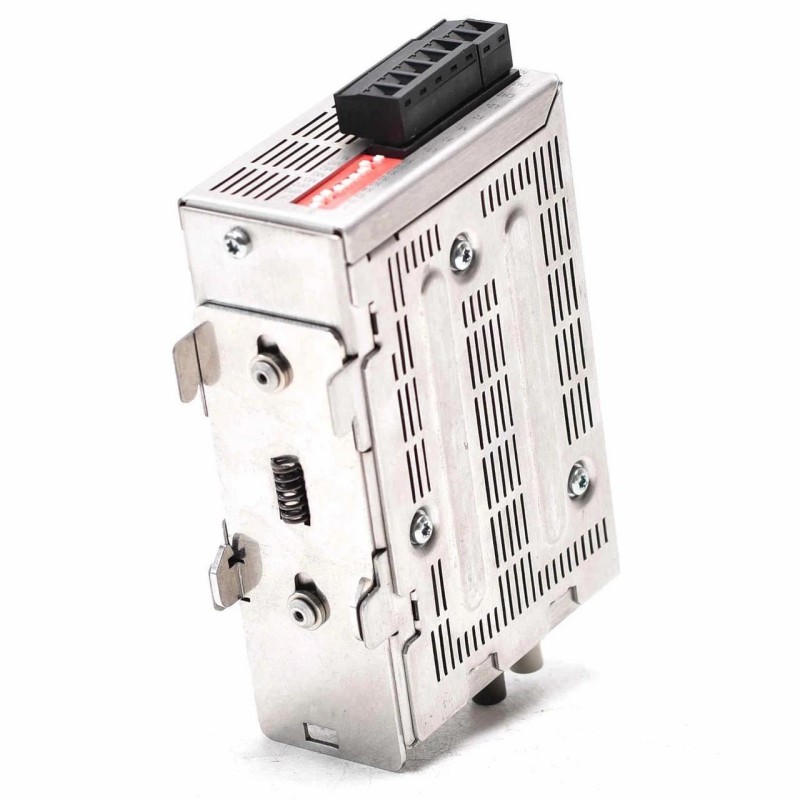

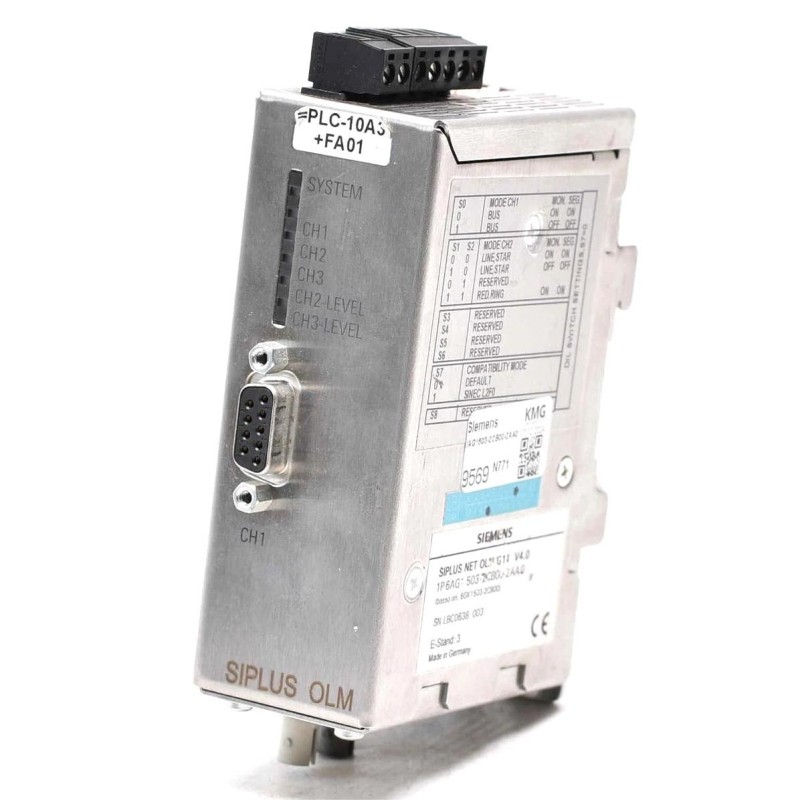

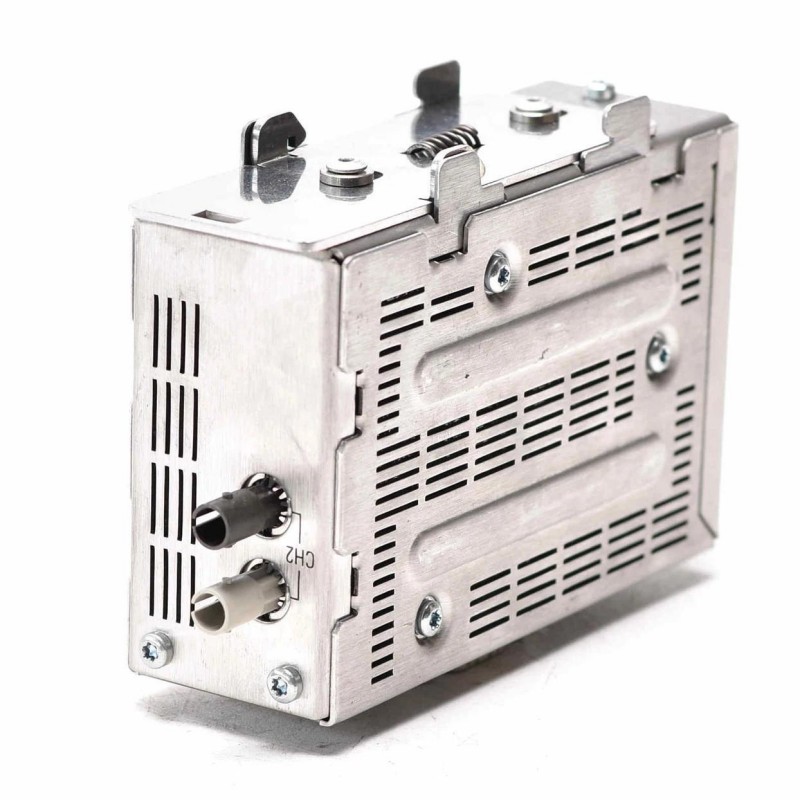

Siemens 6AG1503-2CB00-2AA0 Optical link Module

Applications

The Siemens 6AG1503-2CB00-2AA0 Optical Link Module is designed for industrial automation systems that require optical communication between compatible automation components. It can be used as part of a structured communication architecture where reliable data transmission and electrical isolation are important considerations.

Optical communication is especially useful in industrial environments where electrical noise, long communication paths, or differences in electrical potential can affect conventional connections. The module can therefore be considered for distributed automation, production systems, process-control installations, and industrial networking applications.

Typical applications include:

• Industrial automation communication
• Optical links between automation stations
• Distributed control architectures
• Factory and production-line networks
• Process automation systems
• Electrically noisy industrial environments
• Control cabinet communication
• Automation network expansion and replacement

Its compact dimensions also make it suitable for appropriately designed industrial control cabinets and automation assemblies.

Advantages

Dedicated Optical Communication
The 6AG1503-2CB00-2AA0 provides an optical link function for compatible automation architectures, supporting communication through an optical transmission path.

High Immunity to Electromagnetic Interference
Optical transmission is inherently resistant to electromagnetic interference along the optical section, making it useful in environments containing motors, drives, contactors, and other electrical equipment.

Electrical Isolation
An optical communication path can provide electrical isolation between connected system sections, which can be valuable in distributed industrial installations.

Suitable for Distributed Automation
The module can be integrated into automation architectures where different control stations or system sections need to exchange information over an optical connection.

Compact Form Factor
With dimensions of 39.5 × 112 × 74.5 mm, the module can be installed in suitable control cabinets without requiring excessive space.

Useful for Maintenance and Expansion
The module can be considered for replacing an existing compatible optical link or expanding an established industrial communication architecture.

Technical FAQs

1. What is the Siemens 6AG1503-2CB00-2AA0?
The Siemens 6AG1503-2CB00-2AA0 is an Optical Link Module designed for compatible industrial automation communication systems.

2. What is the main purpose of an optical link module?
Its purpose is to provide an optical communication path between compatible system components, supporting reliable data transmission across the configured automation architecture.

3. Why use optical communication in an industrial automation system?
Optical communication can provide strong immunity to electromagnetic interference and electrical isolation, which can be useful in electrically demanding industrial environments.

4. Can the module be used in distributed automation systems?
Yes, it can be considered for distributed automation applications when the module, optical interfaces, and connected system components are compatible.

5. What should be checked before installation?
Verify the exact model number, compatible automation platform, optical interface requirements, network architecture, mounting arrangement, and system configuration before installation.

6. Can optical communication be used near variable-frequency drives?
Optical communication is generally well suited to electrically noisy environments because the optical transmission path is not affected by electromagnetic interference in the same manner as an electrical signal conductor. The complete installation should still follow appropriate industrial wiring practices.

7. What can cause an optical communication failure?
Potential causes include incorrect optical connections, damaged optical components, unsuitable interfaces, configuration errors, power-supply problems, or faults in connected automation equipment.

8. How should an optical link fault be diagnosed?
Check the module's power and diagnostic indicators first. Then inspect the optical connections, connected devices, configuration parameters, and communication status along the complete network path.

9. Can the 6AG1503-2CB00-2AA0 be used for replacement?
It can be considered for replacement when the exact ordering number and compatibility with the existing automation system have been confirmed.

10. What is the difference between an optical link and a conventional electrical communication connection?
An optical link transmits information using light rather than an electrical signal. This can provide electrical isolation and improved immunity to electromagnetic interference across the optical section.
