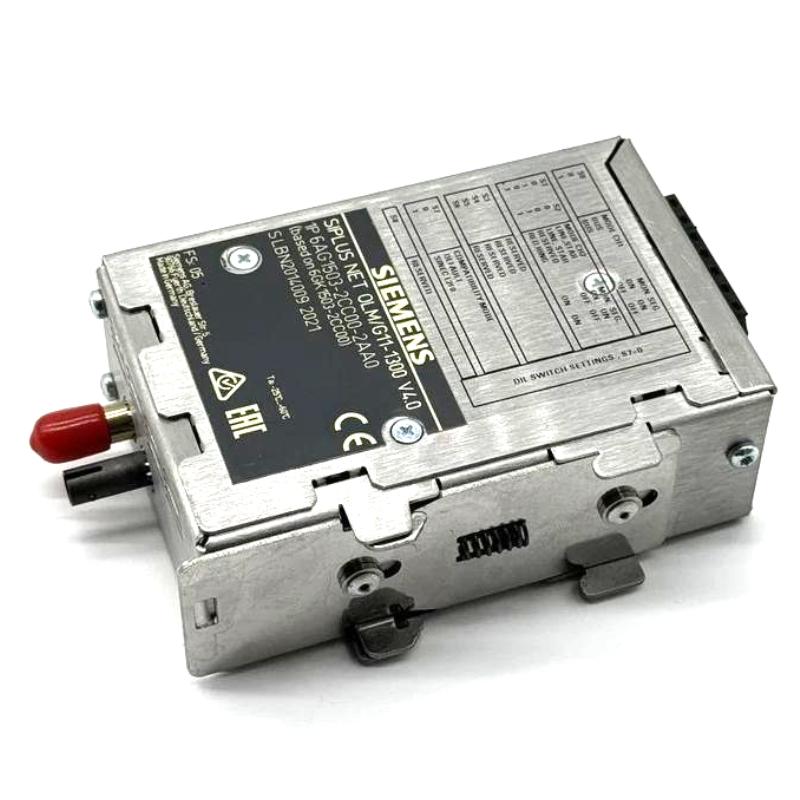

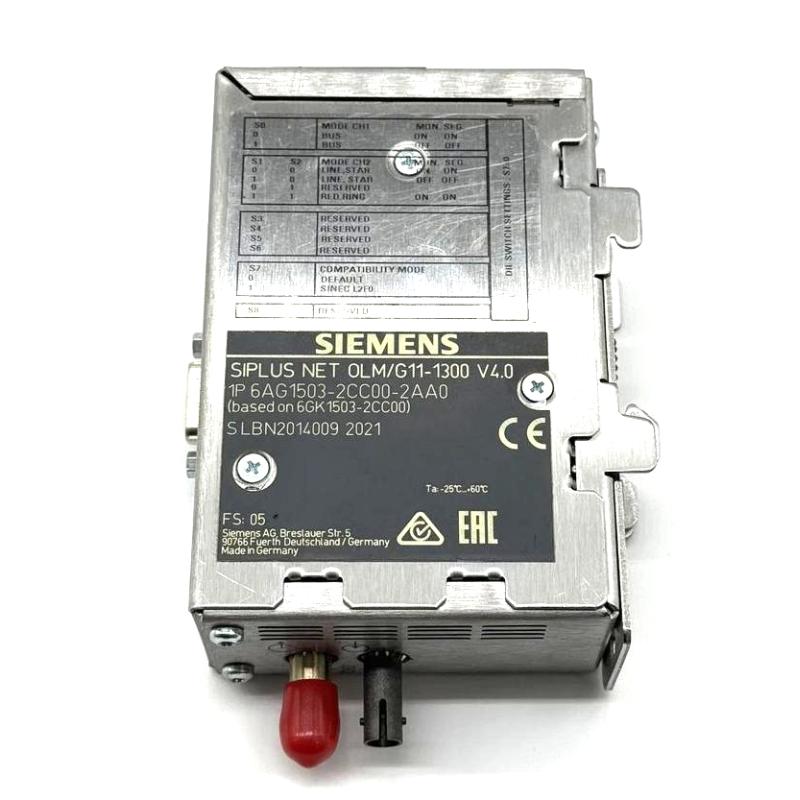

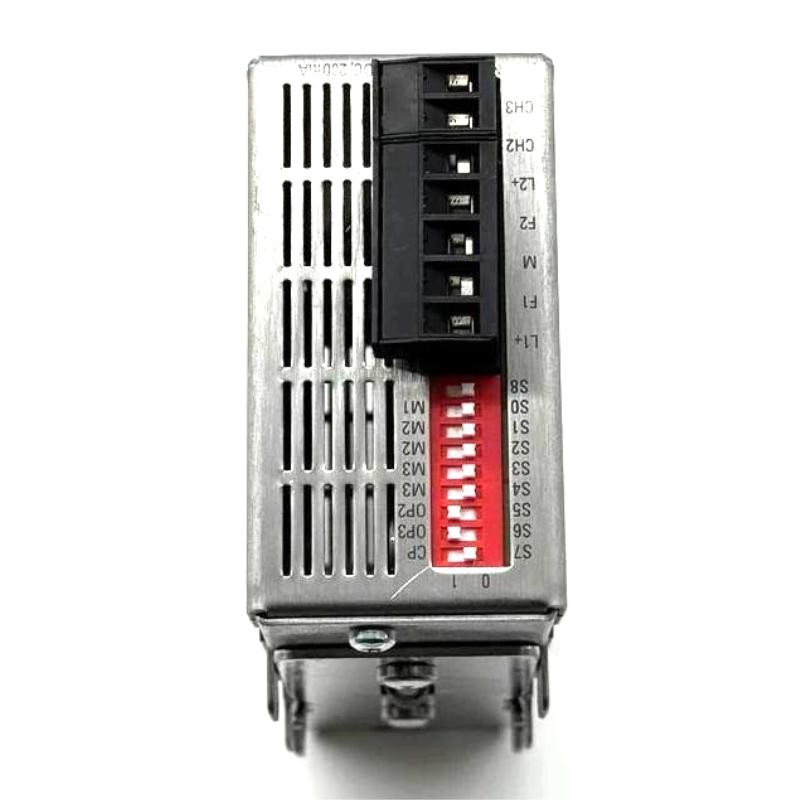

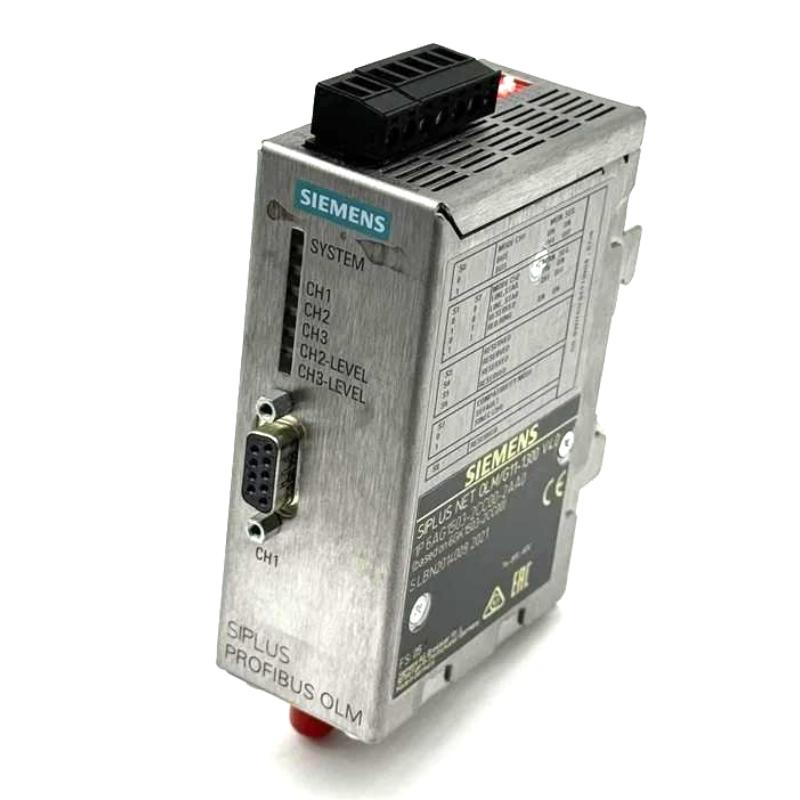

Siemens 6AG1503-2CC00-2AA0 Optical link Module

Applications

The Siemens 6AG1503-2CC00-2AA0 Optical Link Module is designed for industrial automation systems that require an optical communication path between compatible automation components. It can be integrated into distributed control architectures where communication reliability, electrical isolation, and resistance to electromagnetic interference are important.

The module is suitable for manufacturing facilities, production lines, process-control systems, machine automation, and other industrial installations where automation stations may need to communicate across electrically demanding environments.

Typical applications include:

• Industrial automation networks
• Optical communication between automation stations
• Distributed control systems
• Factory and production-line automation
• Process-control installations
• Control cabinet communication
• Electrically noisy industrial environments
• Automation network expansion and replacement

Its compact construction makes it suitable for appropriately configured industrial cabinets and automation assemblies.

Advantages

Optical Communication
The 6AG1503-2CC00-2AA0 provides an optical link for compatible automation architectures, allowing data to be transmitted through an optical communication path.

Resistance to Electromagnetic Interference
Because the communication signal is carried optically, the optical section is highly resistant to electromagnetic interference generated by industrial equipment.

Electrical Isolation
An optical connection can electrically isolate separate sections of an automation network, helping reduce the impact of potential differences between connected equipment.

Suitable for Distributed Architectures
The module can be used in automation systems where control stations, network sections, or equipment areas are physically separated.

Compact Installation
With dimensions of 39.5 × 112 × 74.5 mm, the module provides a space-efficient solution for suitable industrial control cabinets.

Practical for Maintenance Projects
The module can be considered for replacement or expansion applications when the existing system requires a compatible optical communication component.

Technical FAQs

1. What is the Siemens 6AG1503-2CC00-2AA0?
The Siemens 6AG1503-2CC00-2AA0 is an Optical Link Module designed for compatible industrial automation communication systems.

2. What is the purpose of an optical link module?
It provides an optical communication path between compatible automation components, allowing data to be transmitted through an optical interface.

3. Why is optical communication useful in industrial automation?
Optical communication offers strong immunity to electromagnetic interference and can provide electrical isolation between connected system sections.

4. Can the module be used in distributed control systems?
Yes, it can be considered for distributed automation architectures where compatible system components require an optical communication connection.

5. What should be verified before installing the module?
Check the complete model number, compatible Siemens system, optical interface requirements, connected devices, network architecture, mounting conditions, and configuration requirements.

6. Is optical communication affected by electrical noise from industrial equipment?
The optical transmission path is highly resistant to electromagnetic interference. However, associated electrical equipment, power supplies, and installation practices should still meet the requirements of the overall automation system.

7. What are common causes of optical communication faults?
Possible causes include incorrect optical connections, damaged optical components, configuration errors, power-supply problems, incompatible interfaces, or faults in connected automation equipment.

8. How can an optical link problem be diagnosed?
Begin by checking module power and diagnostic indicators. Then inspect the optical connections, connected devices, configuration parameters, and communication status throughout the network path.

9. Can the 6AG1503-2CC00-2AA0 be used as a replacement module?
It can be considered for replacement when the exact ordering number and compatibility with the existing system have been confirmed.

10. What is the main advantage of an optical link compared with an electrical connection?
An optical link can provide electrical isolation and high immunity to electromagnetic interference, making it useful for communication between separated or electrically noisy automation system sections.
