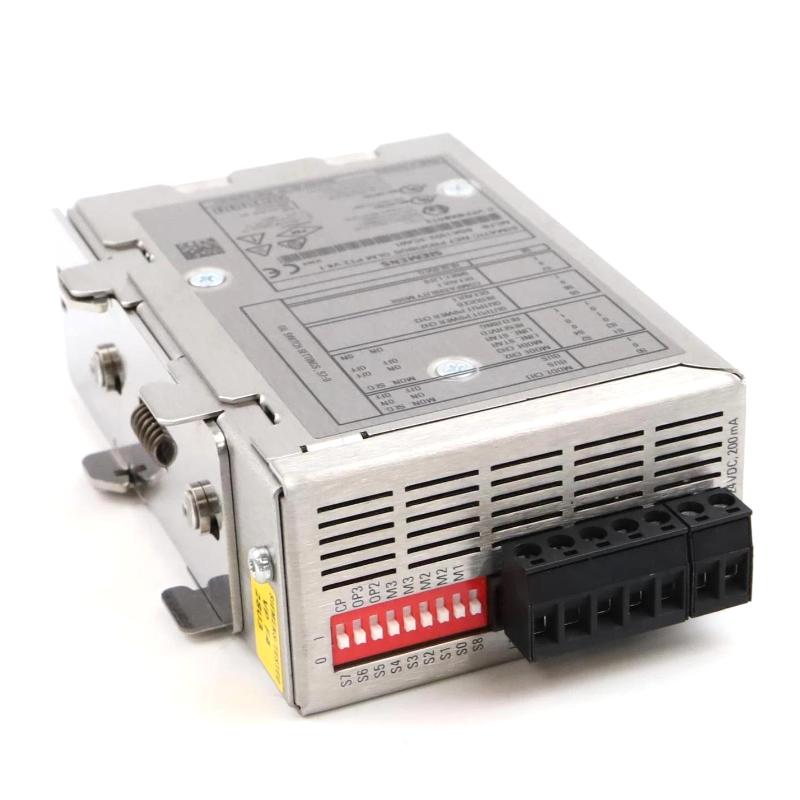

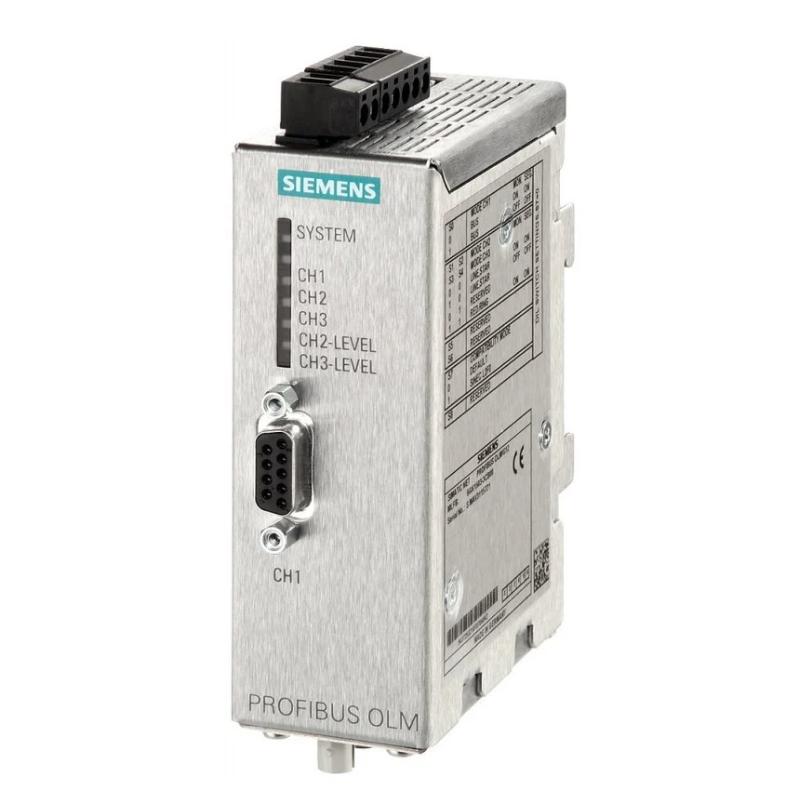

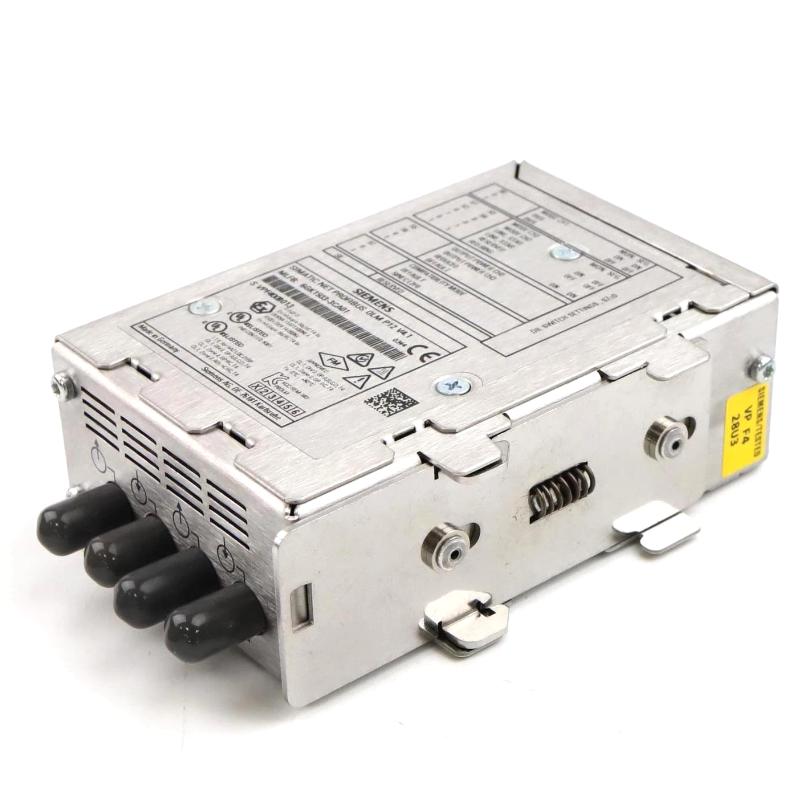

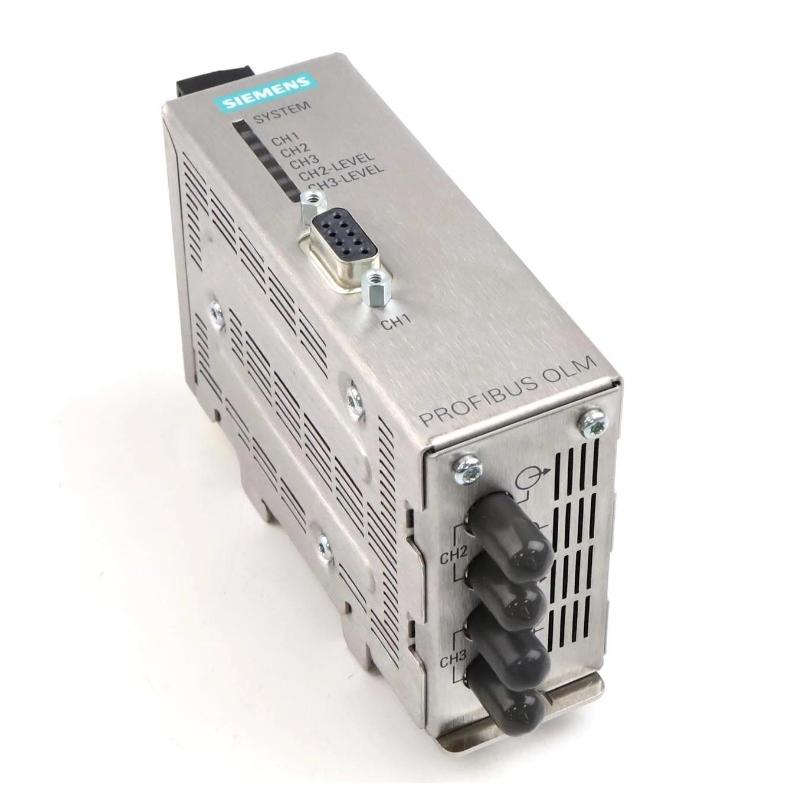

Siemens 6AG1503-3CA01-2AA0 Optical link Module

Applications

The Siemens 6AG1503-3CA01-2AA0 Optical Link Module is designed for industrial automation systems that require reliable optical communication between compatible automation components. It can be integrated into distributed automation architectures where electrical isolation and resistance to electromagnetic interference are important considerations.

The module is suitable for manufacturing plants, production lines, process-control systems, machine automation, and industrial communication installations. It can also be considered for system expansion and replacement projects where an optical communication path is required.

Typical applications include:

• Industrial automation networks
• Optical communication between automation stations
• Distributed control architectures
• Production-line automation
• Process-control installations
• Electrically noisy industrial environments
• Control cabinet communication
• Automation system expansion and maintenance

Its compact form factor makes it suitable for appropriately designed industrial cabinets and automation assemblies.

Advantages

Dedicated Optical Communication
The 6AG1503-3CA01-2AA0 provides an optical communication function for compatible automation architectures, supporting data transmission through an optical path.

High Resistance to Electromagnetic Interference
Optical transmission is highly resistant to electromagnetic interference along the optical section, which is valuable in industrial environments containing motors, drives, switching equipment, and other sources of electrical noise.

Electrical Isolation
An optical communication path can provide electrical isolation between different sections of an automation system, helping reduce the effects of potential differences between connected equipment.

Suitable for Distributed Automation
The module can be used where automation stations or system sections are physically separated and require a dedicated optical communication connection.

Compact Design
With dimensions of 39.5 × 112 × 74.5 mm, the module can be incorporated into suitable control cabinets while making efficient use of available installation space.

Useful for Replacement Projects
The module can be considered for maintenance, replacement, and expansion applications when its compatibility with the existing automation architecture has been confirmed.

Technical FAQs

1. What is the Siemens 6AG1503-3CA01-2AA0?
The Siemens 6AG1503-3CA01-2AA0 is an Optical Link Module intended for compatible industrial automation communication systems.

2. What is the main function of an optical link module?
It provides an optical communication path between compatible automation components, allowing information to be transmitted through an optical interface.

3. Why is optical communication useful in industrial automation?
Optical communication provides strong immunity to electromagnetic interference and can offer electrical isolation between connected system sections.

4. Can this module be used in distributed automation systems?
It can be considered for distributed automation architectures when the optical interface, connected equipment, and overall system configuration are compatible.

5. What should be checked before installation?
Verify the exact ordering number, compatible automation platform, optical interfaces, connected devices, network architecture, mounting requirements, and configuration parameters.

6. Can optical communication be used in areas with high electrical noise?
Yes. The optical transmission path is highly resistant to electromagnetic interference, making optical communication suitable for many electrically demanding industrial environments.

7. What can cause an optical communication failure?
Potential causes include incorrect optical connections, damaged optical components, configuration errors, power-supply problems, incompatible interfaces, or faults in connected automation equipment.

8. How should an optical link fault be diagnosed?
Check the module power and diagnostic indicators first. Then inspect the optical connections, connected devices, configuration parameters, and communication status throughout the network path.

9. Can the 6AG1503-3CA01-2AA0 be used as a replacement?
It can be considered for replacement when the exact part number and compatibility with the existing automation system have been verified.

10. What is the advantage of an optical connection over a conventional electrical connection?
An optical connection can provide electrical isolation and high immunity to electromagnetic interference, which can be valuable when connecting separated automation stations or equipment operating in electrically noisy environments.
