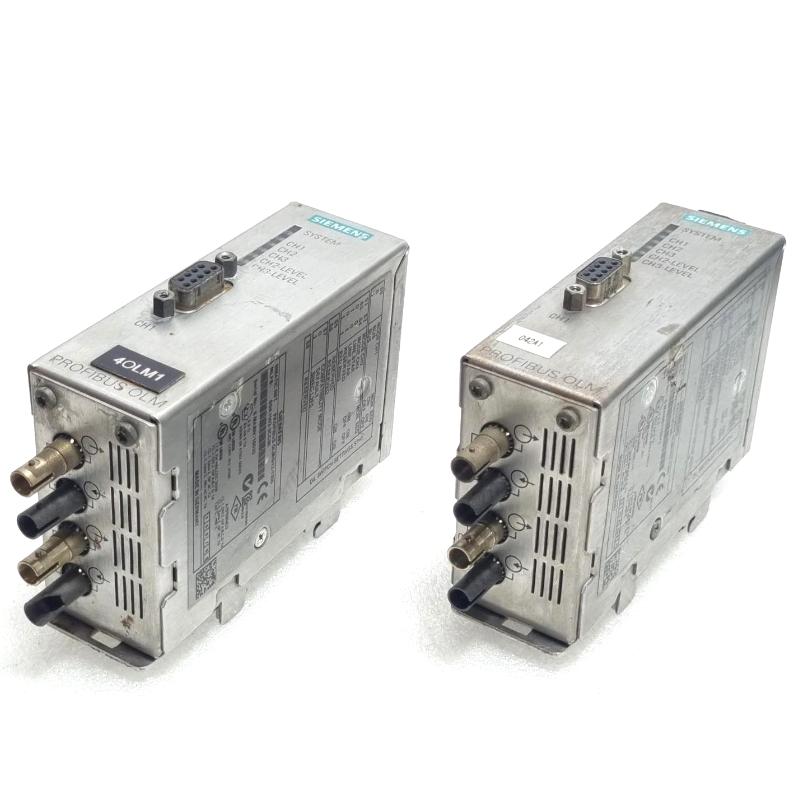

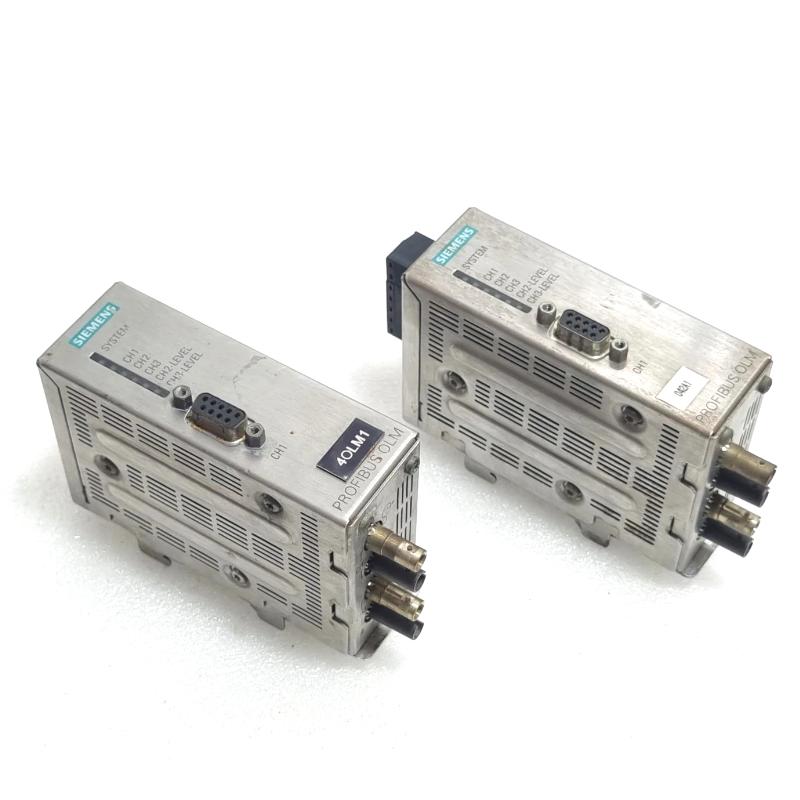

Siemens 6AG1503-3CC00-2AA0 Optical link Module

Applications

The Siemens 6AG1503-3CC00-2AA0 Optical Link Module is designed for reliable optical communication within industrial automation systems. It provides an optical interface for connecting automation components over fiber-optic transmission paths, making it suitable for installations where electrical communication links are limited by distance, electromagnetic interference, or demanding industrial conditions.

The module can be used in distributed automation architectures where stable communication between controllers, remote stations, and networked system components is required. Fiber-optic transmission also helps maintain communication integrity in environments with motors, drives, welding equipment, and other sources of electrical noise.

Typical applications include:

• Industrial automation and control systems
• Distributed PLC architectures
• Fiber-optic communication networks
• Long-distance automation communication
• Electrically noisy industrial environments
• Remote I/O and control-system communication
• Process automation and manufacturing equipment
• System modernization and replacement projects

Advantages

Reliable Optical Communication
The 6AG1503-3CC00-2AA0 provides an optical communication interface that helps reduce the influence of electromagnetic interference on data transmission.

Suitable for Distributed Systems
Its optical communication capability supports automation architectures where system components may be installed at different locations or over extended cable distances.

Industrial-Grade Design
The module is intended for demanding automation environments and can be integrated into control cabinets and industrial communication installations.

Compact Installation Footprint
With dimensions of 39.5 × 112 × 74.5 mm, the module can be installed in space-conscious control and automation equipment.

Useful for System Expansion
The optical link function can support the expansion or restructuring of existing Siemens automation systems where fiber-based communication is required.

Stable Communication in High-Noise Areas
Fiber-optic communication avoids many of the electrical interference problems associated with conventional copper communication cabling, which is particularly useful around variable-frequency drives and high-power machinery.

Technical FAQs

1. What is the Siemens 6AG1503-3CC00-2AA0 used for?
It is an optical link module designed to provide fiber-optic communication within Siemens industrial automation systems.

2. What type of communication does this module provide?
The module provides optical communication, allowing compatible automation components to exchange data through a fiber-optic transmission path.

3. Why use an optical communication link instead of copper cabling?
Optical communication provides strong immunity to electromagnetic interference and can be advantageous for longer communication distances or electrically noisy industrial environments.

4. Can the 6AG1503-3CC00-2AA0 be used in distributed automation systems?
Yes. Its optical communication capability makes it suitable for distributed system architectures where automation components are installed at different locations.

5. Is fiber-optic communication suitable for industrial environments with high electrical noise?
Yes. Fiber-optic transmission is not affected by electromagnetic interference in the same manner as electrically conductive communication wiring, making it useful around industrial drives and high-power equipment.

6. What should be checked before installing the module?
The automation architecture, compatible Siemens system components, optical connection requirements, fiber type, communication configuration, and installation conditions should be checked before commissioning.

7. Does the module require configuration after installation?
Depending on the automation system and network architecture, configuration may be required to establish the correct communication relationship between connected components.

8. What are common causes of optical communication faults?
Typical causes include incorrect fiber connections, damaged or contaminated optical interfaces, incompatible optical components, incorrect system configuration, or problems with connected devices.

9. How can an intermittent optical communication problem be diagnosed?
Check the fiber connections first, inspect the optical path for physical damage or contamination, verify the module's status indications, and then check the configuration and communication status of the connected automation devices.

10. Can this module be used when upgrading an existing automation system?
It can be considered for system expansion or modernization when the existing architecture requires a compatible optical communication solution. Compatibility should be confirmed before replacement or integration.
