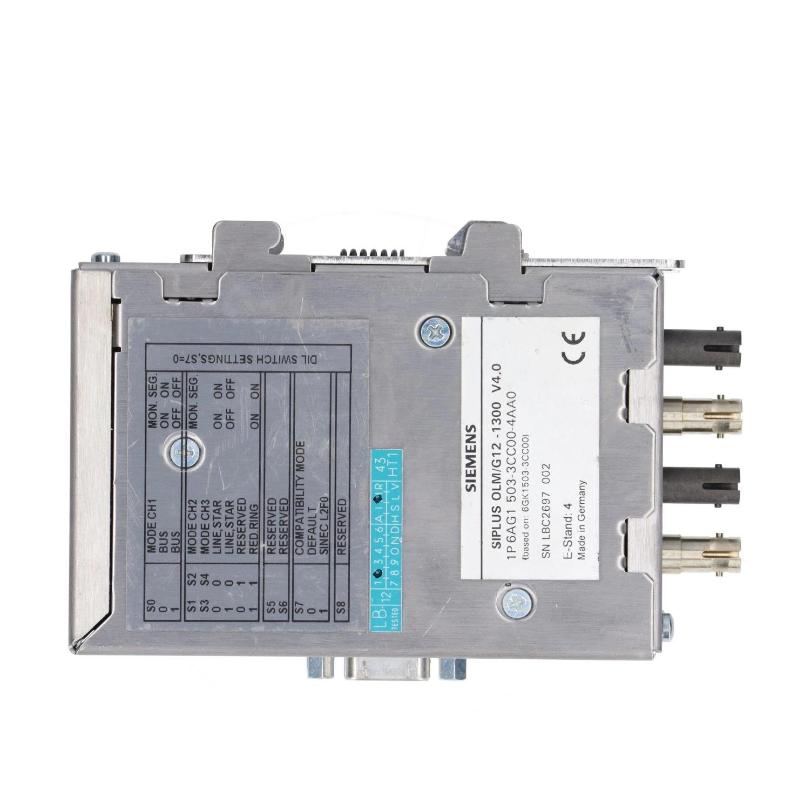

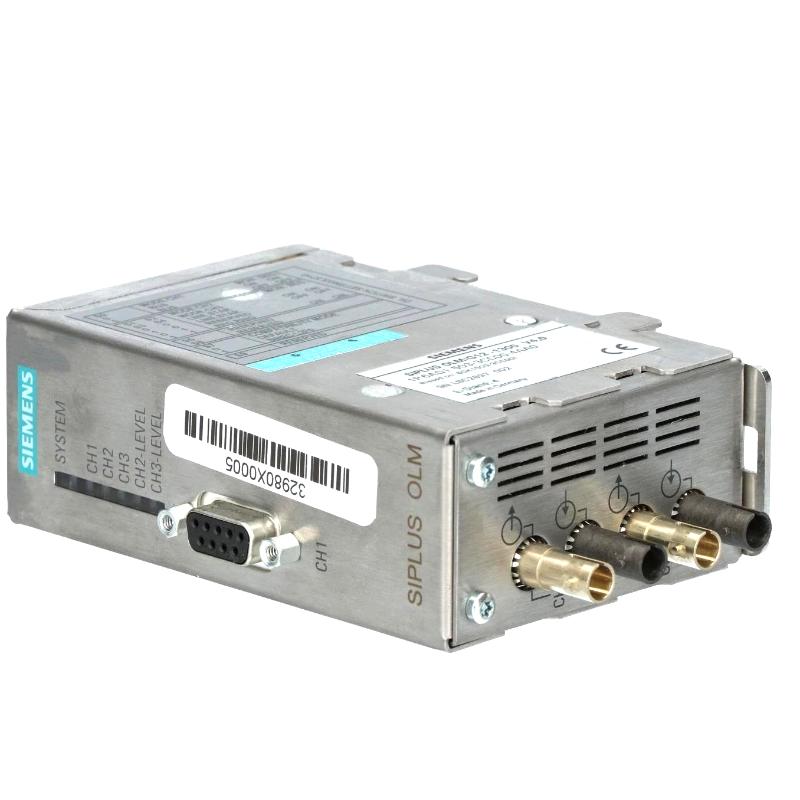

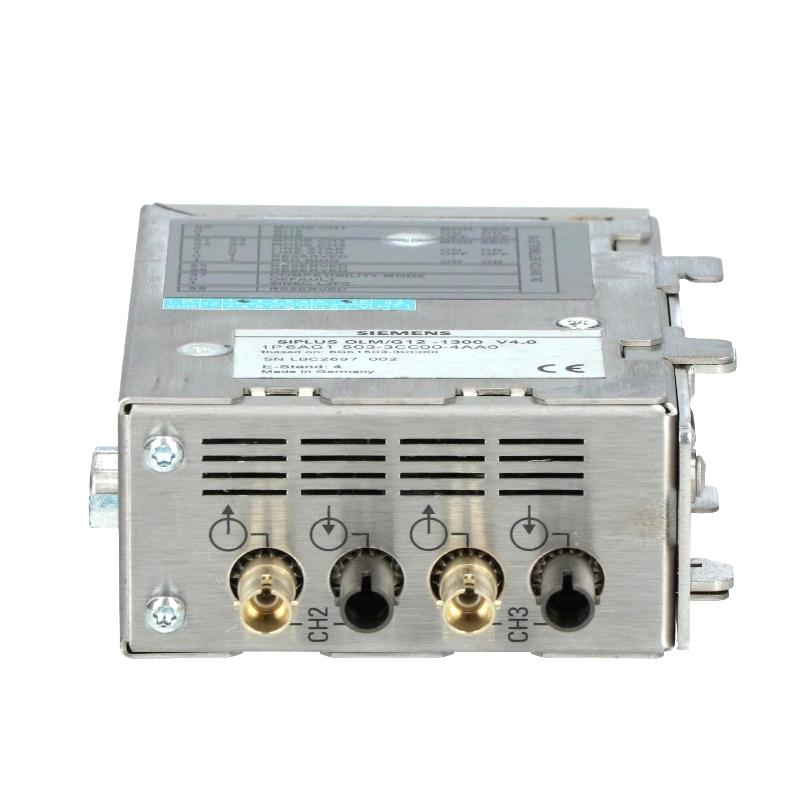

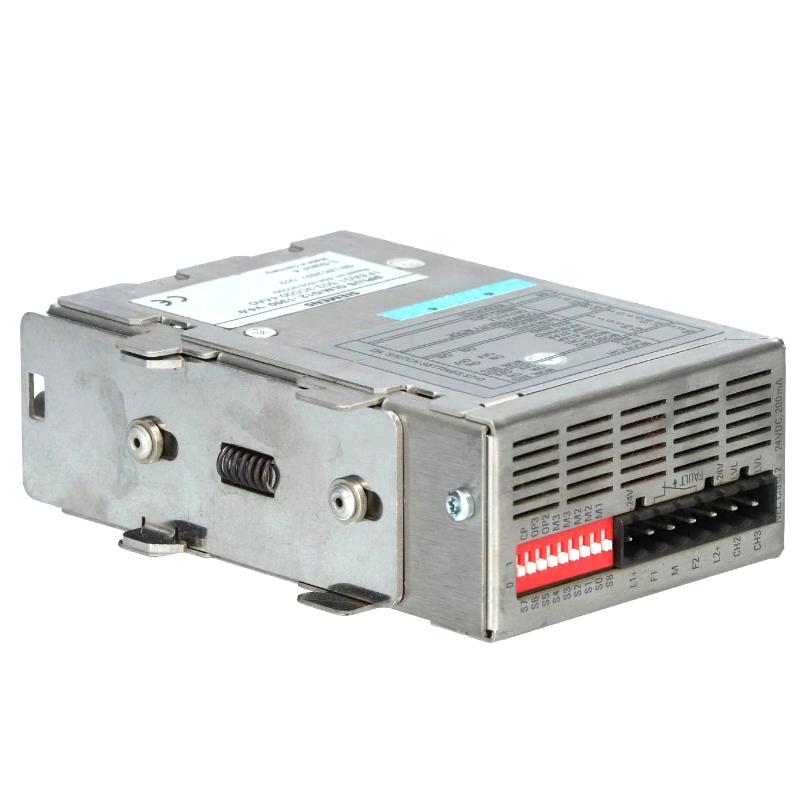

Siemens 6AG1503-3CC00-4AA0 Optical link Module

Applications

The Siemens 6AG1503-3CC00-4AA0 Optical Link Module is designed for fiber-optic communication in industrial automation systems. It can be used to establish reliable optical communication paths between compatible automation components, particularly where electrical communication connections may be affected by electromagnetic interference or physical distance.

The module is well suited to distributed control architectures, factory automation networks, and industrial installations where communication reliability and electrical isolation are important. Its optical transmission capability can also simplify communication between equipment installed in different sections of a plant.

Typical applications include:

• Distributed PLC and automation systems
• Industrial fiber-optic communication networks
• Factory and machine automation
• Process control installations
• Remote automation stations
• Control cabinets with fiber communication
• High-electromagnetic-interference environments
• Automation system expansion and modernization

Advantages

Fiber-Optic Communication
The 6AG1503-3CC00-4AA0 uses optical transmission technology to provide a communication path that is highly resistant to electromagnetic interference.

Reliable Industrial Connectivity
Optical communication is well suited to industrial environments containing motors, variable-frequency drives, switching equipment, and other electrical noise sources.

Electrical Isolation
Fiber-optic communication provides electrical isolation between connected locations, which can be useful when automation equipment is distributed across different areas of a facility.

Compact Design
With dimensions of 39.5 × 112 × 74.5 mm, the module can be integrated into industrial control equipment without requiring excessive installation space.

Suitable for Distributed Architectures
The module can be used as part of automation systems in which controllers and communication equipment are located at different points throughout a plant or machine.

Practical for System Maintenance
Its optical-link function makes it a useful component for replacement, expansion, and modernization projects involving compatible Siemens automation equipment.

Technical FAQs

1. What is the Siemens 6AG1503-3CC00-4AA0?
It is an Optical Link Module designed to provide fiber-optic communication within compatible Siemens industrial automation systems.

2. What is the main function of an optical link module?
Its primary function is to establish an optical communication connection between compatible automation components through a fiber-optic transmission path.

3. Why is fiber optics useful in industrial automation?
Fiber optics provides strong immunity to electromagnetic interference and electrical isolation, making it useful in demanding industrial environments.

4. Can the 6AG1503-3CC00-4AA0 be used in distributed control systems?
Yes. Optical communication is well suited to distributed automation architectures where system components are installed in different locations.

5. Is the module suitable for environments with high electromagnetic interference?
Yes. Fiber-optic transmission is inherently resistant to electromagnetic interference, making optical links useful near motors, drives, switching equipment, and high-power electrical systems.

6. What should be checked before replacing an existing optical link module?
The complete Siemens system configuration, module compatibility, optical interface requirements, fiber type, and communication architecture should be verified before replacement.

7. What can cause an optical communication failure?
Common causes include incorrect fiber connections, contaminated optical interfaces, damaged fiber cables, incompatible components, configuration problems, or faults in connected automation equipment.

8. How should an intermittent optical link be investigated?
Inspect the optical connections and fiber cable first, check for contamination or physical damage, review module status indications, and then verify the communication configuration and connected devices.

9. Does fiber-optic communication provide electrical isolation?
Yes. Optical transmission does not require a conductive signal path between the connected endpoints, providing electrical isolation that can be valuable in industrial installations.

10. Is the 6AG1503-3CC00-4AA0 suitable for automation system upgrades?
It can be used in compatible system expansion or modernization projects where an optical communication interface is required. System compatibility should be confirmed before installation.
