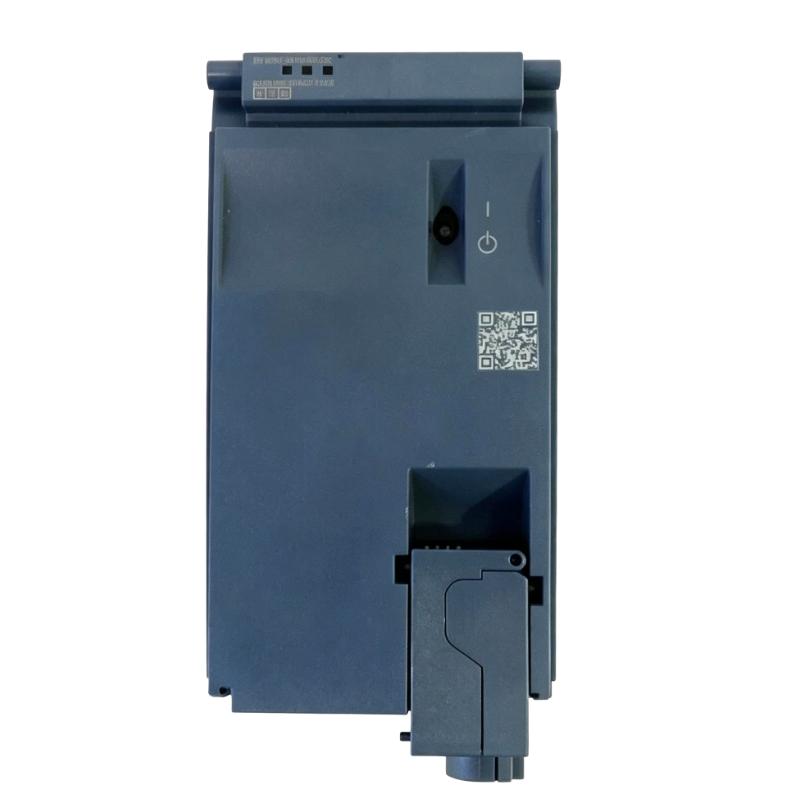

Siemens 6AG1505-0RA00-7AB0 Power Supply

Applications

The Siemens 6AG1505-0RA00-7AB0 Power Supply is designed for use in industrial automation and control systems where a dependable electrical supply is required for compatible system components. It can serve as part of the power infrastructure in Siemens automation installations, supporting controllers, modules, and other connected equipment.

Its industrial form factor makes it suitable for control cabinets and automation panels used in manufacturing, process control, machine automation, and distributed control applications. The unit can also be considered for maintenance, replacement, and system expansion projects when its electrical specifications match the requirements of the existing installation.

Typical applications include:

• Industrial PLC and automation systems
• Control cabinet power distribution
• Manufacturing machinery
• Process automation systems
• Distributed automation installations
• Production line control systems
• Industrial control panels
• Automation system maintenance and replacement

Advantages

Reliable Power Infrastructure
The 6AG1505-0RA00-7AB0 provides a dedicated power supply solution for compatible automation equipment, helping maintain consistent system operation.

Compact Industrial Construction
Measuring 70 × 147 × 129 mm, the module provides a practical form factor for integration into industrial control cabinets.

Designed for Automation Applications
Its application within Siemens automation environments makes it suitable for control-system installations where compatible power equipment is required.

Supports System Stability
A properly selected power supply helps connected PLC, I/O, communication, and control components receive an appropriate and consistent electrical supply.

Useful for Replacement Projects
The module can be used when maintaining compatible automation equipment and replacing an existing power supply that requires service or renewal.

Suitable for System Expansion
When the system power budget permits, the power supply can form part of an expanded automation architecture with additional compatible components.

Technical FAQs

1. What is the Siemens 6AG1505-0RA00-7AB0?
The Siemens 6AG1505-0RA00-7AB0 is a Power Supply designed for compatible industrial automation and control-system applications.

2. What is the main function of this power supply?
Its primary function is to provide the required electrical power to compatible automation system components.

3. Where is the 6AG1505-0RA00-7AB0 typically installed?
It can be installed in suitable industrial control cabinets, automation panels, and compatible Siemens system configurations.

4. Why is power supply selection important in an automation system?
The power supply must meet the electrical requirements and total load of the connected equipment. An appropriately selected supply helps prevent power-related interruptions and unstable system operation.

5. What should be verified before installing this module?
Engineers should verify electrical specifications, wiring requirements, system compatibility, mounting conditions, environmental requirements, and the total power consumption of connected equipment.

6. Can this power supply support an expanded automation system?
It can be considered for system expansion when the additional modules remain within the power supply's specified capacity and the overall architecture is compatible.

7. What are common indications of a power supply problem?
Typical symptoms can include loss of power to connected modules, unexpected controller resets, system shutdowns, communication interruptions, or power-related diagnostic conditions.

8. How can a suspected power supply fault be investigated?
Check the incoming electrical supply, protective devices, wiring, output condition, connected load, and available diagnostic indicators. Electrical measurements should be performed according to appropriate safety procedures.

9. Can an excessive connected load cause automation problems?
Yes. If the connected load exceeds the available power capacity, the system may experience voltage instability, unexpected resets, or loss of operation.

10. What are the dimensions and weight of the 6AG1505-0RA00-7AB0?
The power supply measures 70 × 147 × 129 mm and weighs 0.5 kg (1.10 lb).
