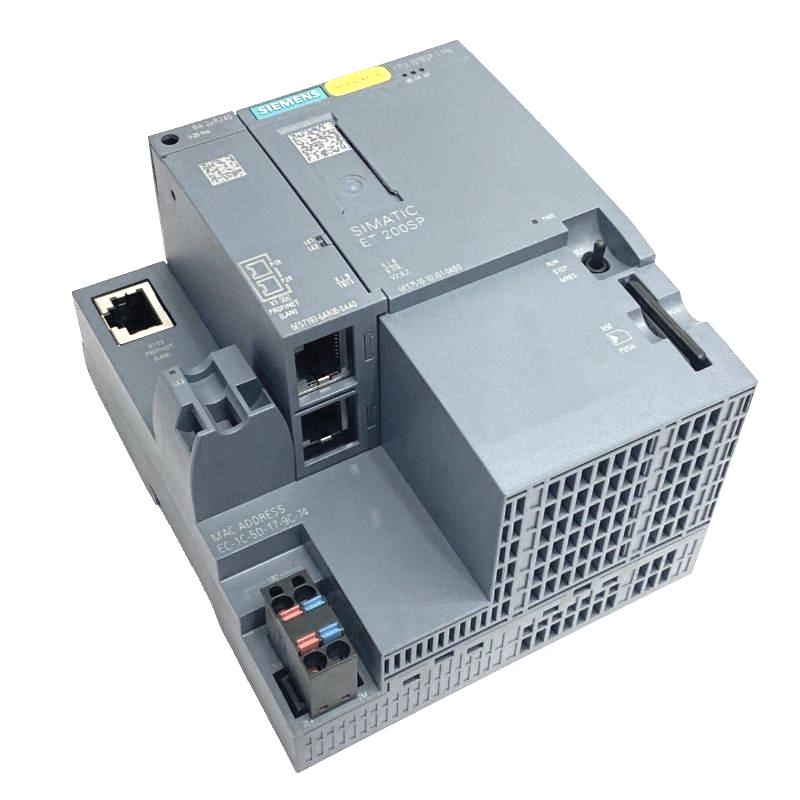

Siemens 6AG1510-1DJ01-2AB0 Central Processing Unit

Applications

The Siemens 6AG1510-1DJ01-2AB0 Central Processing Unit is designed for industrial automation applications where centralized control, logic processing, and reliable machine or process coordination are required. As the processing core of a compatible Siemens automation system, the CPU can execute the control program, process input and output information, and coordinate communication with connected system components.

It is suitable for machine automation, production equipment, distributed control architectures, and industrial process applications. The compact form factor is particularly useful for control cabinets where installation space needs to be managed efficiently.

Typical applications include:

• Industrial machine control
• Factory automation systems
• Production line control
• Process automation
• Distributed automation architectures
• PLC-based control systems
• Control cabinet installations
• Automation system modernization and replacement

Advantages

Centralized Control Processing
The CPU provides the processing capability required to execute automation logic and coordinate connected control-system components.

Efficient Automation Architecture
The 6AG1510-1DJ01-2AB0 can serve as the central processing element of a compatible Siemens automation configuration, simplifying system organization and control.

Compact Installation
With dimensions of 100 × 117 × 75 mm, the CPU offers a space-efficient form factor for industrial control cabinets.

Suitable for Industrial Control
The CPU is designed for demanding automation applications where consistent program execution and reliable system coordination are important.

Flexible System Integration
It can work as part of a broader automation architecture involving I/O modules, communication components, and other compatible Siemens equipment.

Useful for Replacement Projects
The module can be considered for maintenance and modernization applications where a compatible Siemens CPU needs to be replaced.

Technical FAQs

1. What is the Siemens 6AG1510-1DJ01-2AB0 used for?
The 6AG1510-1DJ01-2AB0 is a Central Processing Unit designed to perform control-program execution and coordinate compatible industrial automation system components.

2. What is the role of a CPU in an industrial automation system?
The CPU executes the control program, processes system data, manages control logic, and coordinates communication and operation with connected automation components.

3. Can the CPU be used for machine automation?
Yes. A compatible Siemens CPU can be used as the central controller for machinery, production equipment, and other automated processes.

4. What should be checked before installing the 6AG1510-1DJ01-2AB0?
System compatibility, supported modules, communication requirements, power requirements, software configuration, mounting conditions, and the existing automation architecture should be verified before installation.

5. Can this CPU be used in a distributed automation system?
Yes, when configured with compatible communication and I/O components, a central CPU can coordinate distributed automation equipment across a larger control architecture.

6. What can cause a CPU to fail to enter normal operation?
Possible causes include incorrect power supply, wiring problems, configuration errors, incompatible hardware, communication problems, or faults in the CPU or connected modules.

7. How should a CPU fault be investigated?
Check the power supply and wiring first, then review CPU diagnostic indications and system configuration. Connected modules and communication interfaces should also be checked for configuration or hardware problems.

8. Why is the automation program important when replacing a CPU?
The CPU executes the control program that defines the machine or process behavior. The correct program and hardware configuration must therefore be available and compatible with the replacement CPU.

9. Can the CPU be used when upgrading an existing automation system?
It may be suitable for a system upgrade when the CPU, engineering software, communication architecture, I/O modules, and other system components are compatible.

10. What are the dimensions and weight of the 6AG1510-1DJ01-2AB0?
The CPU measures 100 × 117 × 75 mm and weighs 0.395 kg (0.87 lb).
