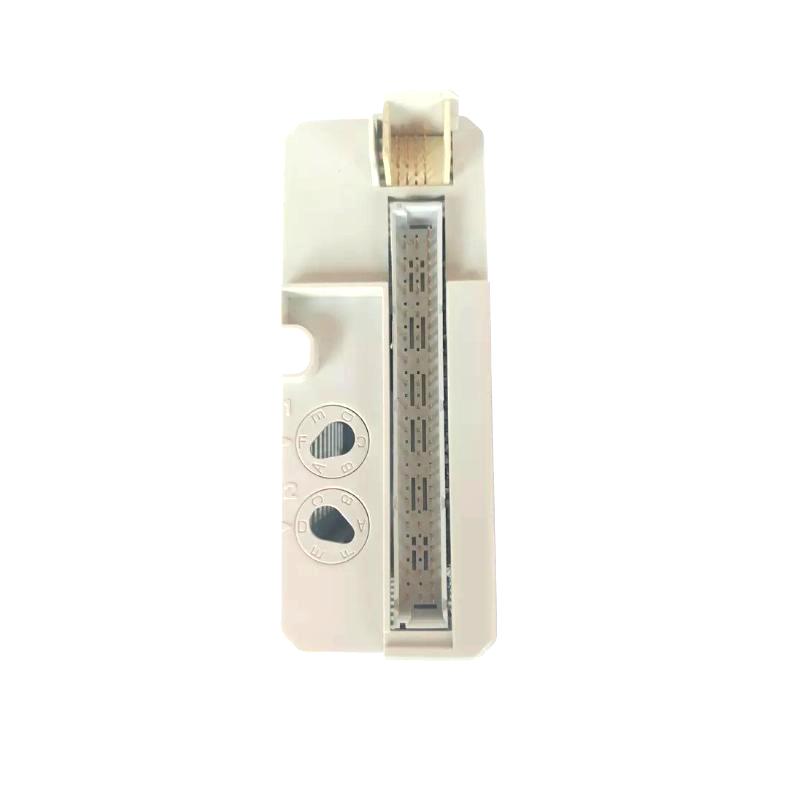

The ABB AI880A Analog Input Module is designed to provide precise and reliable analog signal processing in industrial automation systems. Integrated into the AC 800M control platform, this module is optimized for high-performance data acquisition across a wide range of industrial processes. With support for multiple input signal types, including voltage and current, the AI880A is the perfect choice for applications in power generation, water treatment, manufacturing, and many other industries that require continuous, real-time monitoring.

This versatile module offers 8 channels of analog input, enabling it to handle multiple analog signals simultaneously. Its accuracy and fast processing capabilities make it ideal for tasks that require quick response times and high levels of precision, ensuring system reliability and performance in demanding environments.

Technical Specifications

Feature	Specification
Module Type	Analog Input Module (AI880A)
Input Channels	8 Analog Inputs
Input Type	Voltage (0-10V), Current (4-20mA)
Resolution	16-bit
Power Supply	24 VDC
Input Impedance	> 1 MΩ
Mounting	DIN Rail Mount
Operating Temperature	-25°C to 70°C
Weight	0.35 kg
Dimensions	130 mm (W) x 120 mm (H) x 70 mm (D)
Accuracy	±0.1% Full Scale
Response Time	< 1 ms

Recommended Related Models

ABB AI840A – Offers higher-channel capacity for more extensive analog data processing.
ABB AO810 – Analog output module that integrates with AI880A for controlling field devices.
ABB DI810 – Digital input module for precise monitoring of discrete signals.

Popular ABB Models

ABB AC 800M Controller – The backbone of ABB’s advanced automation systems, compatible with all ABB I/O modules.
ABB AI830A – A highly reliable 16-channel analog input module for larger applications requiring precision.
ABB DO820 – Digital output module for controlling actuators and other field devices.
ABB AO830 – Analog output module for precise control over industrial equipment.

Applications

The ABB AI880A Analog Input Module is ideal for industrial applications that require accurate, real-time data acquisition, including:

Power Generation – Monitor power plant processes such as temperature, pressure, and flow.
Water Treatment – Capture critical water quality measurements, such as pH, turbidity, and dissolved oxygen.
Manufacturing – Use for process control and monitoring various parameters on the production floor.
Renewable Energy – Capture data from wind turbines or solar panels to optimize energy production.

Advantages

Exceptional Accuracy: The 16-bit resolution and ±0.1% full-scale accuracy ensure precise and reliable analog measurements for any critical process.
Multiple Input Types: Supports both voltage and current inputs (0-10V, 4-20mA), offering flexibility across various applications.
Compact and Space-Saving: The slim design allows easy mounting on DIN rails, optimizing space in industrial control cabinets.
Wide Temperature Range: With an operational temperature range of -25°C to 70°C, the AI880A is built to withstand extreme conditions.
Fast Response Time: The module features a rapid response time of less than 1 ms, minimizing delay in industrial processes.

Technical FAQs

What types of analog signals can the AI880A module handle?
- The AI880A can handle both voltage (0-10V) and current (4-20mA) signals, providing flexibility for various industrial monitoring needs.
What is the resolution of the AI880A?
- The module has a 16-bit resolution, ensuring high-precision data acquisition.
How many input channels are available on the AI880A?
- The AI880A offers 8 analog input channels for versatile data collection from multiple sources.
What is the operating temperature range for the AI880A?
- The AI880A operates efficiently within a wide temperature range of -25°C to 70°C.
What is the accuracy of the AI880A module?
- The AI880A has an accuracy of ±0.1% of full scale, ensuring reliable and consistent measurements.
How is the AI880A mounted?
- The module is designed for easy DIN rail mounting, making it quick to install and reducing space requirements.
Can the AI880A be used in hazardous areas?
- The module is suitable for use in non-hazardous industrial environments. However, for hazardous areas, additional considerations may be needed.
What is the response time of the AI880A?
- The module provides a fast response time of less than 1 ms, allowing for real-time data processing.
What type of power supply is needed for the AI880A?
- The module operates with a 24 VDC power supply for reliable performance.
In which industries is the AI880A most beneficial?
- The AI880A is widely used in power generation, water treatment, manufacturing, and other industries requiring precise analog data acquisition.
