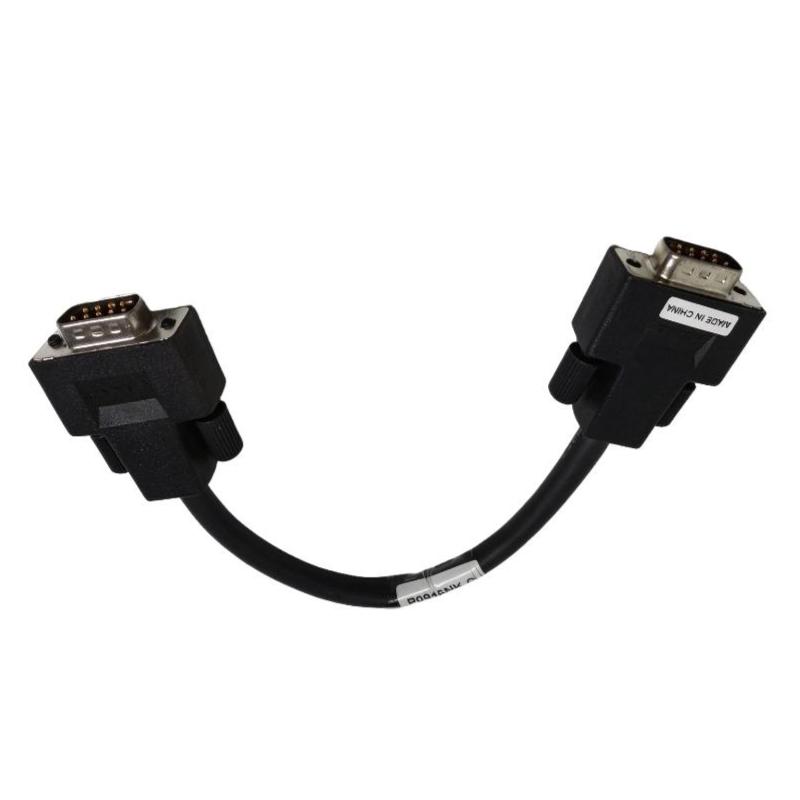

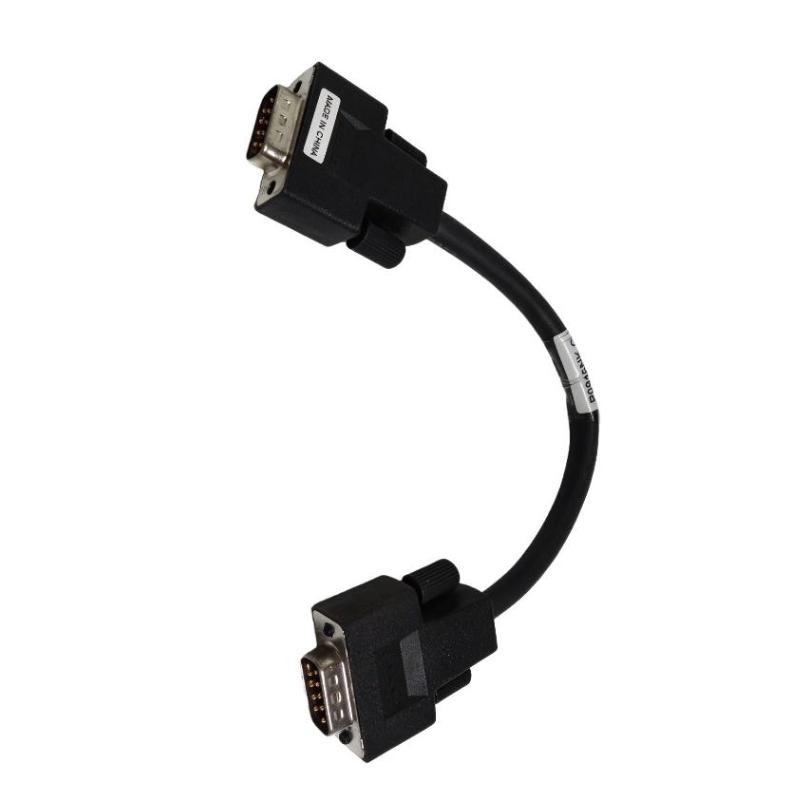

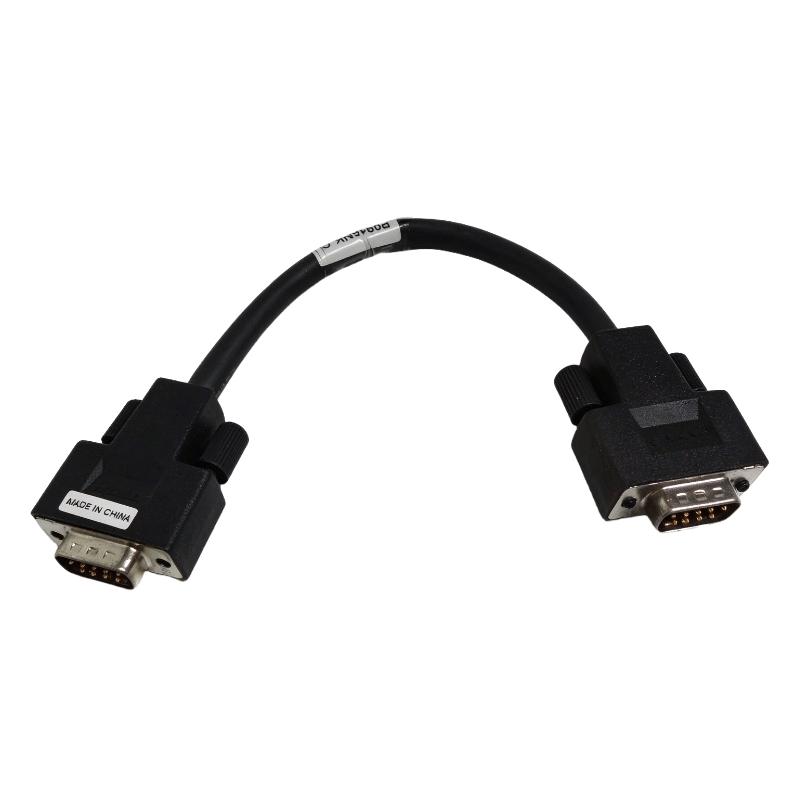

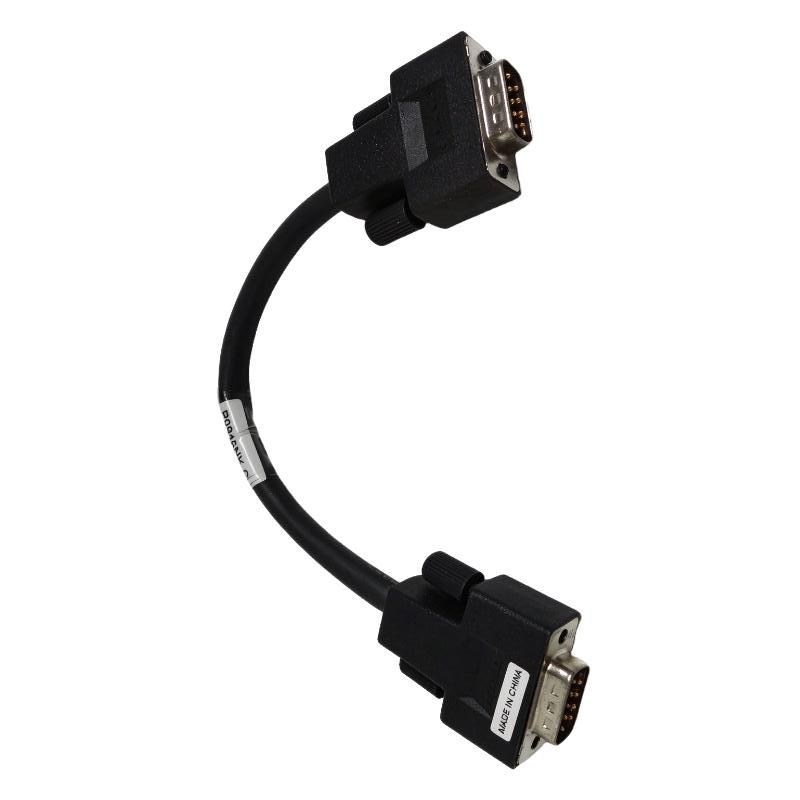

Foxboro P0917JJ Base Station-to-Base Station Cable

Applications

The Foxboro P0917JJ base station interconnection cable is an original spare component built for Foxboro I/A Series distributed control systems. It is installed inside sealed control cabinets to establish dedicated communication links between paired redundant base stations or baseplates. It is applied in continuous process industries including oil refining, chemical production, thermal power generation, pulp and paper manufacturing, and industrial wastewater treatment DCS control panels. Common use scenarios include base station spare replacement, control cabinet rack rearrangement, planned system shutdown maintenance, and DCS hardware upgrade projects requiring certified inter-base-station cabling.

Advantages

Manufactured to official Foxboro electrical and mechanical specifications, this cable maintains the required impedance and signal timing for I/A Series base station redundancy communication. Full shielding suppresses electromagnetic interference from adjacent variable frequency drives and high-current power wiring, securing stable synchronization signals. Factory pre-terminated connectors retain the standard pin assignment, avoiding wiring faults caused by on-site custom cable assembly. Each cable undergoes continuity and signal integrity testing prior to factory release. The fixed 0.5-meter length accommodates rack layouts with moderate spacing between base station units and complies with Foxboro DCS design rules for redundant communication paths.

Technical FAQs

1. Q: Which DCS hardware platform is P0917JJ designed for? A: It is designed exclusively for Foxboro I/A Series DCS, used to build communication links between redundant base stations or baseplates.
2. Q: What type of signals does this cable transmit between base stations? A: It carries dedicated synchronization, status and handshaking signals to support primary and standby base station automatic failover.
3. Q: Can multiple P0917JJ cables be cascaded to extend the connection distance between base stations? A: Cascading multiple cables is not allowed. The I/A Series base station communication has strict timing and impedance requirements, and cascading will cause signal distortion and abnormal failover.
4. Q: Can P0917JJ be used to connect FBM modules to field transmitters or sensors? A: No, it is a dedicated base station interconnection cable and cannot be used for field analog or discrete I/O instrument wiring.
5. Q: What is the approved installation environment of P0917JJ? A: It is approved for installation in indoor sealed control cabinets only. It is not suitable for outdoor, wet or hazardous classified field areas.
6. Q: What adverse effects will occur if the cable is laid in parallel with high-current AC power cables? A: Parallel routing will introduce EMI noise, interfere with synchronization signals and may trigger intermittent base station communication link failures.
7. Q: Can maintenance personnel re-crimp and repair the connectors of this cable on site after damage? A: On-site re-termination is not accepted. Factory-terminated connectors are part of the qualified assembly; field modification changes electrical characteristics and invalidates factory verification.
8. Q: Will the I/A Series system issue diagnostic alarms when this interconnection cable fails? A: When the communication link is interrupted, the I/A Series HMI will record base station link fault alarms for operator notification.
9. Q: Can P0917JJ directly replace other Foxboro base station-to-base station cables with different part numbers? A: Direct substitution is not permitted. Different part numbers have distinct pinouts, conductor specifications and fixed lengths, which do not meet system matching requirements.
10. Q: Does this cable transmit DC power supply signals between two base stations? A: No, it only transmits digital synchronization communication signals and does not carry power supply circuits between base station hardware.
