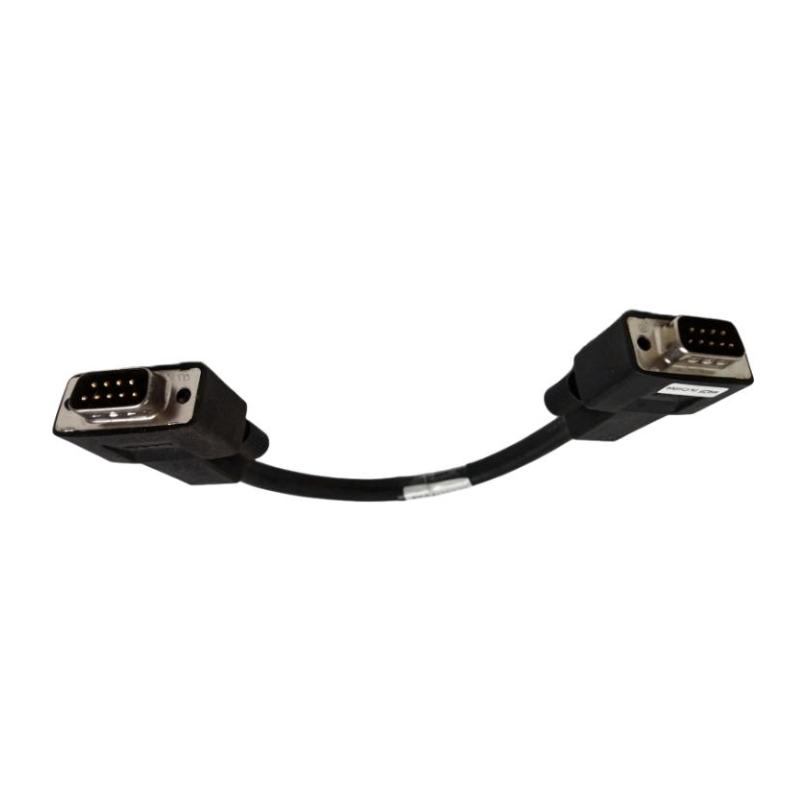

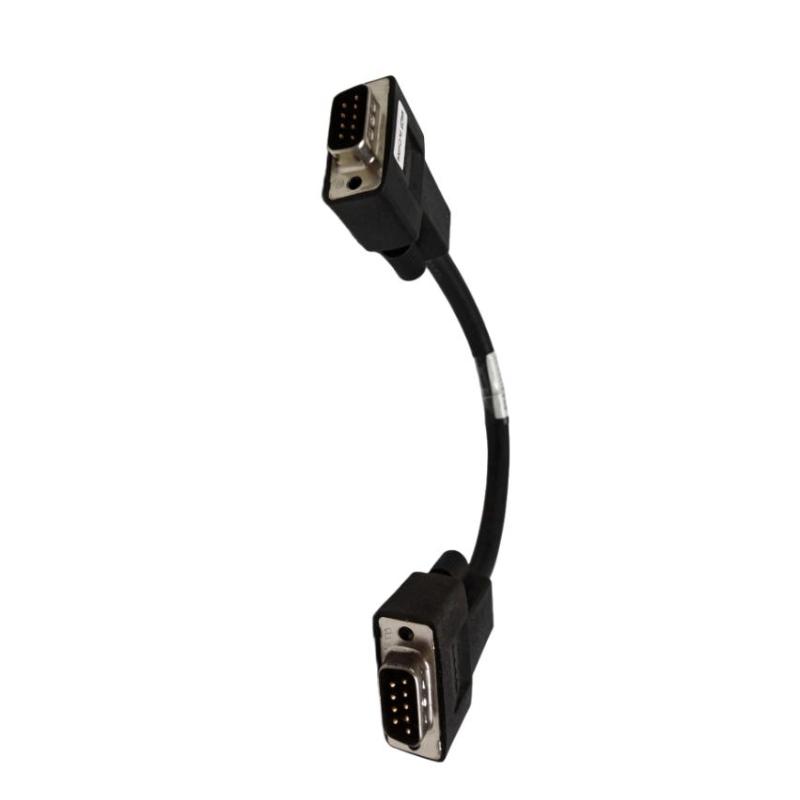

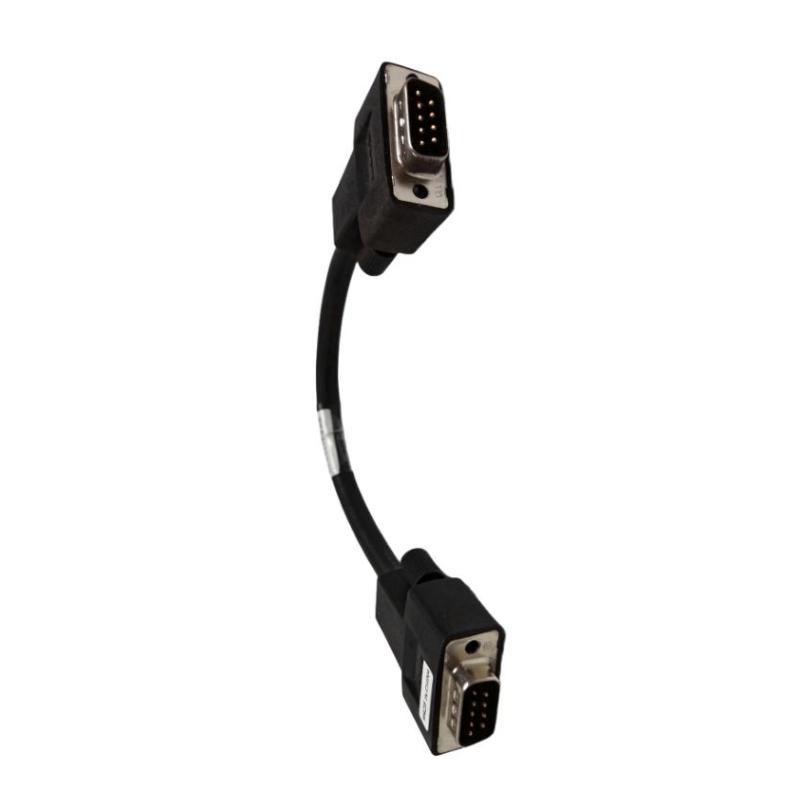

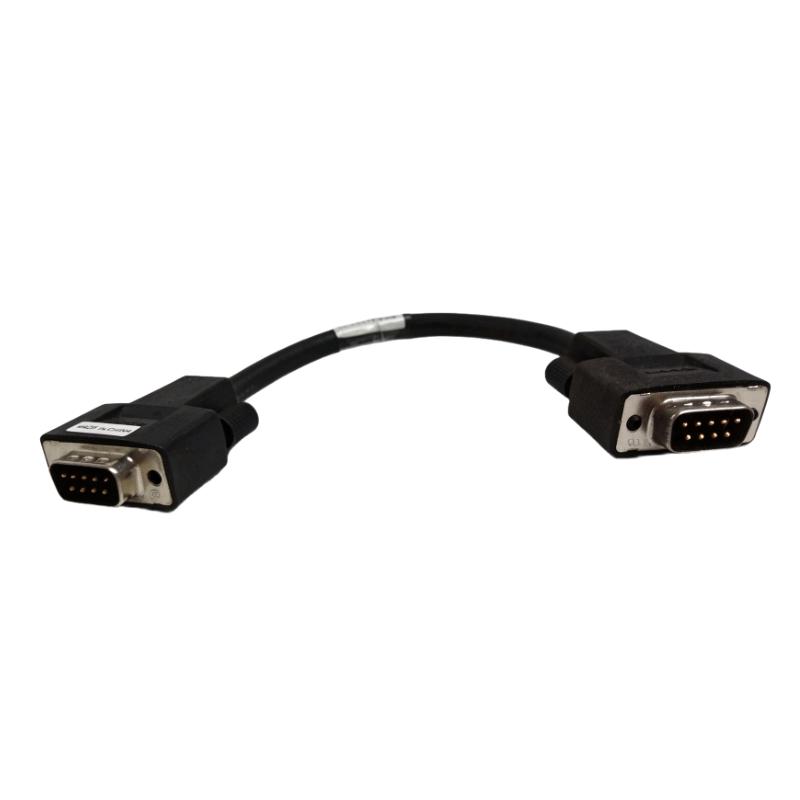

Foxboro RH917JJ Base Station-to-Base Station Cable

Applications

The Foxboro RH917JJ base station interconnect cable is an authentic replacement spare for Foxboro I/A Series distributed control systems. It is installed inside sealed indoor control cabinets to establish dedicated communication links between redundant base station and baseplate pairs. This component serves continuous process facilities including thermal power plants, oil refineries, chemical complexes, pulp and paper mills, and industrial water treatment DCS control assemblies. Typical deployment scenarios cover spare part replacement, control rack reconfiguration, scheduled shutdown maintenance, and hardware upgrade projects requiring factory-certified inter-base-station cabling for redundancy coordination.

Advantages

RH917JJ is a revised production variant compatible with I/A Series base station communication, retaining the factory-defined impedance and timing characteristics essential for stable redundancy handshaking. Its fully shielded multi-conductor design mitigates electromagnetic interference generated by nearby variable frequency drives and high-current power circuits. Factory-terminated connectors maintain fixed pin assignment, eliminating risks associated with field-fabricated cable assemblies. Every cable undergoes continuity and signal integrity validation prior to shipment. The fixed 0.5-meter length accommodates rack layouts with moderate spacing between adjacent baseplates and adheres to Foxboro DCS wiring specifications for redundant communication pathways.

Technical FAQs

1. Q: What DCS platform is the RH917JJ cable engineered for? A: It is built exclusively for Foxboro I/A Series DCS to create communication links between redundant base stations and baseplates.
2. Q: What type of signals travel through this base station-to-base station cable? A: It carries digital synchronization, status and handshake signals to enable automatic primary-to-standby failover between paired base station hardware.
3. Q: Can technicians cascade multiple RH917JJ cables to increase the separation distance between base stations? A: Cascading multiple units is not approved. I/A Series base station communication has strict timing and impedance constraints; cascading degrades signal quality and may trigger unpredictable failover events.
4. Q: Is RH917JJ suitable for connecting FBM field modules to field transmitters or process sensors? A: No. It is a dedicated inter-baseplate communication cable and cannot be used for analog or discrete field instrument I/O wiring.
5. Q: What environments are permitted for RH917JJ installation? A: Installation is limited to indoor sealed control cabinets. It is not rated for outdoor exposure, wet locations or hazardous classified field areas.
6. Q: What consequences arise if the cable runs parallel alongside high-current AC power cables? A: Parallel routing introduces EMI noise, disturbs synchronization signals and can create intermittent base station communication link faults.
7. Q: Can damaged connectors on RH917JJ be re-crimped and repaired on-site by maintenance teams? A: Field re-termination is not permitted. Factory-terminated connectors form part of the qualified assembly; on-site modification alters electrical performance and voids factory compliance validation.
8. Q: What diagnostic notification will the I/A Series system generate if this cable communication link fails? A: Upon link loss, the I/A Series HMI will log base station communication fault alarms to notify plant operators of the connectivity disruption.
9. Q: Can RH917JJ directly substitute other Foxboro base station-to-base station cables with different part numbers? A: Direct cross-substitution is not allowed. Different part numbers feature unique pinouts, conductor specifications and fixed lengths that do not match system electrical requirements.
10. Q: Does RH917JJ transport DC power between the connected base station hardware? A: No. It only transmits digital synchronization communication signals and does not carry power supply circuits between base stations.
