Introduction

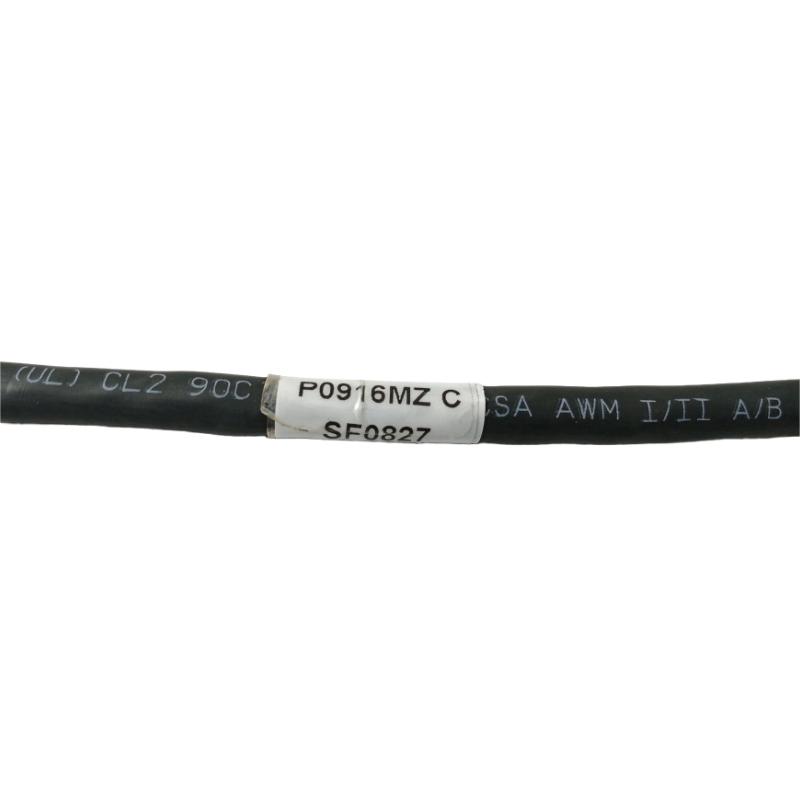

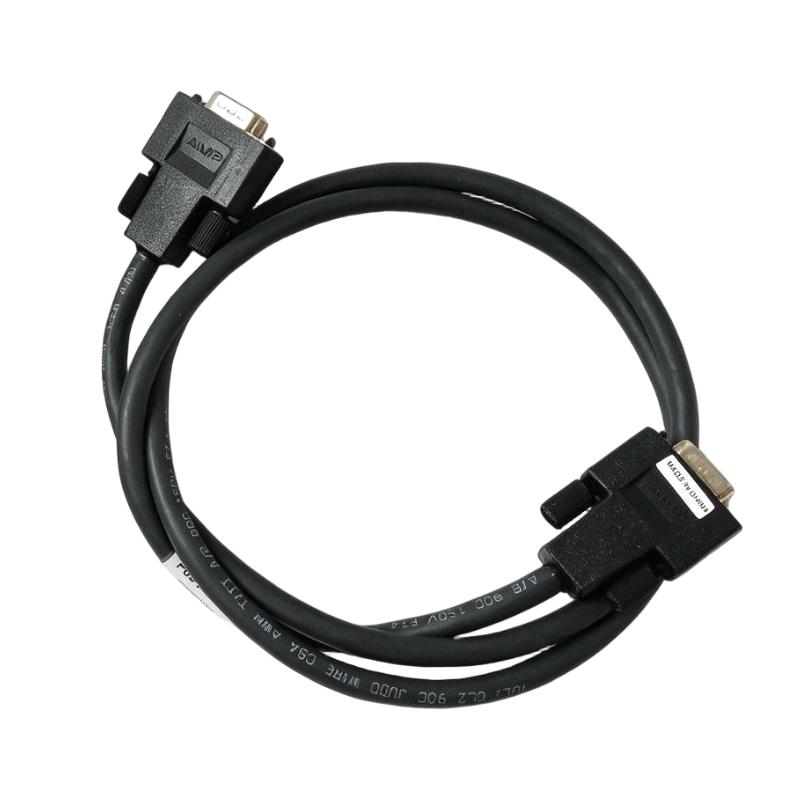

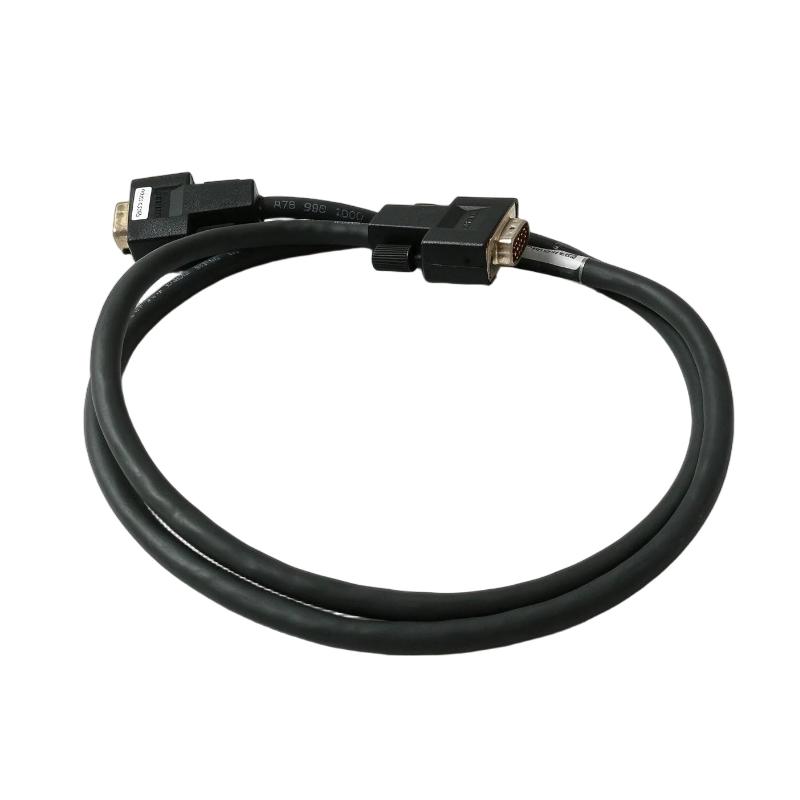

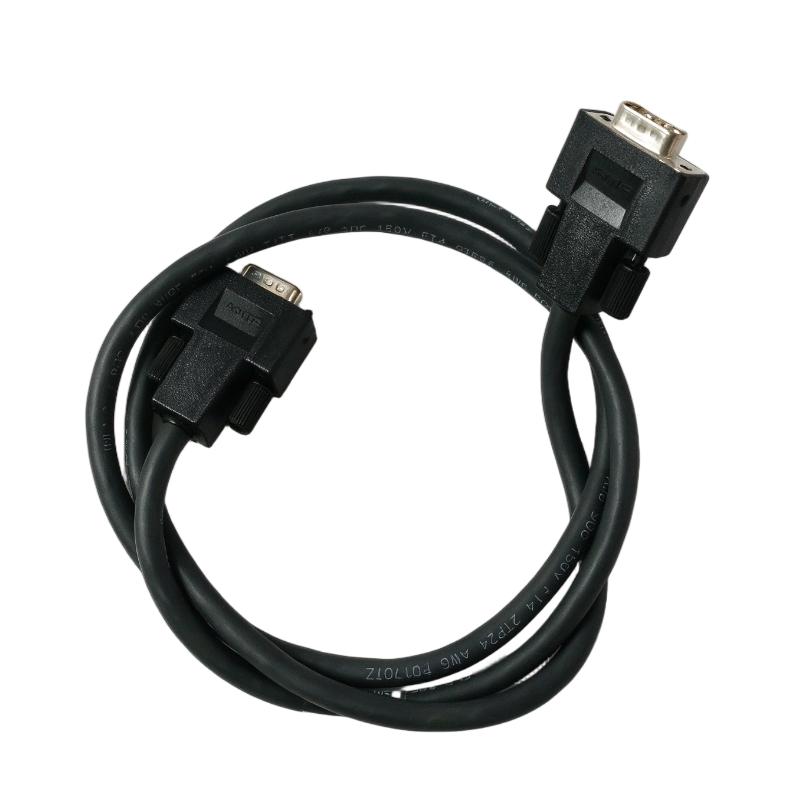

The Foxboro P0916MZ Base-To-Base Cable is a factory-qualified interconnection spare for Foxboro I/A Series DCS redundant base station assemblies. This fixed 1-meter shielded multi-conductor cable is used to interconnect paired base stations and baseplates inside control room cabinets. It preserves precise electrical parameters required for reliable redundancy handshake and seamless primary/standby switchover upon hardware failure. This cable is commonly kept as maintenance spare stock for process plants and deployed during cabinet reconfiguration, baseplate replacement and periodic DCS system overhauls. All installation operations must strictly follow Foxboro official guidelines for cable routing, wire separation and shielding grounding.

Technical Specifications

表格

Parameter	Value
Model	P0916MZ
Product Type	Base-To-Base Cable
Nominal Cable Length	1 m
Cable Construction	Shielded multi-conductor signal cable
Installation Location	Indoor sealed control cabinet
Operating Ambient Temperature	0°C ~ 70°C
Shipping Weight	3.00 kg / 6.61 lb

Recommended Related Models

Foxboro P0914WN Base Station Power Cable
Foxboro P0907CA Base Station Grounding Cable
Foxboro P0917JJ Base Station-to-Base Station Cable (0.5m)

Popular Related Models

Foxboro RH916MZ Base-To-Base Cable (1m)
Foxboro P0916ND Base Station-to-Base Station Cable (0.25m)
Foxboro RH917JJ Base Station-to-Base Station Cable (0.5m)

Applications

The Foxboro P0916MZ Base-To-Base Cable is an original spare part developed for Foxboro I/A Series distributed control systems. It is mounted inside enclosed control cabinets to establish dedicated communication pathways between paired redundant base stations and baseplates. It is widely adopted in continuous process industries including oil refining, chemical processing, coal-fired power plants, pulp and paper facilities, and industrial wastewater treatment DCS panels. Typical application scenarios include spare part inventory replenishment, control cabinet re-layout, planned outage maintenance, and DCS hardware retrofit projects requiring factory-certified base-to-base interconnection for redundancy coordination.

Advantages

Manufactured in compliance with Foxboro official electrical and mechanical standards, this cable maintains the specified impedance and signal timing critical for I/A Series base station redundancy communication. Its fully shielded multi-conductor construction suppresses electromagnetic interference induced by nearby variable frequency drives and heavy-current power wiring, stabilizing synchronization data transmission. Factory pre-terminated connectors retain standard pin definitions, eliminating wiring defects from field-made cable assemblies. Every unit undergoes continuity and signal integrity inspection before factory release. The fixed 1-meter length accommodates rack arrangements with larger spacing between base station hardware and meets Foxboro DCS wiring specifications for redundant communication links.

Technical FAQs

Q: Which DCS hardware family is the P0916MZ cable designed for? A: It is exclusively engineered for Foxboro I/A Series DCS to realize communication links between redundant base stations and baseplates.
Q: What kinds of signals are transmitted by this base-to-base cable? A: It delivers dedicated digital synchronization, operating status and handshake signals to support automatic primary/standby failover of paired base station units.
Q: Can multiple P0916MZ cables be cascaded to extend the distance between two base stations? A: Cascading multiple cables is not permitted. I/A Series base station communication has strict timing and impedance constraints; cascading will distort signals and cause abnormal redundancy switching.
Q: Can P0916MZ be applied to connect FBM modules with field transmitters or process sensors? A: No. It is a dedicated baseplate interconnection cable and cannot be used for analog or discrete field I/O instrument wiring.
Q: What installation environments are approved for P0916MZ? A: It can only be installed within indoor sealed control cabinets. It is not rated for outdoor exposure, wet areas or hazardous classified field locations.
Q: What risks will occur if the cable is routed parallel to high-current AC power cables? A: Parallel laying will introduce EMI noise, disrupt synchronization signals and possibly trigger intermittent communication failures of base station links.
Q: Can maintenance technicians re-crimp and repair damaged cable connectors on site? A: Field re-termination is not accepted. Factory-terminated connectors are part of the qualified assembly; on-site modification alters electrical characteristics and invalidates factory validation.
Q: What alarm information will the I/A Series system generate if this base-to-base cable fails? A: Once the communication link is interrupted, the I/A Series HMI will record base station communication fault alarms to remind operators of connectivity loss.
Q: Can P0916MZ directly replace other Foxboro base-to-base cables with different part numbers? A: Direct cross-substitution is not allowed. Different part numbers have different pinouts, conductor parameters and fixed lengths that fail to match system electrical requirements.
Q: Does the P0916MZ cable carry DC power supply signals between base station hardware? A: No. It only transmits digital synchronization communication signals and does not bear power supply circuits between base stations.
