Introduction

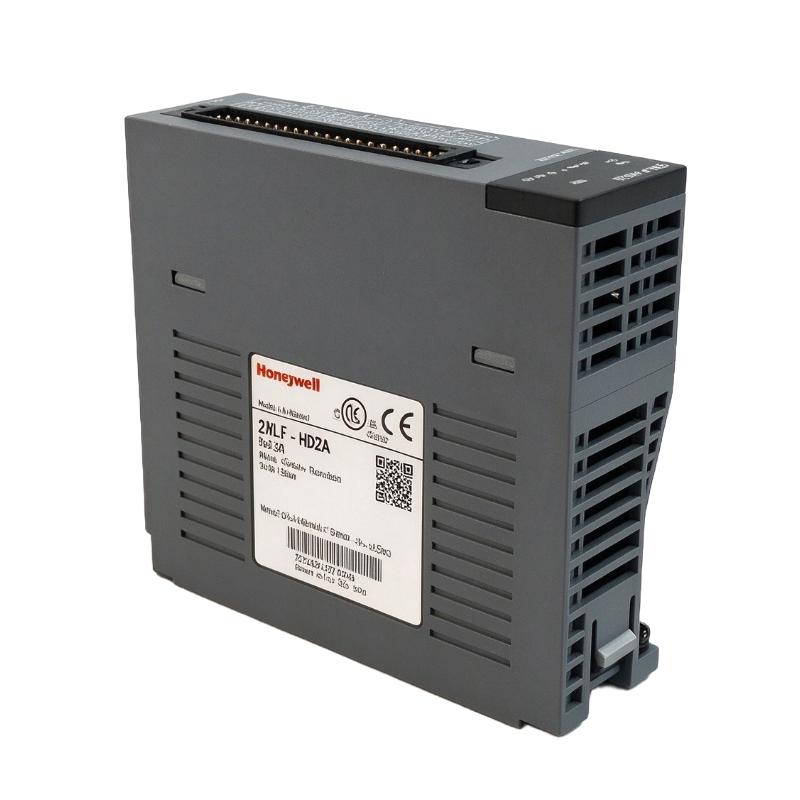

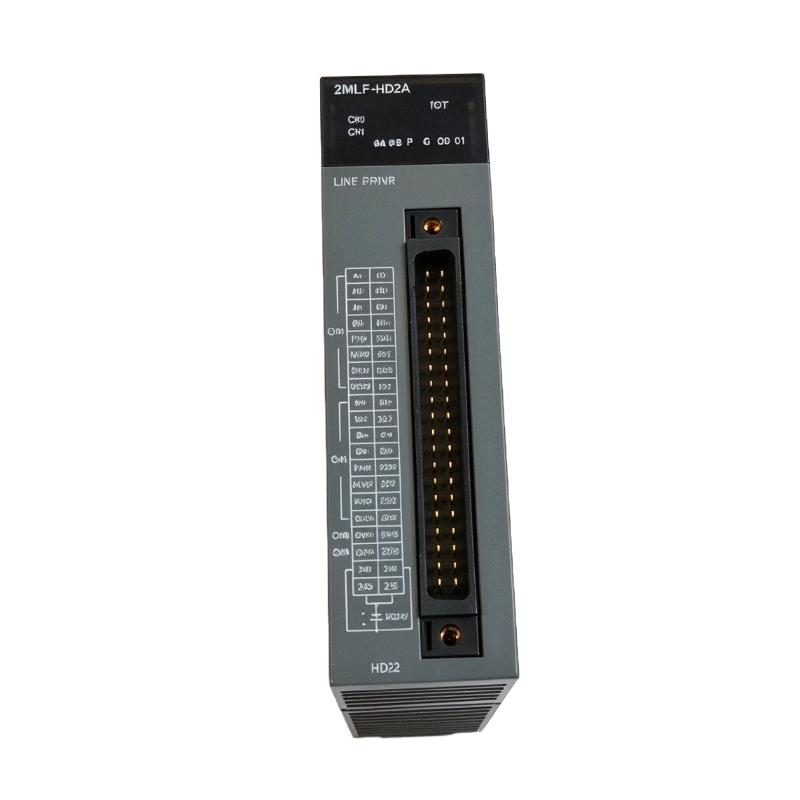

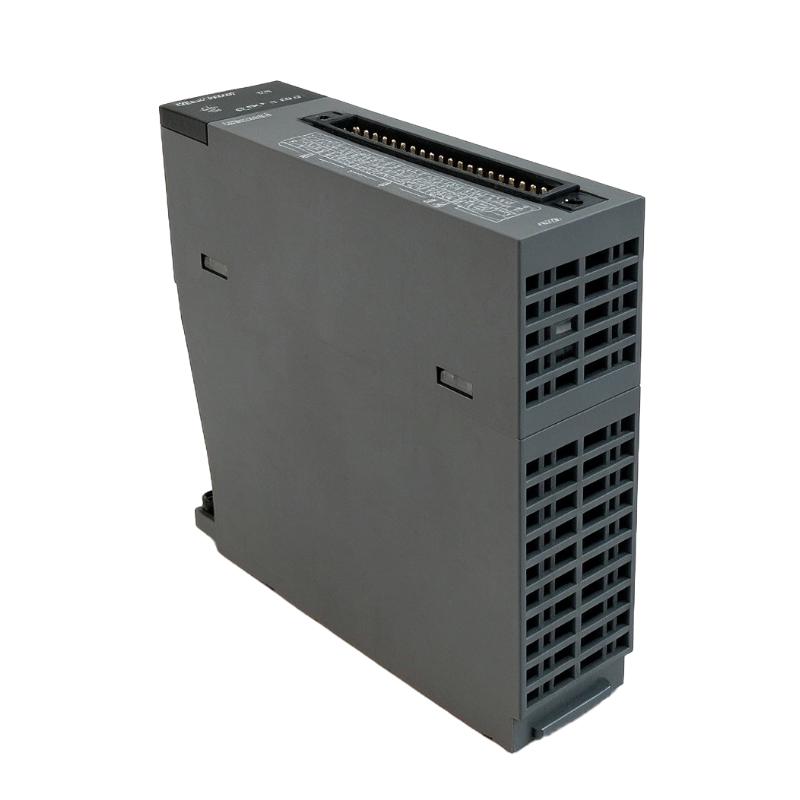

The Honeywell 2MLF-HD2A High-Speed Counting Module is a specialized PLC module developed for applications that require fast, dependable pulse counting. Designed for the MasterLogic-200 platform, it supports encoder-based measurement and machine-control functions where standard digital inputs may not provide the required counting performance.

Its differential line-driver input design supports compatible A-phase and B-phase signals, while the maximum specified counting frequency reaches 500 kpps for RS-422A inputs. HTL line-drive applications have a lower specified maximum of 250 kpps, so the signal interface must be selected carefully.

The module's programmable counting modes, preset functionality, gate control, and comparison features provide flexibility for different automation tasks. These capabilities can support position monitoring, rotational measurement, production sequencing, and other pulse-based control applications when configured correctly.

For system integrators and maintenance engineers, the 2MLF-HD2A offers a dedicated high-speed counting solution within a compatible Honeywell control architecture. Proper encoder selection, wiring practices, and PLC configuration are essential to achieving reliable performance.

Technical Specifications

Parameter	Specification
Brand	Honeywell
Model Number	2MLF-HD2A
Product Type	High-Speed Counting Module
PLC Platform	MasterLogic-200
Number of Channels	2
Input Type	Differential input, line-driver type
Supported Signal Levels	RS-422A line drive / HTL-level line drive
Maximum Counting Speed	500 kpps for RS-422A; 250 kpps for HTL input
Encoder Signals	A-phase and B-phase
Counting Modes	Single-phase, two-phase, and CW/CCW modes, subject to configuration
Functional Features	Preset, gate, count control, and comparison functions
Internal Current Consumption	270 mA

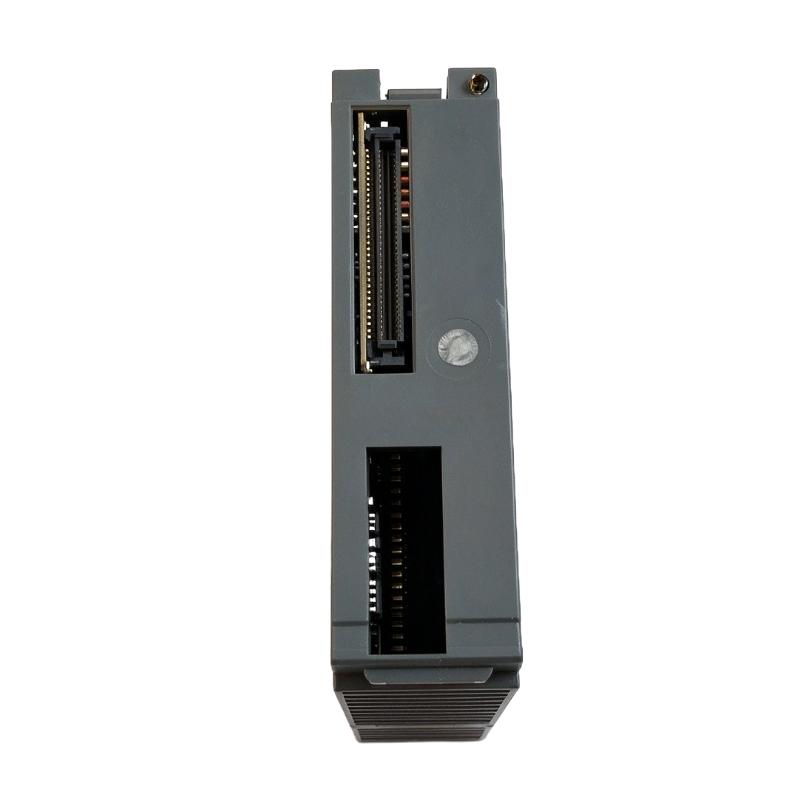

Connector	40-pin connector
Dimensions	113 × 27 × 98 mm
Net Weight	0.09 kg / 0.20 lb

Technical Note: The dimensions and weight above are based on the supplied product information. Confirm the applicable hardware revision and installation requirements before procurement or replacement.

Recommended Related Models

The following Honeywell MasterLogic-200 modules may complement the 2MLF-HD2A in compatible PLC installations. Each serves a different function and should be selected according to the system's I/O and communication requirements.

Model	Product Type	Main Function
Honeywell 2MLF-HO2A	High-Speed Counting Module	Two-channel counting with voltage/open-collector inputs
Honeywell 2MLF-SOEA	Sequence of Events Input Module	Captures time-related digital input events
Honeywell 2MLF-AV8A	Analog Input Module	Eight-channel voltage input
Honeywell 2MLF-AC8A	Analog Input Module	Eight-channel current input
Honeywell 2MLF-AD16A	Analog Input Module	Sixteen-channel voltage/current input

The 2MLF-HO2A is particularly relevant when comparing high-speed counter input architectures. It uses voltage/open-collector inputs and has a specified maximum counting speed of 200 kpps, so it is not a direct technical equivalent to the differential-input 2MLF-HD2A.

Popular Related Models

For broader MasterLogic-200 system maintenance and expansion, the following Honeywell modules provide additional signal processing and communication options.

Model	Product Type	Application
Honeywell 2MLF-DC4A	Analog Output Module	Four-channel current output
Honeywell 2MLF-DV8A	Analog Output Module	Eight-channel voltage output
Honeywell 2MLF-TC4S	Thermocouple Input Module	Four-channel thermocouple temperature measurement
Honeywell 2MLF-RD4A	RTD Input Module	Four-channel resistance temperature detector input
Honeywell 2MLL-C42A	Serial Communication Module	Two-channel RS-422/485 communication

These modules address different automation requirements and are not substitutes for the 2MLF-HD2A. Verify the required I/O functions, system configuration, and module compatibility before selecting components.

Applications

The Honeywell 2MLF-HD2A High-Speed Counting Module is designed for high-speed pulse counting in the MasterLogic-200 PLC platform. With differential line-driver inputs and support for incremental encoder signals, it is suitable for automation tasks that require accurate pulse acquisition and responsive counter processing.

Encoder Feedback Processing: Captures A-phase and B-phase signals from compatible incremental encoders for position and movement monitoring.
High-Speed Production Equipment: Supports pulse-counting tasks in packaging machinery, material handling systems, and automated production lines.
Position and Motion Monitoring: Provides pulse information that PLC programs can use to calculate movement, position, or rotational activity.
Speed Measurement Applications: Supports pulse-based measurement tasks when configured appropriately within the control program.
Industrial Machine Control: Enables high-speed counting functions in compatible MasterLogic-200 automation systems.
Automated Inspection and Synchronization: Provides count information for applications that depend on encoder feedback and coordinated machine operation.

The module's input signal type and maximum counting frequency should be matched to the encoder output and application requirements.

Advantages

High-Speed Pulse Acquisition

The 2MLF-HD2A supports counting speeds of up to 500 kpps with compatible RS-422A line-driver signals. For HTL line-drive inputs, the specified maximum is 250 kpps, making input type an important consideration during system design.

Differential Input Technology

Differential inputs support line-driver encoder connections and can improve resistance to electrical noise when the signal wiring and grounding are implemented correctly.

Two Counting Channels

The module provides two counting channels for applications that require multiple pulse inputs or separate counting functions within a single PLC module.

Flexible Counting Configuration

Programmable operating modes support different counting requirements, including single-phase and two-phase input arrangements. Appropriate configuration allows the module to accommodate different encoder and machine-control applications.

Preset and Gate Functions

Preset and gate functionality supports controlled counting operations. These functions can be incorporated into PLC logic for machine sequencing, position-related tasks, and count initialization.

Integrated Status Monitoring

Module-ready and input-status indicators assist maintenance personnel with basic operational checks and troubleshooting.

Designed for MasterLogic-200 Systems

The 2MLF-HD2A is part of the Honeywell MasterLogic-200 PLC ecosystem, allowing engineers to integrate high-speed counting into a compatible control architecture.

Technical FAQs

Q1: What is the maximum counting speed of the Honeywell 2MLF-HD2A?

The maximum specified counting speed is 500 kpps for compatible RS-422A line-driver input signals. For HTL line-drive input, the specified maximum is 250 kpps.

Q2: How many counting channels does the module provide?

The module provides two counting channels, supporting applications that require two high-speed counting functions.

Q3: Which encoder signals does the module support?

The module supports A-phase and B-phase pulse signals. The encoder output type must match the module's differential input requirements.

Q4: What input signal types are supported?

The module supports differential line-driver inputs, including RS-422A line-drive and HTL-level line-drive signals, subject to the applicable input specifications.

Q5: Can the 2MLF-HD2A process quadrature encoder signals?

Yes. It supports two-phase A/B encoder inputs, allowing quadrature-based counting when the module is configured for the appropriate operating mode.

Q6: What counting modes are available?

The module supports configurable input modes, including single-phase, two-phase, and clockwise/counterclockwise counting arrangements. The selected mode must match the signal source and application requirements.

Q7: Does the module support preset counting?

Yes. A preset function is available, allowing a predetermined count value to be established through the supported control method and module configuration.

Q8: What is the purpose of the gate function?

The gate function controls whether counting is enabled. It can be used in machine sequences where pulse acquisition should occur only during a defined operating interval.

Q9: Can the module generate outputs based on count values?

The module supports configurable comparison functions and transistor outputs. Output behavior depends on the selected comparison conditions, program configuration, and wiring arrangement.

Q10: Which PLC platform is compatible with the 2MLF-HD2A?

The module is designed for the Honeywell MasterLogic-200 PLC platform. Confirm the CPU, base configuration, software requirements, and installation instructions before integrating it into an existing system.
